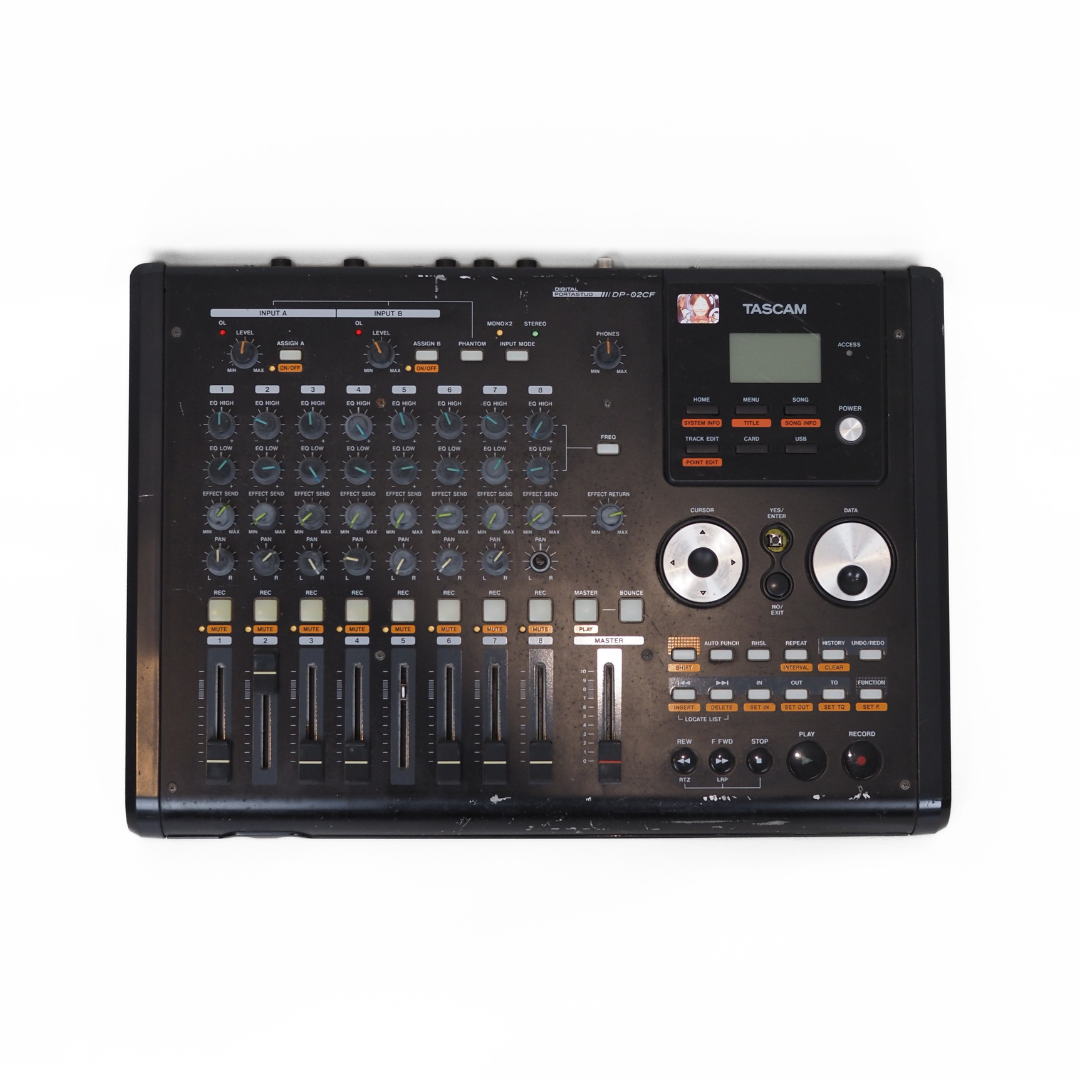

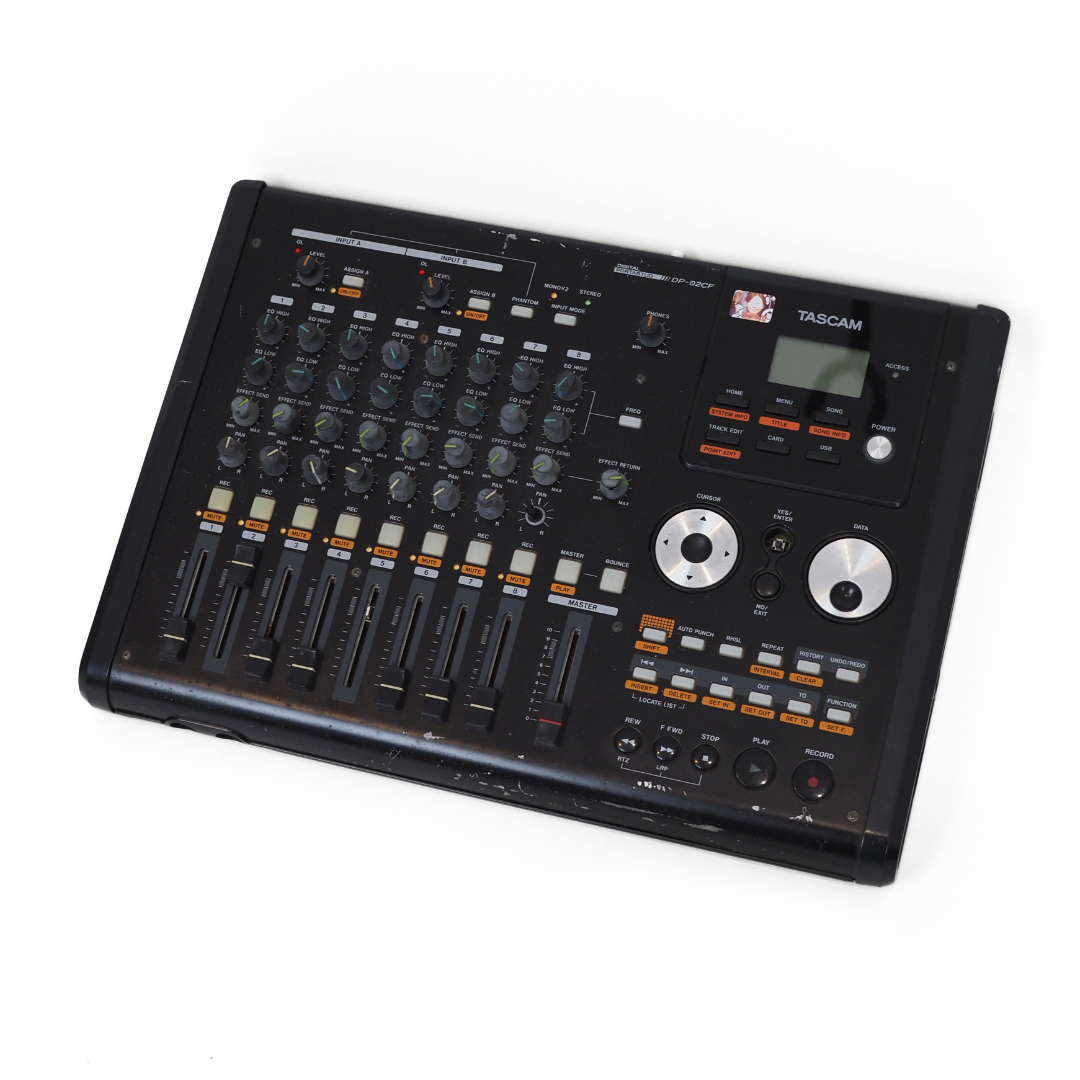

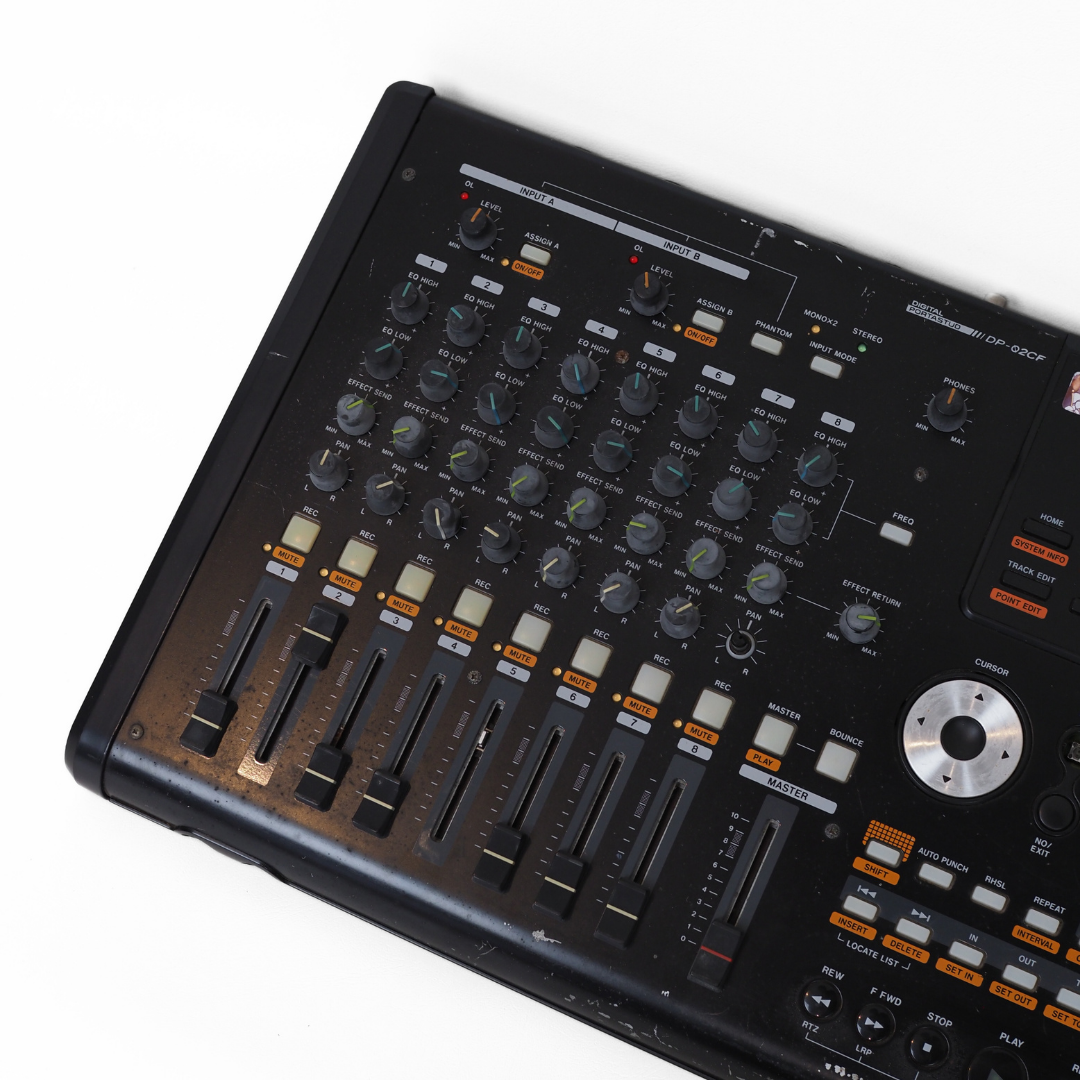

TASCAM DP-02CF Portastudio 8-Track Digital Multitrack Recorder

The TASCAM DP-02CF is a straightforward 8-track Portastudio that combines recording, mixing, and hands-on faders in one compact desktop unit, perfect for songwriting, demos, and small project sessions. With dual mic/line inputs plus a dedicated guitar-ready high impedance option on Input A, it’s built to get ideas down quickly without a computer. It also includes optical S/PDIF digital out for clean transfers to compatible interfaces or recorders.

Note: This unit requires a Compact Flash card to operate, which is not included.

• Recorder type: Digital multitrack recorder and mixer, DP-02CF model (CF based)
• Inputs: 2-channel main inputs (A and B) with 1/4 inch unbalanced and XLR balanced connectors
• Guitar input option: Input A supports 1 MΩ input impedance when set to GUITAR (better for passive pickups)
• Additional inputs: Stereo Mix input on 1/8 inch stereo mini jack (handy for phones, players, keyboards)
• Effects loop: Effect Send (1/4 inch) and Effect Return (dual 1/4 inch) for external pedals and processors
• Outputs: Stereo Line Out via dual RCA plus 1/4 inch stereo headphone out
• Digital output: Optical TOSLINK S/PDIF digital out
• Audio performance: 20 Hz to 20 kHz frequency response, SNR greater than 85 dB, THD less than 0.02%
• Power supply: External adaptor, AC input 100 to 240 V, 50/60 Hz, 12 V DC output, 2.5 A
• Power consumption: 8 W (DP-02CF)
• Dimensions: 416 x 65.4 x 298.6 mm (W x H x D). 4.1kg
