Important Information
The Sennheiser EW IEM G4 is a wireless in-ear monitor (IEM) system designed to send your monitor mix directly to your in-ears. Perfect for use on stage where feedback and noise is a problem, and used by professional singers and performers across the world. Building on the success and popularity of the G3 IEM systems, the new G4 features enhanced RF output of up to 50mW for greater signal strength, new OLED display, and more! Furthermore, the new EW G4 IEM wireless system is backward compatible and will work with your existing G3 beltpack receivers.
Simply plug the system to your monitor send, connect your favorite in ears to the receiver's 3.5mm jack socket and you're ready to go. Giving you extreme clarity along the whole frequency spectru The stereo receiver of the EK IEM G4 wireless is equipped with 1680 frequencies tunable in 25 MHz steps and has 20 fixed frequency banks with up to 16 compatible frequency presets and another 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit display shows current frequency, frequency bank, and channel number, metering of RF level, metering of AF level, lock status, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.
Furthermore, the EW IEM G4 wireless receiver includes a switchable high-boost and a multi-level limiter - adjustable from -18 dB to -6 dB in 6 dB steps or off. Built in a rugged metal housing, it is powered by two 1.5V AA-sized batteries or by a Sennheiser BA 2015 rechargeable accupack. Above all, the Sennheiser EW IEM G4 in ear wireless monitoring system is the perfect solution for on stage, or daily use. It even has flexible wireless synchronization that offers 100 meters or 300 feet range. Delivering professional-quality audio whenever you need it most!
BRAND: Sennheiser
BARCODE/UPC:
Serial Number: Transmitter: SN 4219005337. Receiver: 4209007011

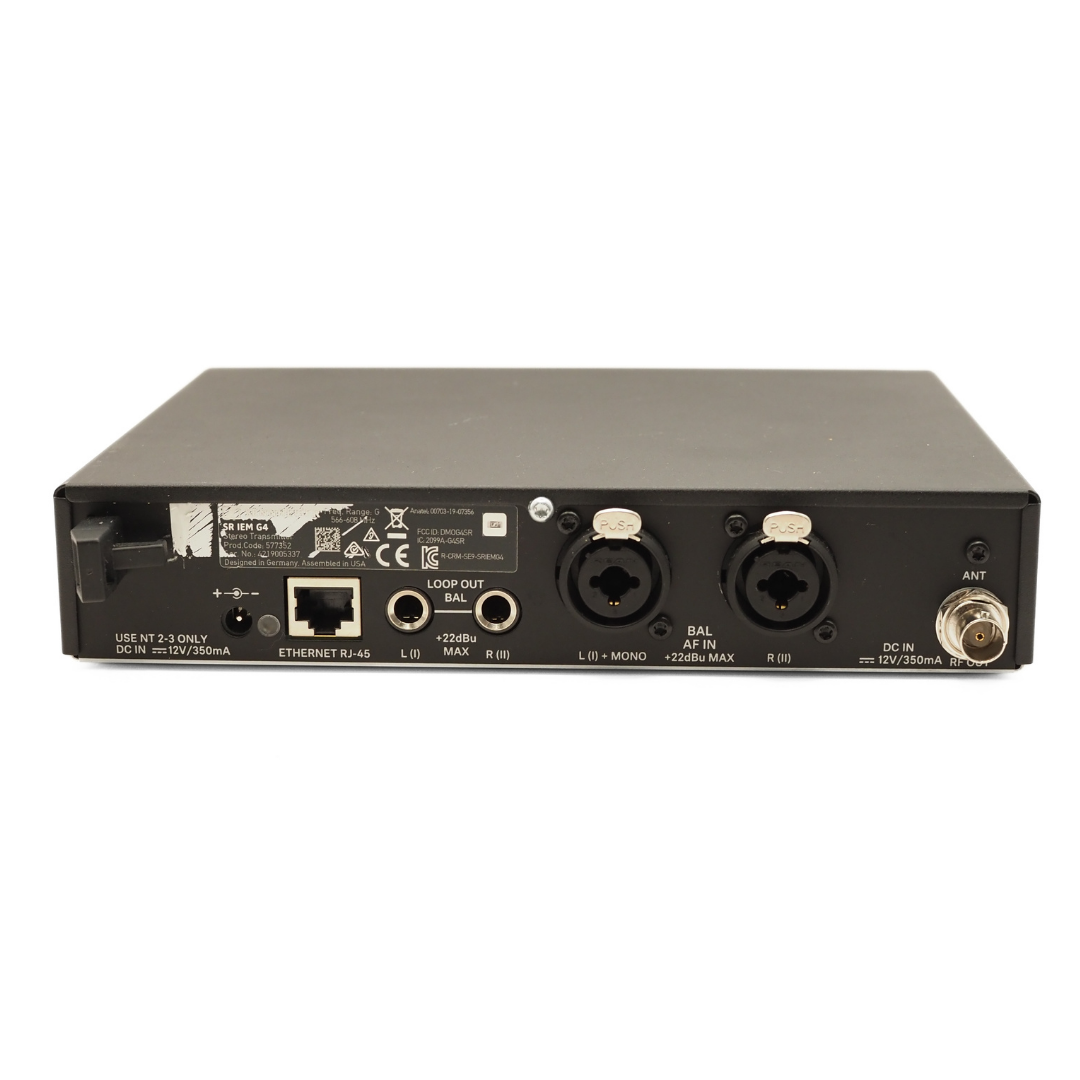

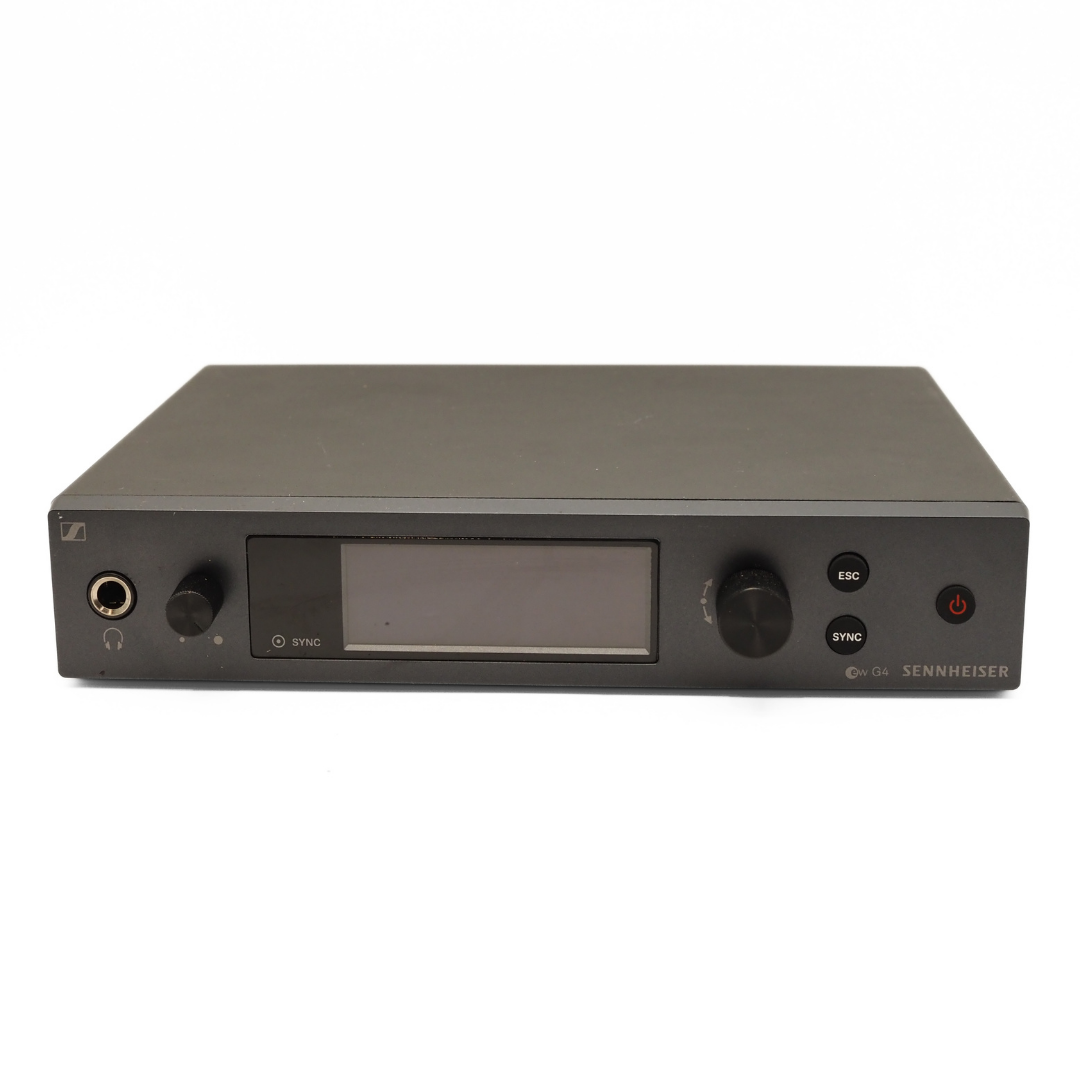

- SR IEM G4
- Frequency range: AS: 520 - 558 MHz
- Dimensions: Approx. 202 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: <0.9 %
- Weight: Approx. 980 g
- Audio input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
- Audio output: ¼" (6.3 mm) stereo jack socket, balanced
- Signal-to-noise ratio: >90 dB
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM stereo (MPX pilot tone)
- Power supply: 12 V DC
- Current consumption: max. 350 mA
- Max. Input voltage: +22 dBu
- Transmission frequency: Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
- AF frequency response: 25 Hz to 15 kHz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±10 ppm
- Antenna Output: BNC socket, 50 Ω

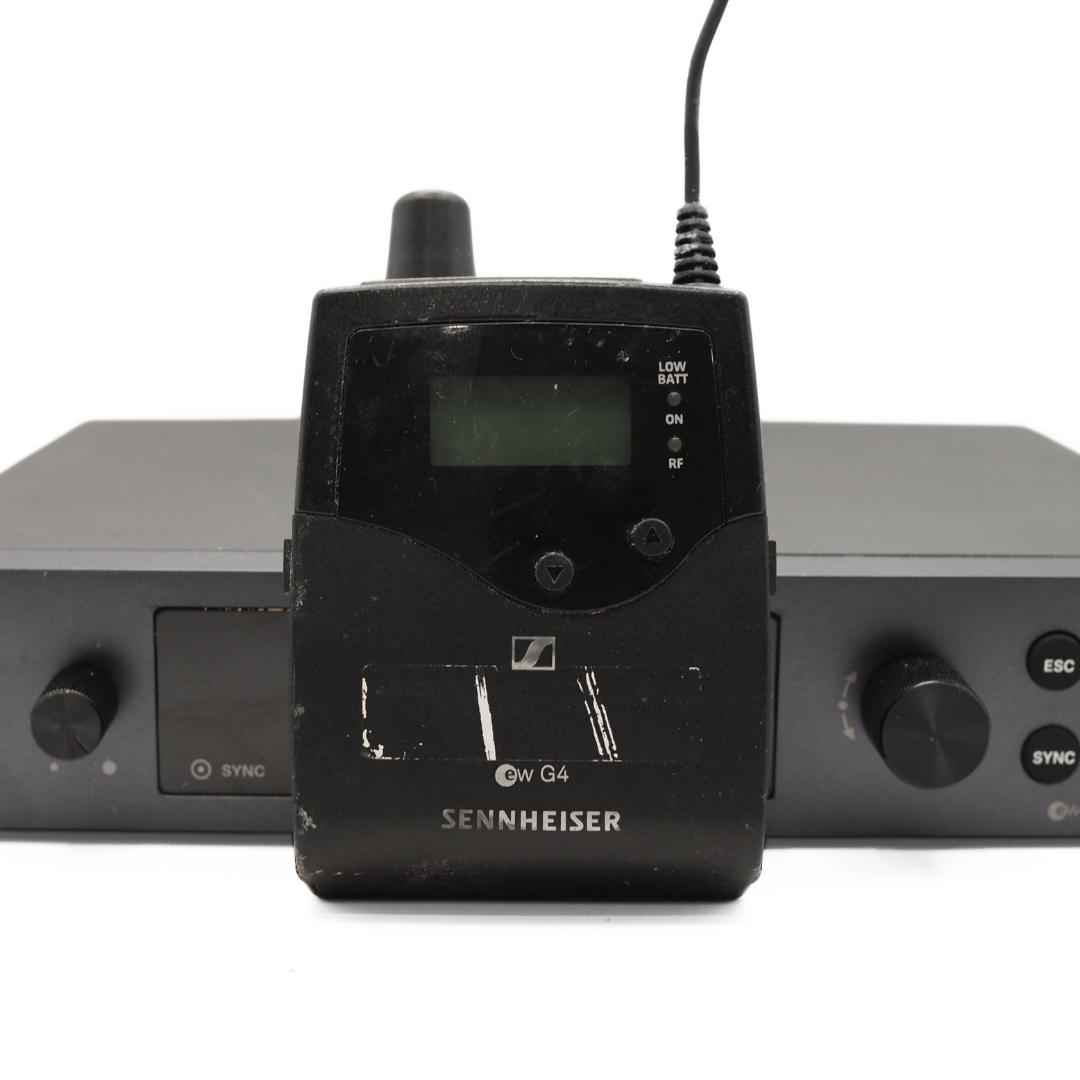

- EK IEM G4
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight: (incl. batteries) approx. 125 g
- Signal-to-noise ratio: approx. 90 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: approx. 4 to 6 hours (depending on volume level)
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: approx. 140 mA, with transmitter switched off: ≤ 25 µA
- Adjacent channel rejection: Typically ≥ 65 dB
- Audio-Output-Power: 2 x 100 mW at 32 Ω
- Intermodulation attenuation: Typically ≥ 70 dB
- Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
- RF sensitivity: < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
- Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
- Bass Boost: +8 dB at 8 kHz
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive diversity
- Blocking: ≥ 80 dB
