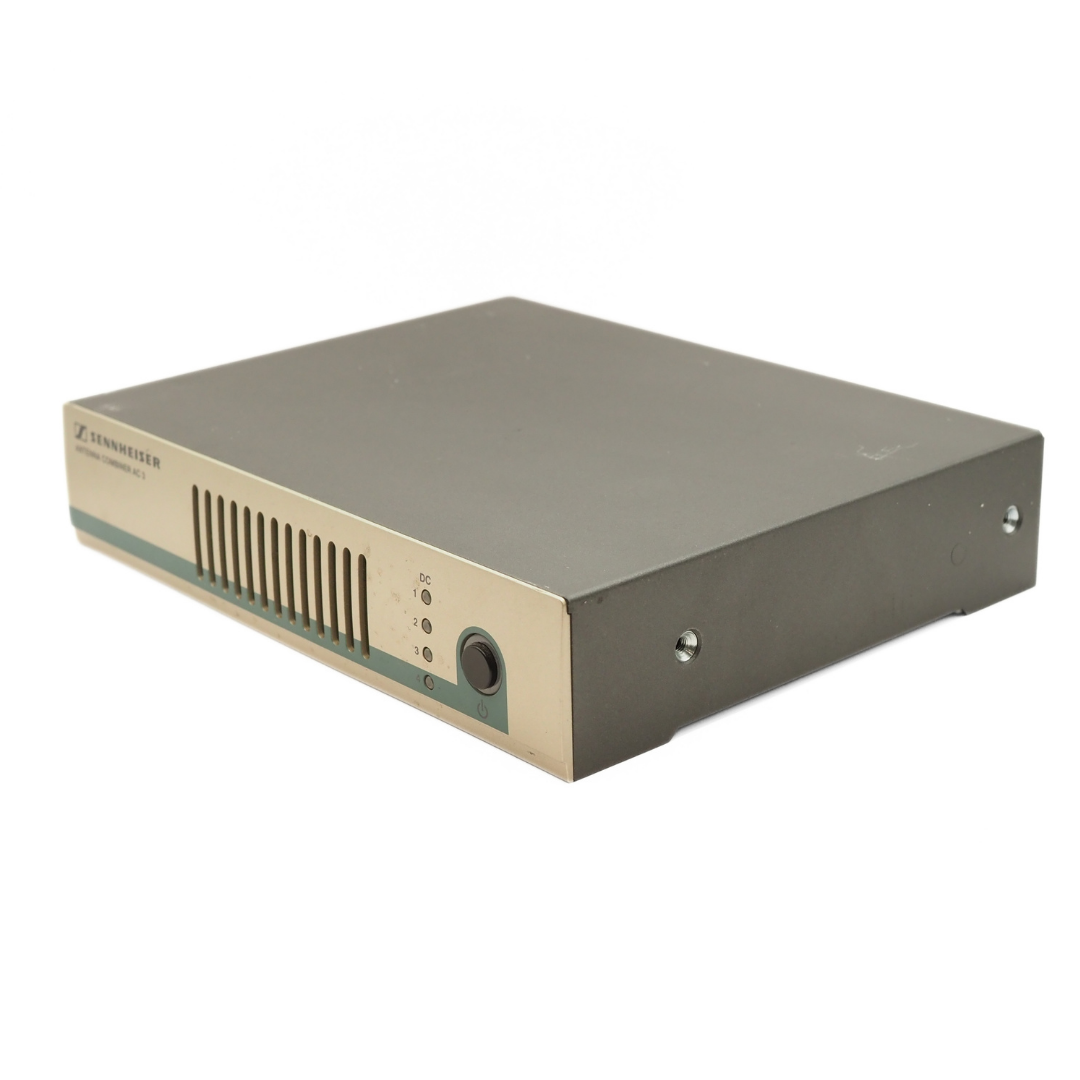

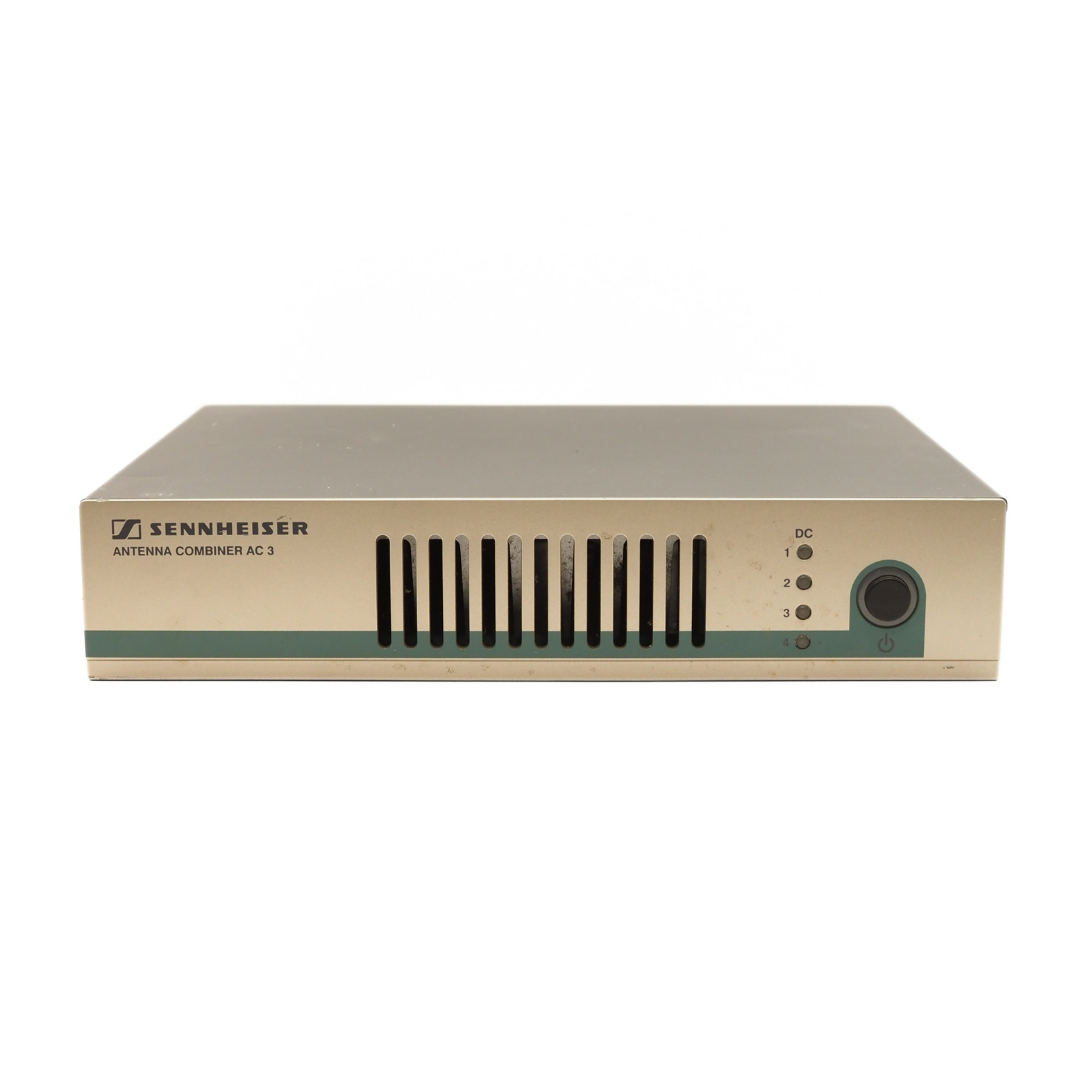

Sennheiser AC 3-US Antenna Combiner (470 to 698 MHz)
Sennheiser AC 3-US Antenna Combiner (470 to 698 MHz)
Condition: In good condition with minor cosmetic wear. No accessories included (case, power supply etc).
Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse and consumables. Machine heads covered only for shipping damage.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day returns
On eligible items, from the day you receive it. Must come back as received; strings and mouth-played items excluded. Faulty? We cover return postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Key details
- Requires a 12v DC centre-positive power supply with minimum 2.5 Amps (2.5A - 3.6A)
Overview

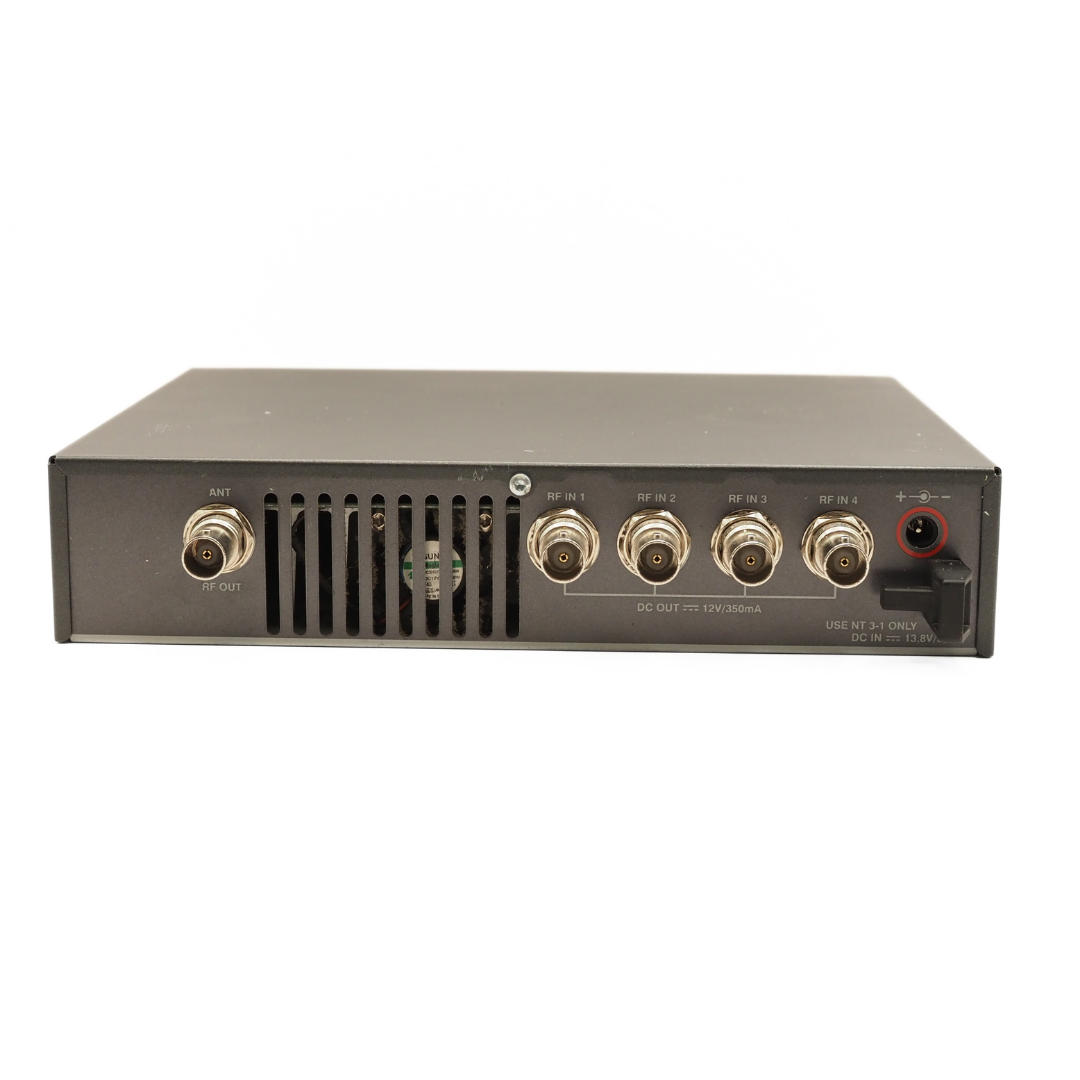

With the AC-3, 4-to-1 active transmitter combiner the signals of up to four SR300 IEM G3 type transmitters can be combined onto a single antenna. The integral active RF amplifiers ensure that the input signals are combined onto the common antenna output with no distribution attenuation. The AC-3 incorporates DC distribution to enable simultaneous powering of up to four transmitters via its BNC sockets. The AC-3 is suitable for multi-channel monitoring systems for stage use & any application where talk-back signals are to be transmitted.
Specs
| Frequency Range | AC3-US: 470 to 698 MHz |
|---|---|
| Attenuation | Distribution: 0 dB (±1 dB) |
| Maximum RF Input Power | 30 mW per input |
| Impedance | 50 Ohms |
| Operating Voltage | 13.8 VDC (with NT 3-1 table top power supply) |
| Current Consumption | Total - Maximum 3.4 A (with connected transmitters) |
| Supply Voltage | 11.4 V (protected from reverse feed), 350 mA for transmitters at RF IN 1 to RF IN 4 |
| Relative Humidity | 5 to 95% |
| Operating Temperature | 14 to 131°F (-10 to +55°C) |
| Storage Temperature | -4 to 158°F (-20 to +70°C) |
| Dimensions | 8.3 x 6.6 x 1.7" (212 x 168 x 43 mm) |
| Weight | 3.2 lb (1470 g) |
