1970s Roland Revo 30 Leslie Simulator
1970s Roland Revo 30 Leslie Simulator
Condition: In great condition with very minor cosmetic wear. Power supply included.
Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Overview

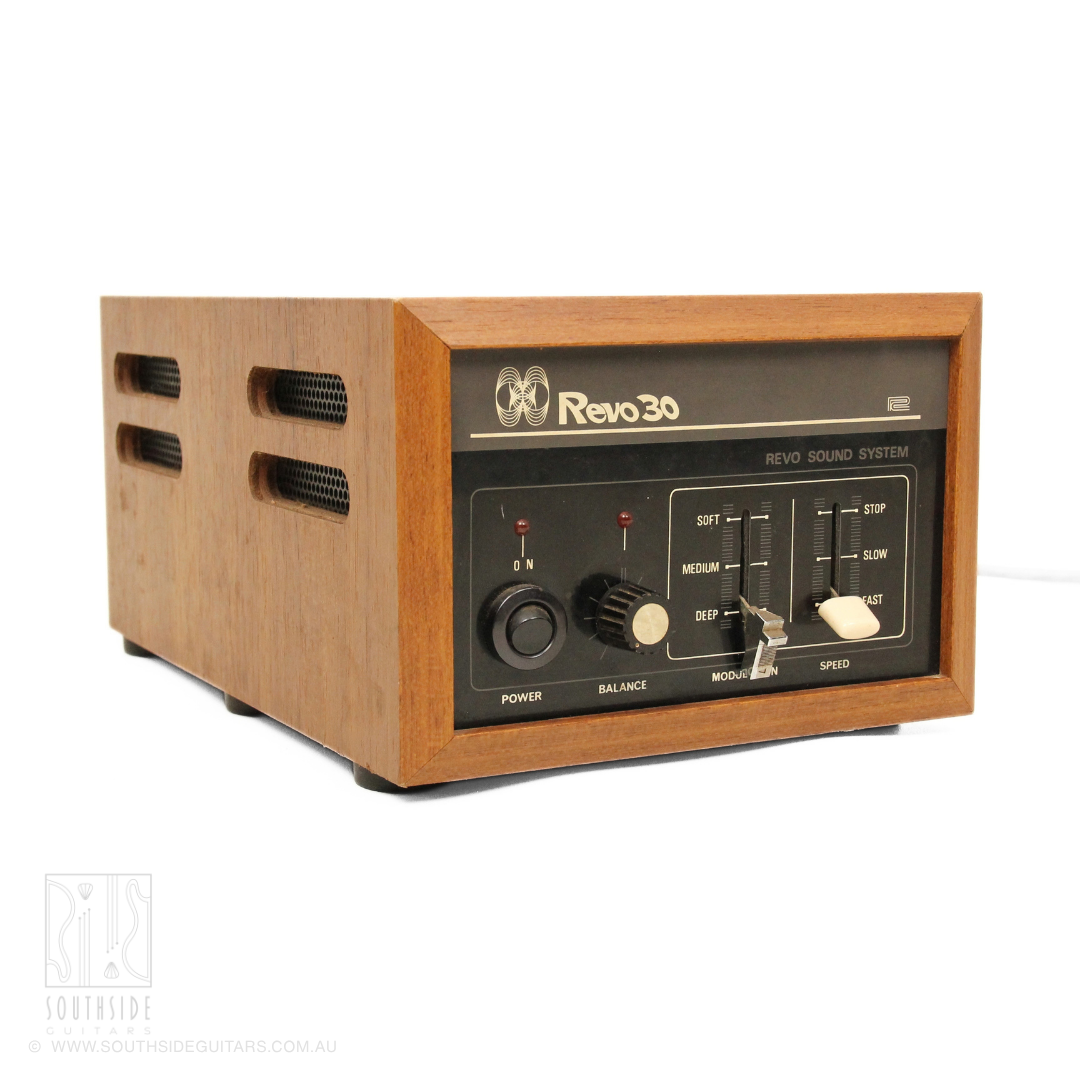

The Roland Revo 30 (effectively the amplifier head from the Revo Sound System) is a vintage Japanese-made analog rotary speaker and Leslie simulator produced by Roland around 1975 to 1978. Rather than using a physical spinning horn or rotor, it uses an internal Bucket Brigade Device (BBD) IC chip circut (acting as a phase-shift/chorus/vibrato engine, often compared to the original Uni-Vibe) to pan and modulate sound across stereo or quadraphonic outputs.
Specs
- Analog rotary/chorus effect unit and power amplifier
- Mid-to-late 1970s (approx. 1975–1978)
- Power Output: 30 watts total (15 watts per channel into stereo outputs)
- Circuitry: Uses a Bucket Brigade Device (BBD) IC chip for delay, chorus, and phase-shifting modulation

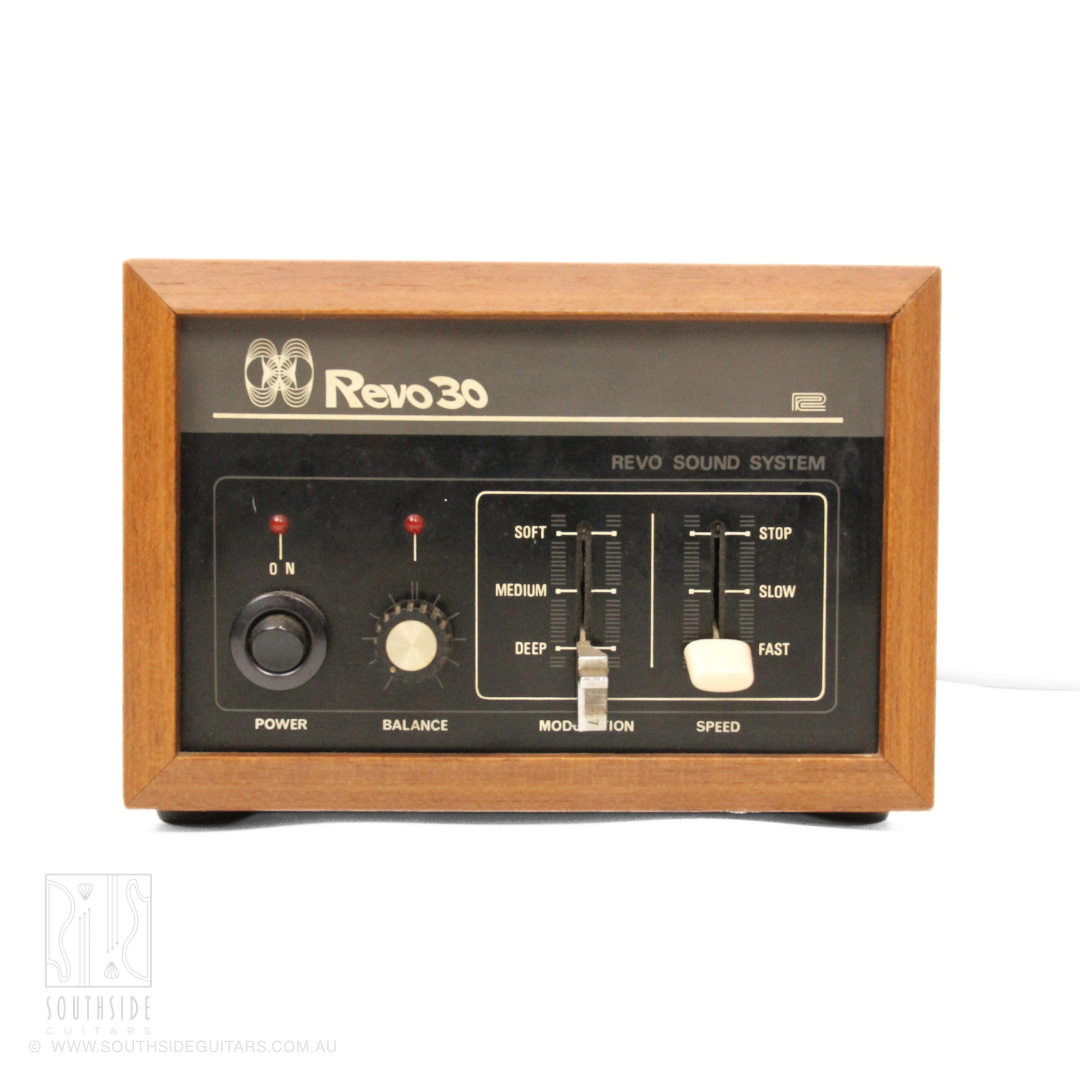

- Modulation Depth Settings: 3 settings (Soft, Medium, and Deep) to control the intensity of the low-frequency oscillator (LFO) parameters
- Speed / Rotation Settings: Push-button or switch selectors for Off (dry signal), Slow (chorale effect), and Fast (tremolo-style rotation/ramp-up)
- Controls: Power switch with indicator light, Balance control, and overall Volume

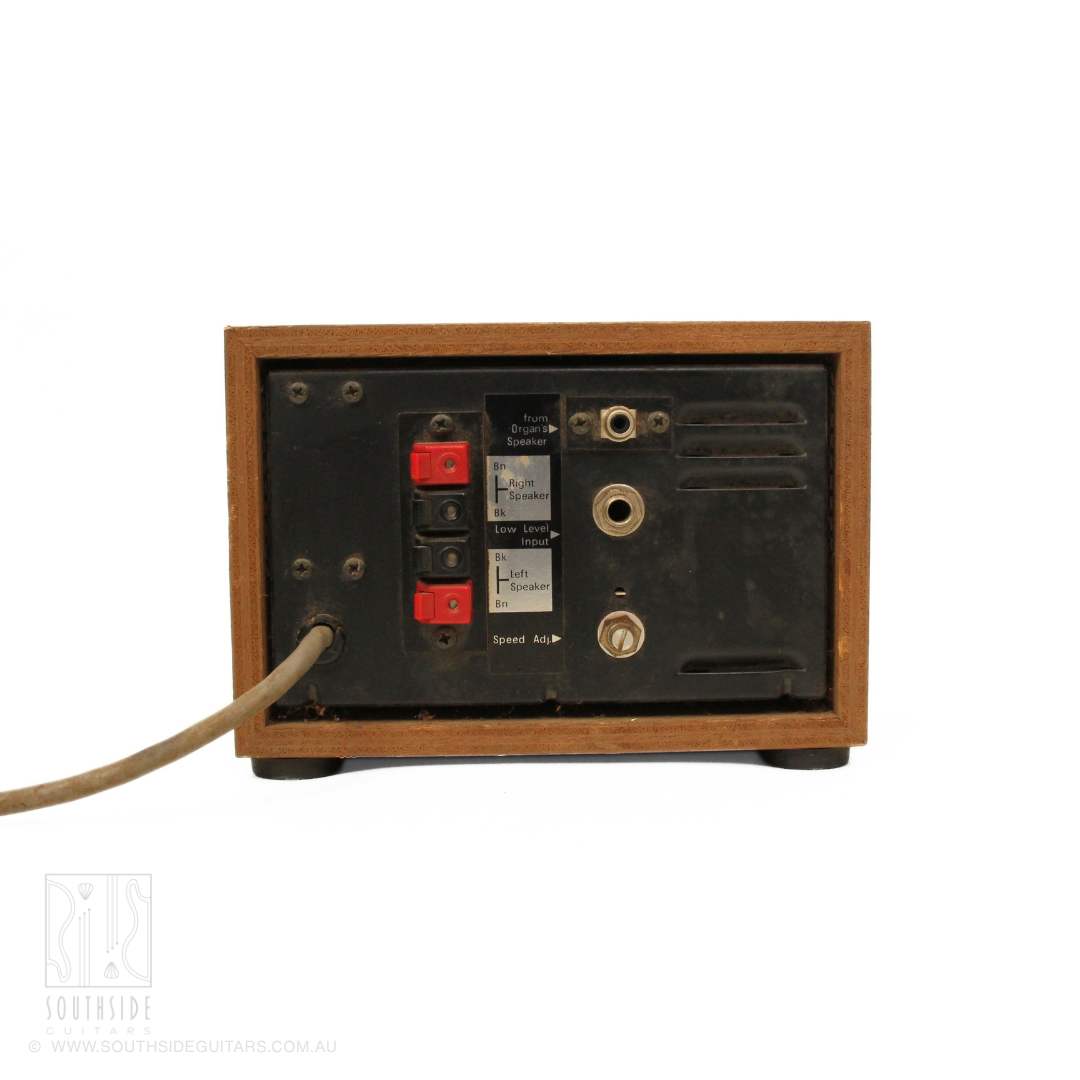

- Inputs & Outputs: Originally designed to drive a dedicated pair of stereo speakers via speaker/RCA-style outputs; can be adapted for standard 1/4-inch guitar jacks or live-level conversion
- Ideal Sources: Guitars, electric pianos, organs, and studio production processing (such as on synths or percussion)

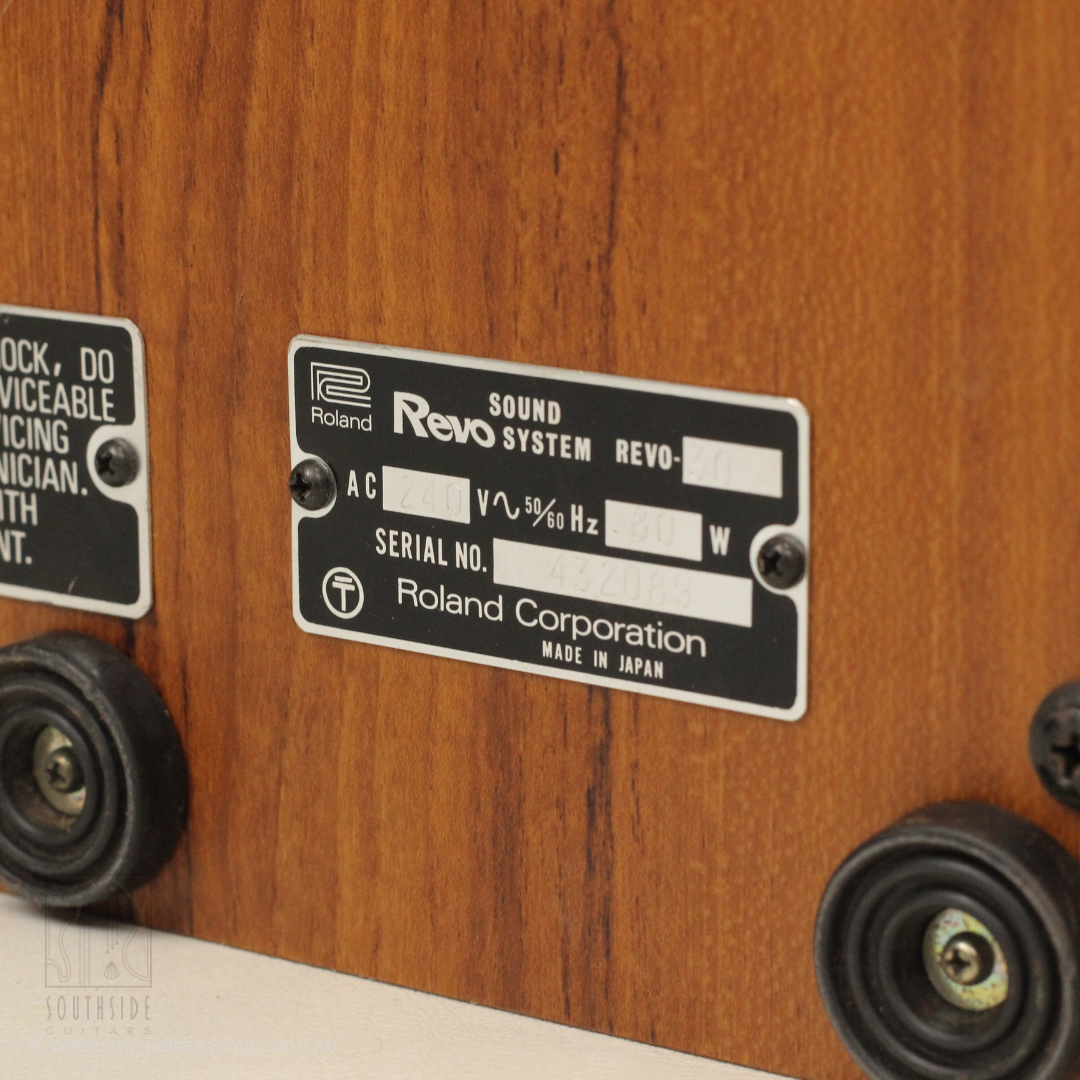

- Serial number: 432089
