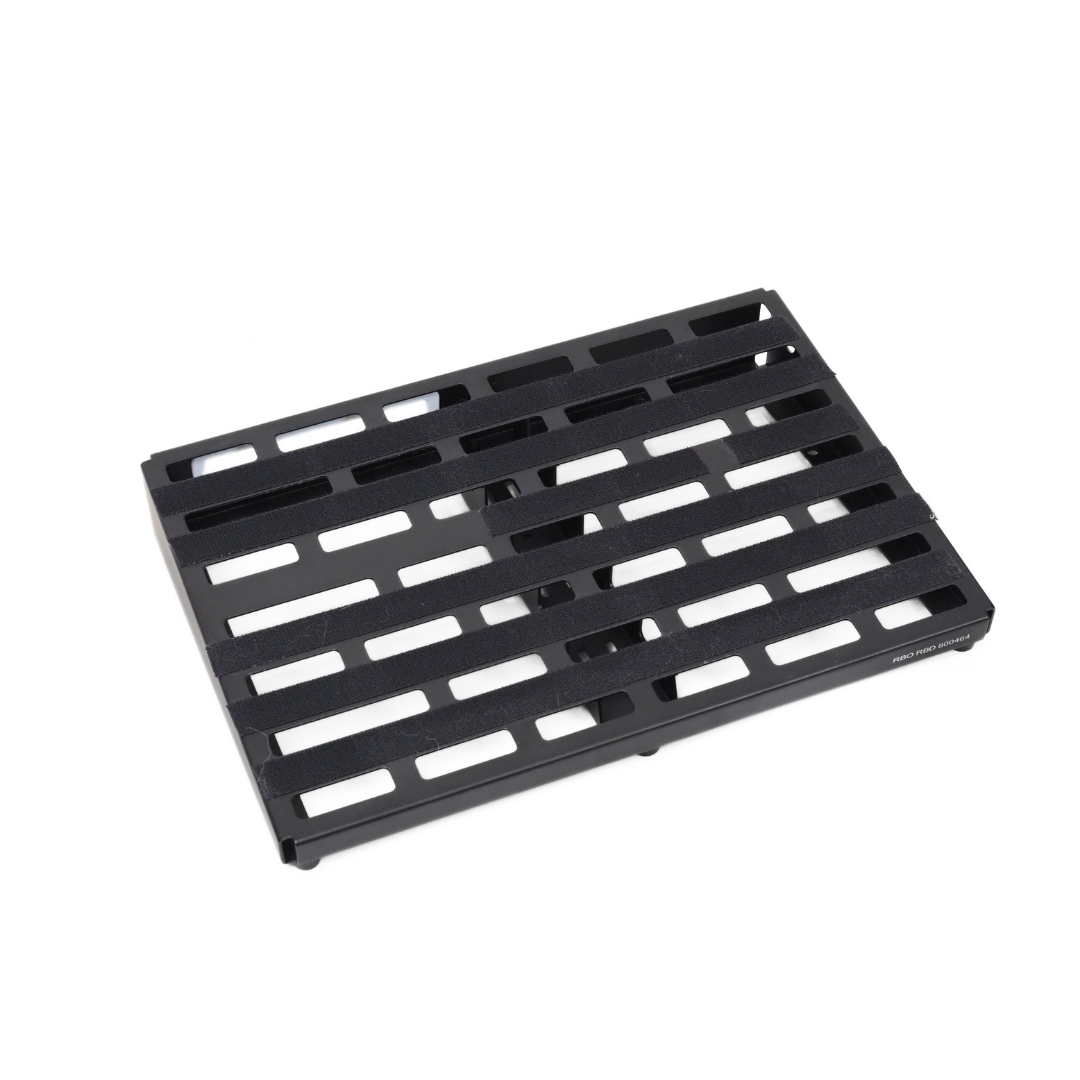

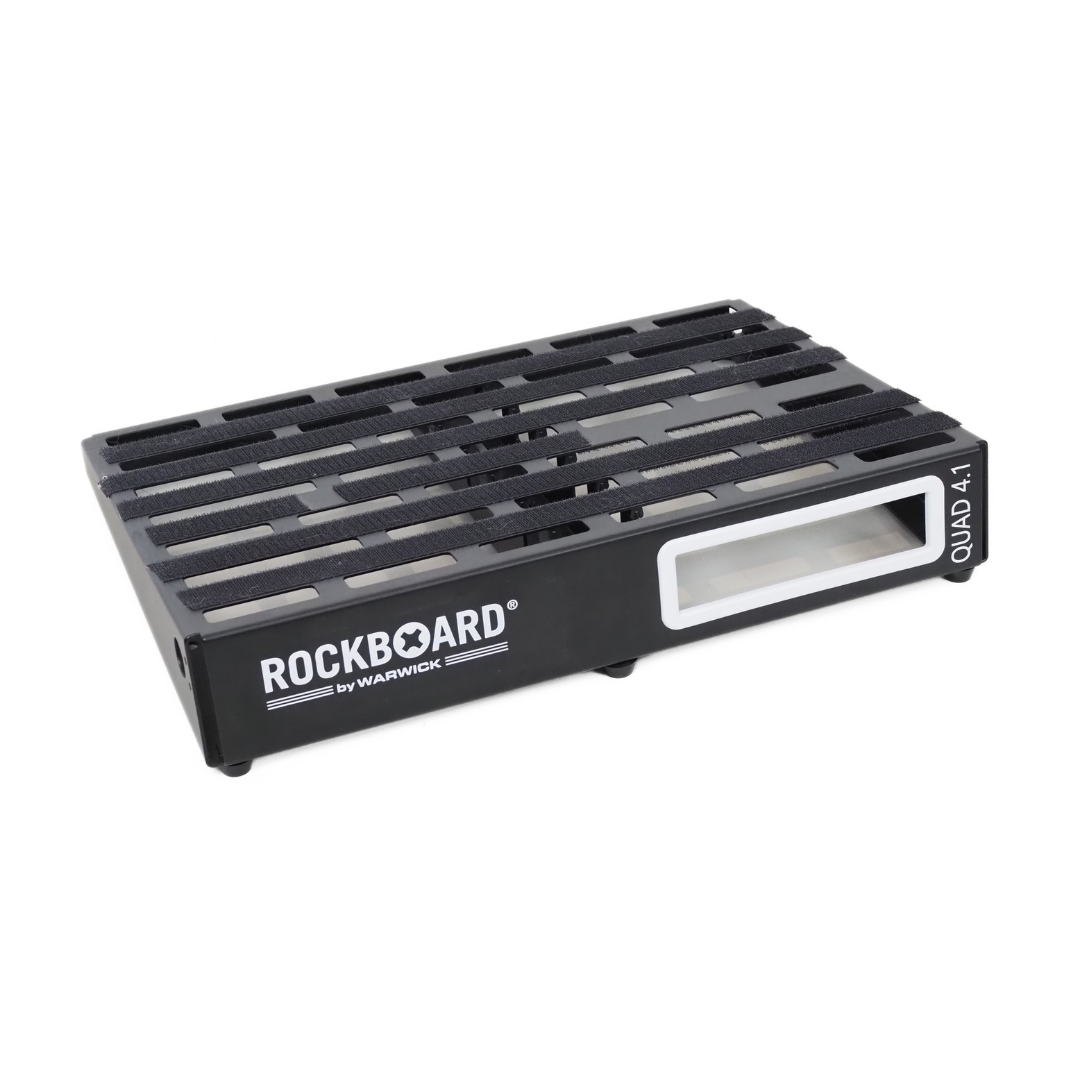

For 7-12 pedals. Made from a single sheet of cold-rolled aluminum, the ingenious, lightweight, stiff and rugged construction features vertical support struts for added stability and has not a single welded seam. The result is a completely flat and torsion-resistant surface that can be used edge-to-edge. The innovative slot design allows all cables to be conveniently and neatly routed under the board's surface. The precisely defined slot pattern provides a perfect fit for our innovative QuickMount system, which eliminates the need for hook & loop tape.

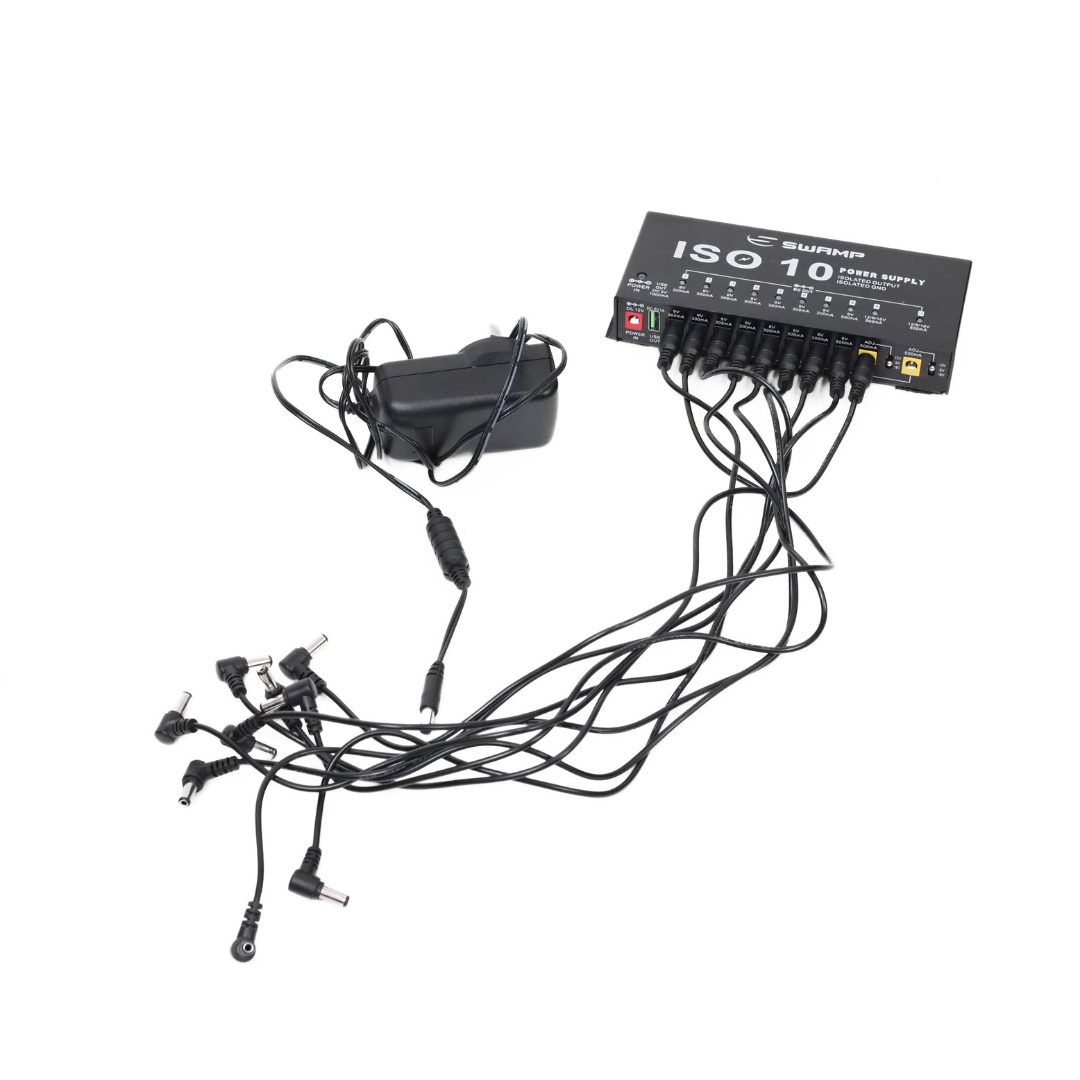

A heavily featured power supply station, the ISO-10 might everything you'll ever need! Featuring isolated outputs and main ground, high output per channel and 5V USB charging. 8x 9V outputs and 2 optional 9V, 12V and 18V. Low profile form factor.
BRAND: RockBoard
BARCODE/UPC:
- pedalboard for effects pedals
- for approx. 7 to 12 effects pedals (depending on size)
- sturdy and light aluminum construction
- slotted design for easy pedal mounting
- mounting holes for RockBoard LED Light (not included) on the right side
- made from 1 cold-rolled aluminum sheet
- additional U-shaped support brace for added rigidity
- 10 degrees angled and absolutely plain board surface - no weld seams
- slot for RockBoard® MOD patch bays
- compatible with RockBoard® The Tray - universal power supply mounting solution
- robust black powder-coated surface
- width 470 mm / 18 1/2"
- depth 330 mm / 12 63/64"
- height incl. rubber feet 37 - 71 mm / 1 7/16" - 2 13/16"
- weight 1.5 kg / 3.3 lbs.

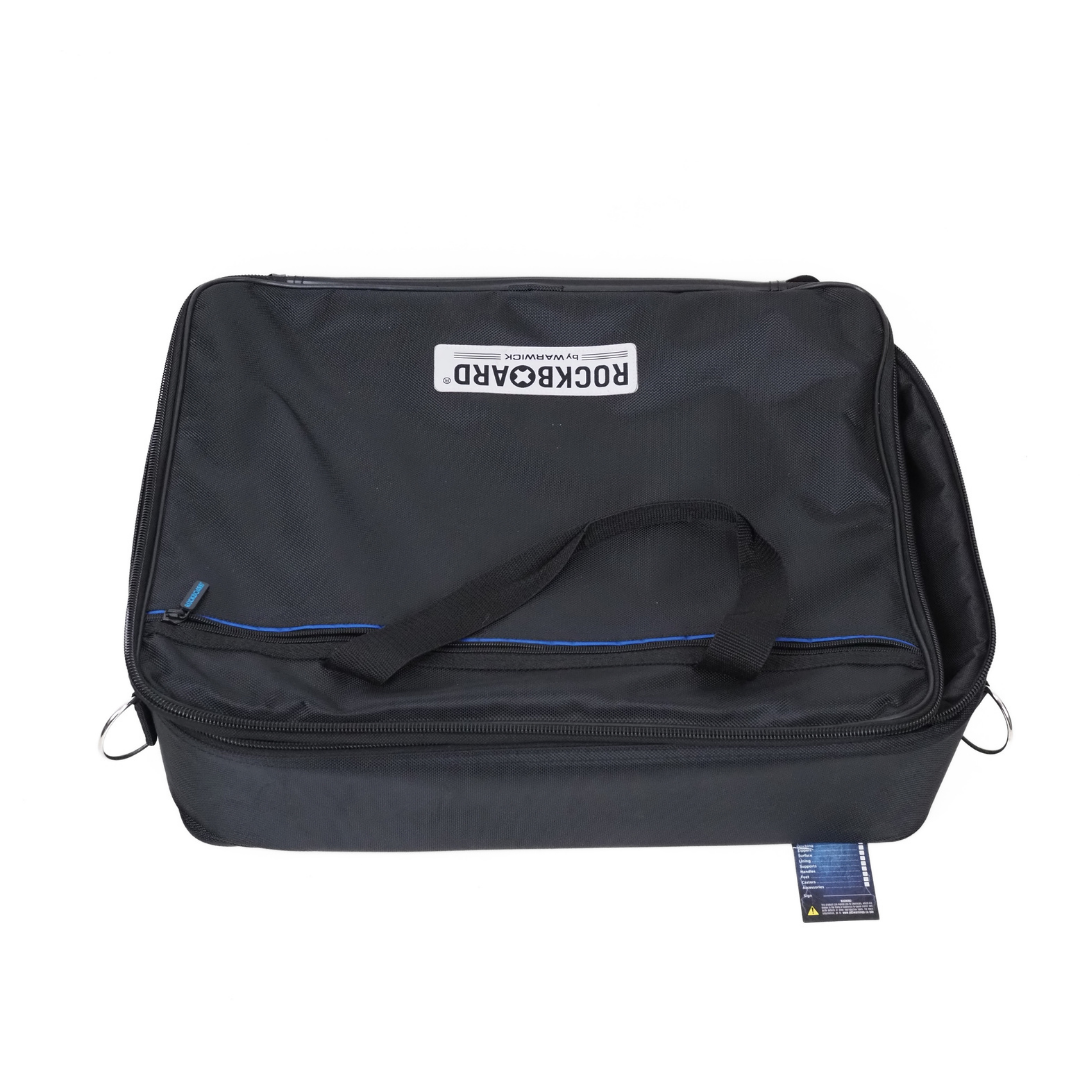

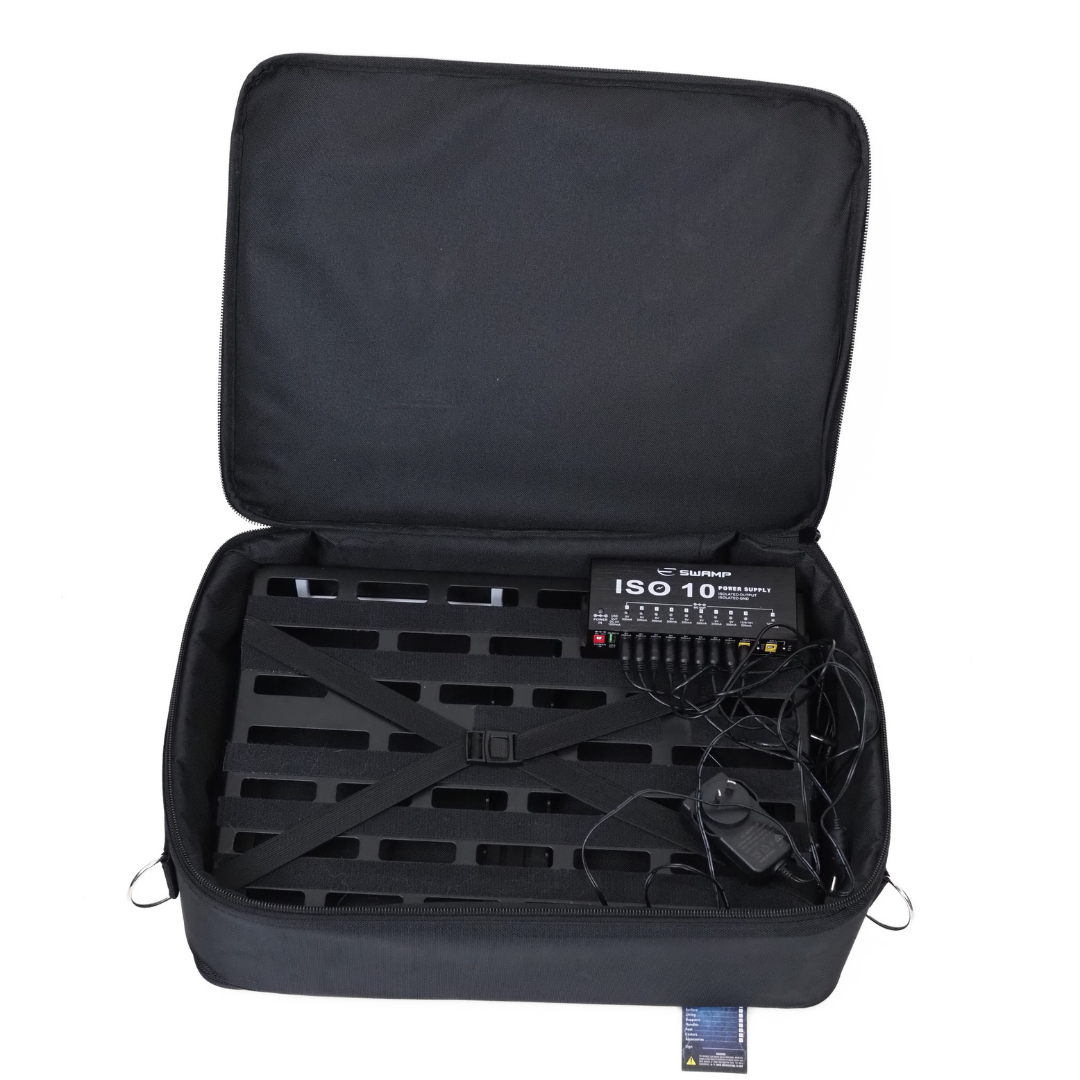

- including gig bag
- weight gig bag approx. 1.5 kg / 3.3 lbs.
- interior dimensions gig bag (L x W x D) 505 x 370 x 130 mm / 19 7/8" x 14 9/16" x 5 1/8"
- Outlets - 1 to 7 output DC9V @ 300MA
- Outlet - 8 output DC @ 500MA
- Outlet - 9 and 10 output DC 9/12/18V @ 500MA adjustable by switch.
- USB Output DC5V @ 1000MA ,can use for LED light, mobile phone, iPAD etc
- Dimensions: 168mm(L) x 70mm(W) x 32mm(H)
- Negative Centre Polarity on all outputs
