Old Blood Noise Endeavors Beam Splitter Triple-Tracker Distortion/Overdrive Effects Pedal

The Old Blood Noise Endeavors Beam Splitter is a next-level triple-tracker distortion/overdrive pedal that transforms a single signal into a three-dimensional sonic wall. With three distinct drive circuits, hard-clip, soft/hard clip, and transistor overdrive, each with its own delay and modulation capabilities, this boutique pedal is built for ambient textures, massive layered tones, and experimental soundscapes that go far beyond your typical distortion box.

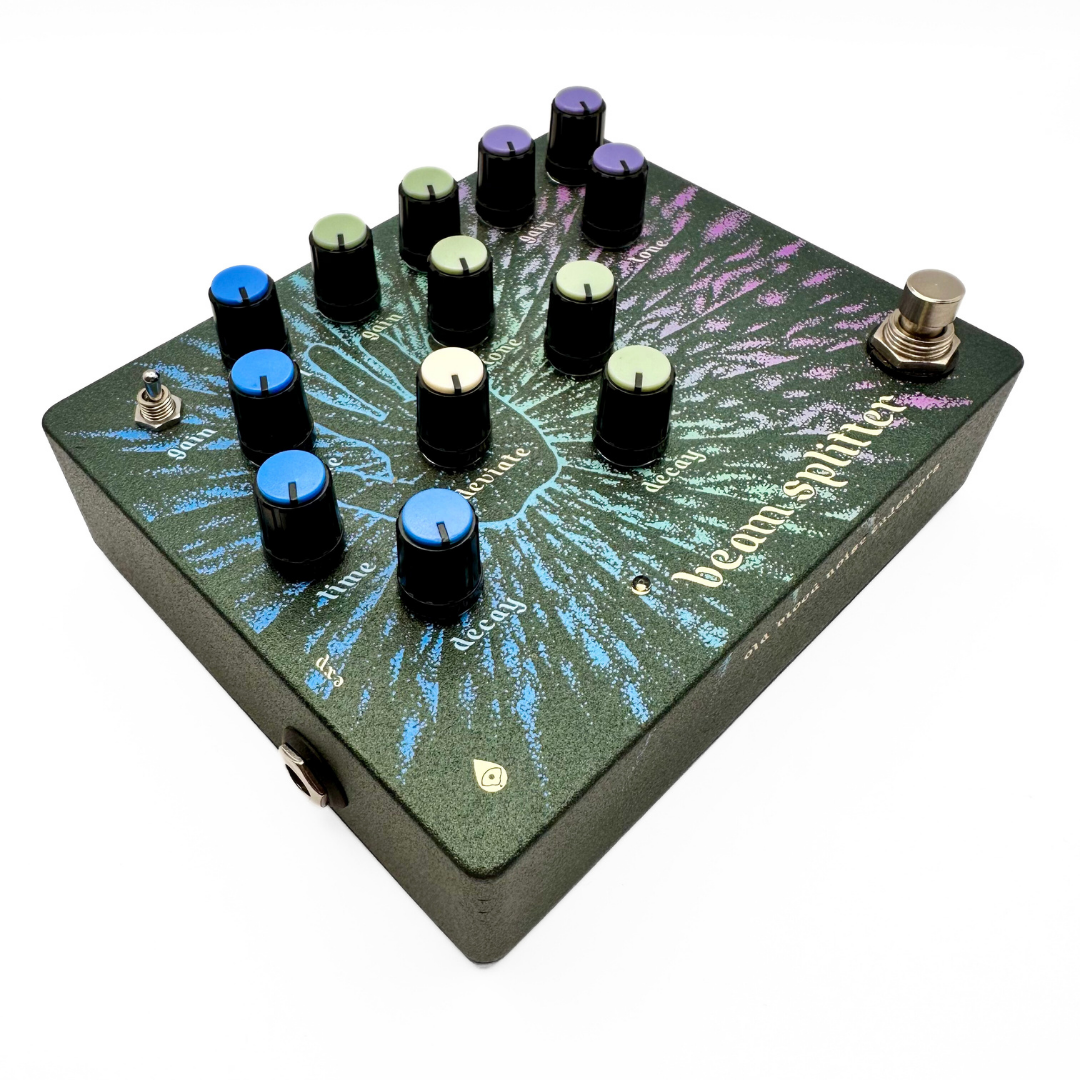

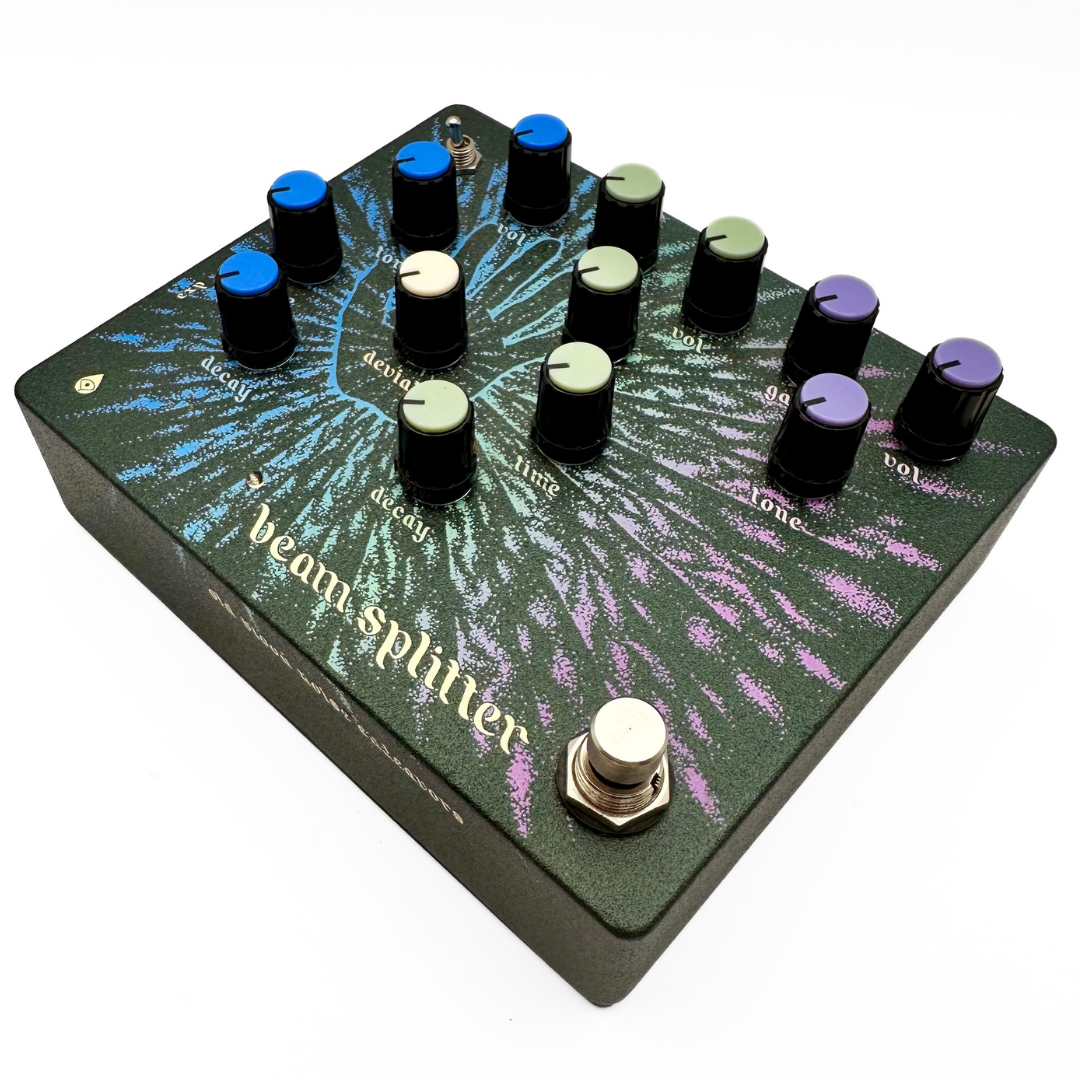

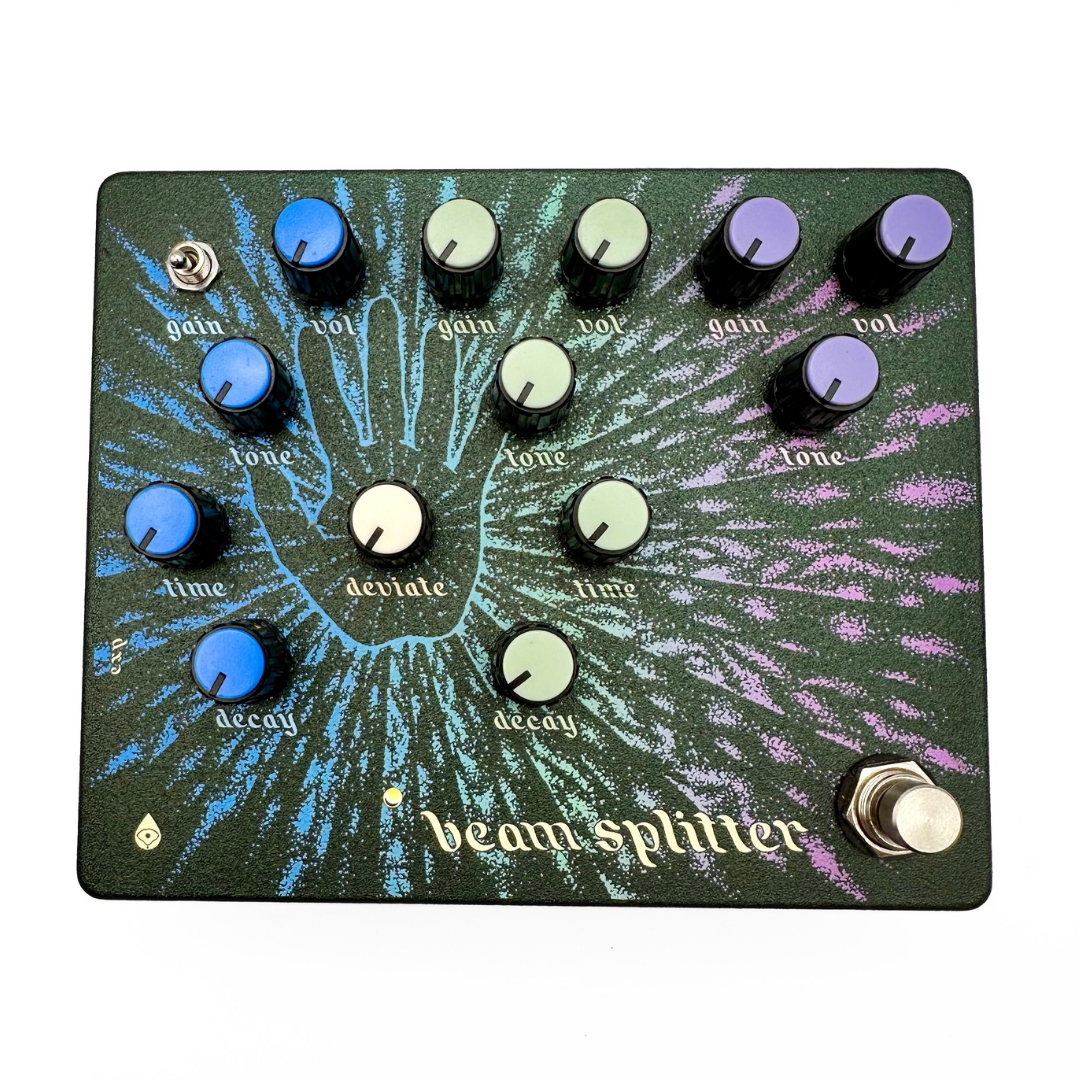

• Three parallel drive/distortion sections (Purple = hard clip, Green = soft/hard clip, Blue = transistor overdrive), each with independent Gain, Volume, and Tone controls.
• Delay circuits on the Green and Blue channels: Time (up to ~125 ms) and Decay (feedback) allow slapback, comb-filtering, or swirling textures.
• Deviate control adds random variation to delay times for natural doubling, chorus or broken-vibrato effects. Expression pedal input allows remote control of Deviate.

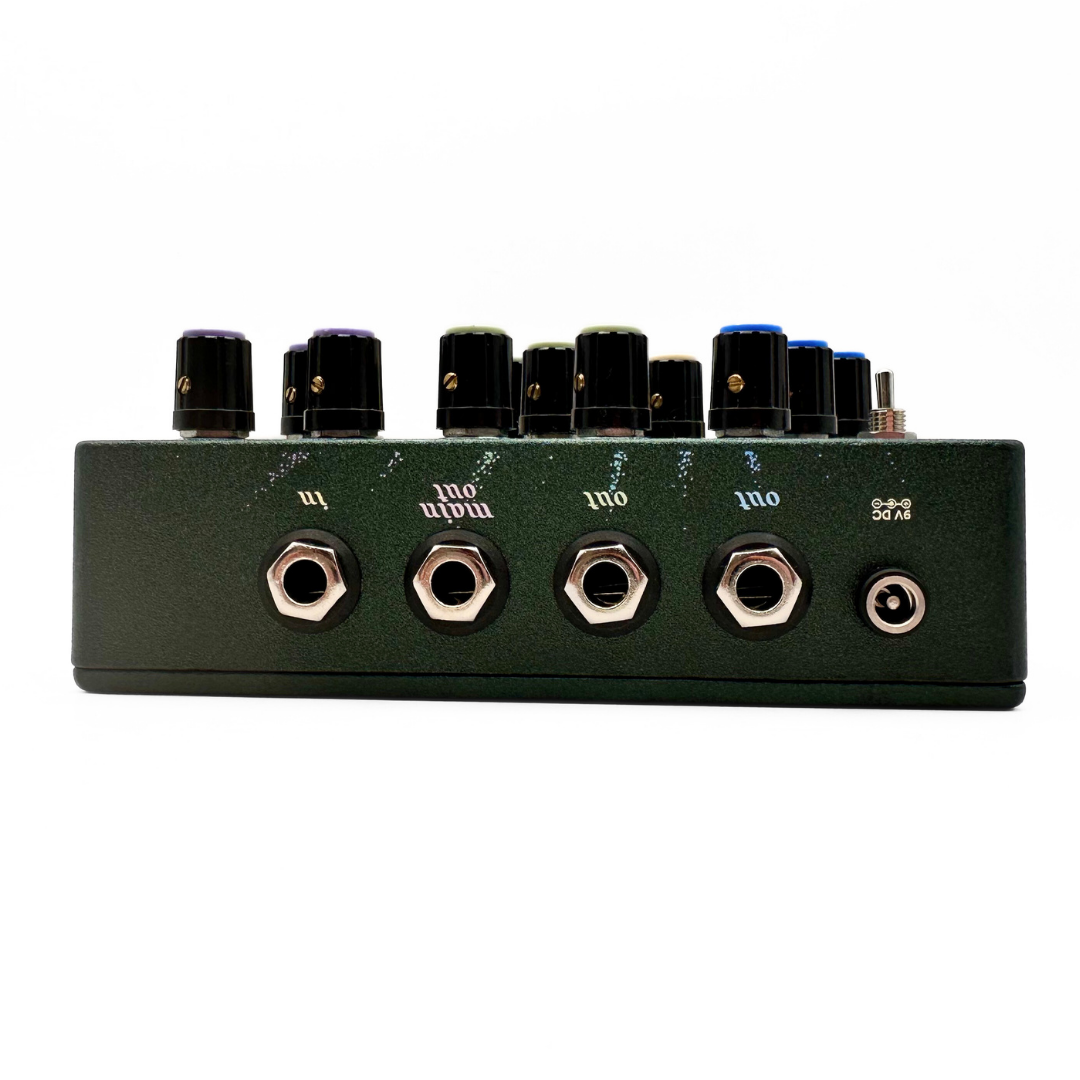

• Output options: mono summed output or split outputs for each drive section (for stereo or “trereo” setups).
• True-bypass footswitch (relay switching) to preserve signal clarity when the effect is off.
• Power requirement: 9 V DC center-negative (2.1 mm), approx 150 mA current draw.
• Rugged boutique build, made in the USA, designed for guitar, bass, or synth signal chains that crave layered, adventurous distortion.
