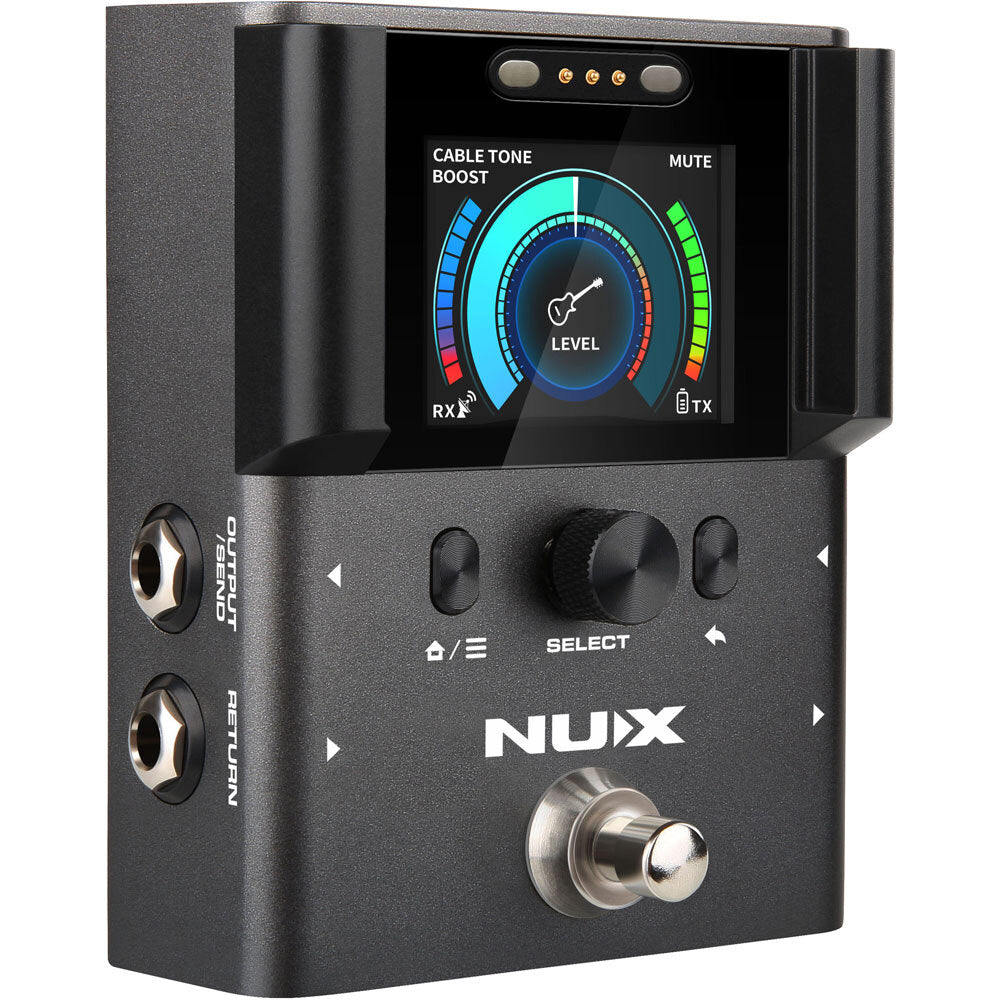

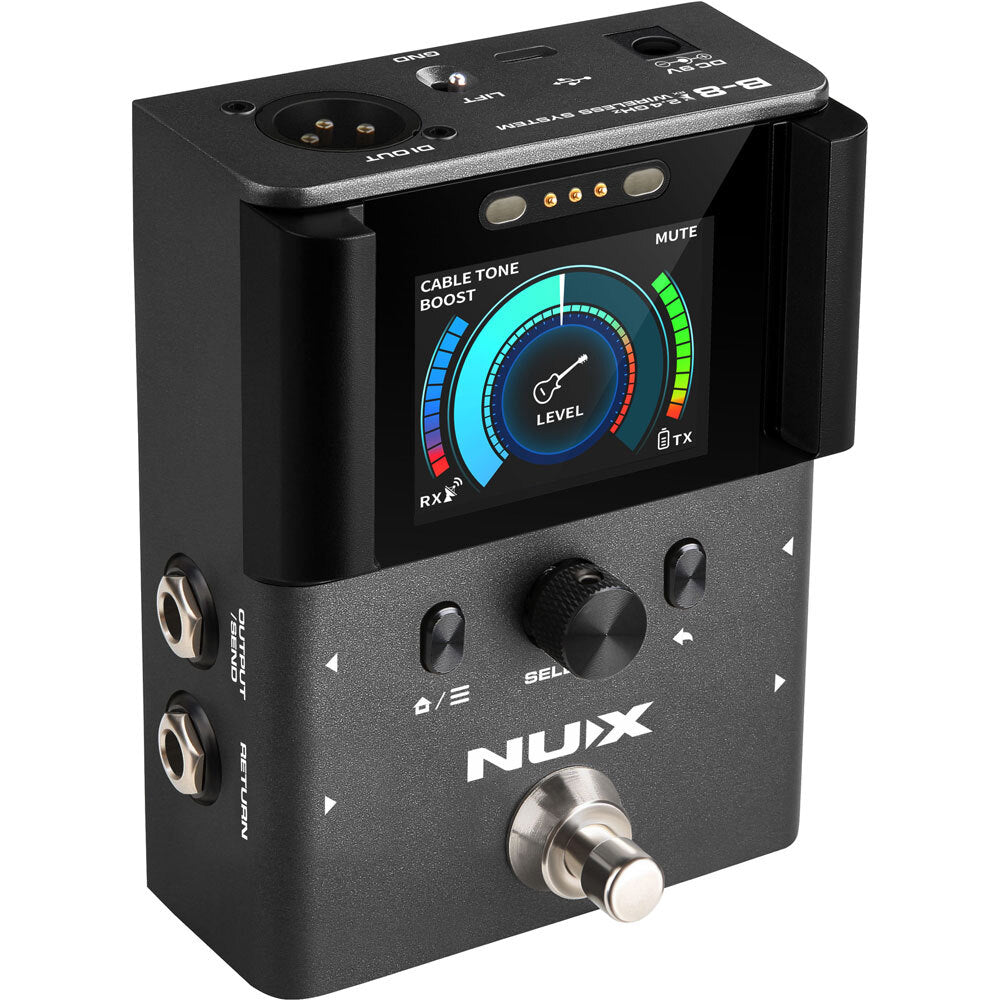

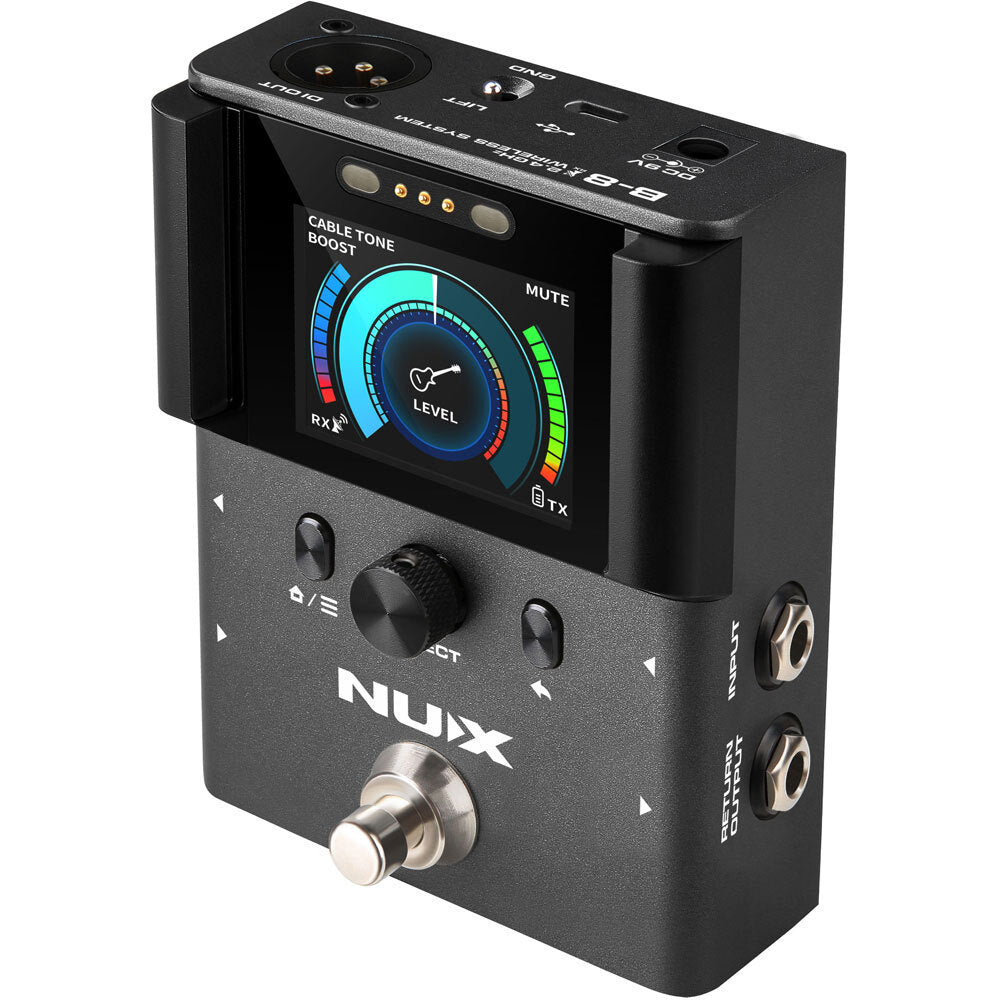

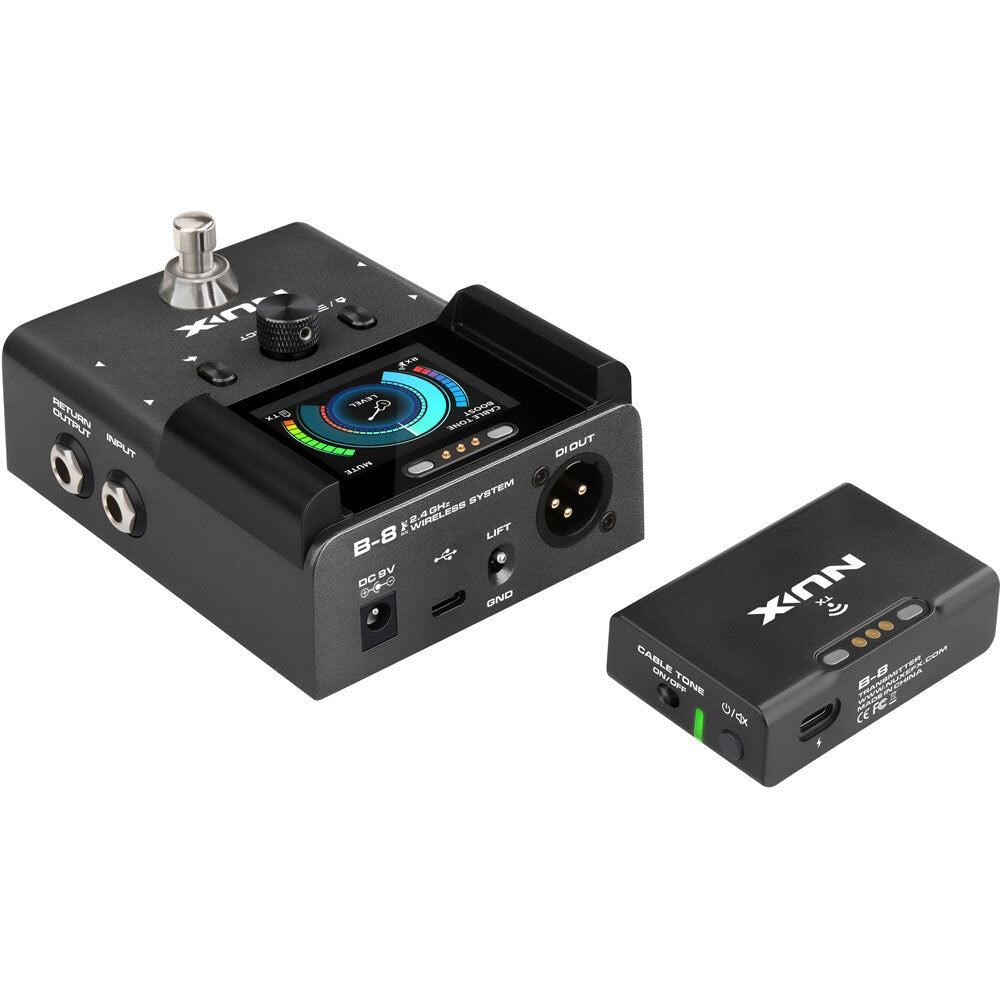

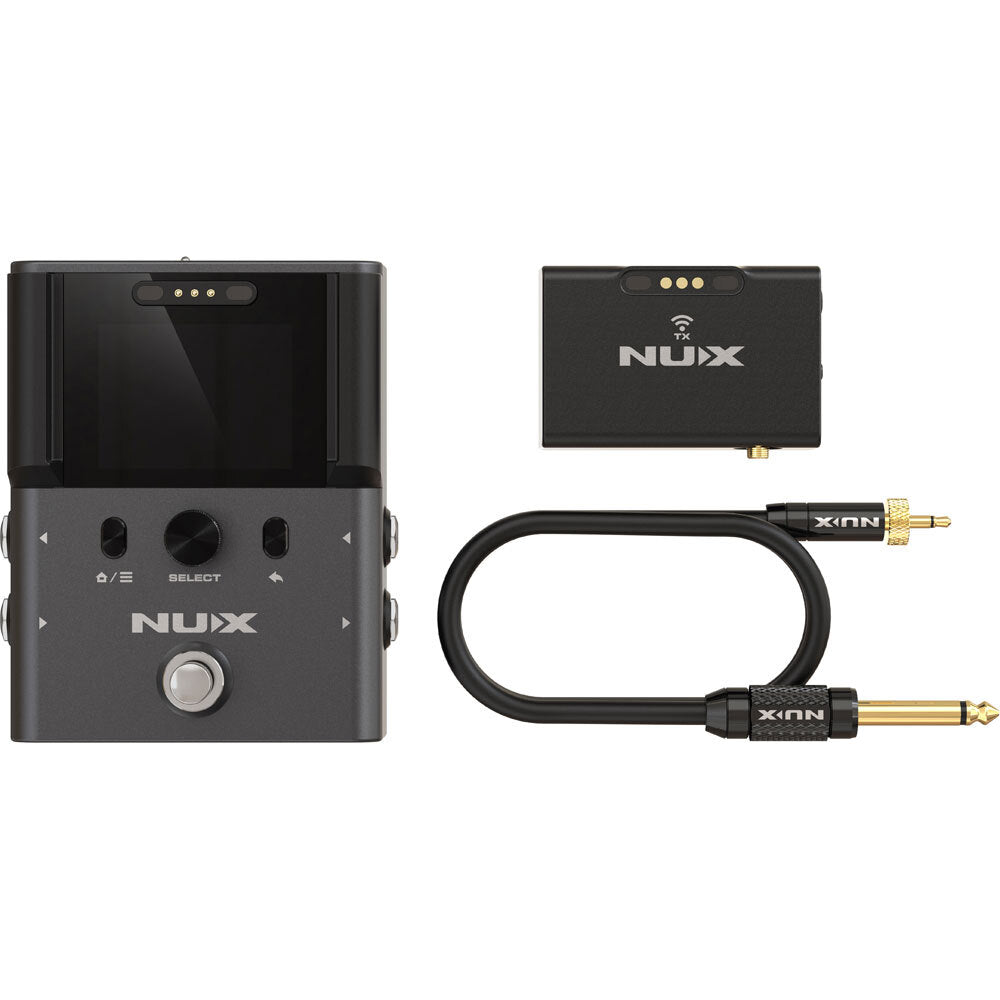

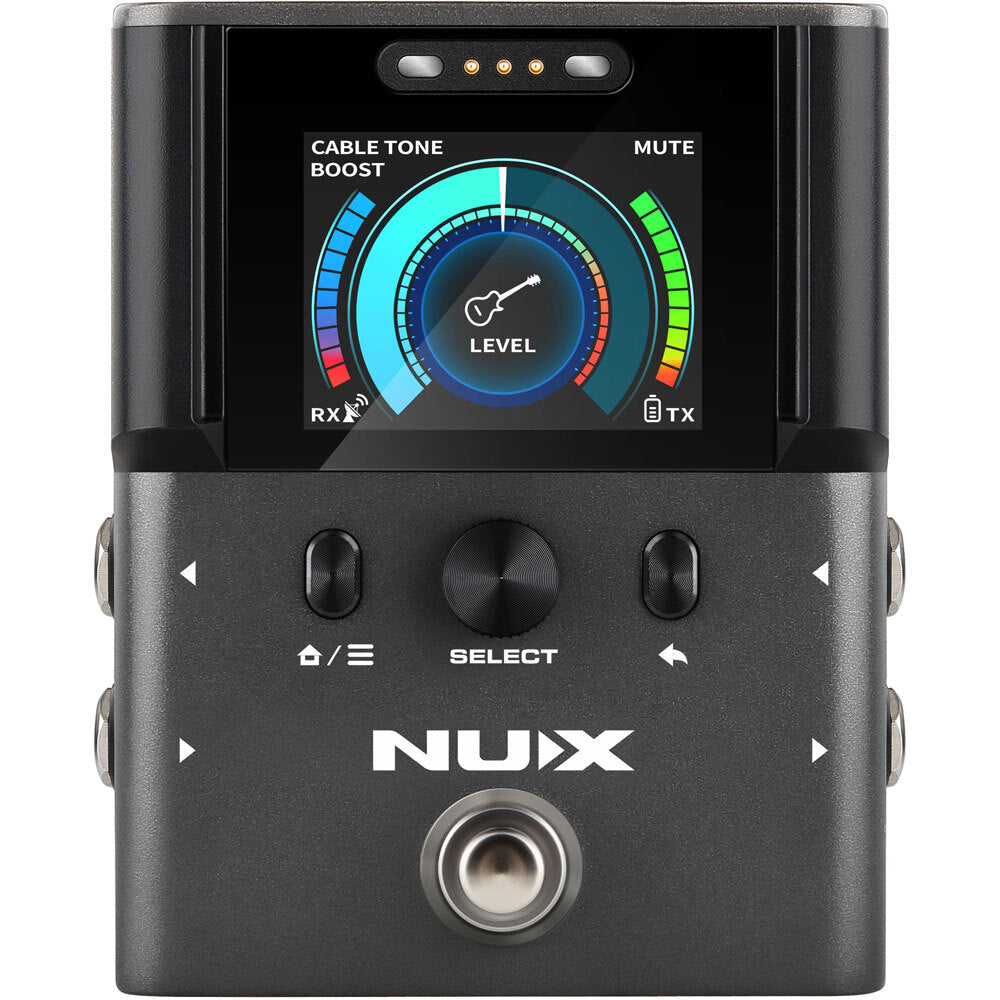

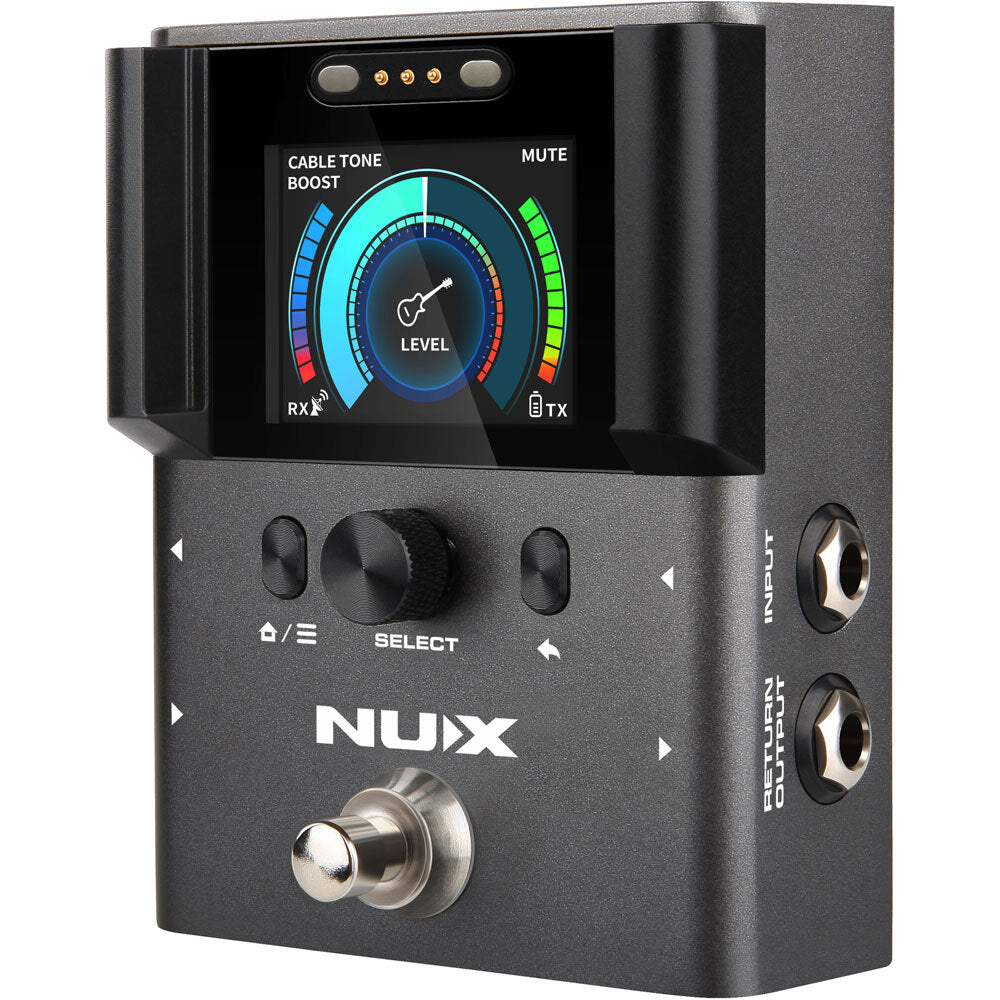

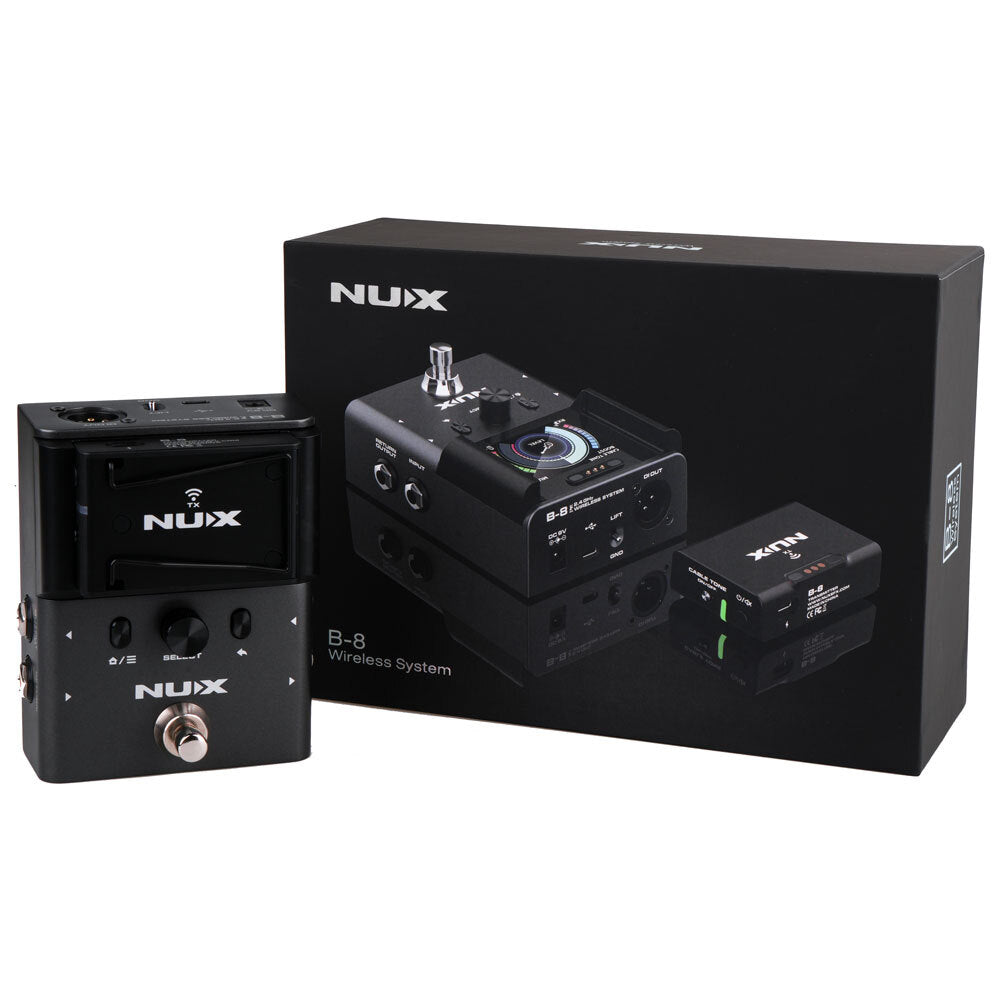

NUX NXB8 B-8 Professional Instrument Digital Wireless System with Pedal Receiver

NUX B-8 is a redefined wireless system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality audio transmitting. The signal transmitting latency is as low as 2.5ms at the best performance. The operation range is up to 50 meters (160 feet).

SPECIFICATIONS:

• Operating Frequency Band: 2400 - 2483.5MHz
• Audio Quality: 24bit/48kHz
• Frequency Response: 20Hz - 20kHz
• Latency: 2.5ms (best performance setting) -8.7ms (safety mode)
• Input Impedance: 1 M ohms
• Maximum Input Level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
• THD+N: 0.01% 1kHz, typical
• Dynamic Range: 122dB, A-weighted (OUTPUT/SEND)
• Output level Adjustment Range: mute -64dB~0dB
• Auto-sleep Mode: N/A

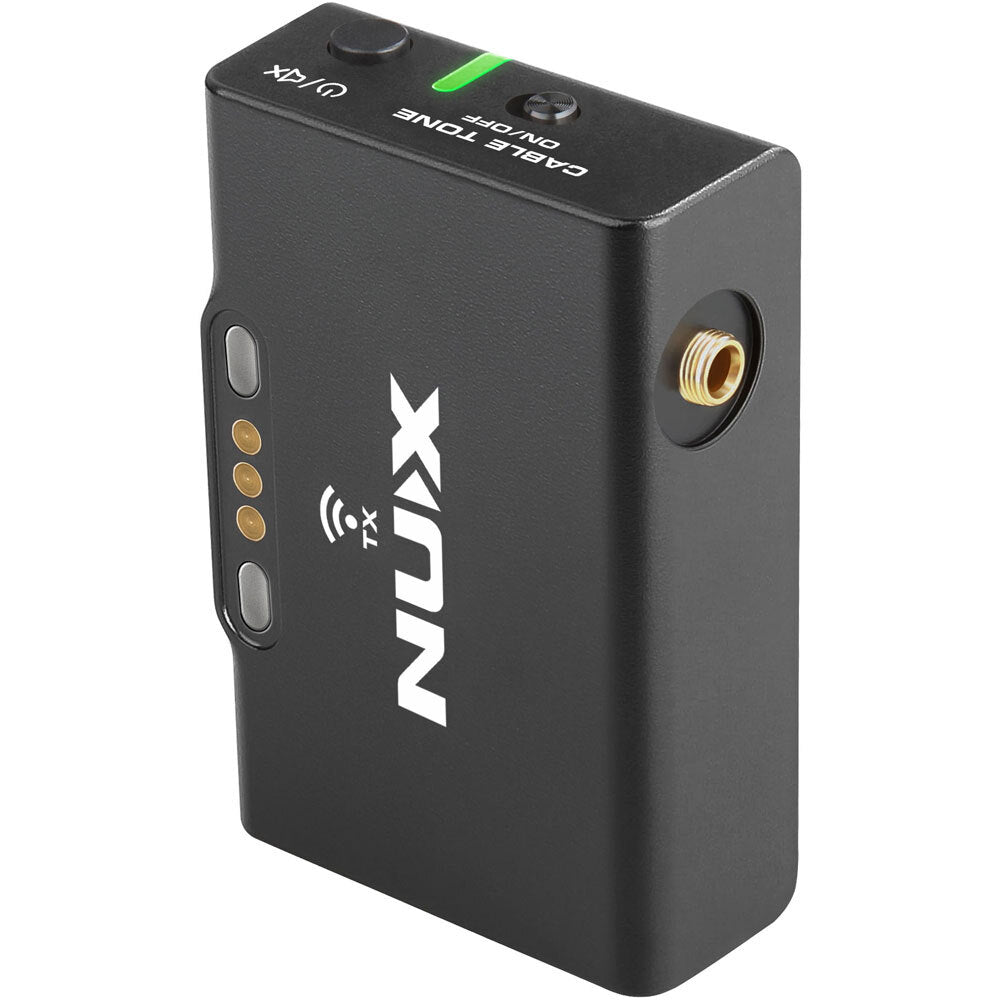

• Built-in Battery Capacity: 3.7V/500mAh Rechargeable Li-polymer (Transmitter)
• TX Battery Life: up to 6.5 hours
• Power Requirements: 7V to 12V DC, 500mA min, negative tip power supplies (Receiver)
• Operation Range: Up to 50m (165 feet) maximum

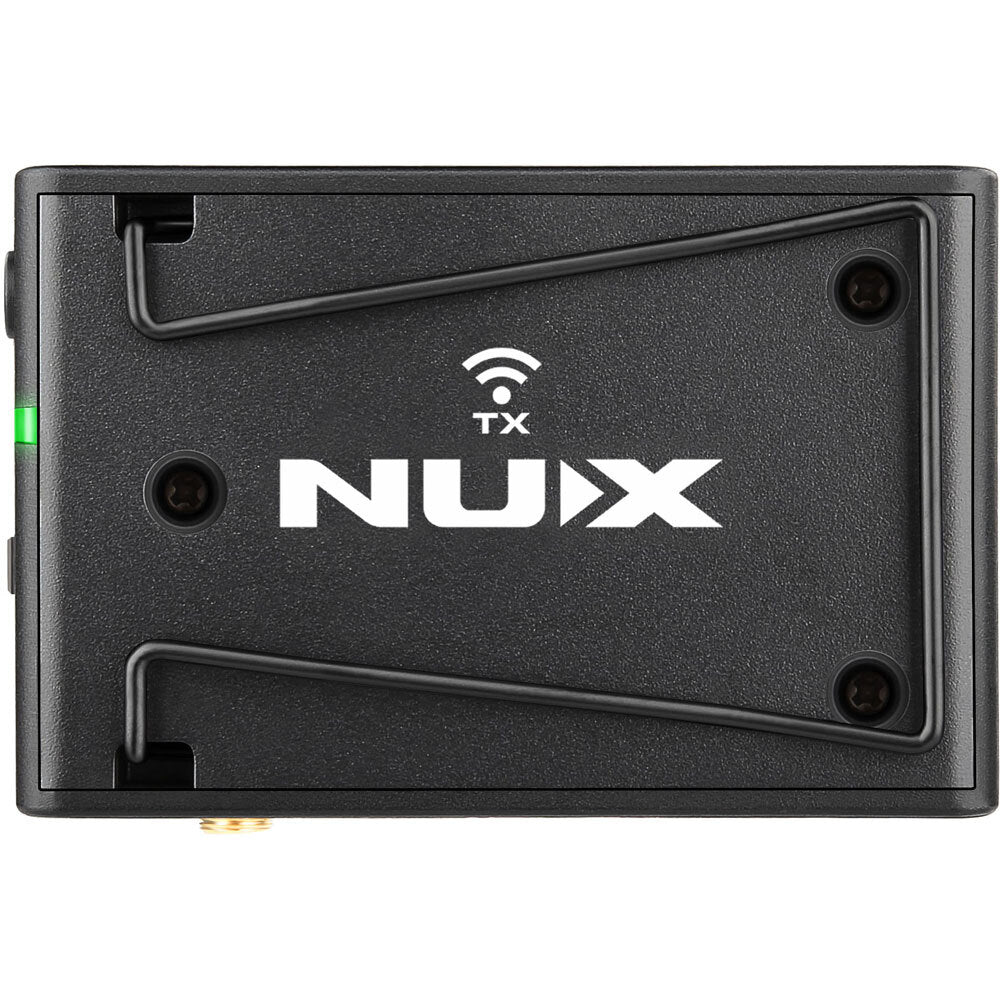

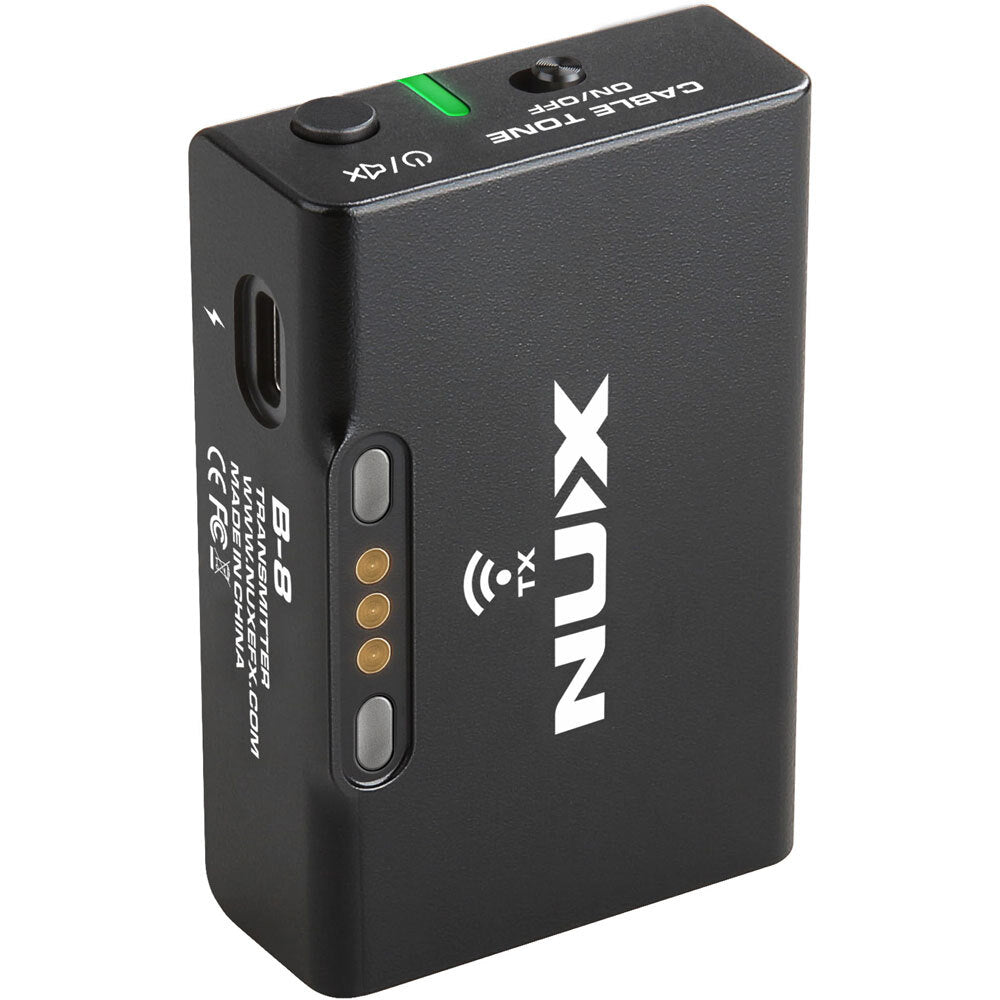

• TX Dimensions (L x W x H): 72.5 x 49.3 x 23mm
• TX Weight: 63g
• RX Dimensions (L x W x H): 122 x 95 x 60mm
• RX Weight: 500g
