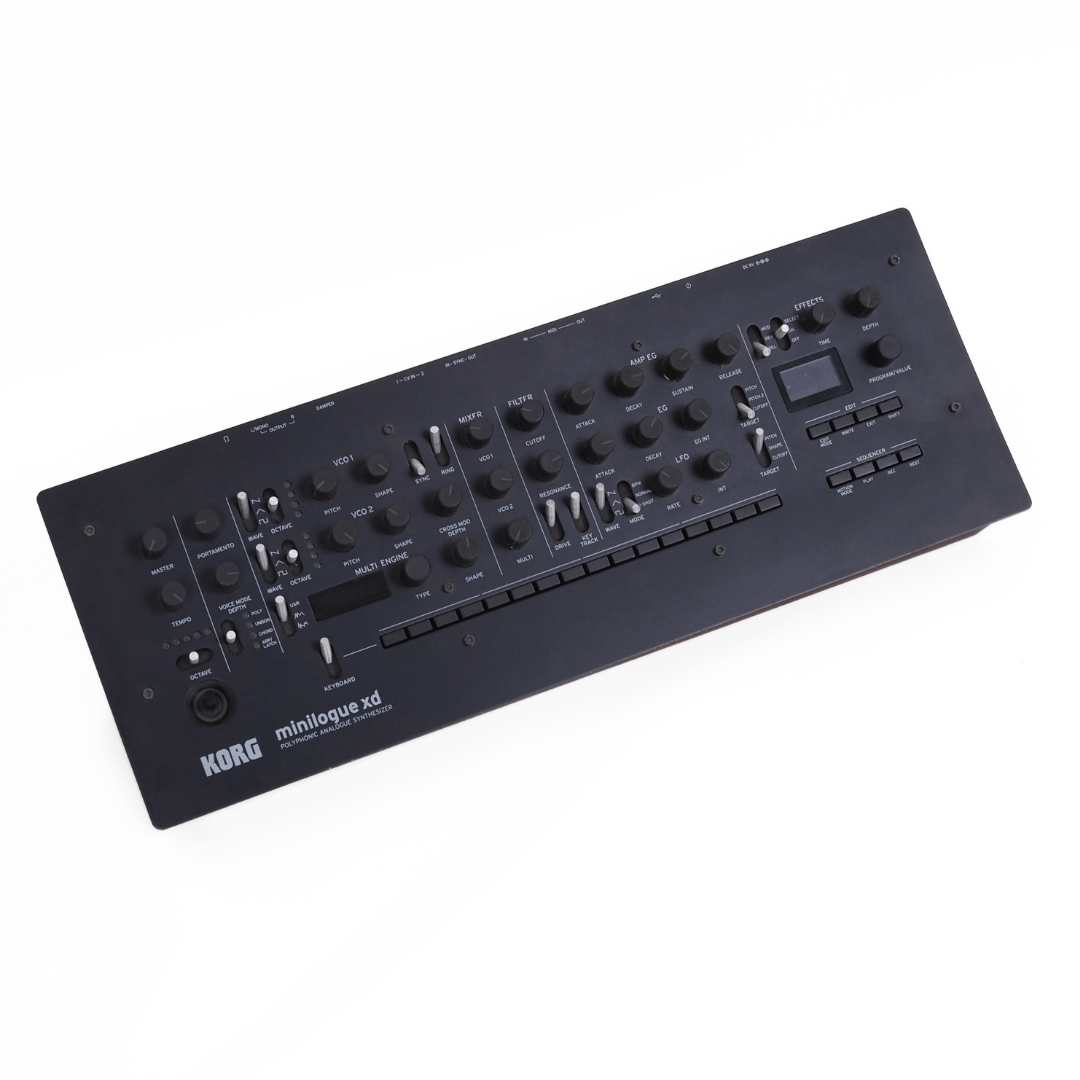

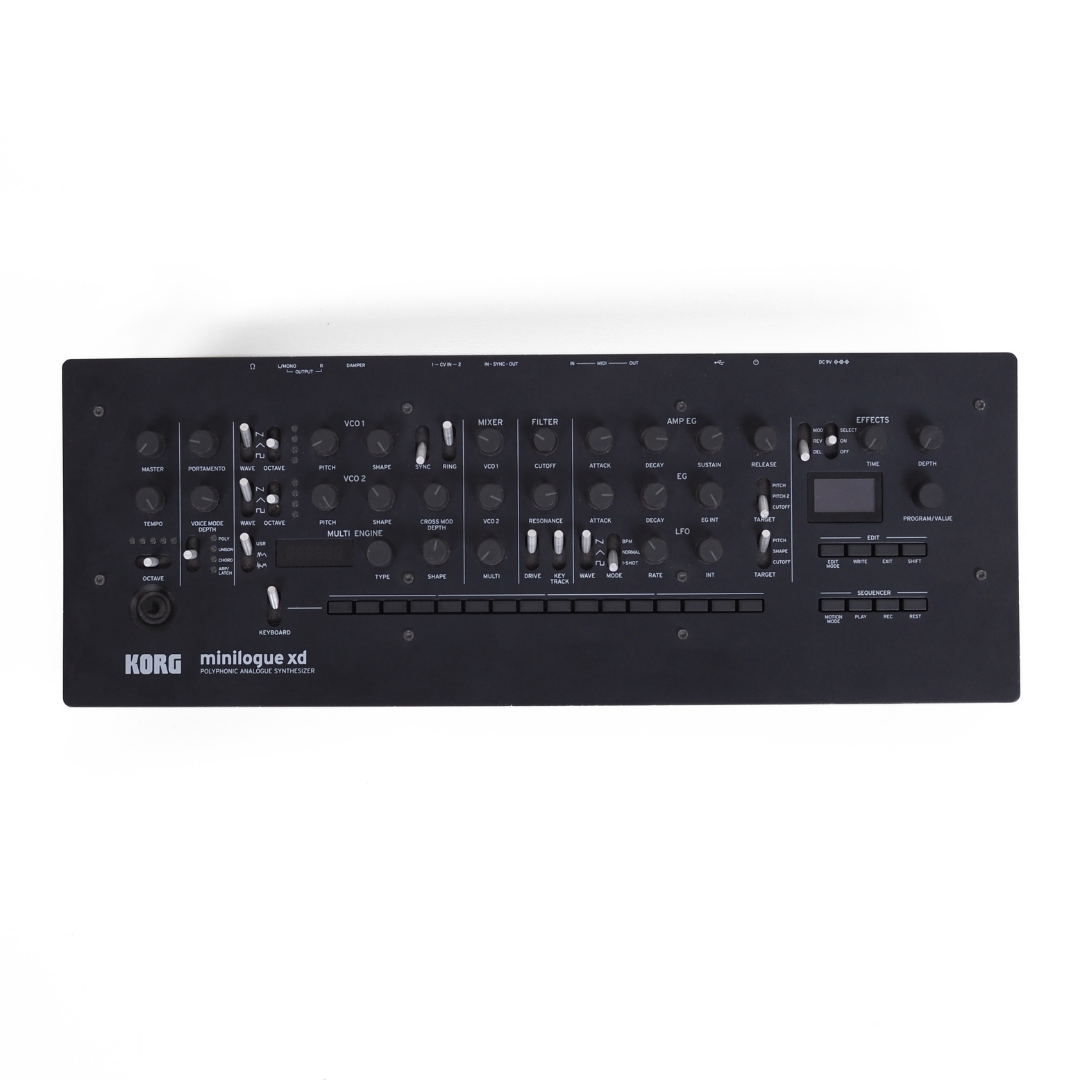

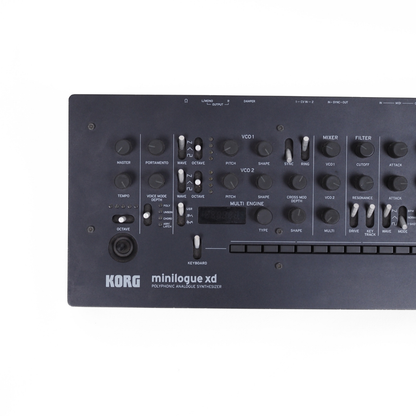

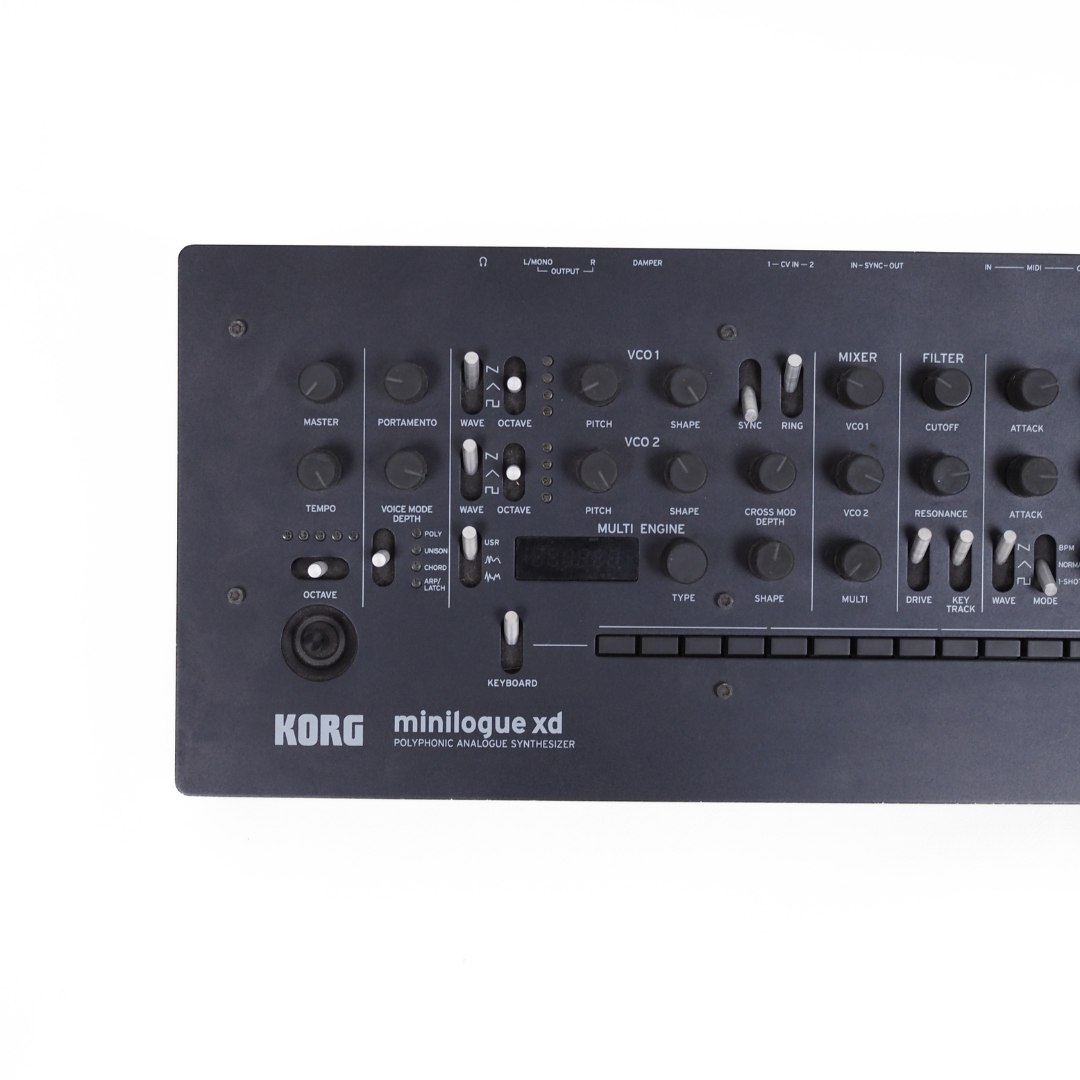

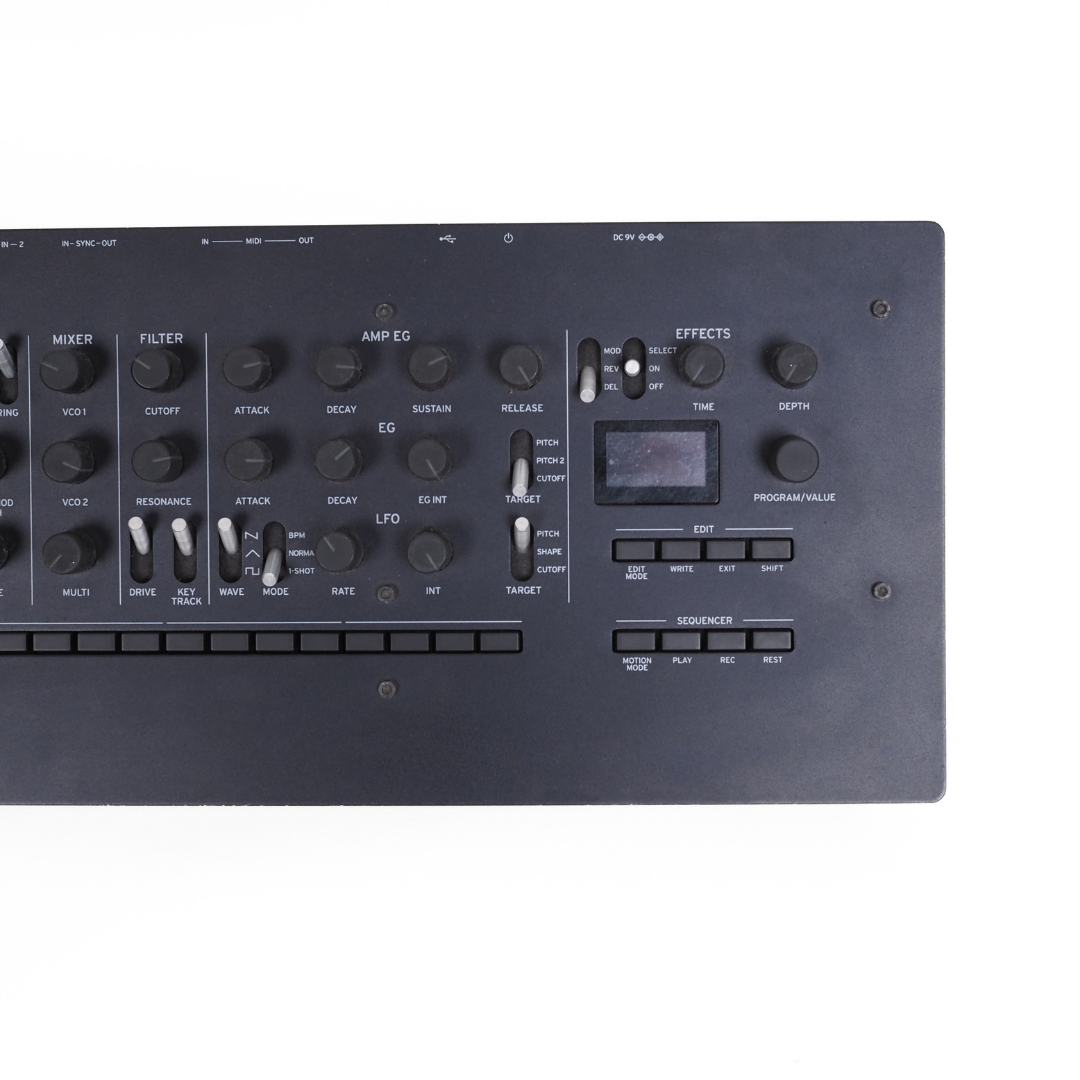

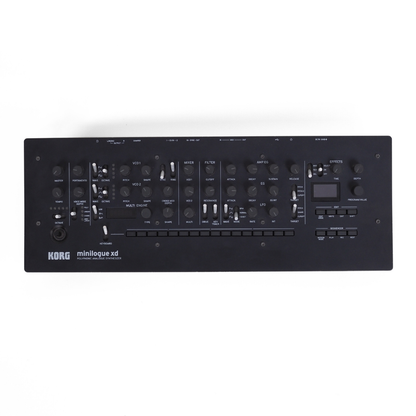

minilogue xd module is the new desktop module version of minilogue xd, the four-voice polyphonic analog synthesizer with a customizable digital multi-engine and built-in stereo digital effects.
The desktop module is equipped with the same controllers as the keyboard version, making it a great choice not only as an additional sound module for your keyboard or DAW but also providing excellent performability, giving you an easy way to include an analog polyphonic synth in your setup. It's also equipped with a poly-chain function that lets you connect it with another minilogue xd or minilogue xd module so that the two units can operate as a polysynth with a total of up to eight voices in your studio or on stage.
Add the sounds of the minilogue xd to your setup or system!
BRAND: Korg
BARCODE/UPC: 4959112187979

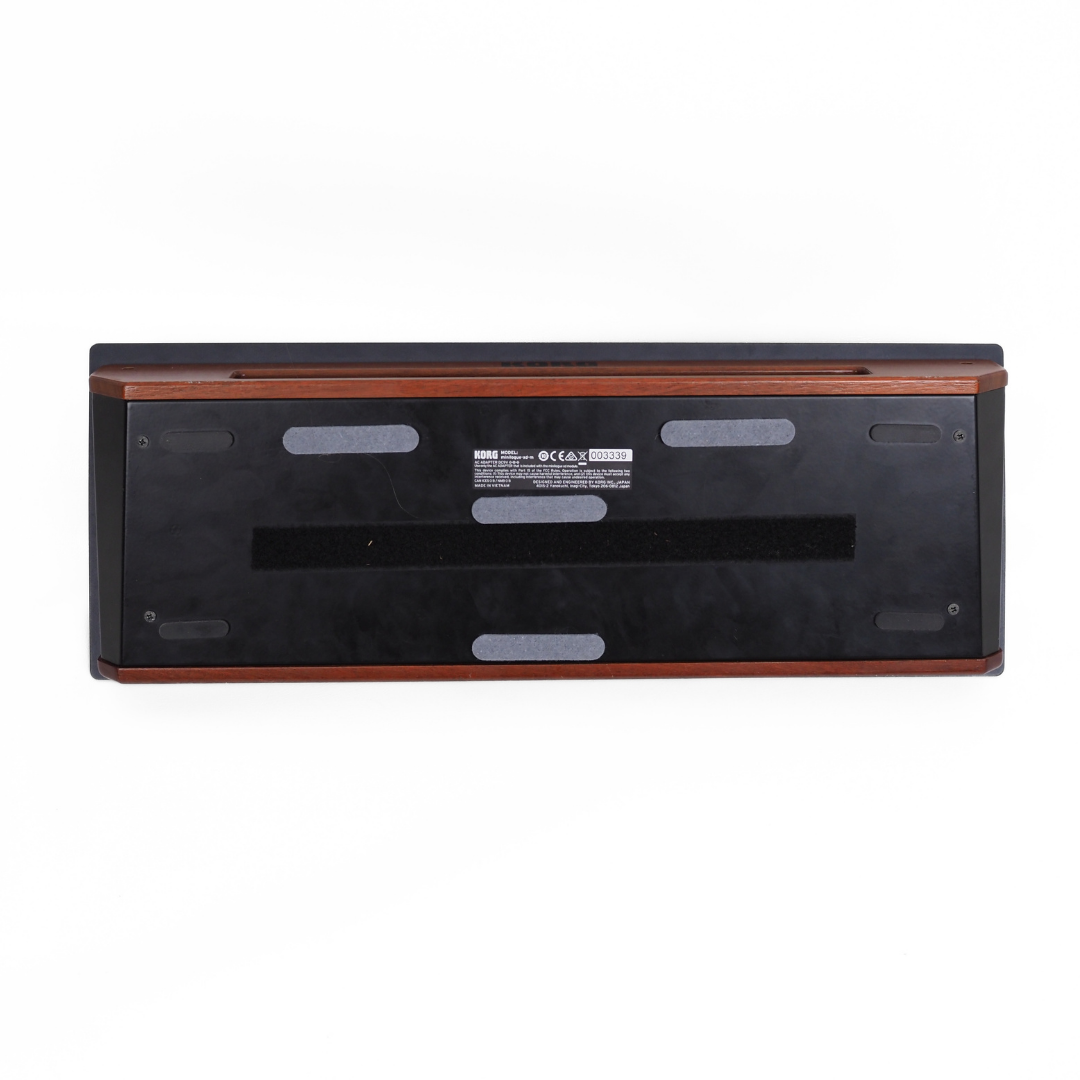

Serial Number: 003339
- Keyboard: 37-keys (Slim-key, velocity sensitive)
- Sound Generation: Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
- Maximum Polyphony: 4 voices
- Programs: 500 voices (more than 200 preload, 300 user programs). Each program provides a program sort function that includes voice mode settings.
- Favourite function built in.
- Voice Mode: 4 (POLY, UNISON, CHORD, ARP / LATCH).
- The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
- Sequencer: 16-step polyphonic sequencer. Motion sequence can be used on up to four parameters
- Main Synthesis Parameters: VCO1 - WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE. VCO2 - WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE. MODULATION - SYNC, RING, CROSS MOD DEPTH. MULTI ENGINE - NOISE/VPM/USER, TYPE. SHAPE. MIXER - VCO1, VCO2, MULTI. VCF - CUTOFF, RESONANCE, DRIVE, KEYTRACK. AMP EG - ATTACK, DECAY, SUSTAIN, RELEASE. EG - ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF). LFO - WAVE (SAW, TRIANGLE, SQUARE), MODE（BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
- Main effect Parameters: EFFECT - TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
- MULTI ENGINE: Noise Generator - 4 types. VPM oscillator - 16 types. User oscillator - 16 slots.
- MOD EFFECTS: CHORUS - 8 types. ENSEMBLE - 3 types. PHASER - 8 types. FLANGER - 8 types. USER - 8 types.
- DELAY: DELAY - 12 types. USER - 8 slots.
- REVERB: REVERB - 10 types. USER - 8 slots.
- Controls: Joy stick that can modify different parameters for each program, PORTAMENTO knob
- Display: Main - Real-time OLED oscilloscope provides visual feedback of parameter changes. MULTI ENGINE section - 7 segments x 6 digit LED display.
- Input/Output connectors: Headphone jack (Stereo phone jack), OUTPUT L/MONO, R jacks (monaural phone jack unbalanced), CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode), SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V), SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V), MIDI IN jack, MIDI OUT jack, USB B jack, DAMPER jack (half damper is not supported).
- Power Supply: AC adapter (DC9 V)
- Power Consumption: 8 W
- Dimensions: (W x D x H)500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
- Weight: 2.8 kg / 6.17 lbs.
