Photos shown are of the product on hand.

✔ One-off professionally tested preloved item. Warranty included.

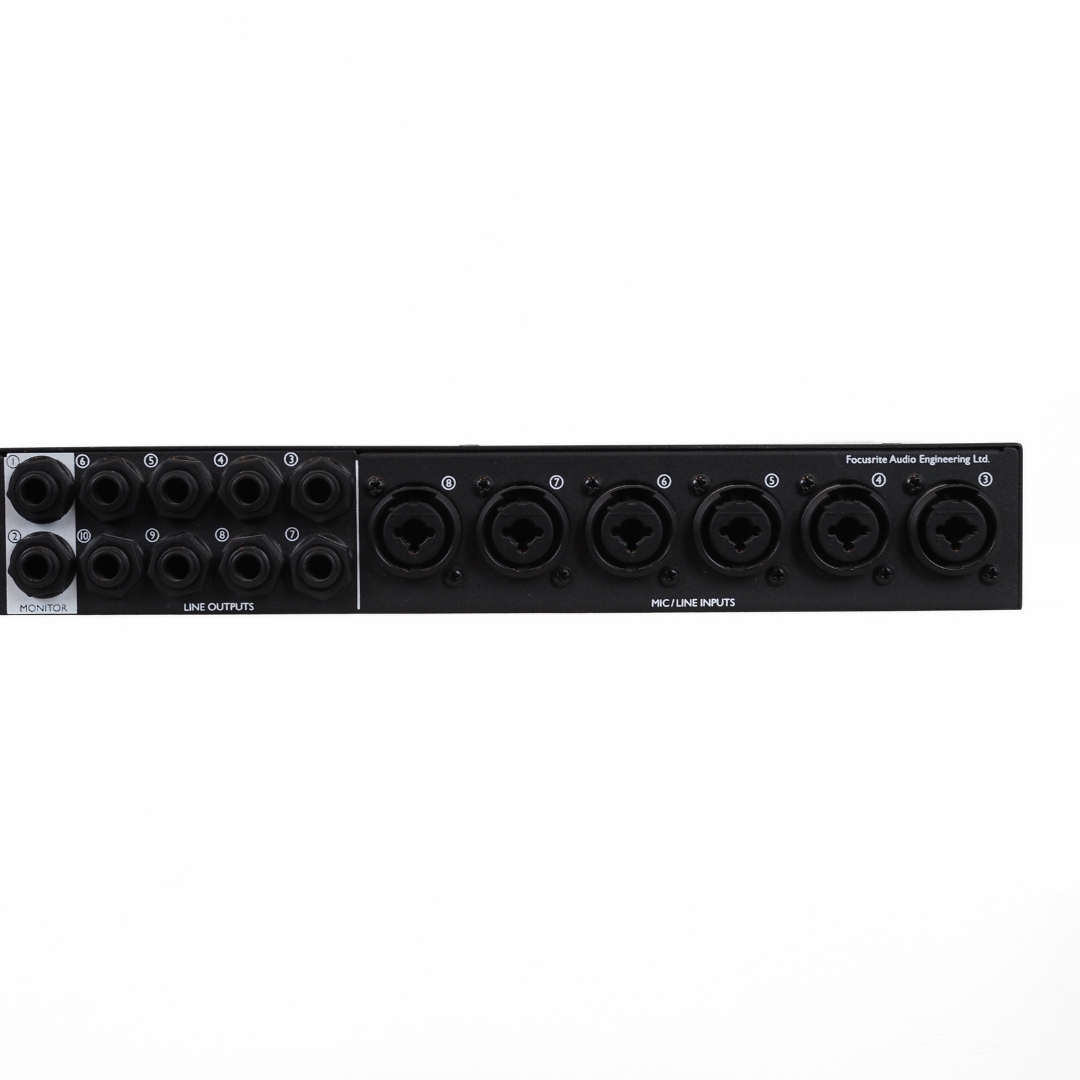

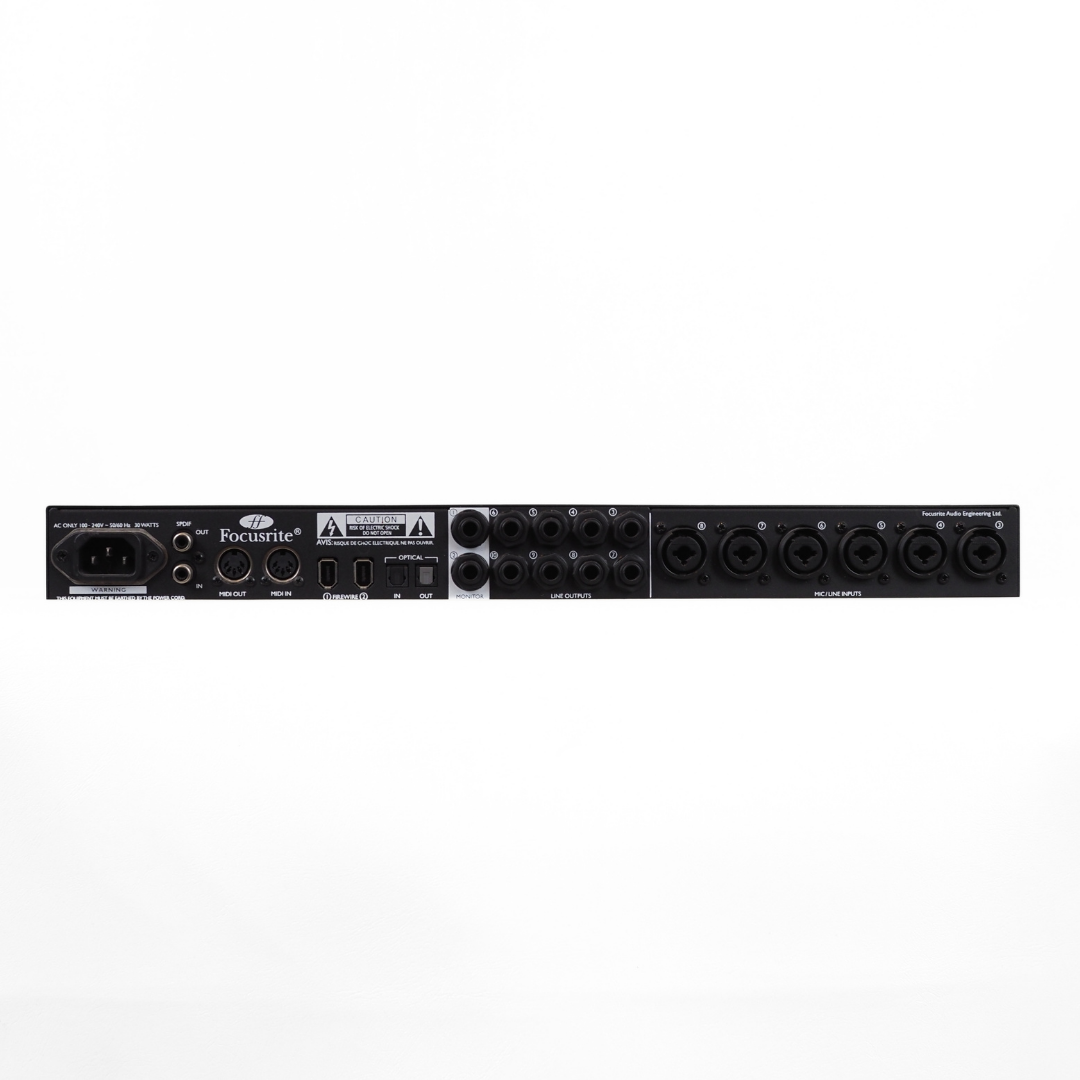

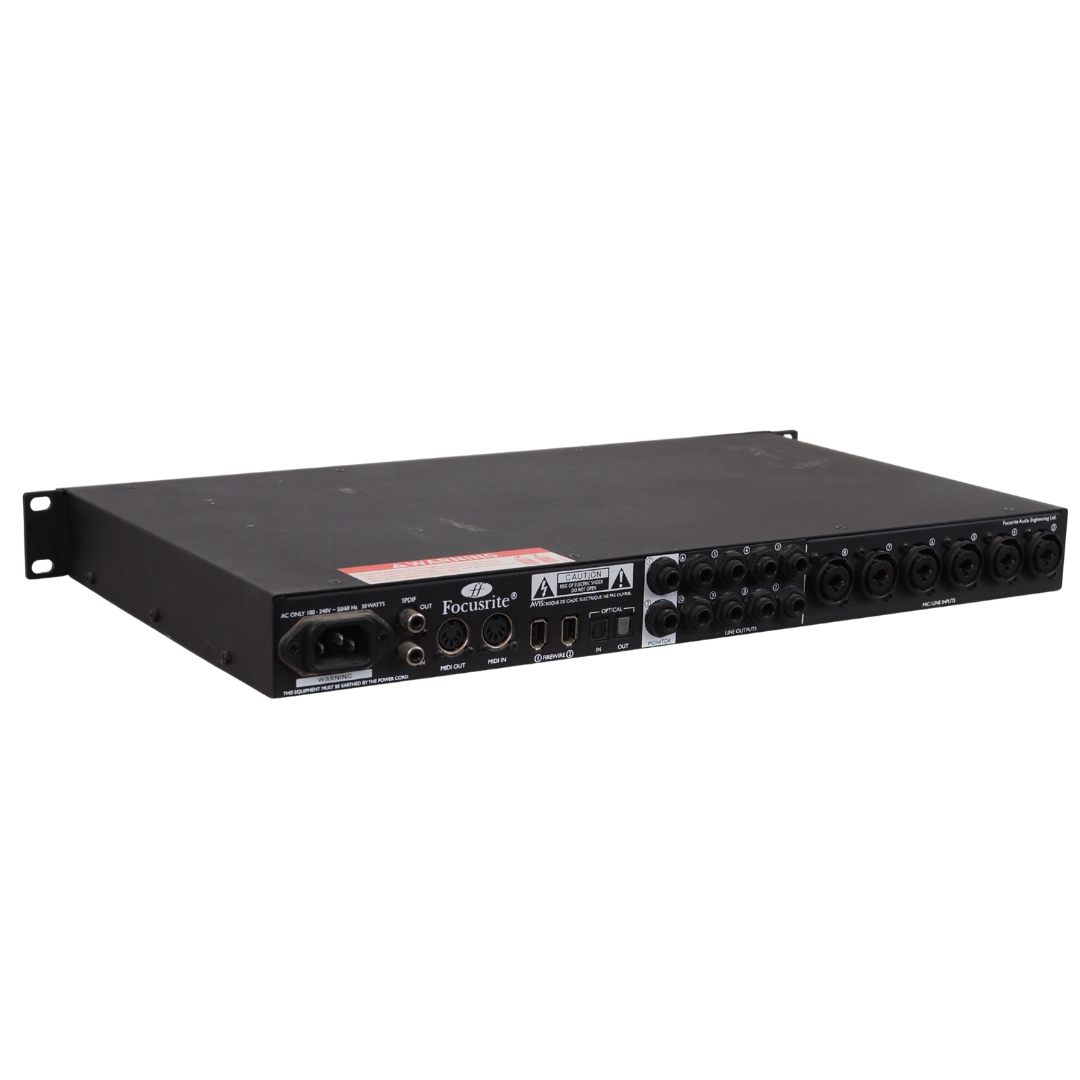

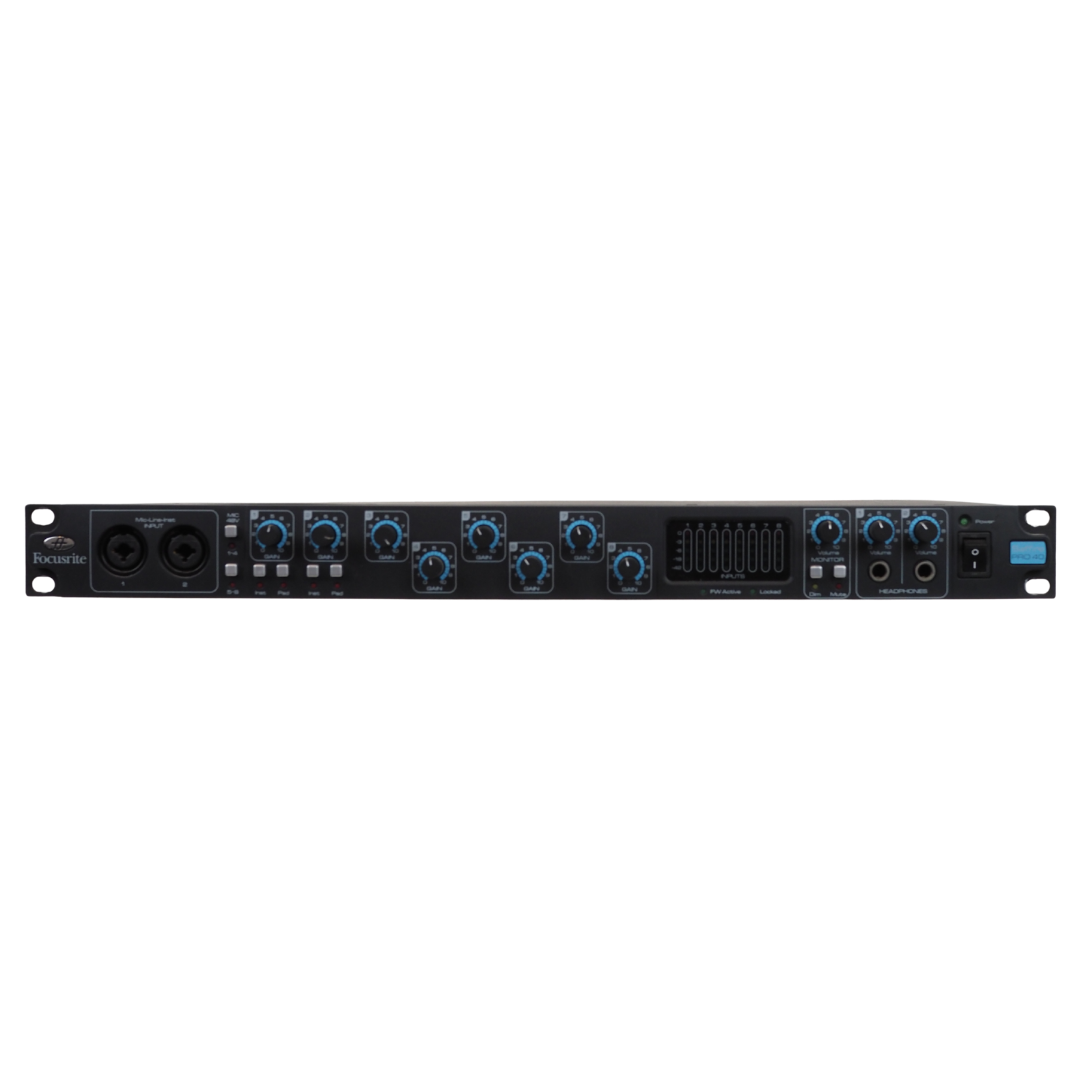

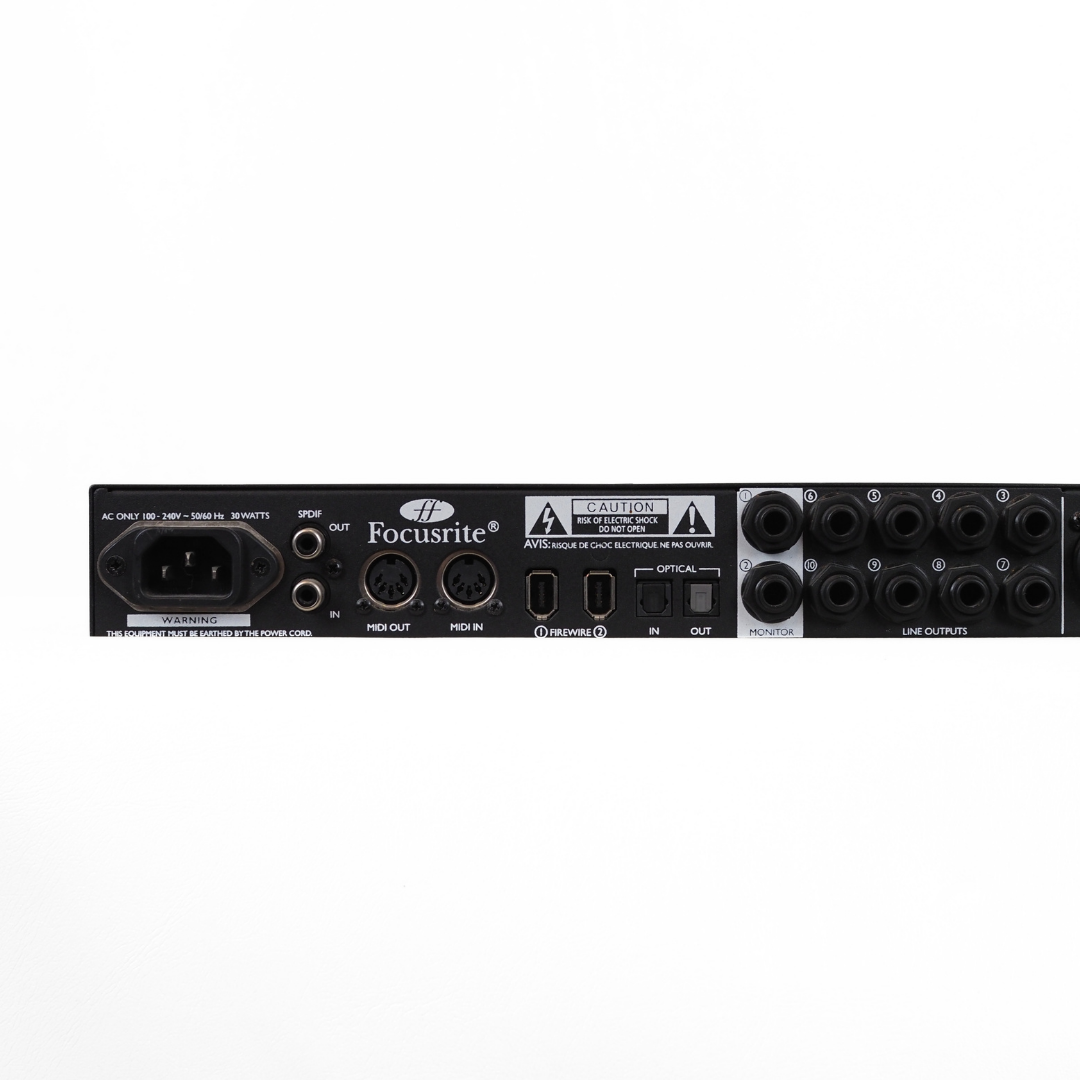

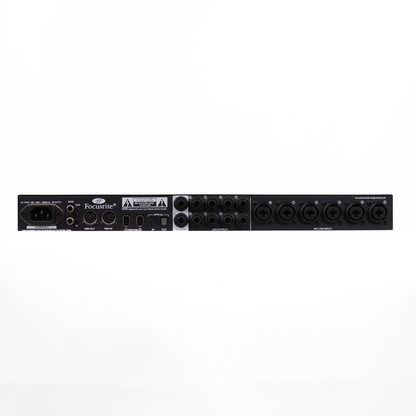

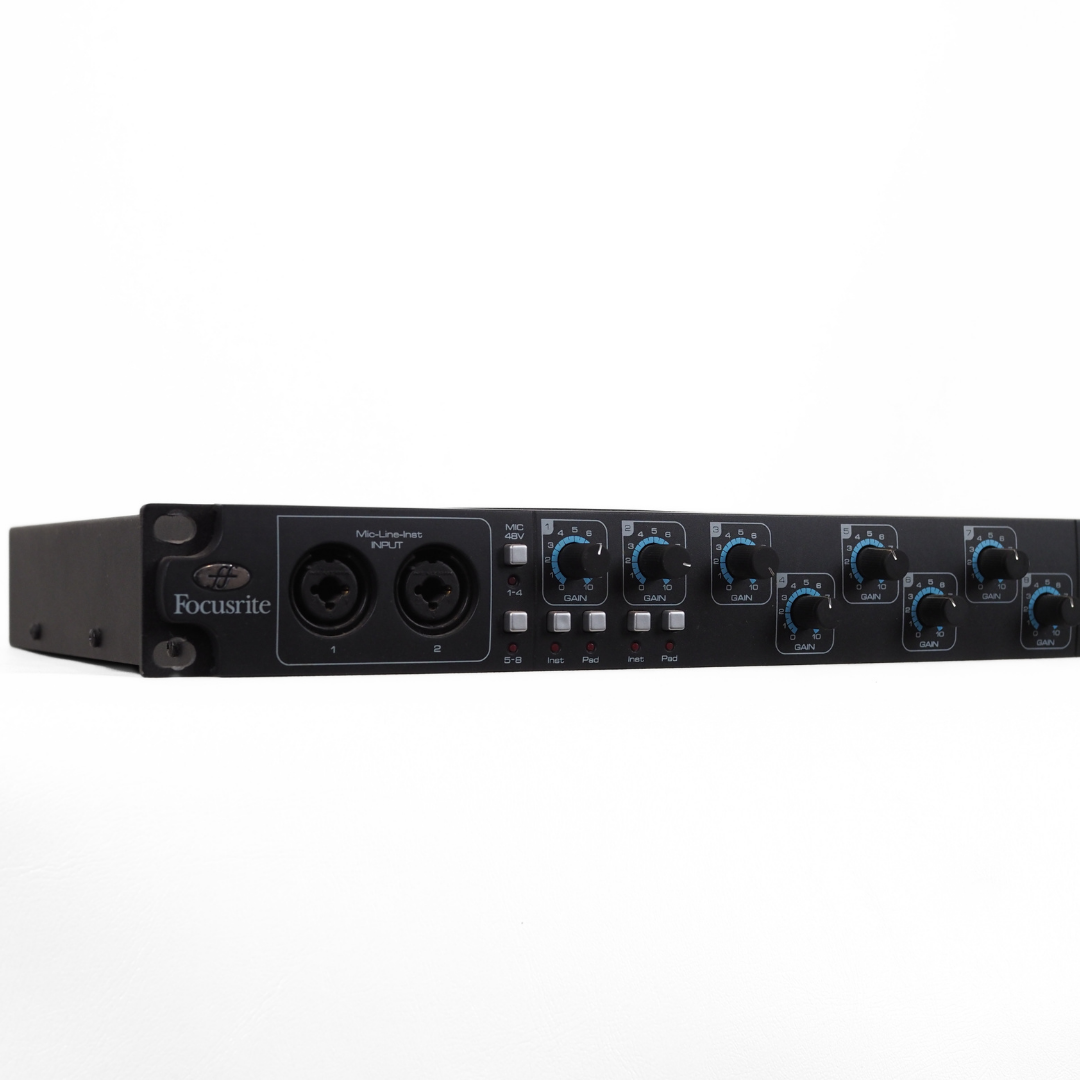

Focusrite Saffire Pro 40 Firewire Audio Interface Rack Mounted Unit

In excellent condition with minimal cosmetic wear

$220.00 AUD
$220.00 AUD
Sale Sold out
Shipping calculated at checkout.
View full details

Important Information

+ No accessories included (case, power supply etc).
🔌 Requires a standard modular AC IEC power cable

The Saffire PRO 40 hardware interface provides the means for connecting microphones, line-level signals, instrument-level signals, and digital signals to your computer, which are then routed to your audio recording software / digital audio workstation (DAW).

All audio signals connected to the inputs, plus audio output from your computer programs are routed to the physical outputs for you to connect to an amp and speakers, powered monitors, headphones, analogue/digital mixer, and any other studio equipment that you wish to use.

There are also connectors for sending and receiving MIDI.

The accompanying software application, Saffire MixControl provides further recording, routing and monitoring options, as well as the ability to control global hardware settings such as sample rate and synchronisation.

Saffire MixControl software provides mixing and routing to and from the DAW, allowing control over which signals are sent from the sequencer to each output. All inputs on the Saffire PRO 40 are routed directly to your DAW software for recording, but Saffire MixControl also allows you to route these signals to your monitors so that you can listen to the audio signals with zero latency - before they arrive at your DAW.

BRAND: Focusrite

BARCODE/UPC: 0815301008057

  • Microphone Dynamic Range (A-Weighted): 109dB
  • Microphone SNR (A-weighted): -109dB
  • Microphone Frequency Response: 20Hz - 20kHz +/- 0.1 dB
  • Microphone THD+N: 0.001 (measured at 1kHz with a 20Hz/22kHz bandpass filter)
  • Microphone Noise: EIN > 125dB (128dB analogue to digital) (measured at 60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter)
  • Microphone Maximum level (A-weighted): 8dBu at 1
  • Line Input Dynamic Range (A-Weighted): 109dB
  • Line Input SNR (A-weighted): -109dB
  • Line Input Frequency Response: 20Hz - 20kHz +/- 0.1dB
  • Line Input THD+N: Noise: -90dBu (22Hz/22kHz bandpass filter)
  • Line Input Maximum level (A-weighted): 28.5dBu at 1
  • Instrument Inputs Frequency Response: 20Hz-20KHz +/- 0.1dB
  • Instrument Inputs Maximum Input Level min gain no pad: +8dBu
  • Instrument Inputs Maximum Input Level max gain no pad: -42dBu
  • Instrument Inputs THD+N, -1dBFS, min gain, no pad: SNR: 109dB "A"
  • Instrument Inputs DNR: 109dB "A"
  • Instrument Inputs Input Impedance: > 1MOhm
  • Instrument Inputs X-talk: Adjustable Gain: > 50dB
  • Instrument Inputs Pad Attenuation: 10dB
  • Headphone Outputs Frequency Response: 20Hz-20KHz +/- 0.1dB
  • Headphone Outputs SNR: 109dB "A"
  • Headphone Outputs DNR: 109dB "A"
  • Headphone Outputs Maximum Output into 32R: +12.4dBu (+10.2dBV)
  • Headphone Outputs Power into 32R: 250mW
  • Headphone Outputs Output Impedance: Load Impedance: > 24Ohms
  • Line level Outputs Dynamic Range (A-Weighted): 108dB
  • Line level Outputs SNR (A-weighted): -108dB
  • Line level Outputs THD+N: Maximum level (A-weighted): 15.7dBu at 0.883
  • Line level Outputs Additional Conversion Performance
  • Clock jitter: THD+N AMPL (A-weighted): = -109dBFS
  • Analogue Channel Inputs (Inputs 1-8): 2 Mic/Line/Inst Combo XLR (Inputs 1 and 2), 6 Mic/Line Combo XLR (Inputs 3-8), Automatic switching of Mic / Line (e.g. inserting a jack switches from Mic to either Line or Instrument)
  • Digital Channel Inputs (Inputs 9-18) 44.1-96kHz: Stereo S/PDIF input on RCA, 8 ADAT inputs on Optical Connector, reduces to 4 inputs at 88.2/96kHz - Optical input can be switched to S/PDIF 3/4 in software preferences (ADATs disabled)
  • Analogue Audio Outputs (Outputs 1-10)
  • 8 1/4'' TRS Jack (Outputs 3-10)
  • 2 monitor mix outputs on 1/4'' TRS Jack (Outputs 1 and 2)
  • Stereo headphones mix 1 on 1/4'' TRS (also routed to outputs 7 & 8)
  • Stereo Headphones mix 2 on 1/4'' TRS (also routed to outputs 9 & 10)
  • Digital Channel Outputs (Outputs 11-20) 44.1-96kHz: Stereo S/PDIF output on RCA, 8 ADAT outputs on Optical Connector, reduces to 4 outputs at 88.2/96kHz, Optical output can be switched to S/PDIF 3/4 in software preferences (ADATs disabled)
  • Firewire sockets: 2 6-pin
  • 2 Standard 5-pin DIN MIDI connectors: In and Out
  • Input connector: IEC mains power input connector
  • Weight: 3kg / 6.6Ibs
  • Width: 482mm / 19"
  • Height: 45mm / 1.8"
  • Depth: 265mm / 10.4"
  • System Requirements: Mac OS: 10.9 or Greater
  • Windows: Windows 7, Windows 8
  • RAM: 512MB Minimum
