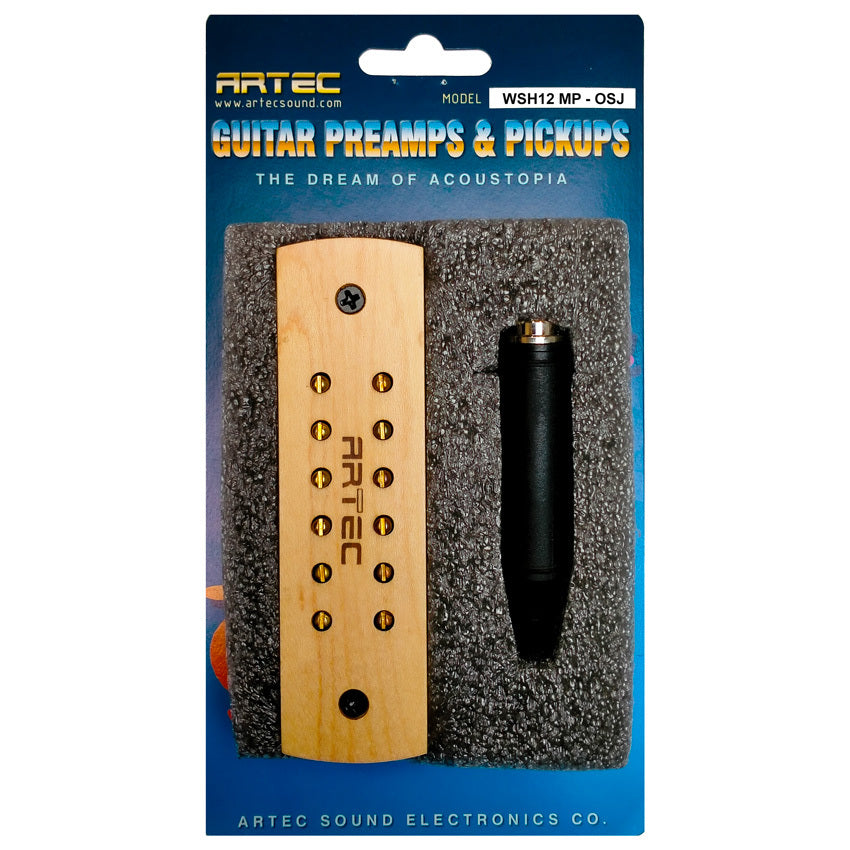

The Artec WSH12 (Wood Soundhole Humbucker) pickup is a wooden passive humbucker magnetic soundhole pickup. This pickup is available in two Output Configurations (OSJ - External Output Jack) or (EPC - Internal Output Jack)
WSH12 has 12 adjustable pole pieces to control individual string balance, and has a real solid wood cover. Alnico 5 magnets are used to get clear and sensitive string response. Special gauge formvar coil is wound with exact turns and DC Resistance for the natural acoustic-electric guitar sound. The slim size humbucker bobbins are used for the modern simple shape.
The WSH pickup is produced for simple installation on your guitar. This pickup's size is specially measured and produced to fit many different sizes of guitars, and mounts quickly and easily in the sound hole of any round-hole steel string acoustic guitar. WSH`s mounting brackets keep the pickup in place and protect the soundhole.
WSH is carefully produced so that the original natural acoustic guitar sound is not affected. This pickup offers excellent bass and mid-range response.
- Passive
- External mount Nickel plated Output Jack with 60cm cable
| Solid Wood Cover | Maple |
|---|---|
| Bobbin | Humbucker |
| Pole Piece | 12 Gold-Plated adjustable pole pieces |
| Pole Piece Pitch | 10mm |
| Magnet | AlNiCo |
