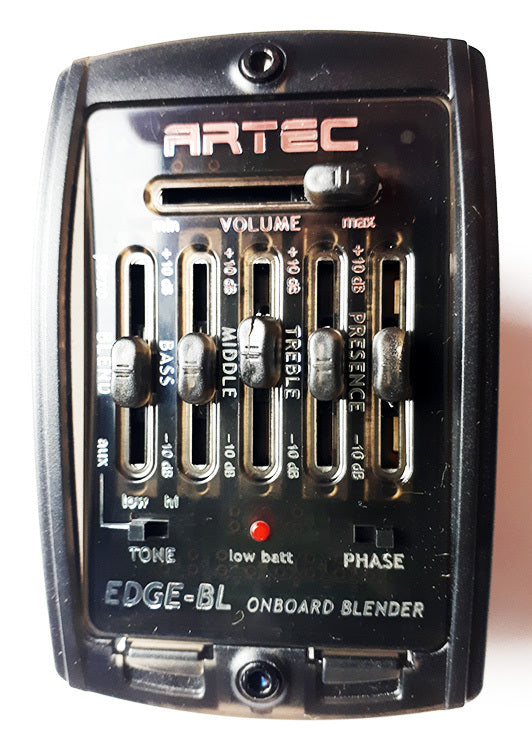

The EDGE-BL has a Blender EQ and basic controls of Bass, Middle, Treble and Presence. Through the AUX-INPUT jack at the bottom a Condenser Microphone or Soundhole Pickup can be connected. This pack contains both an undersaddle piezo pickup and a magnetic soundhole pickup.
Also the sound from another source can be plugged in. The Blender can control the mixing balance of the piezo sound from 4-band EQ, and the sound from AUX-Input. The Phase switch on the panel is applied to piezo sound only, therefore this can give the additional choices about Plus-Mixing or Minus-Mixing of piezo pickup sound and AUX sound. This enables you to create great tone variations.
Features:
- 4-Band EQ - Bass, Middle, Treble & Presence Controls
- Master Volume output level
- Blend the mix ratio between Piezo and AUX
- Phase Reverse Switch to reduce feedback
- Tone Switch creates a High cut of AUX sound to make soft tones
- Low Battery check LED
- Tuner Switch
- Chromatic tuner LEDs - Flat, OK & Sharp

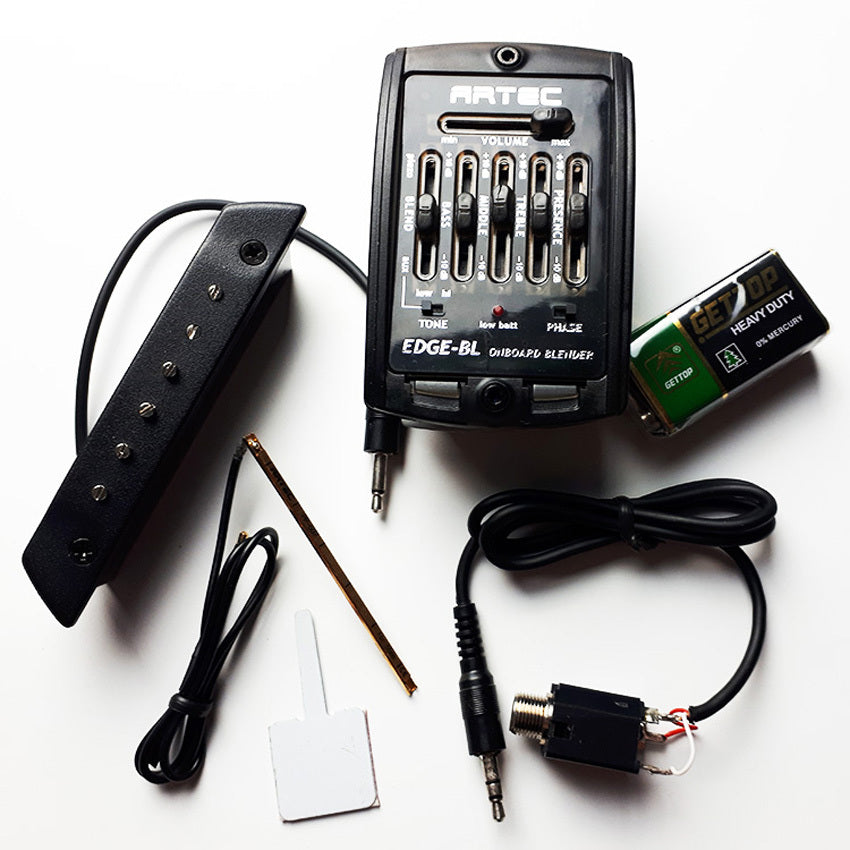

Pack includes:
- Artec EDGE-BL Pre-amp with On-board Blender System
- Artec Piezo pickup
- Artec MSP-50 Magnetic Soundhole Pickup
- Input jack
- 9V Battery
- Low Battery check at 5.0 V
| Power Supply | 9V Alkaline Battery |
|---|---|
| Battery Life | Over 1000 hours (without head set) |
| Bass control range | ±10 dB |
| Middle control range | ±10 dB |
| Treble control range | ±10 dB |
| Piezo pickup Input Jack | 2.5 mm Mono Jack |
| Magnetic pickup Input Jack | 3.5 mm Mono Jack |
