The AK15 plus is a two source system, the undersaddle piezo crystal pickup is combined with an electret condenser microphone integrated in the endpin pre-amp.
It has been a developing goal to come up with an easy to use, versatile pickup system that captures the true sound of the instrument with a maximum of dynamic range, even if it exceeds the dynamic range of the instrument.
The AK15 plus provides high volumes and impressive punch combined with low noise components for best possible signal to noise ratio.The AK15 plus system can be used with all guitars (steelstring and classic) which allow under saddle pick-up installation with string spacings from 10 to 12.5 mm.
The installation is similar to all under-saddle pickup systems. The instrument does not suffer mechanical stress in use or during installation. There is no soldering necessary.

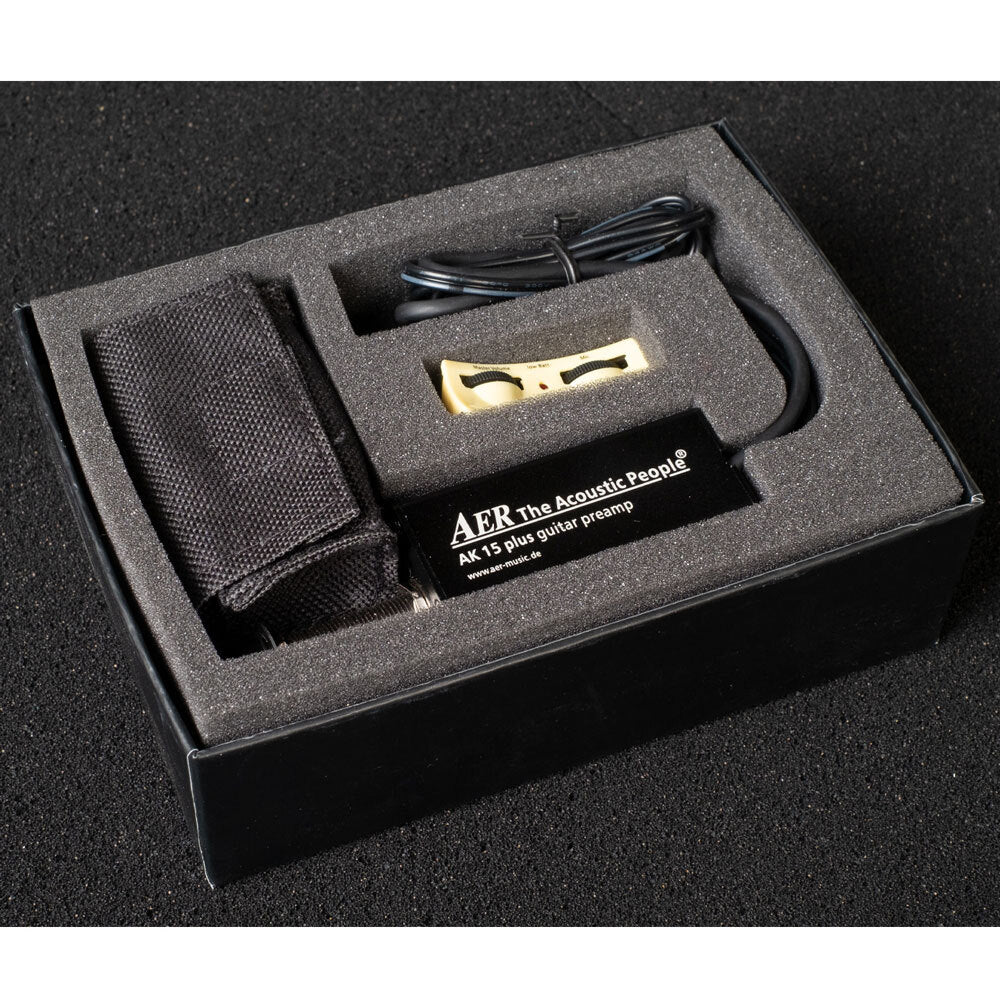

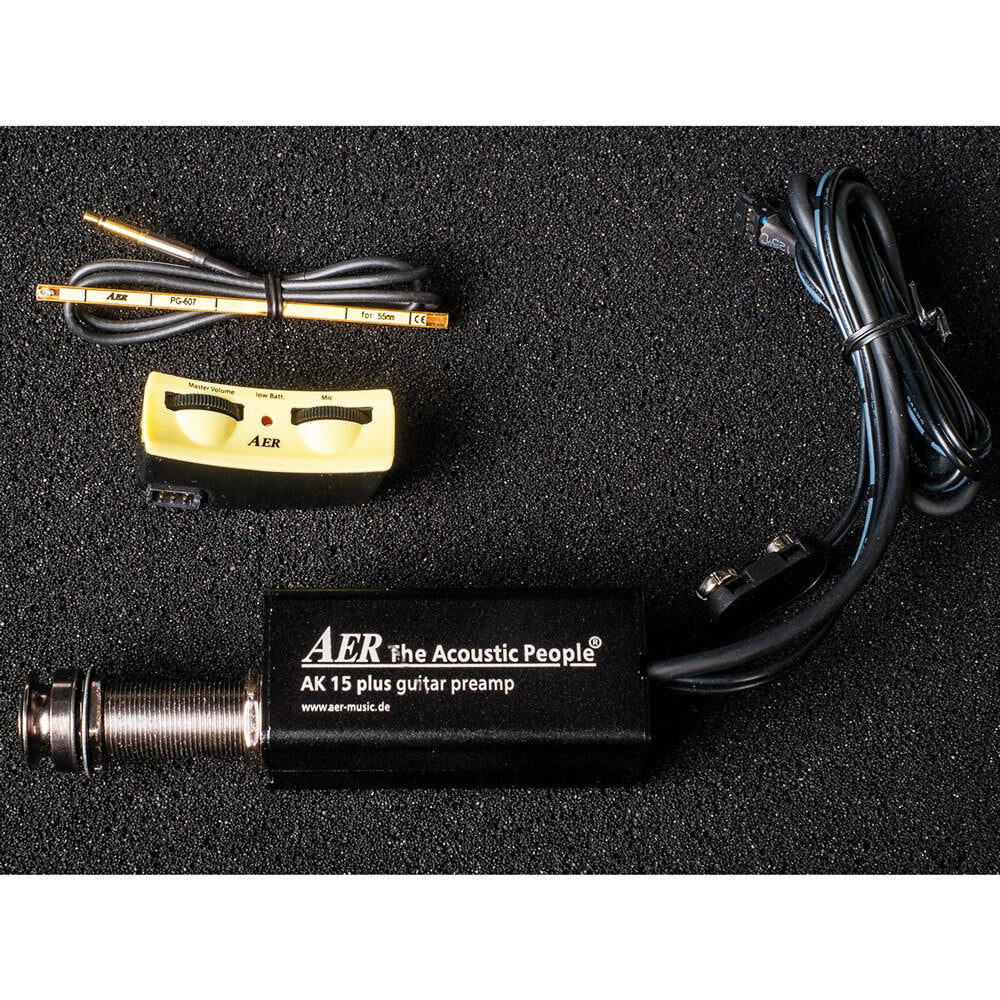

Package Contents:
- 1 x AK15 plus piezo pick-up with 2.5 mm jack

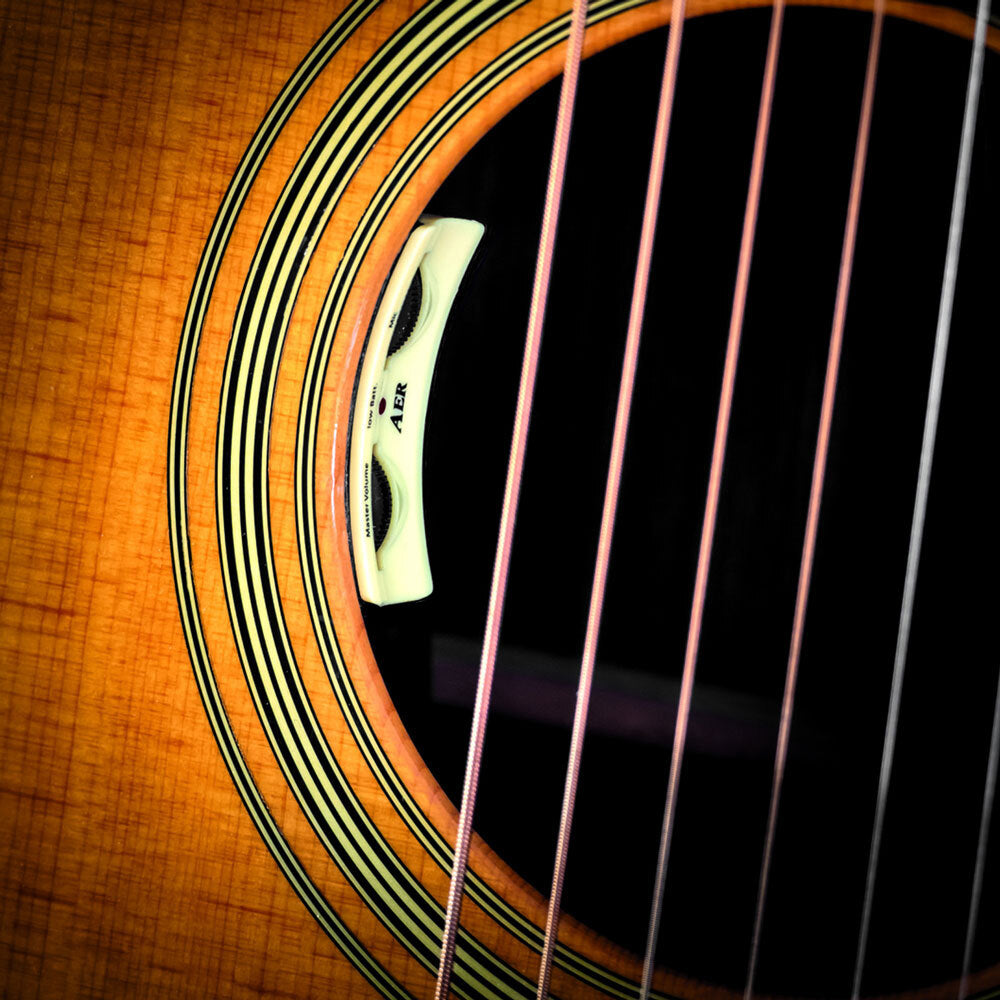

- 1 x AK15 plus endpin preamp with integrated microphone, soundhole control (SHC) and battery with pouch
- 1 x 9V battery
- 1 x Dual-lock (tape) for battery pouch
- 1 x adhesive tape for SHC
- 3 x Cable clamps
- Battery pouch with tape
- Max Output +10 dB
- Gain= 0 dBV
- input shorted
- Low Noise FET, input stage
| Max input | +10 dBV (Piezo) |
|---|---|
| Max. Gain | 20 dbV |
| Output impedance | < 50 ohm |
| Noise | < -91 dBV (22 Hz - 22 kHz, |
| Supply voltage | 9V battery |
| Supply current | 5.8 mA |
| Design | Low Noise Class A/B, output stage |
