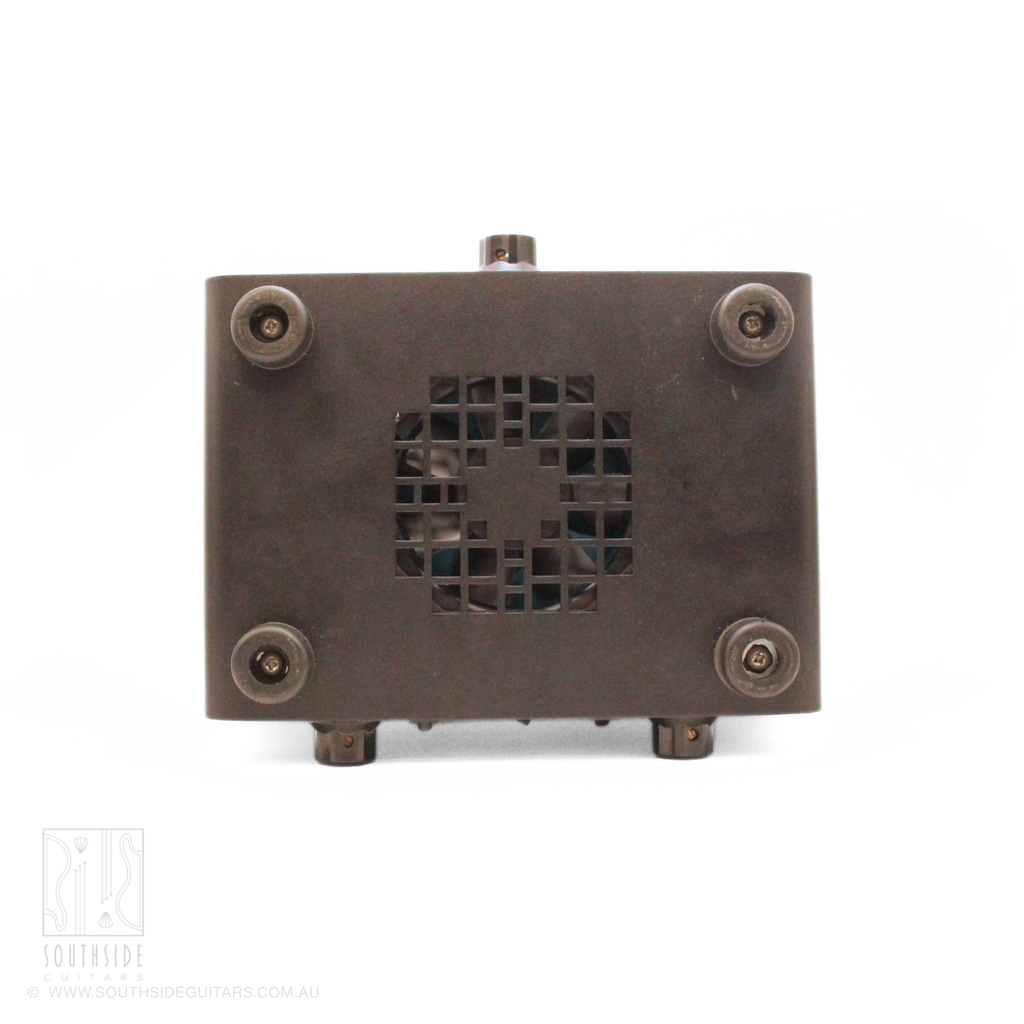

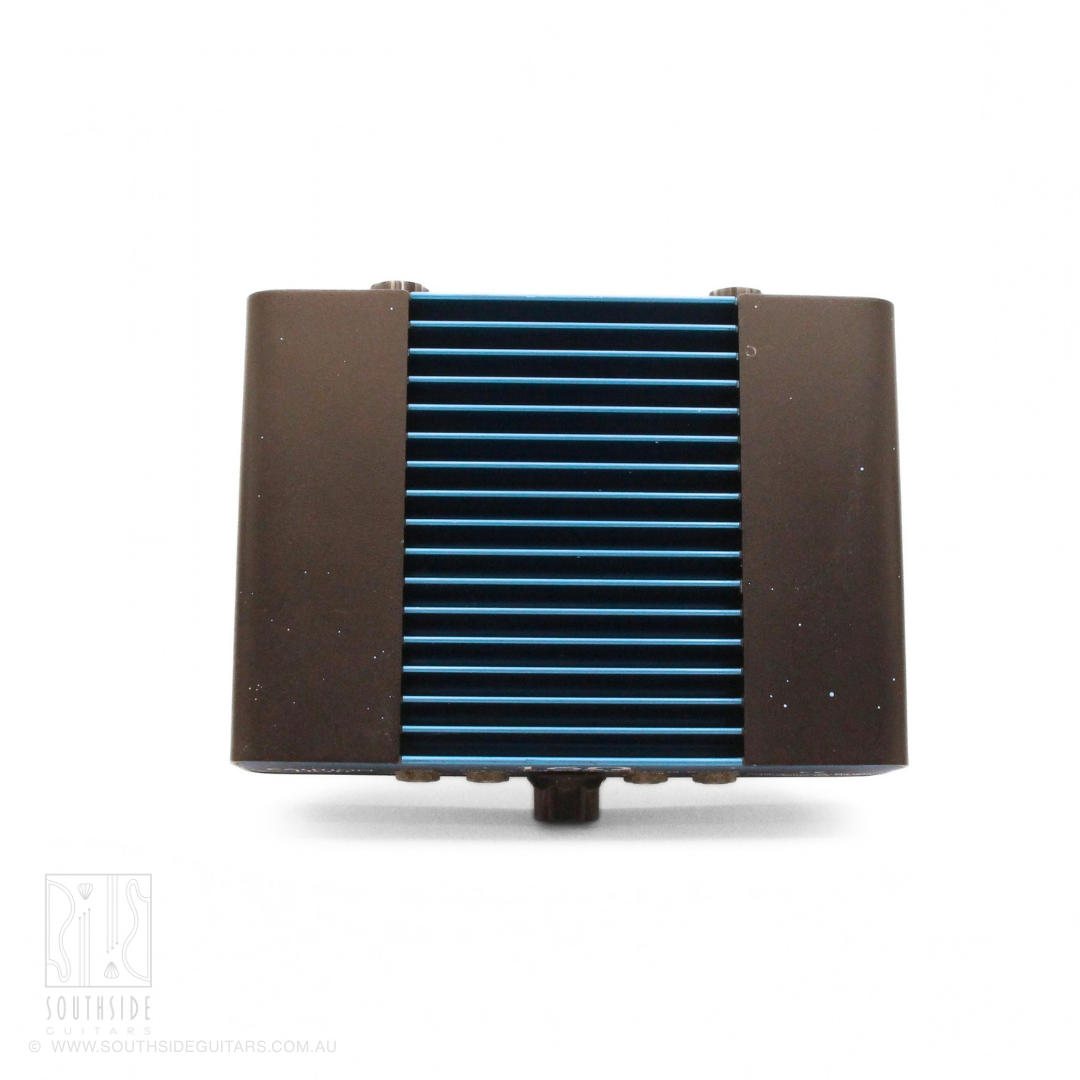

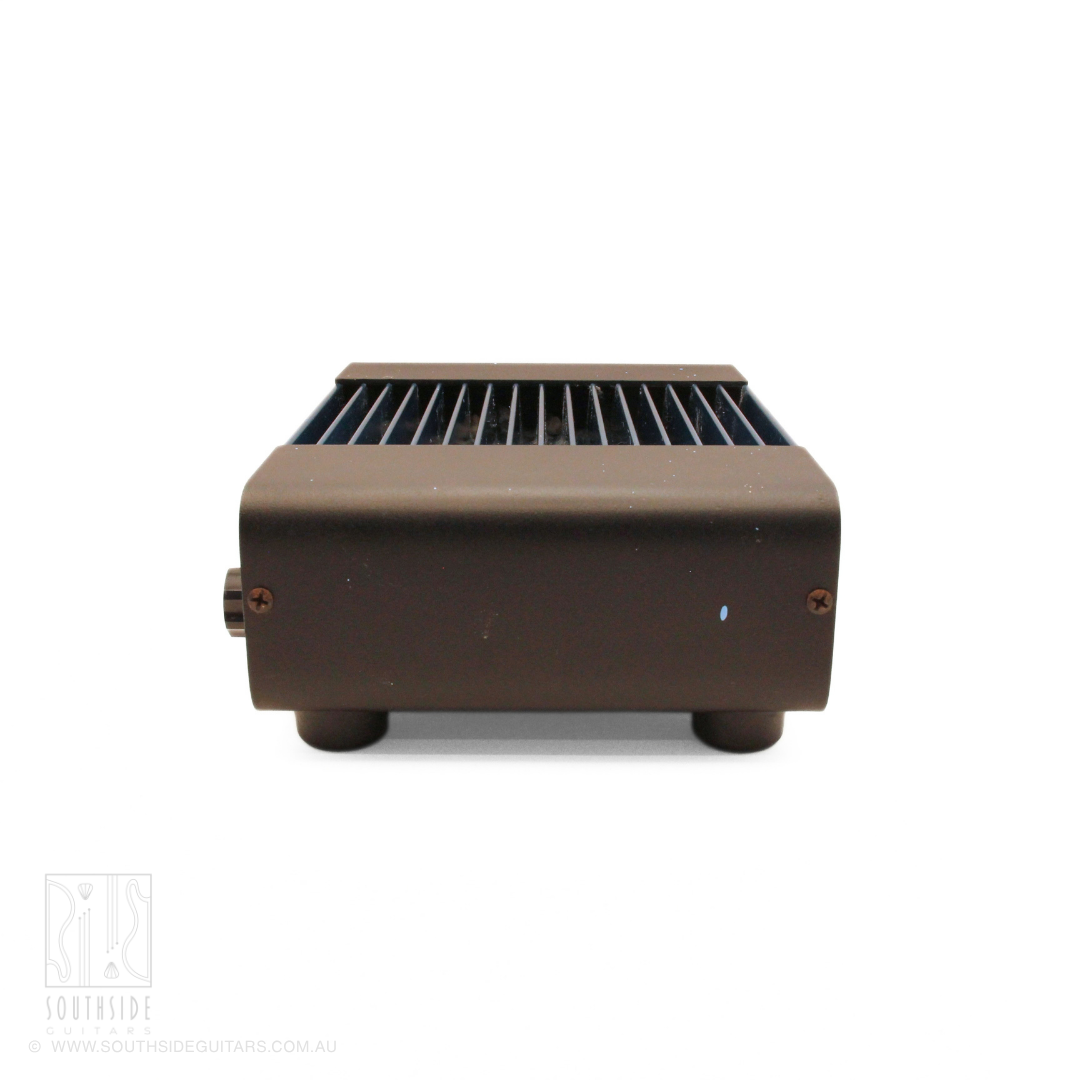

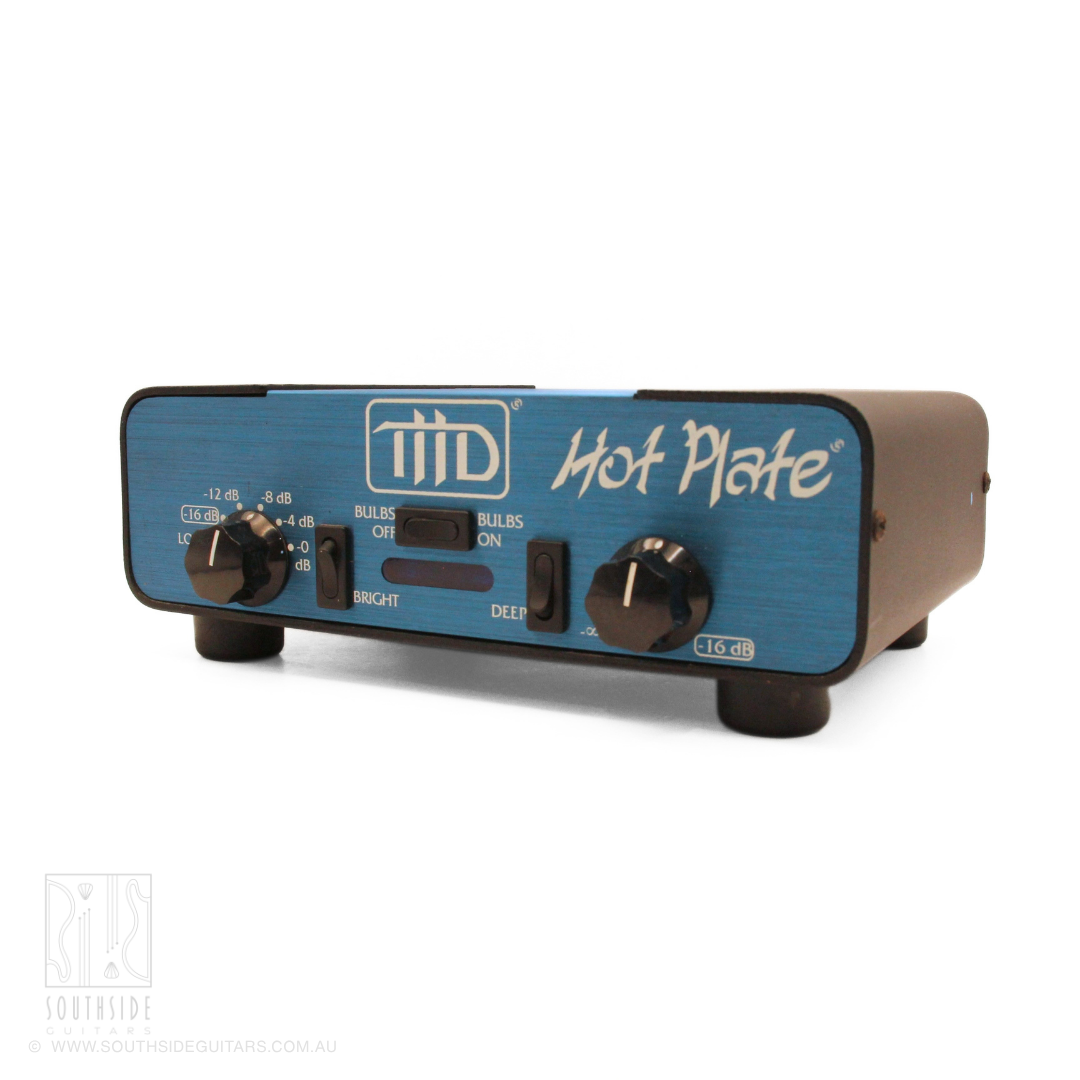

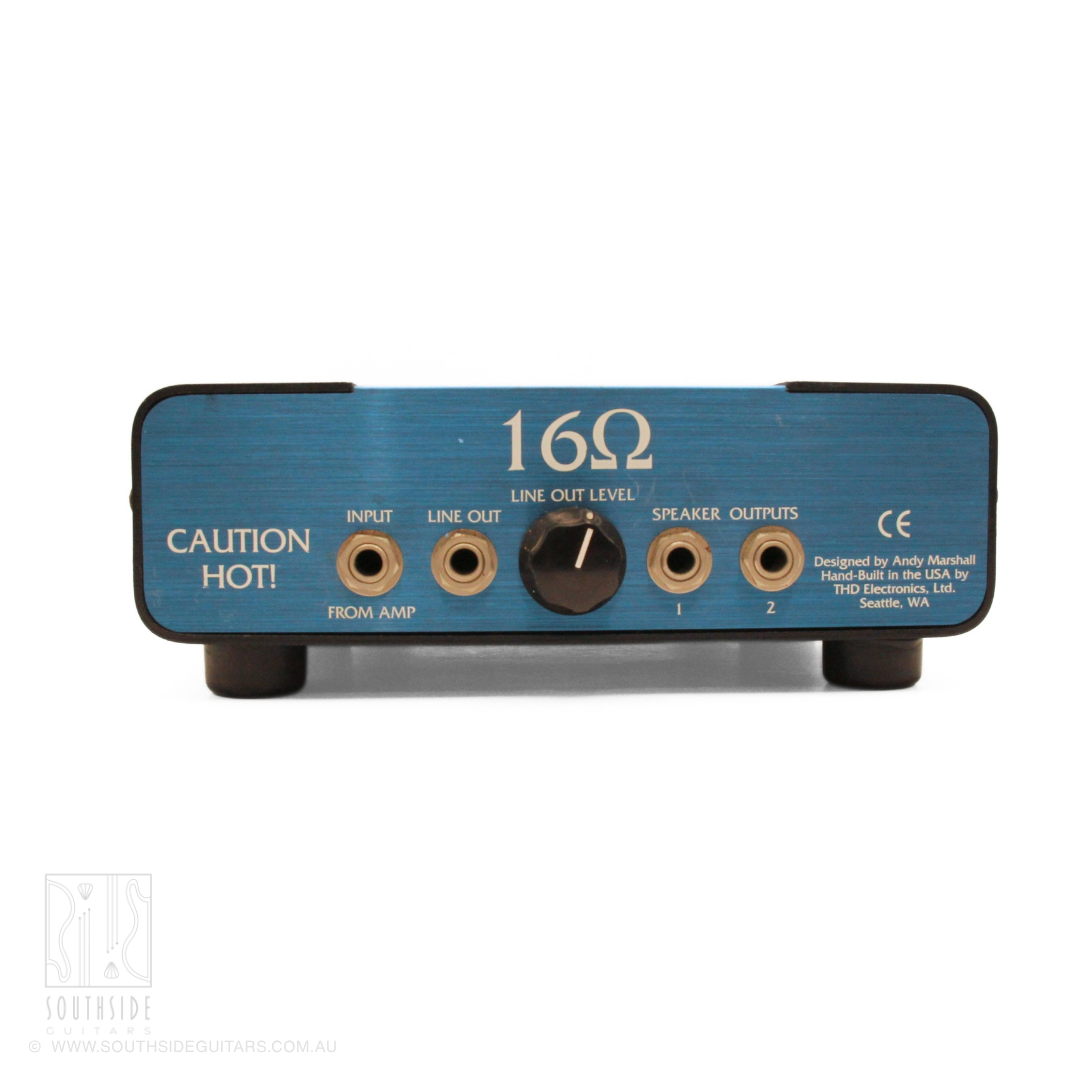

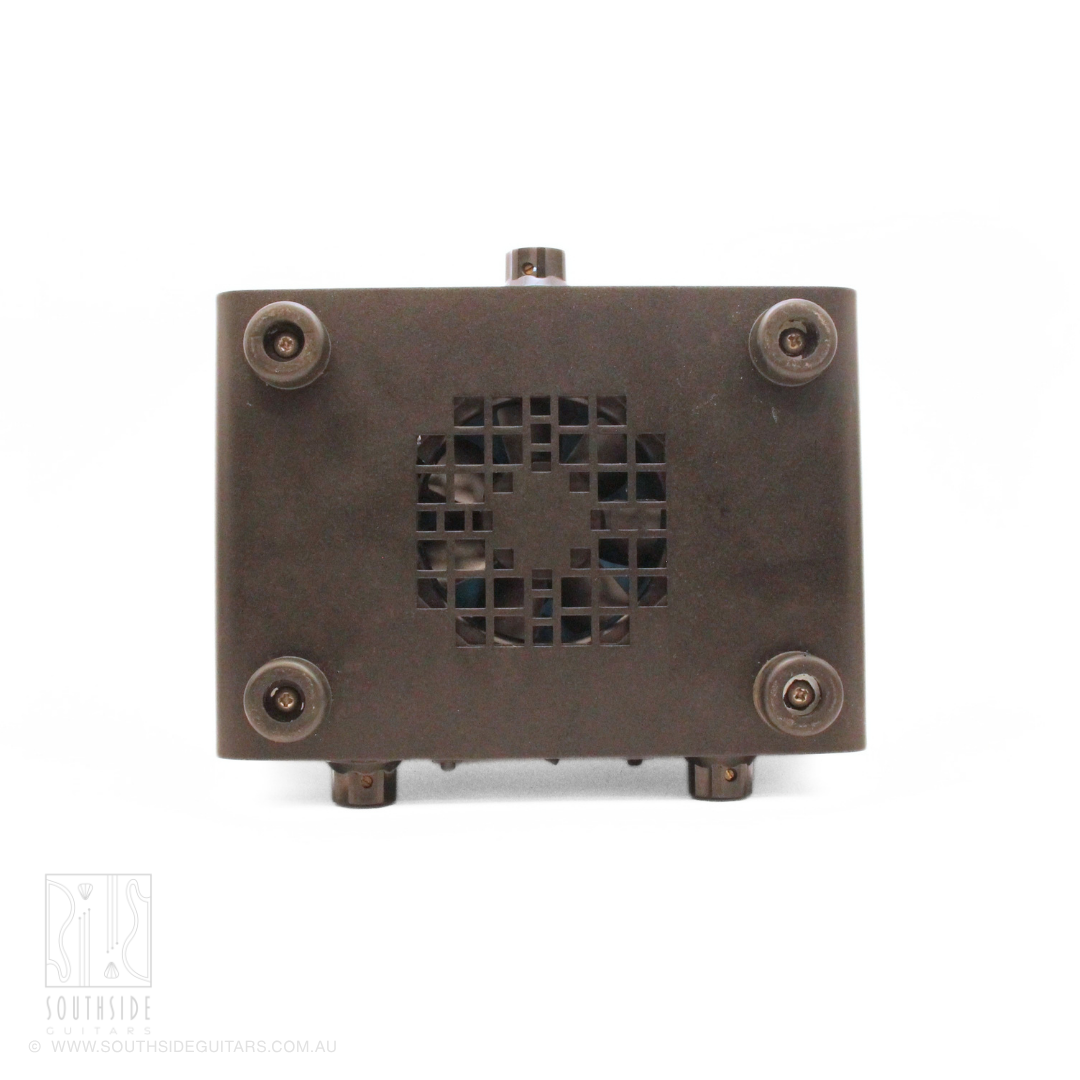

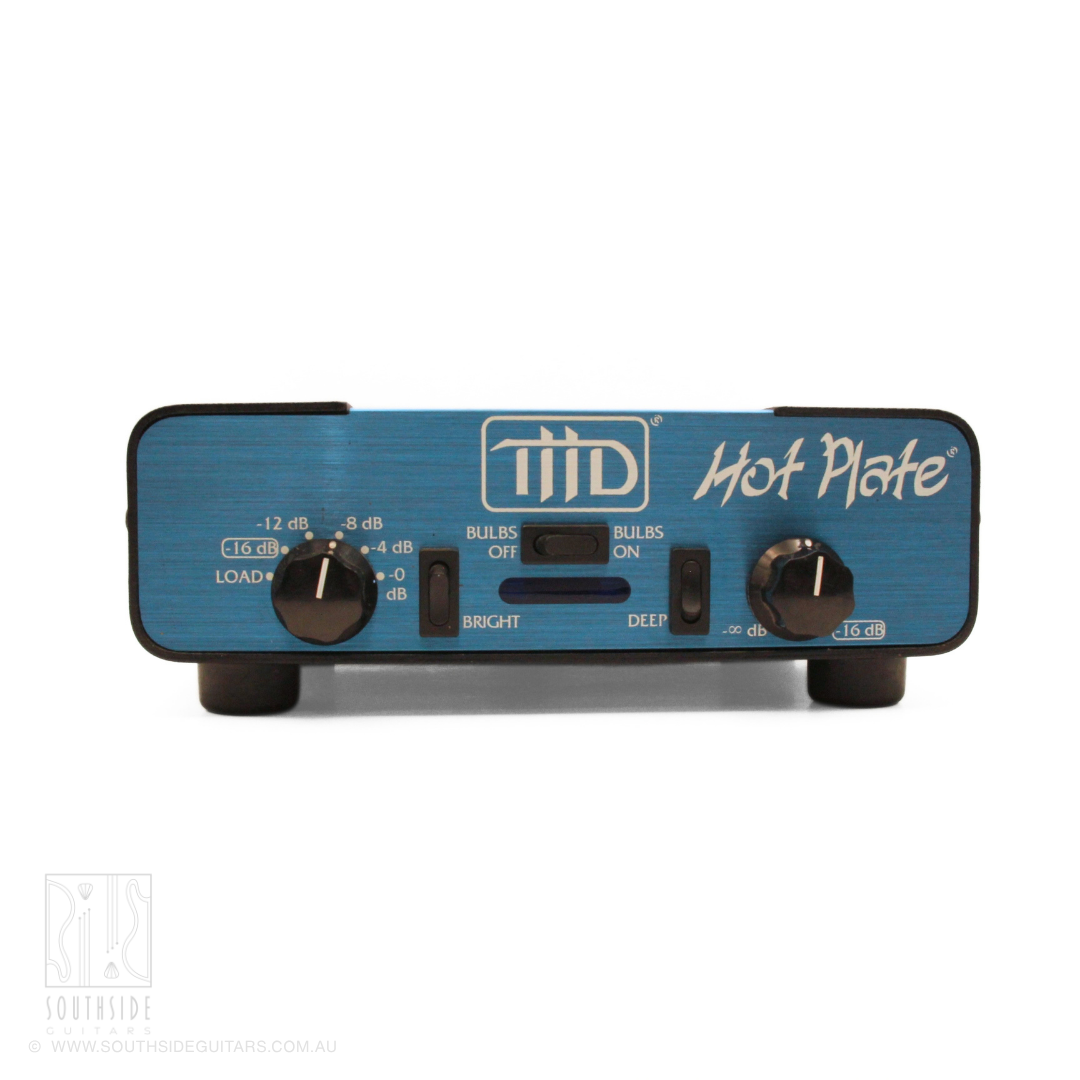

THD Hot Plate Power Attenuator - 16 Ohm
THD Hot Plate Power Attenuator - 16 Ohm
Condition: In great condition with very minor cosmetic wear. No accessories included (case, power supply etc).
Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Overview
The Hot Plate is a power attenuator that sits between your amp and speaker(s). It allows you to obtain the full output distortion of a tube amplifi er at lower volumes, without sacrificing tone.
The Hot Plate can also function as a high quality direct box, allowing you to send the amp’s signal to a mixing board, a separate power amplifier or to rack mount effects without miking the speaker(s).There are five different
Hot Plate models in five colors: The 2Ω (gold), the 2.7Ω (green), the 4Ω (red), the 8Ω (purple), and the 16Ω (blue). To optimize the tone and function of the Hot Plate the impedance should be the same on your amplifier, Hot Plate and speaker cabinet.
Specs
| Attenuation | 0 dB to -16 dB in four dB increments; -16 dB to -∞ dB (zero output) continuously variable |
|---|---|
| Power Handling | Up to 100 Watts RMS (tube amplifiers) |
| Line Output Type | Mid-impedance (approx. 35KΩ), unbalanced, negative ground |
| Connector | 1/4” phone jack |
| Tone Controls | Bright and Deep switches for high-frequency and low-frequency shaping |
| Level | Continuously variable line out level (+10dB(V) to -40dB(V)). |
| Input Impedance | 16-Ohm |
| Continuous power dissipation | 150W RMS |
| Max. recommended amplifier power | 185W RMS. |
| Additional Features | Built-in passive single-ended noise reduction (~10 dB) and an adjustable Line Out |
| Size | 7.3 cm x 20.9 cm x 18.4 cm |
| Weight | 1.9 kg |
