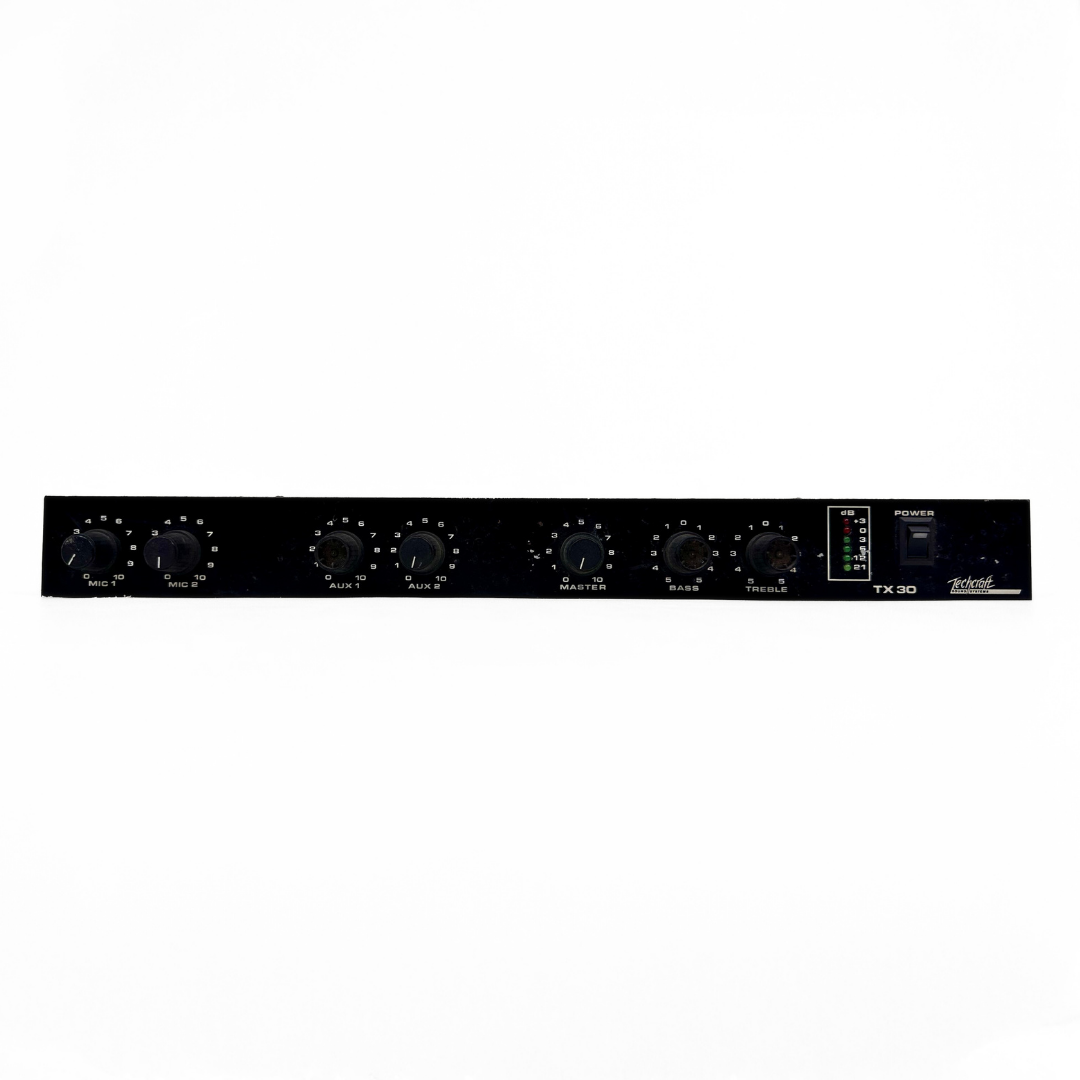

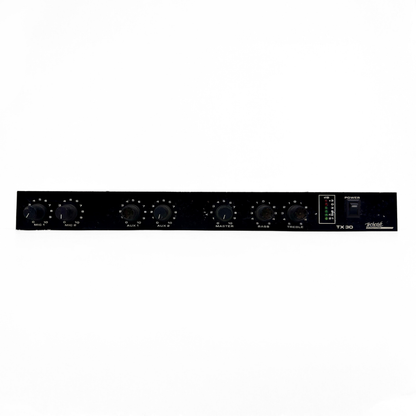

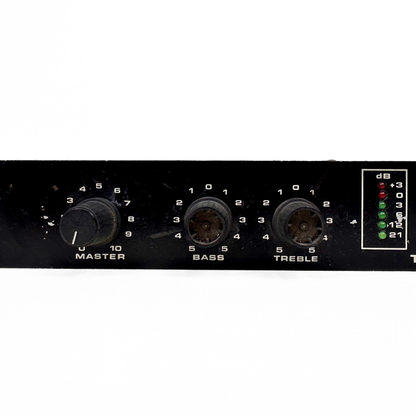

Engineered for professional rack-mount applications, the Techcraft SoundSystems TX-30 mixer rack unit delivers robust signal routing and control in a compact 1U chassis. Designed for touring rigs, installation systems, and studio racks, it offers flexible I/O, clean audio paths and rock-solid build quality so you can focus on the mix, not the gear.
BRAND: Techcraft SoundSystems
BARCODE/UPC:

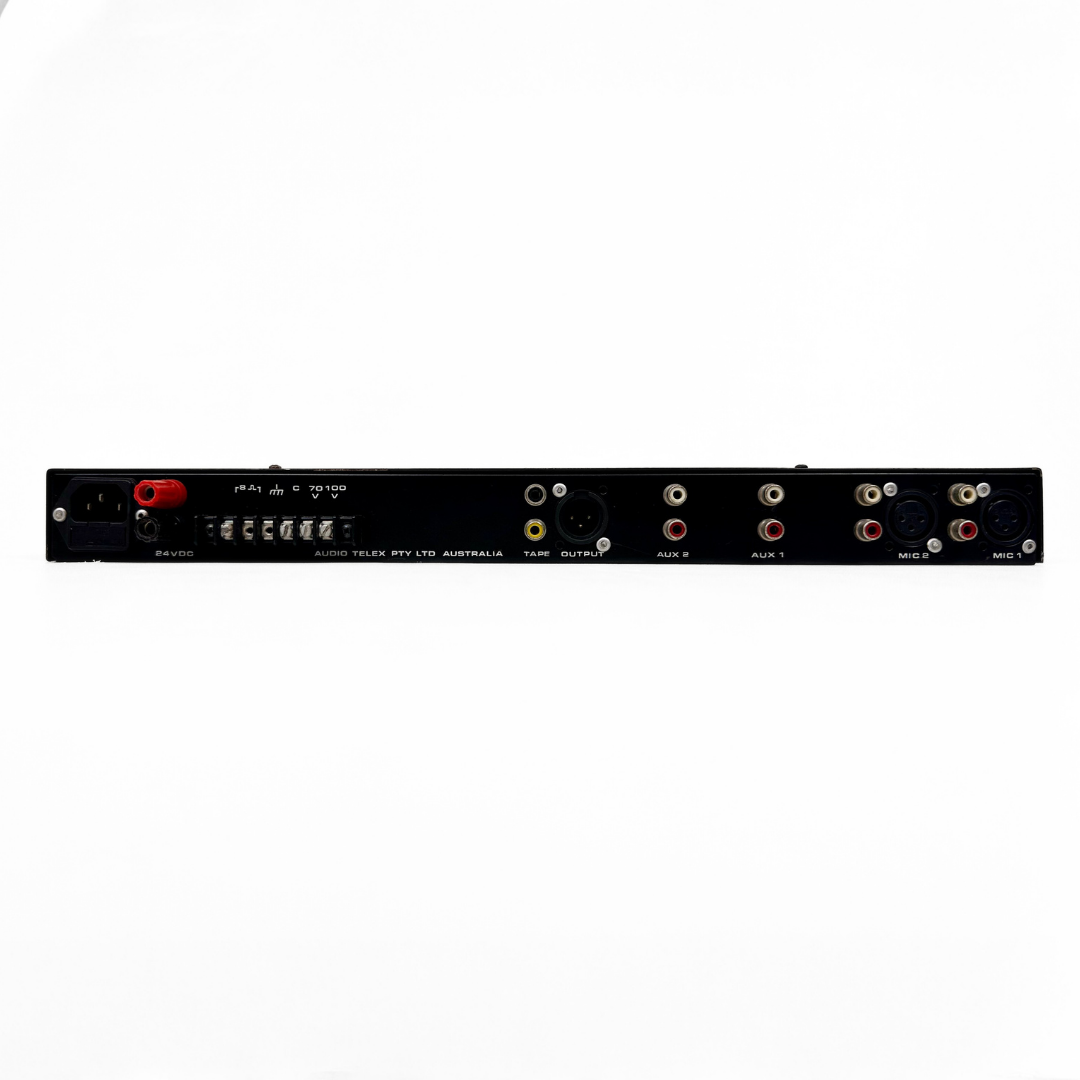

- Low-profile table or rack mounting

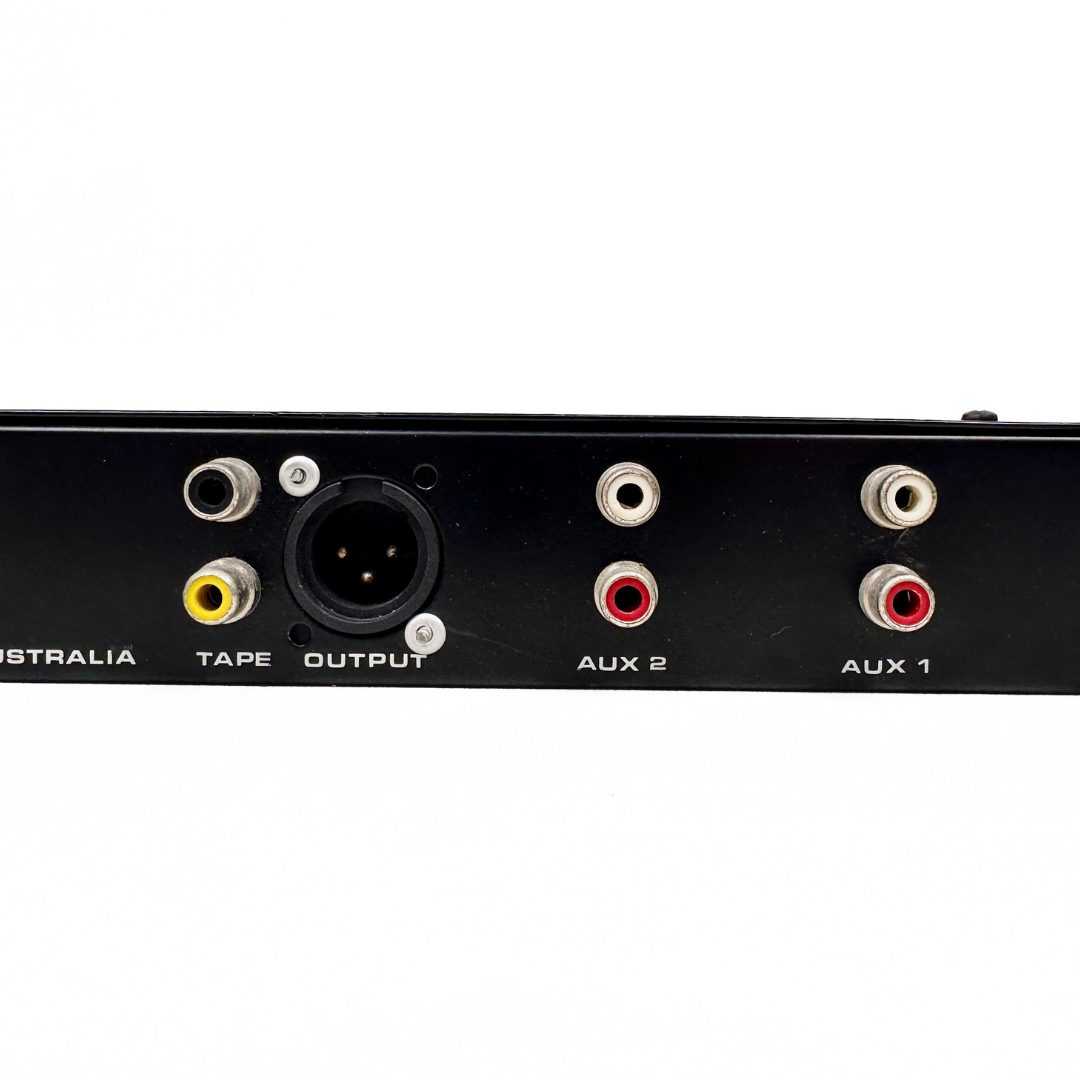

- Tape recorder output

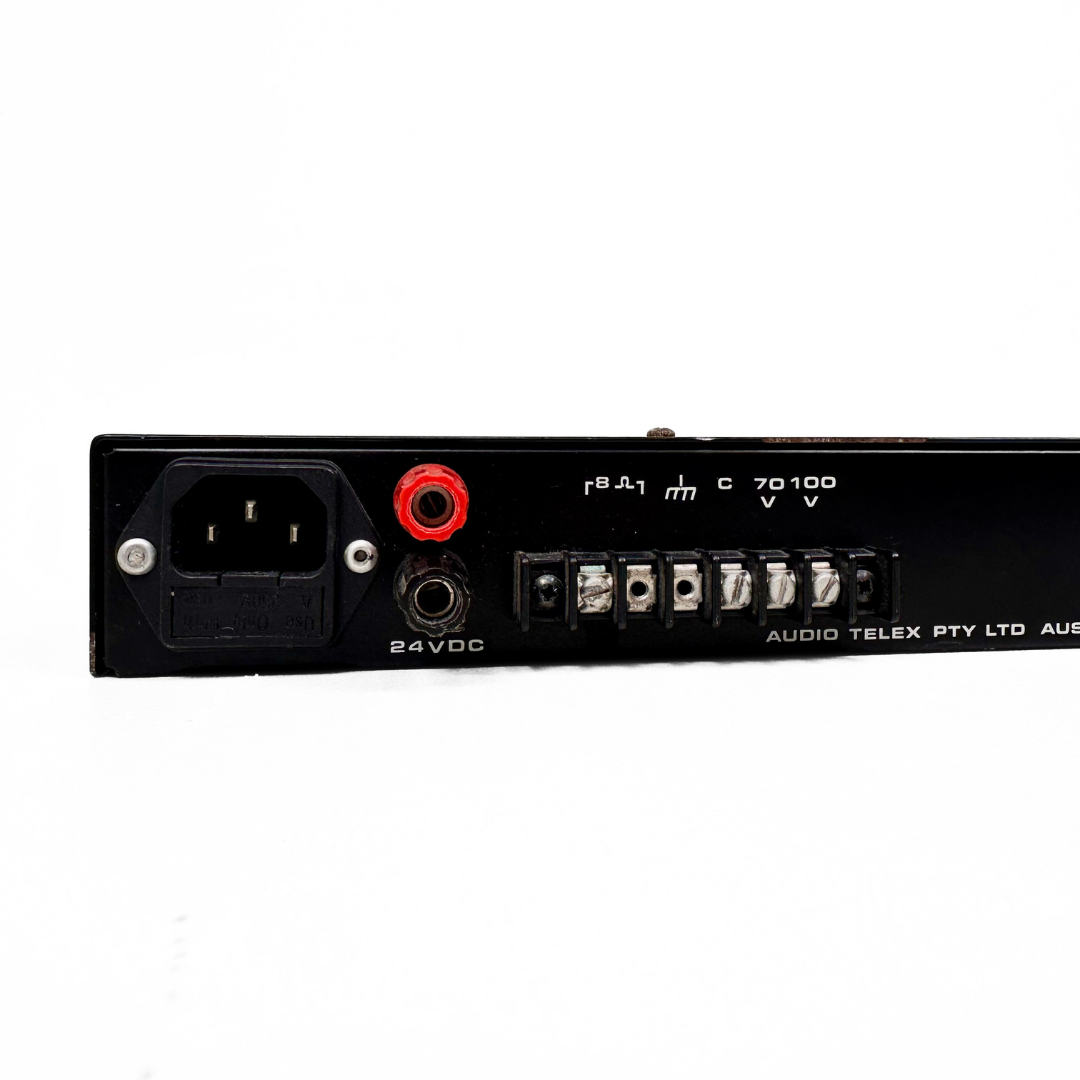

- 100 & 70 volt plus 8 ohms output

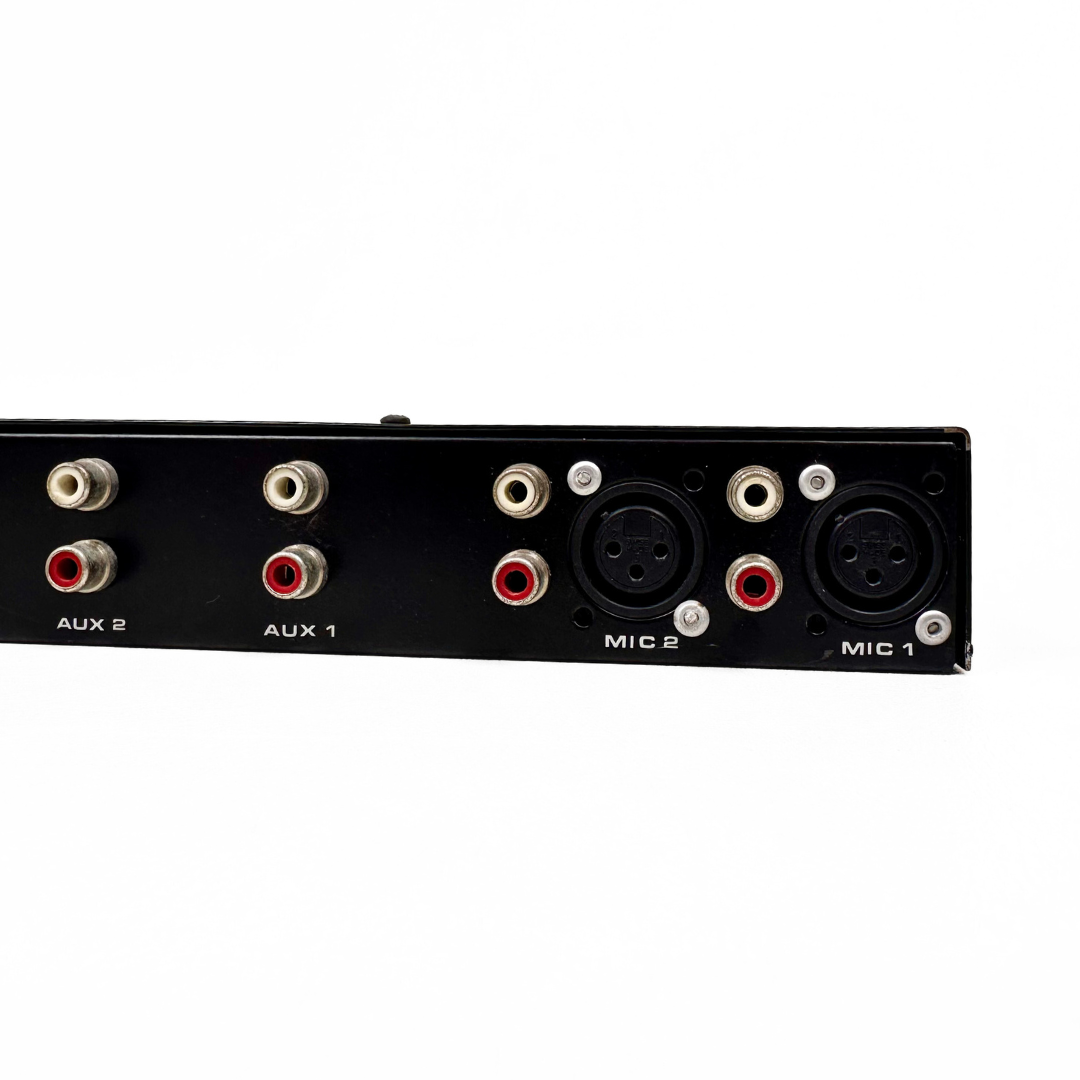

- XLR mic sockets, RCA line sockets

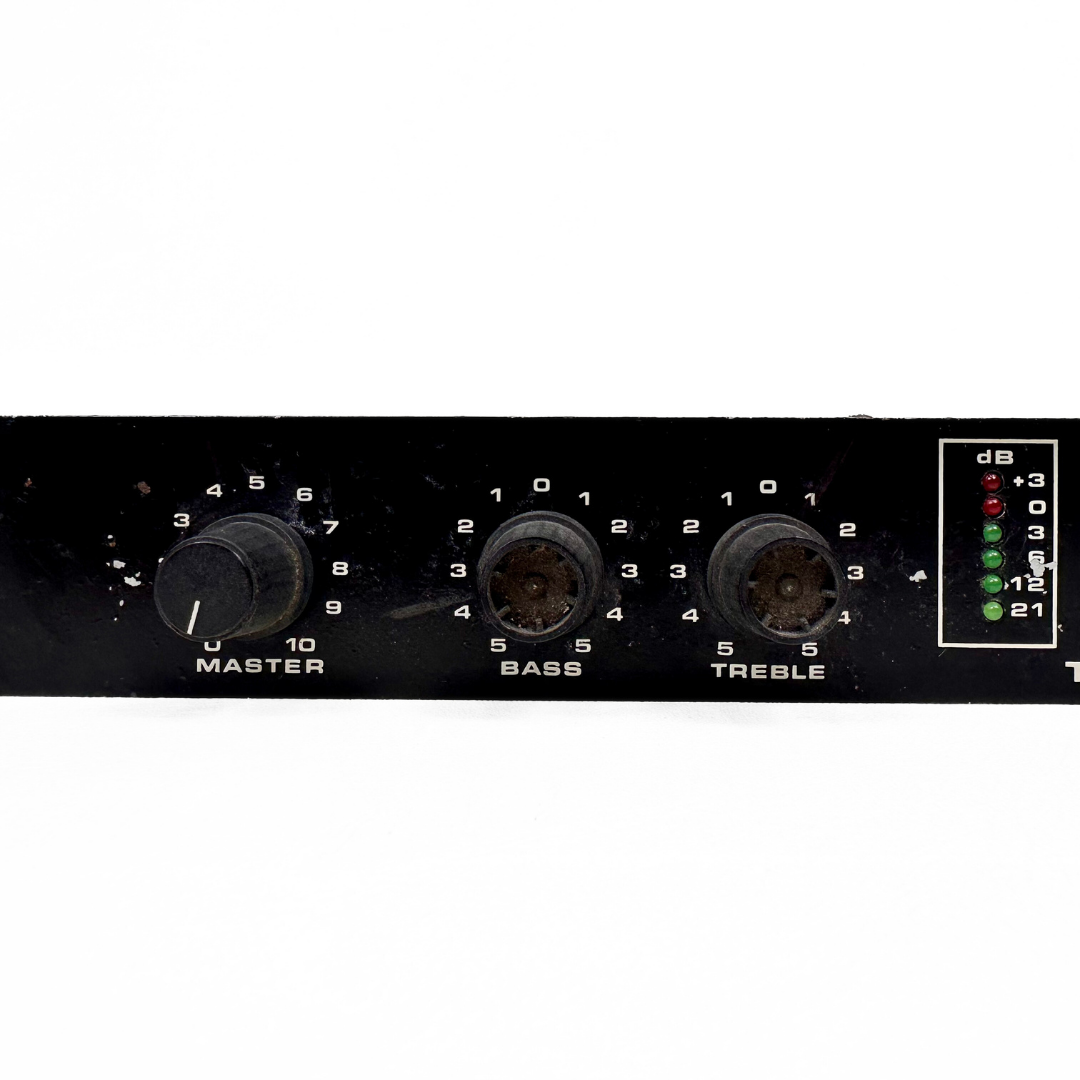

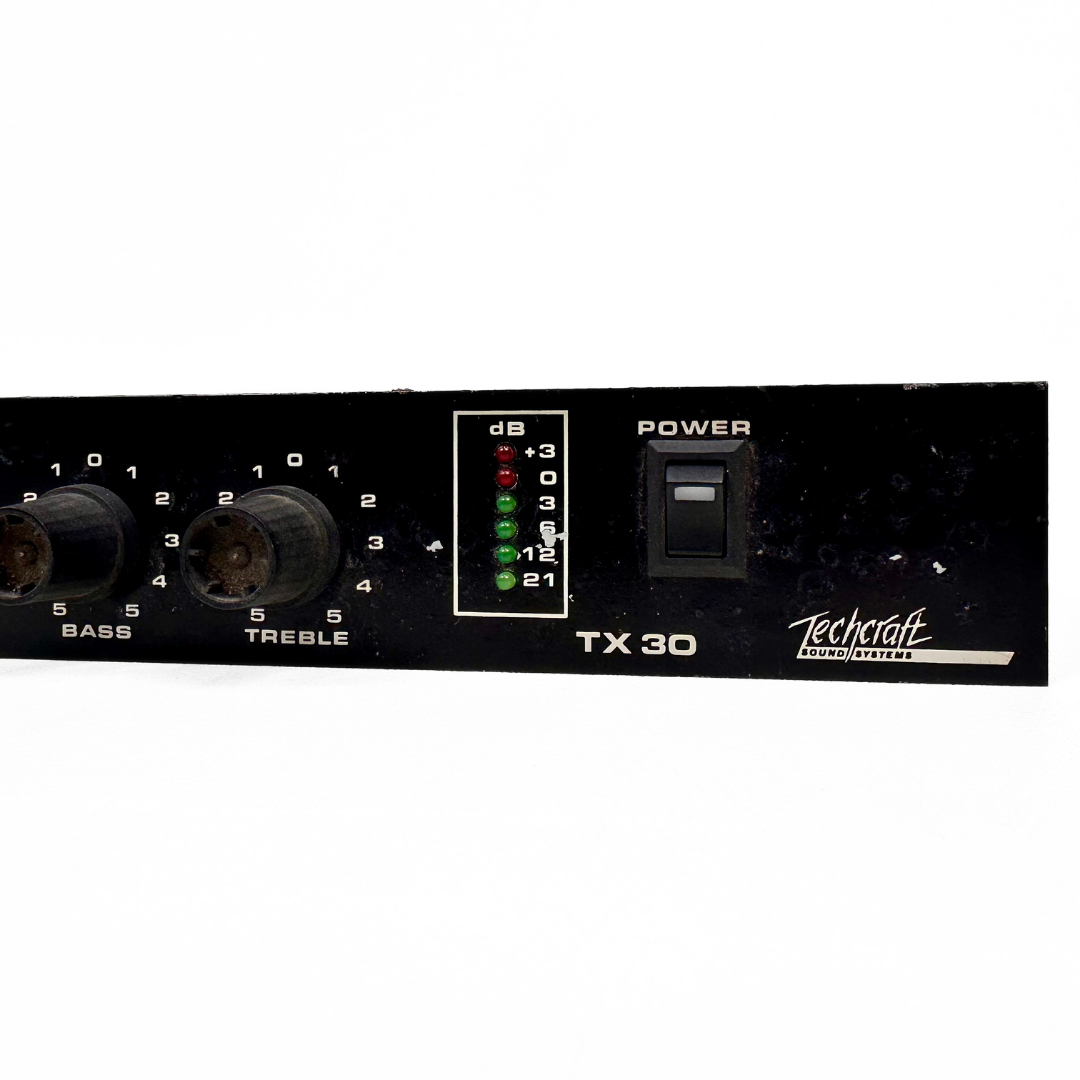

- LED level indicator
- Provision for plug mic precedence (muting)
- Phantom power voltage at mic sockets (for electret)
- 240 VAC or 24v DC power source
- Mic input sensitivity: .65 MV 200 ohms transformer balanced
- Line input sensitivity: 50 MV and 22 K ohms
- Aux input sensitivty: 100 MV 10 K ohms
- Frequency response: 50 Hz to 17 KHz ± 3 dB
- Signal to noise: -72 dBM with respect to 100 V output
- Outputs available: 100 + 70 volts, 600 ohms, 8 ohms, rec out
- Distortion: 0.06% THD
- Phantom power: 1.5 VDC at XLR mic socket
- Operating voltage: 240 VAC, 24v DC
- Dimensions: 482mm W, 250mm D, 44mm H
- Weight: 5kg
