Rocktron PatchMate Loop 8 Rack FX Loop Switcher
Rocktron PatchMate Loop 8 Rack FX Loop Switcher
Condition: In excellent condition with minimal cosmetic wear. Box included, no power supply or other accessories included.

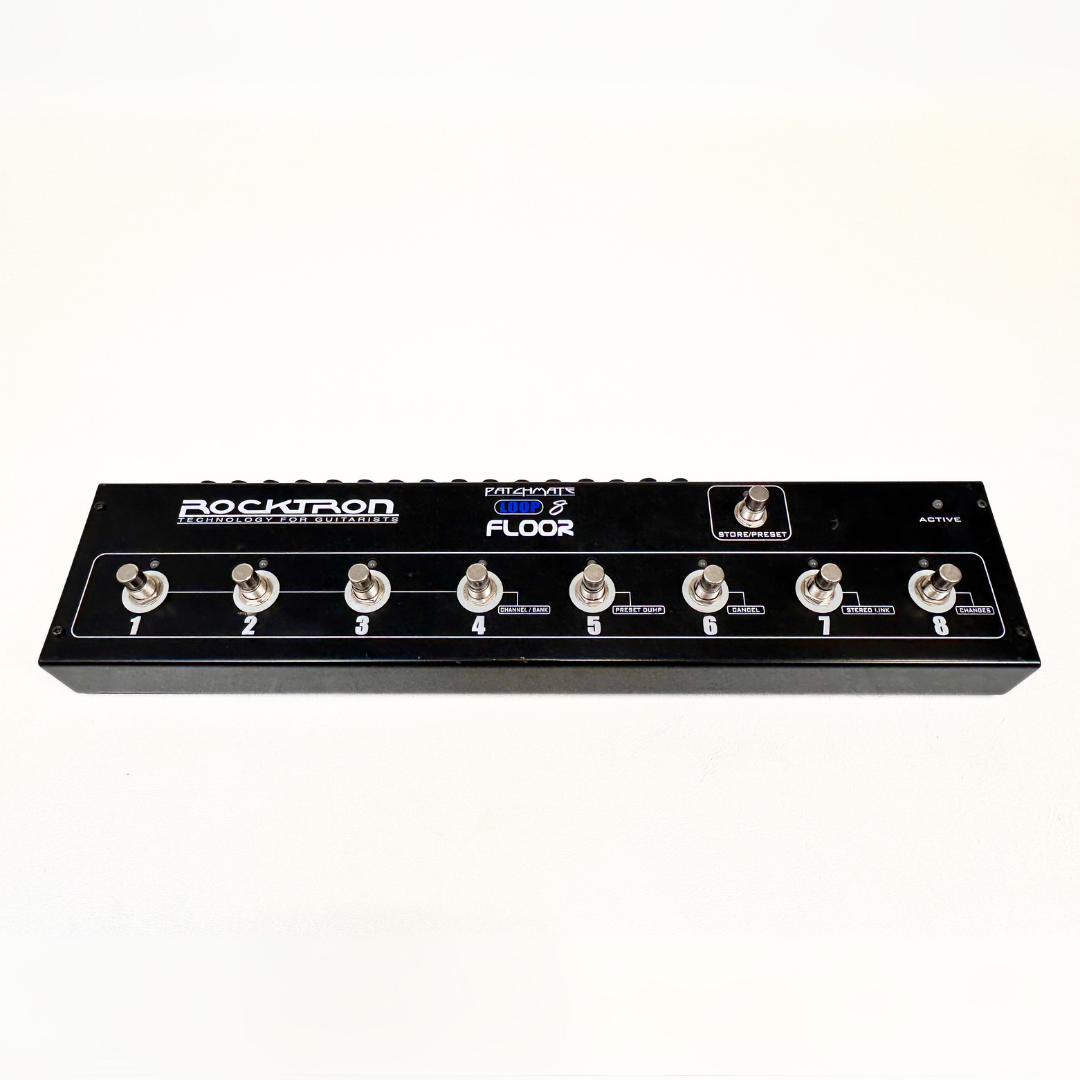

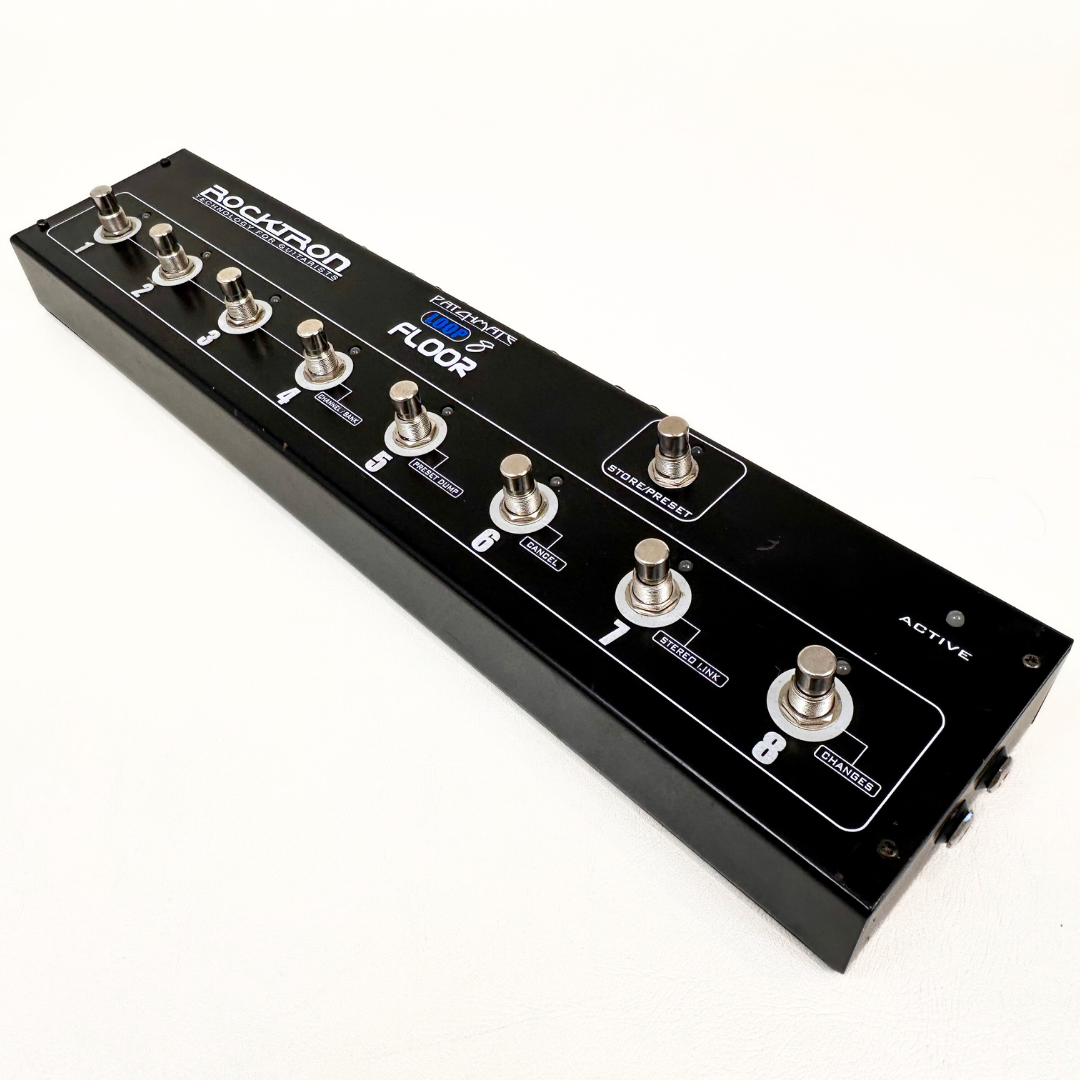

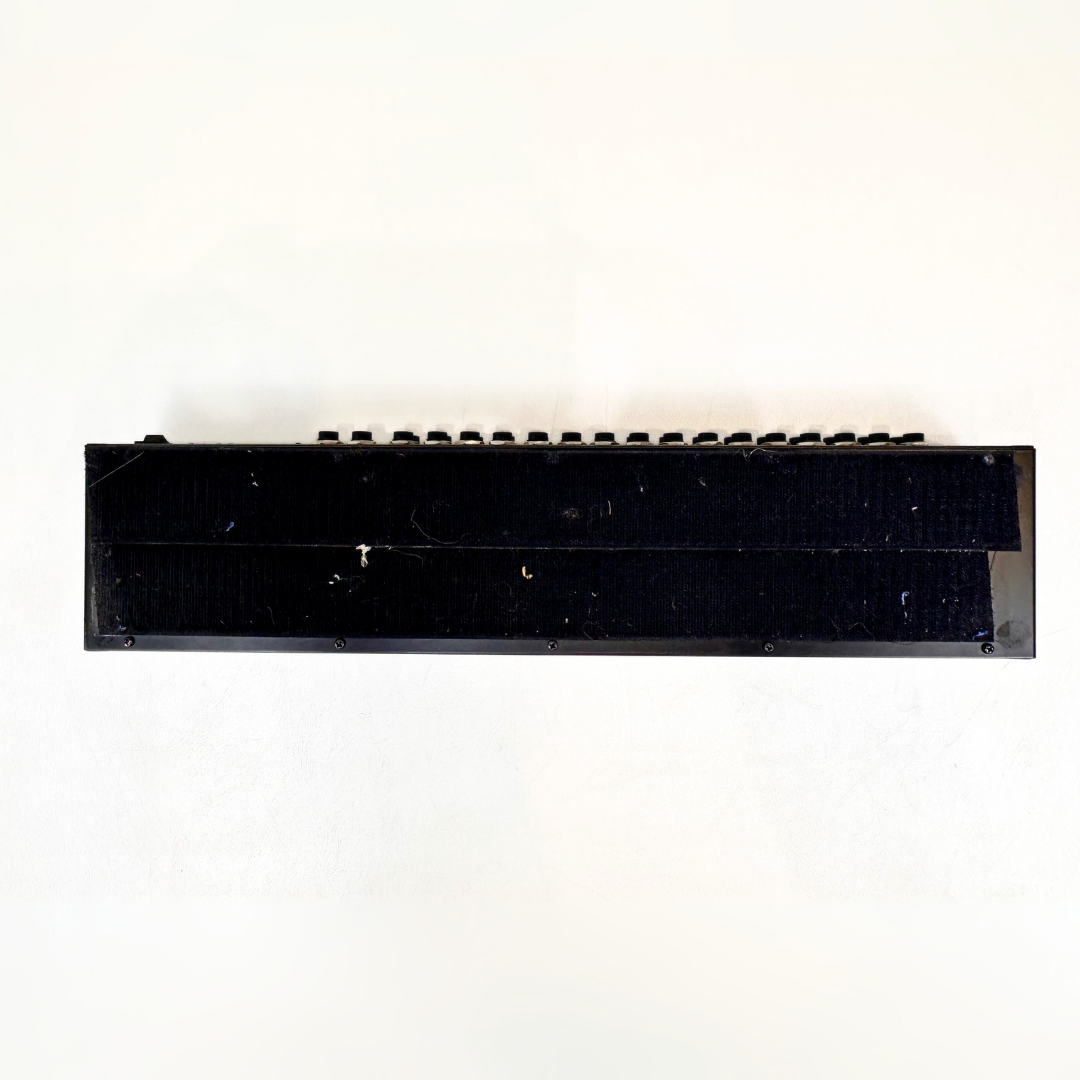

Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Key details
- Requires a 9V DC 3.5 mm mini-jack with positive tip with 1 mA current draw or 9v battery
Overview
The PatchMate Loop 8 provides 128 programmable presets. Eight loops can be configured for multiple purposes. Channel switching, effects loops, guitar routing and more are provided in the PatchMate Loop 8.
The PatchMate Loop 8 is easy to set up and program with real time user controls. Program the unit from the front panel using the lighted buttons. Recall presets using MIDI program changes. Control any loop in real time using MIDI Continuous Controllers.
The PatchMate Loop 8 supports intelligent Latching and Momentary switch sensing which allows the user to use any Midi Continuous Controller number without any other programming effort!.

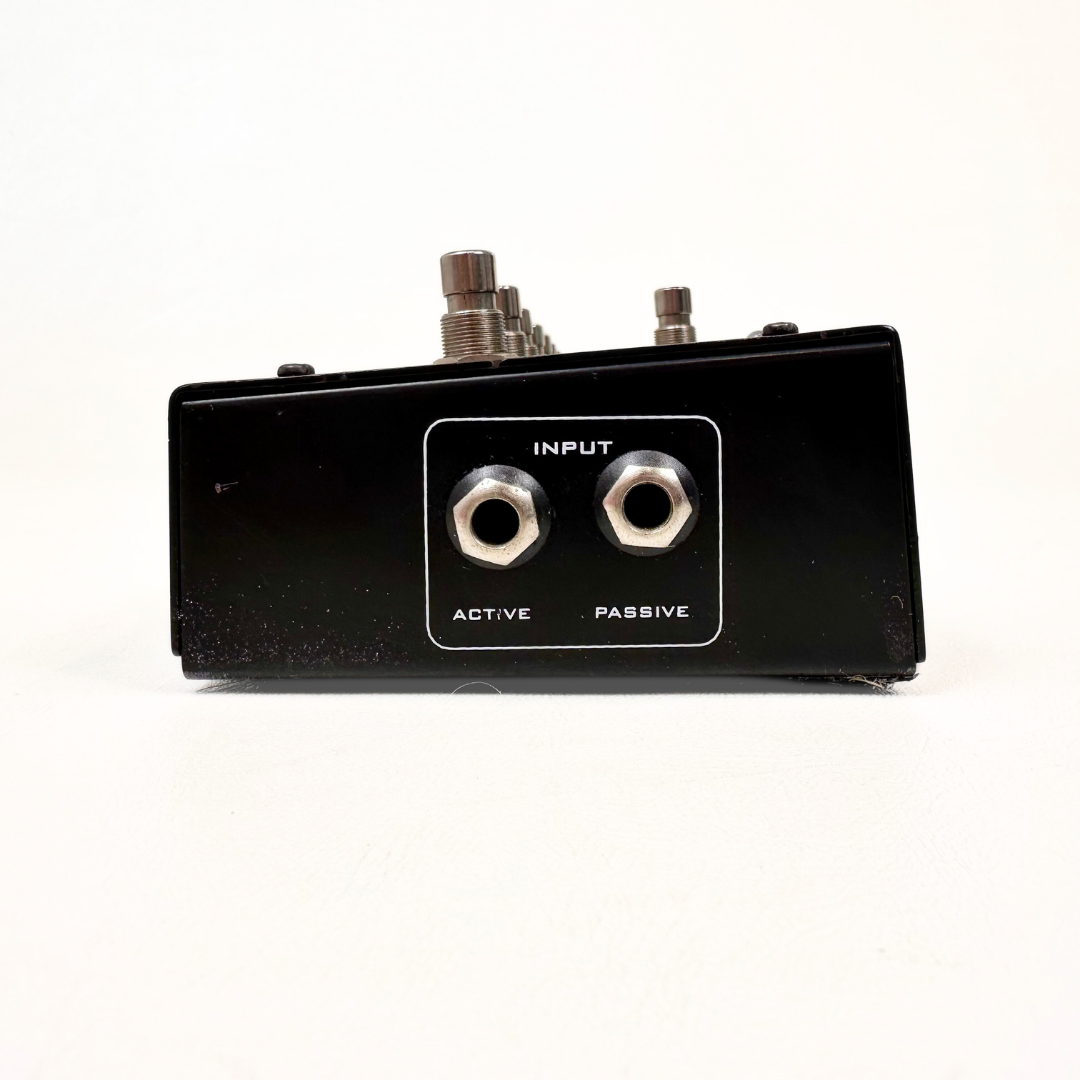

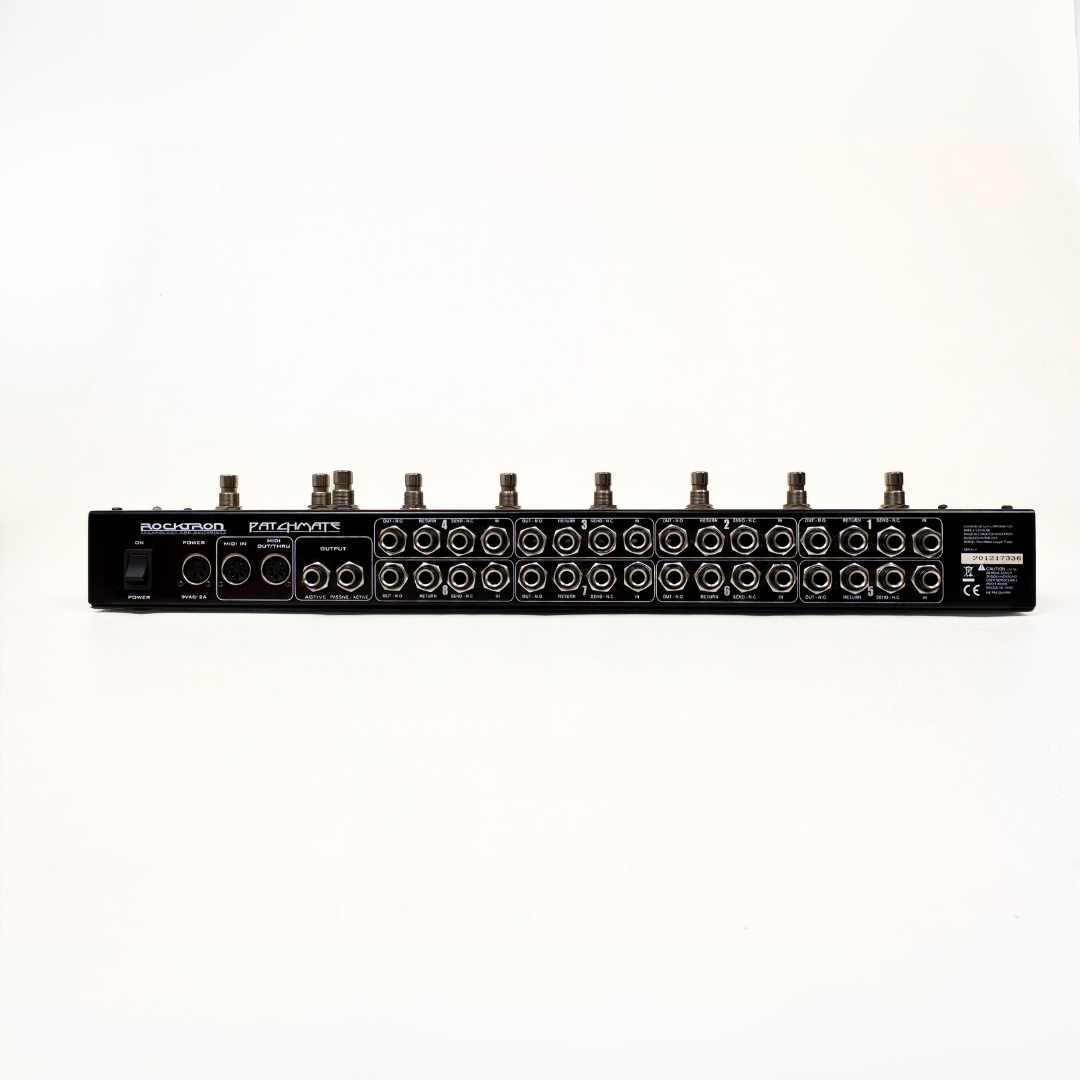

The PatchMate Loop 8 has buffered Active and Passive inputs, with Passive/Active and Active outputs on the back of the unit. The PatchMate Loop 8 may be set to any MIDI channel and is programmable from the front panel. It may also be configured for use on any of the 16 banks of controllers via the front panel switches and has MIDI In/Out/Thru and is an ideal addition to any rack setup.
Using Rocktron’s exclusive SMART CONTROLLER TECHNOLOGY, the PatchMate Loop 8 can also be used for momentary amplifier switching!
Rocktron footcontrollers such as the All Access Limited, All Access, MIDI Mate and MIDI Xchange are recommended additions to the PatchMate Loop 8 for ultimate control.
Specs
- Active Input Impedance - 1.5M ohms
- Active Output Impedeance - 150 ohms
- Input Jacks - 1/4” mono
- Send Jacks - 1/4” mono
- Return Jacks - 1/4” mono
- Output Jacks - 1/4” mono
- Power requirements - 9VAC 3.4amps 4 pin DIN connector
- Dimensions - 1 rack space, 19” wide, 1 3/4” tall, 6.5" deep; 483mm x 154mm x 44mm

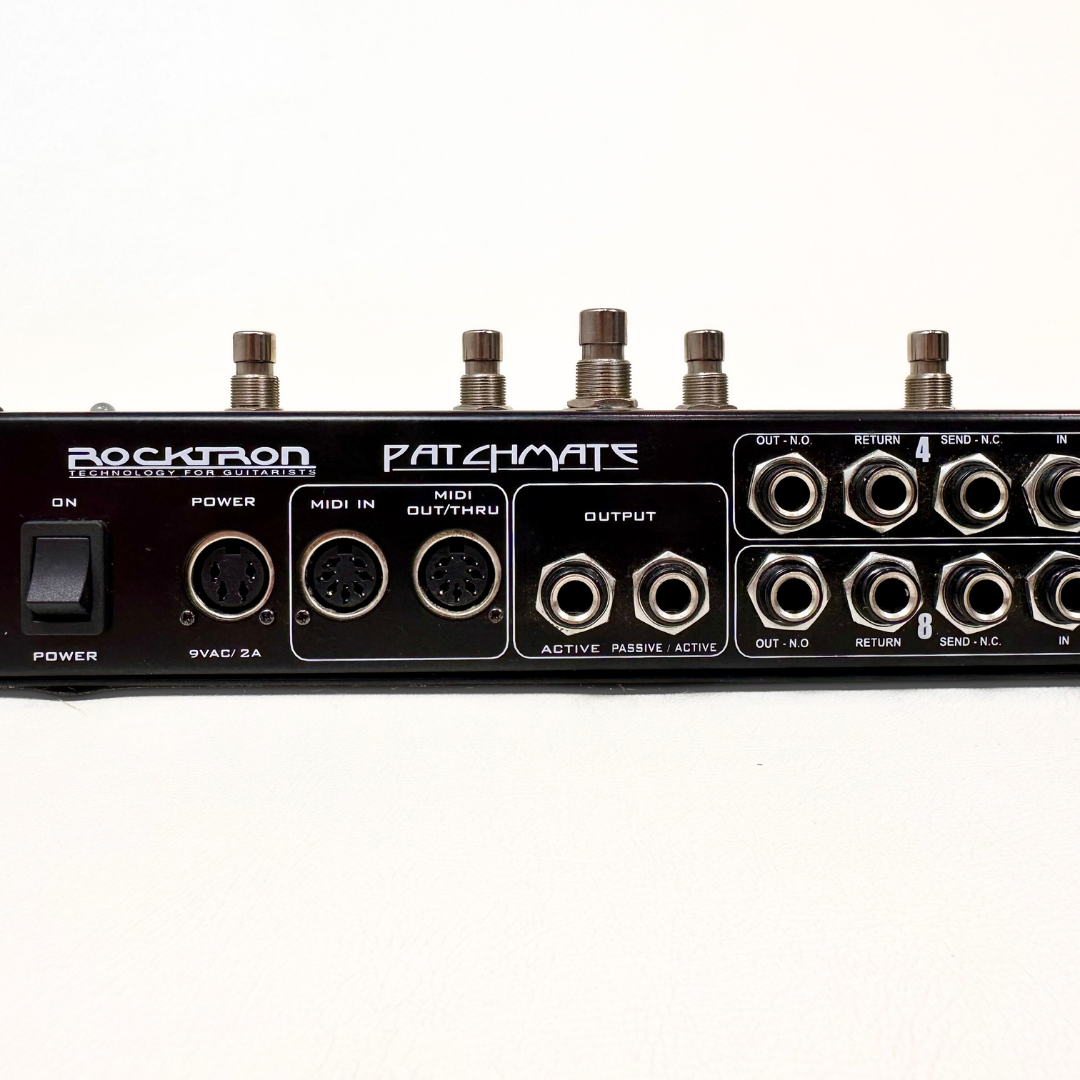

- MIDI In/Thru/Out - 7 pin DIN, (standard 5 pin cable plugs in without phantom power feature) Thru/Out 5 pin DIN
- Phantom power - Provided on MIDI IN jack pins 6 and 7 - 9VAC 2amps
- Presets - 128
- MIDI program change - 0-127
- Midi control - Change commands in groups of 8 with 16 banks 0-7, 8-15, 16-23.................120-127
- Relays - Gas filled, contacts gold plated

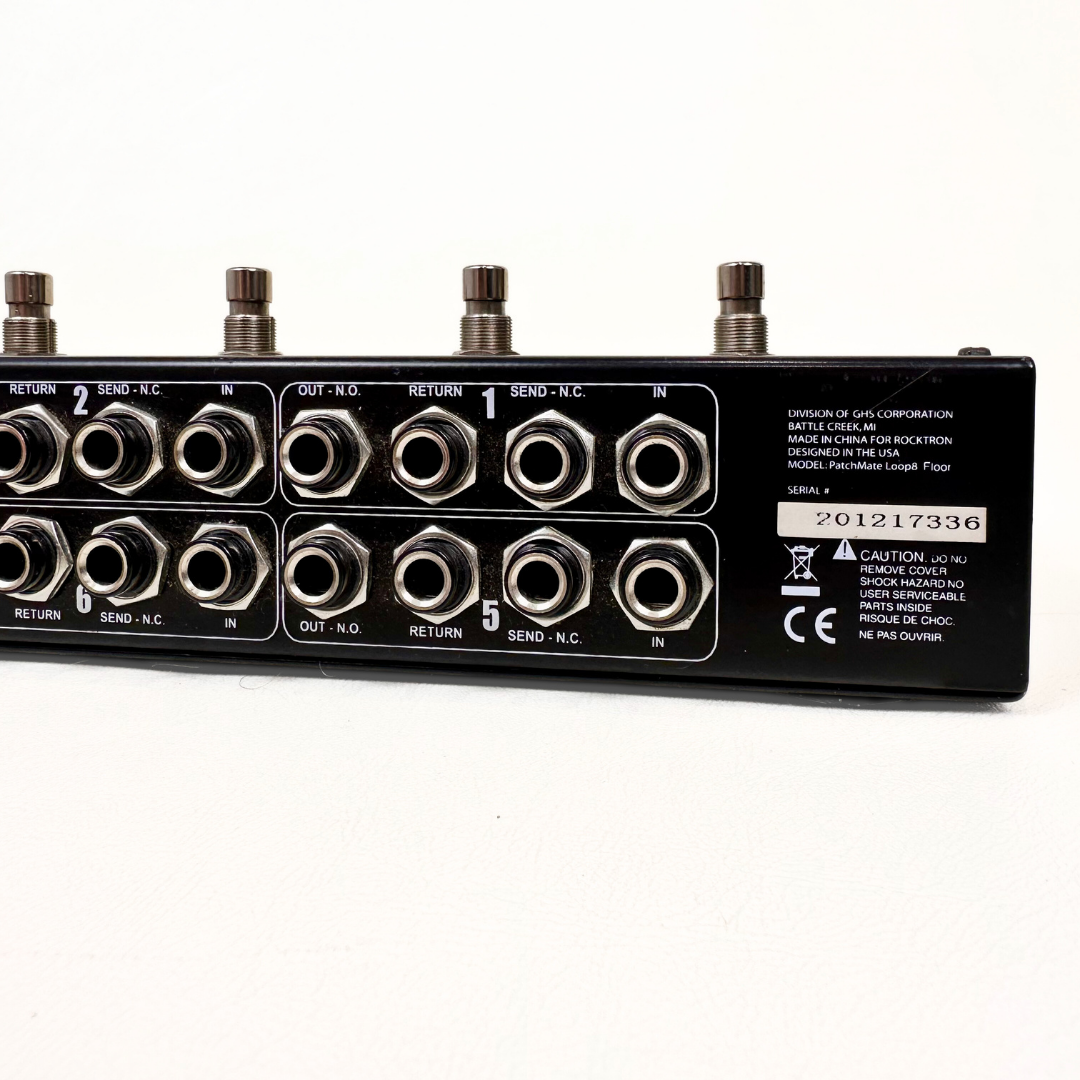

- Serial number: 201217336
