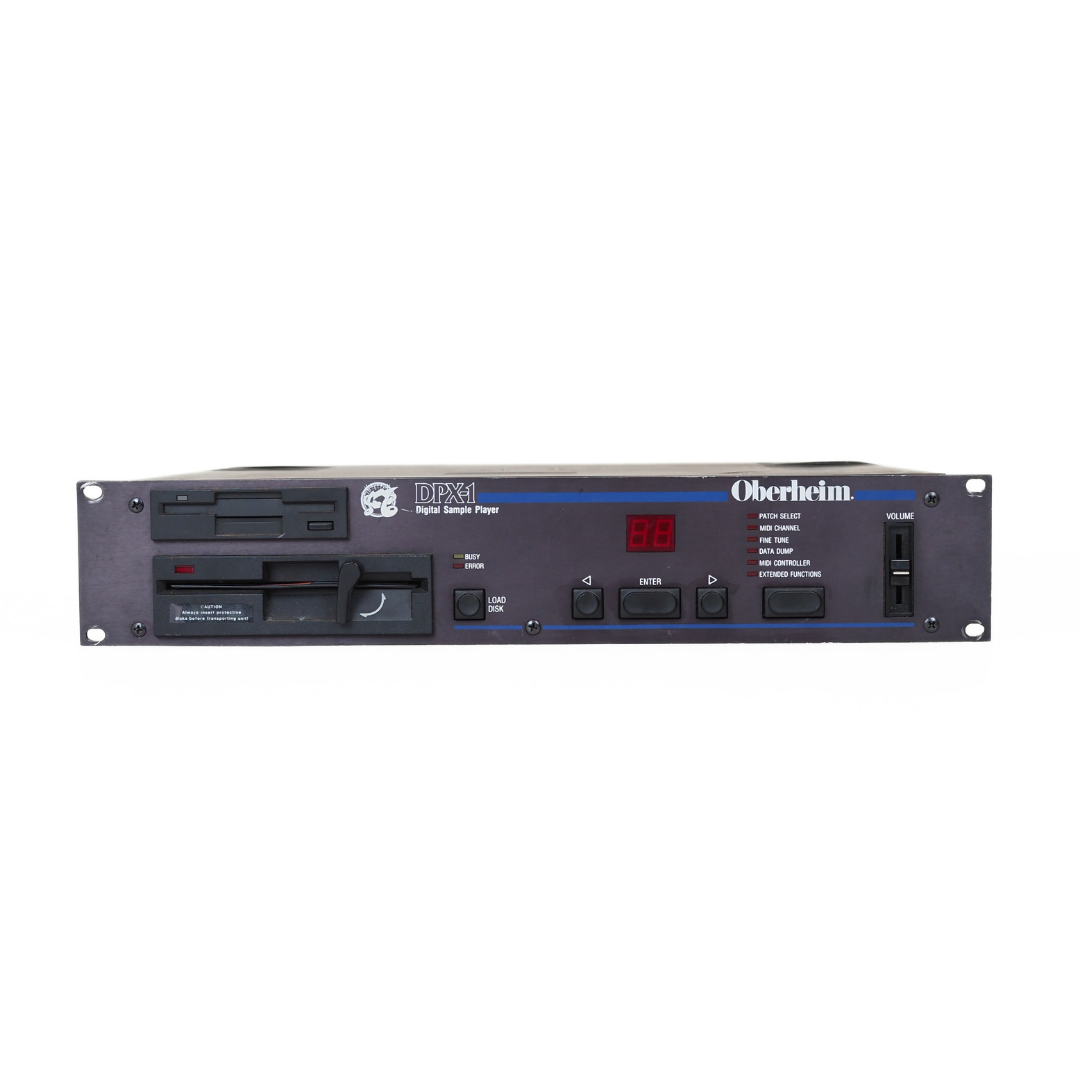

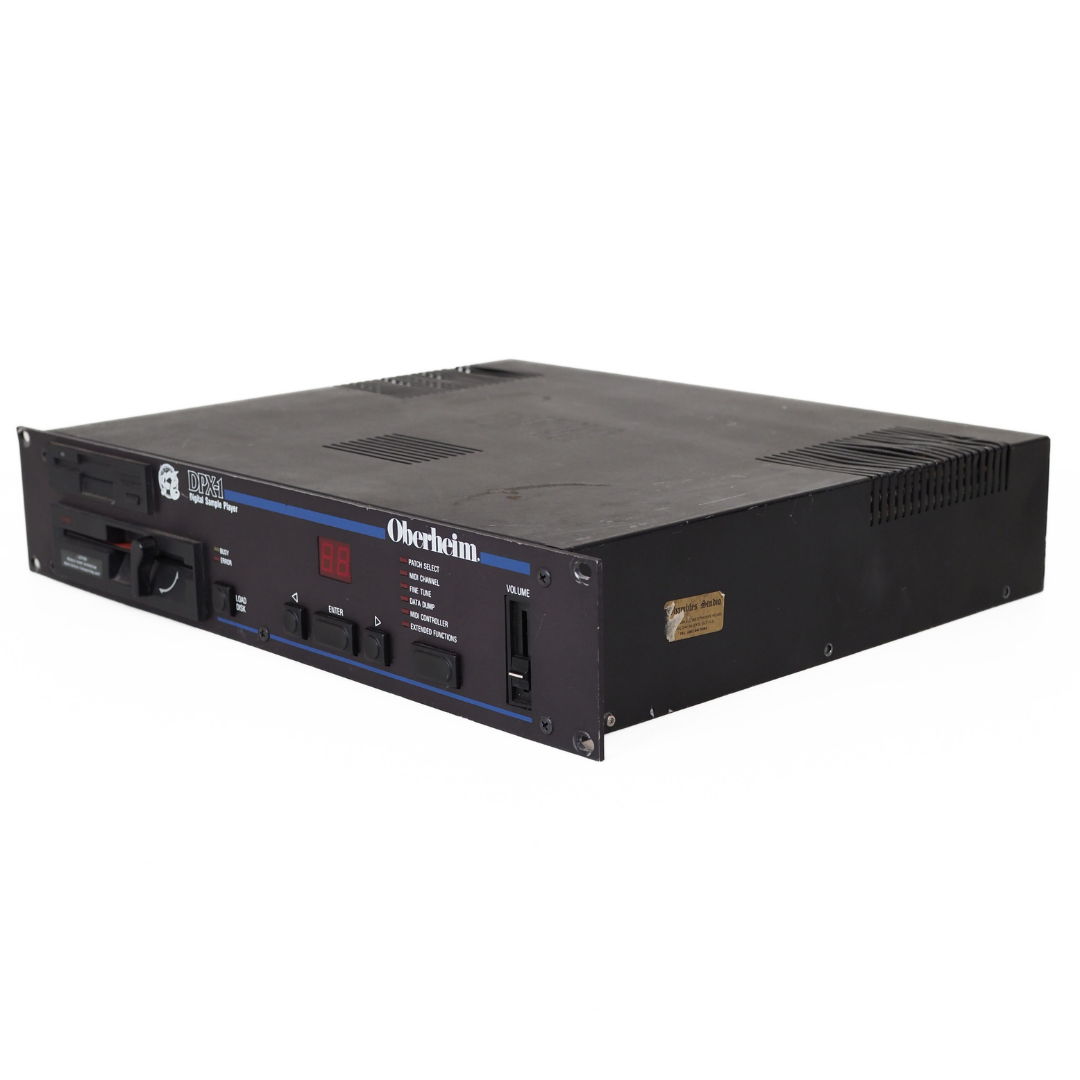

Oberheim DPX-1 Digital Sample Player Rack Mounted Unit
Oberheim DPX-1 Digital Sample Player Rack Mounted Unit
Condition: In good condition with some cosmetic wear. No accessories included (case, power supply etc).

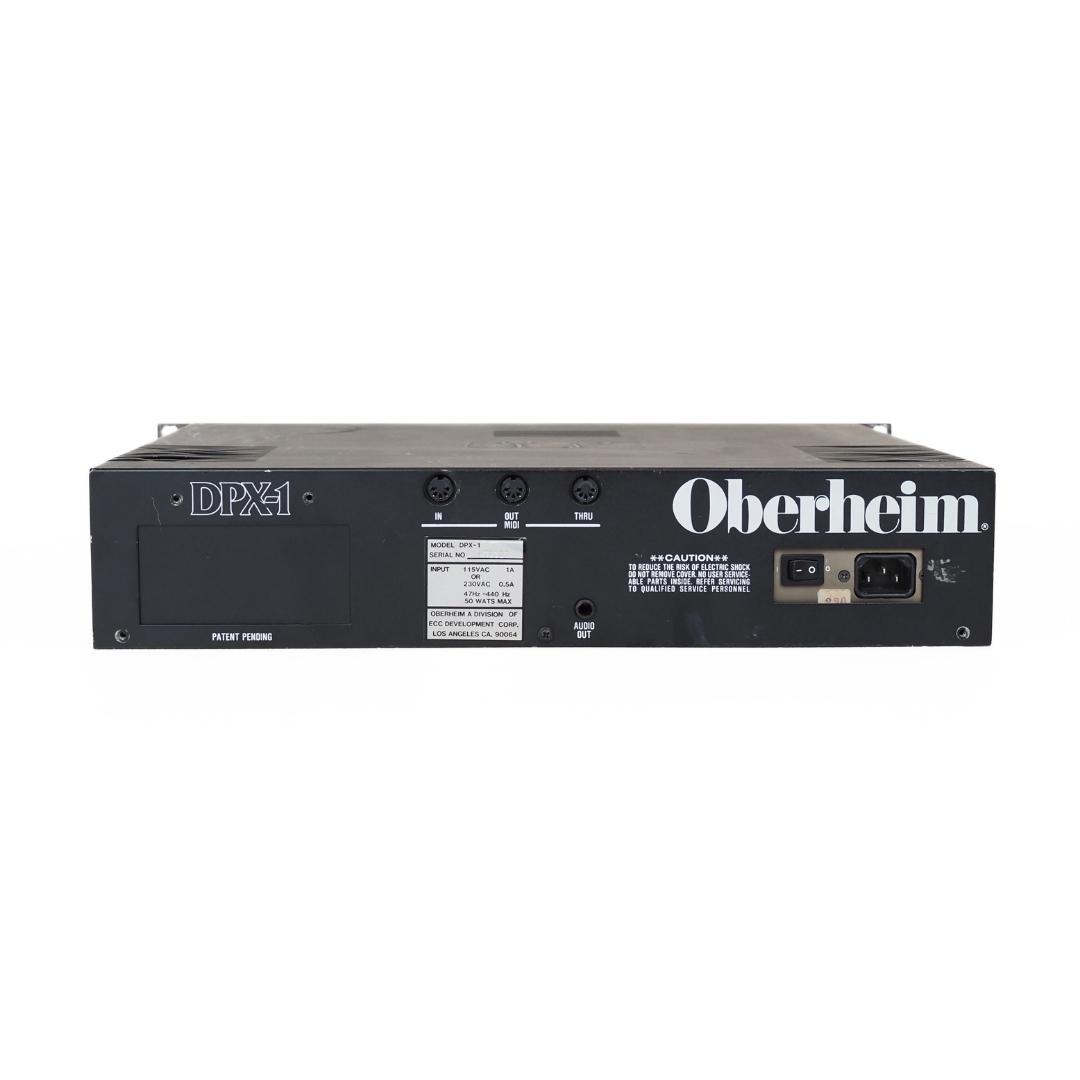

Photos shown are of the product on hand.
Ref: 14277
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
See it in person first? Ask to try it at the shop. Quote Ref: 14277.
Key details

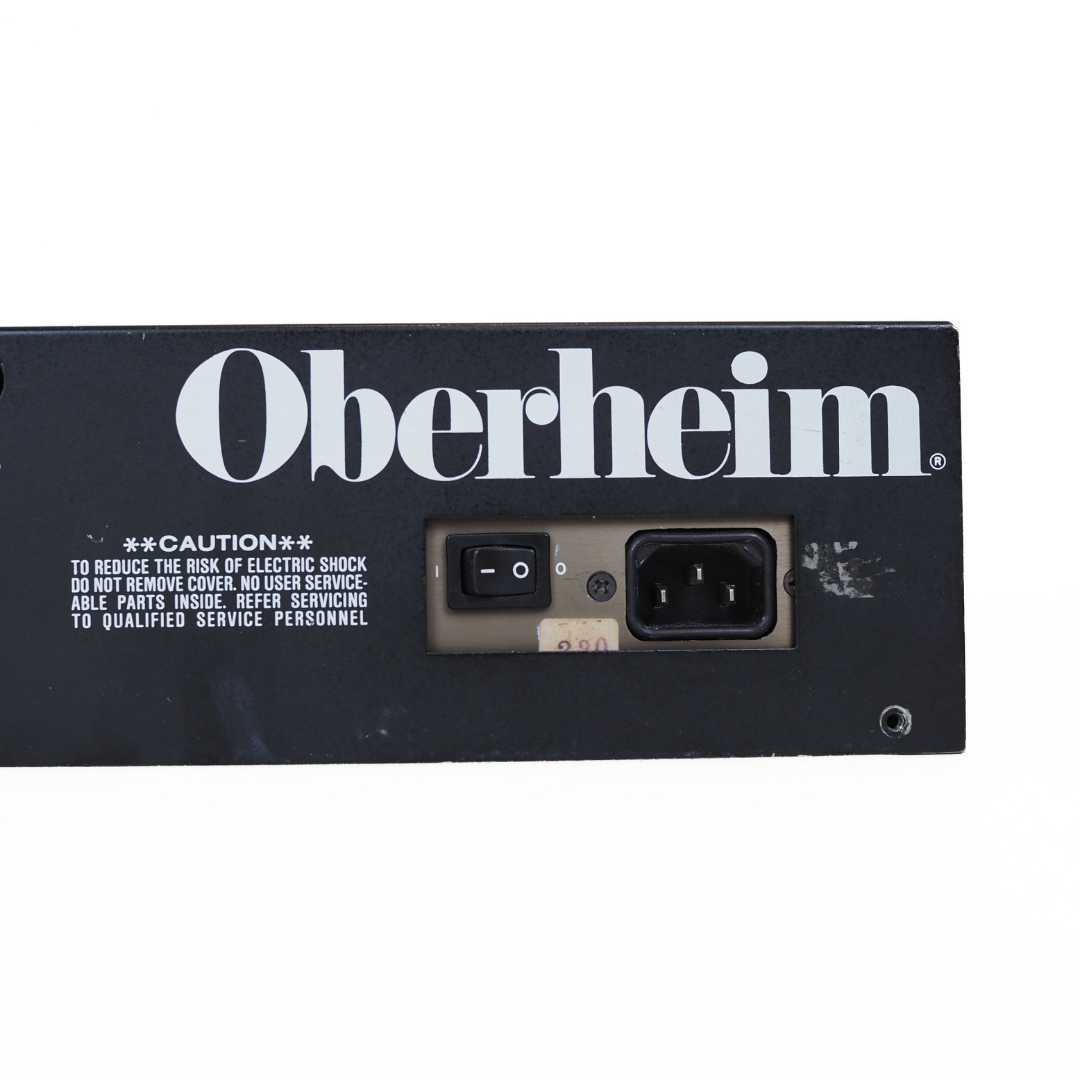

- Requires a standard modular AC IEC power cable
Overview
The Oberheim DPX-1 is a rack mount hybrid (analog/digital) sample player introduced in 1987. It has 8 voices of polyphony and operates at 12-bit/variable sample rate resolution. It can read and play samples (with some limitations) created for the E-Mu Emulator II, Ensoniq Mirage, Akai S900, and Sequential Prophet 2000 samplers.
The DPX uses the same analog low-pass filter (SSM2045) as the Emulator II, similar to the Curtis filters used by the Mirage (CEM3328) and Prophet 2000 (CEM3379). While the DPX adjusts its sampling rate to match the format of the original sampler, it can raise its filter cutoff to give samples a brighter tone. The HDX-20 Music Storage System is a rare optional accessory for the DPX that expanded its storage to 20MB via SCSI.
Specs
| Type | 8-voice polyphonic digital sample player |
|---|---|
| Sample resolution | 12-bit linear data |
| Sample playback | Reads and converts compatible sampler disk data for playback |
| Supported disk formats | E-mu Emulator II, Sequential Prophet 2000/2002 and Ensoniq Mirage sample disks |
| Disk drives | 3.5-inch floppy disk drive and 5.25-inch floppy disk drive |
| Sample transfer | Supports MIDI Sample Dump Standard for transmitting and receiving sample data |
| Internal memory | 1 MB RAM, equivalent to 512 kilosamples |
| Patch memory | 100 sample memory presets, numbered 00 to 99 |
| Display | 2-character LED display |

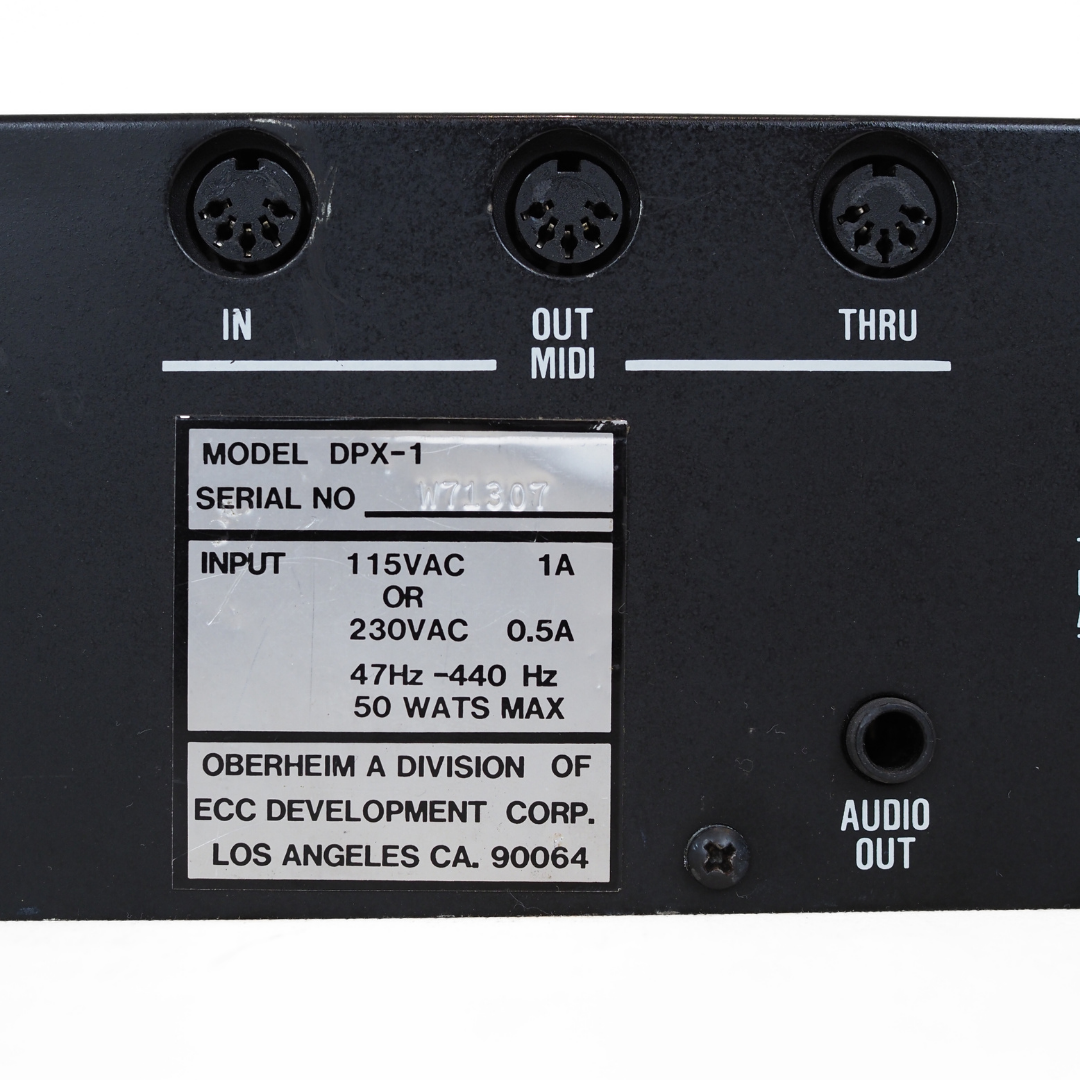

| MIDI connections | MIDI In, MIDI Out and MIDI Thru |
| MIDI modes | Mode 1, Omni On/Poly, and Mode 3, Omni Off/Poly |
| MIDI functions | Selectable transmit/receive channel, MIDI controller enable/disable and Patch Change enable/disable |
| Audio output | 1/4-inch Audio Out jack |
| Signal-to-noise ratio | 80 dB |
| Maximum specified output | 10 V peak-to-peak into a 10 kΩ load |
| Dynamic range | 72 dB |
| Front-panel controls | Load Disk, decrement, Enter, increment, Function Select and output Volume |
| Fine tuning | Adjustable over a 1/4-tone range |
| Extended functions | Filter Tracking and Dual Oscillator Mode for compatible sample formats |
| Rack format | Standard 19-inch rack width, 2 rack spaces |
| Dimensions | 18.97 × 14.00 × 3.47 in (48.18 × 35.56 × 8.81 cm), width × depth × height |
| Height including feet | 3.72 in (9.45 cm) |
| Net weight | 18 lb 4 oz (8.28 kg) |
| Serial number | W71307 |
