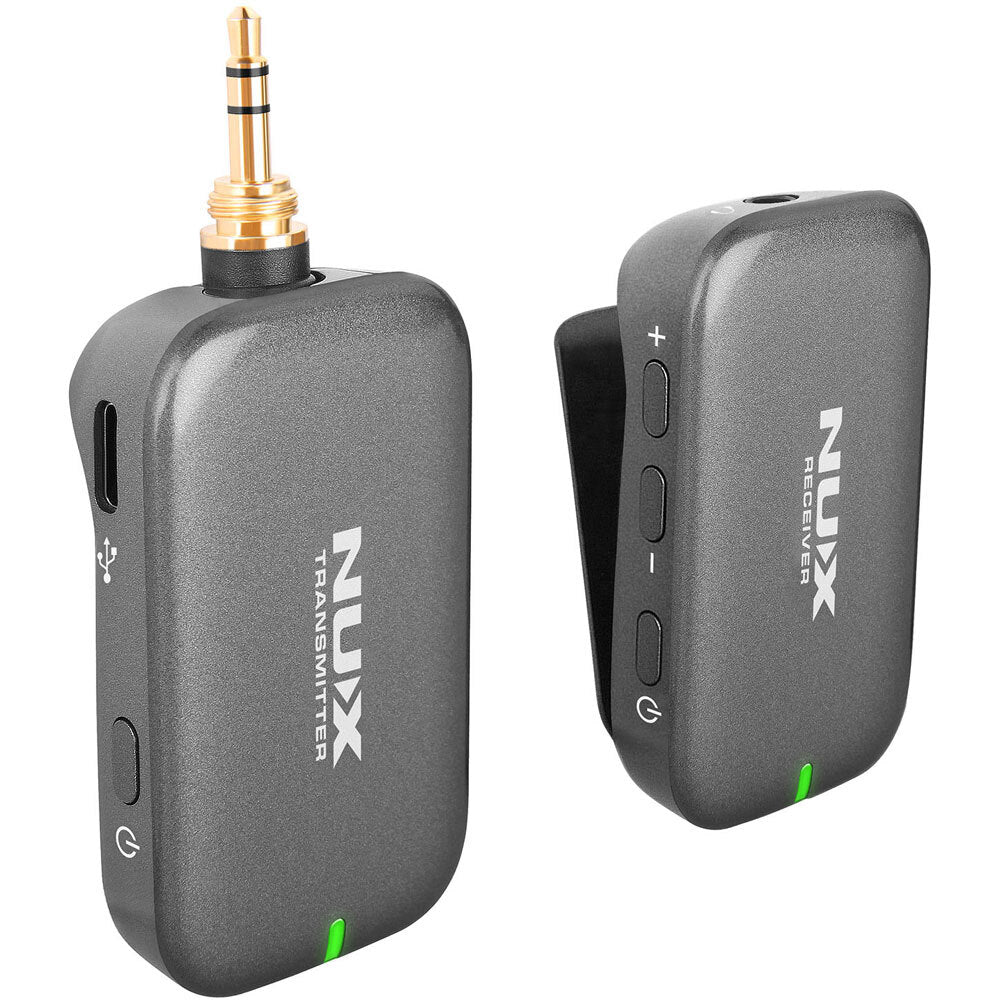

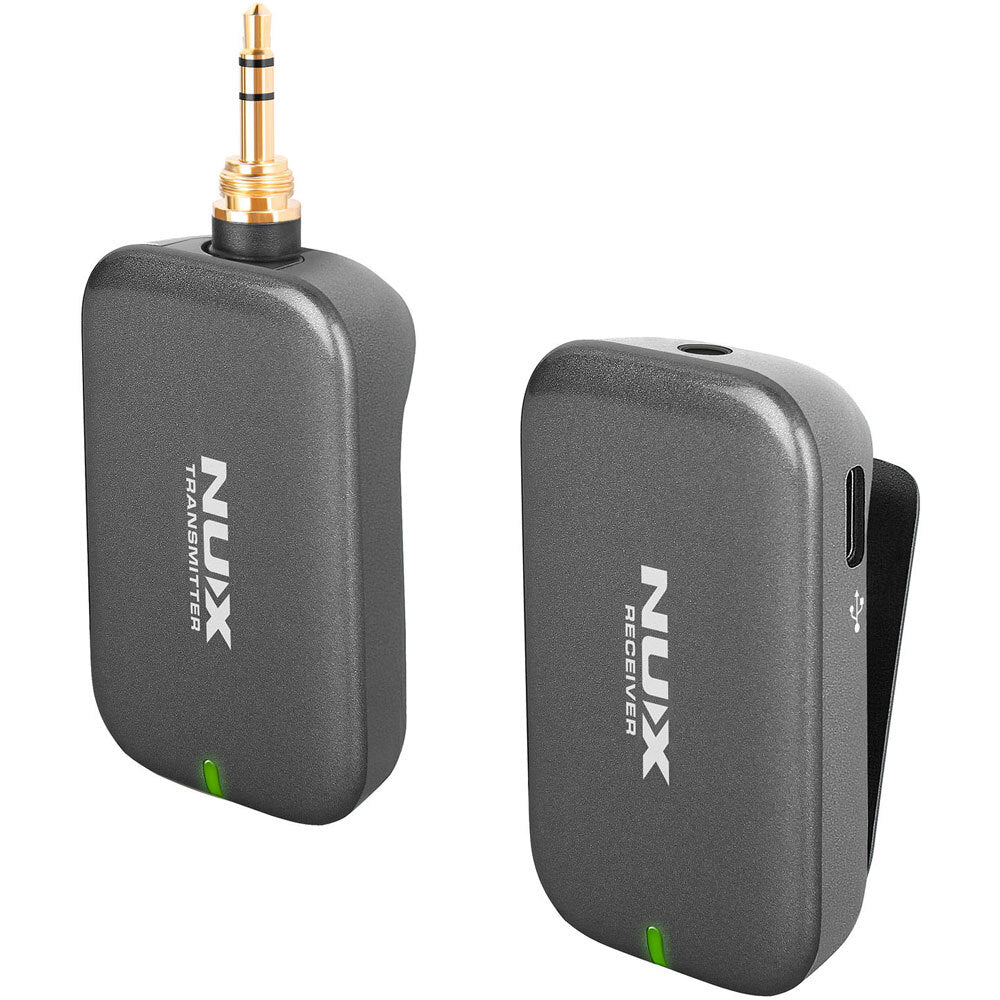

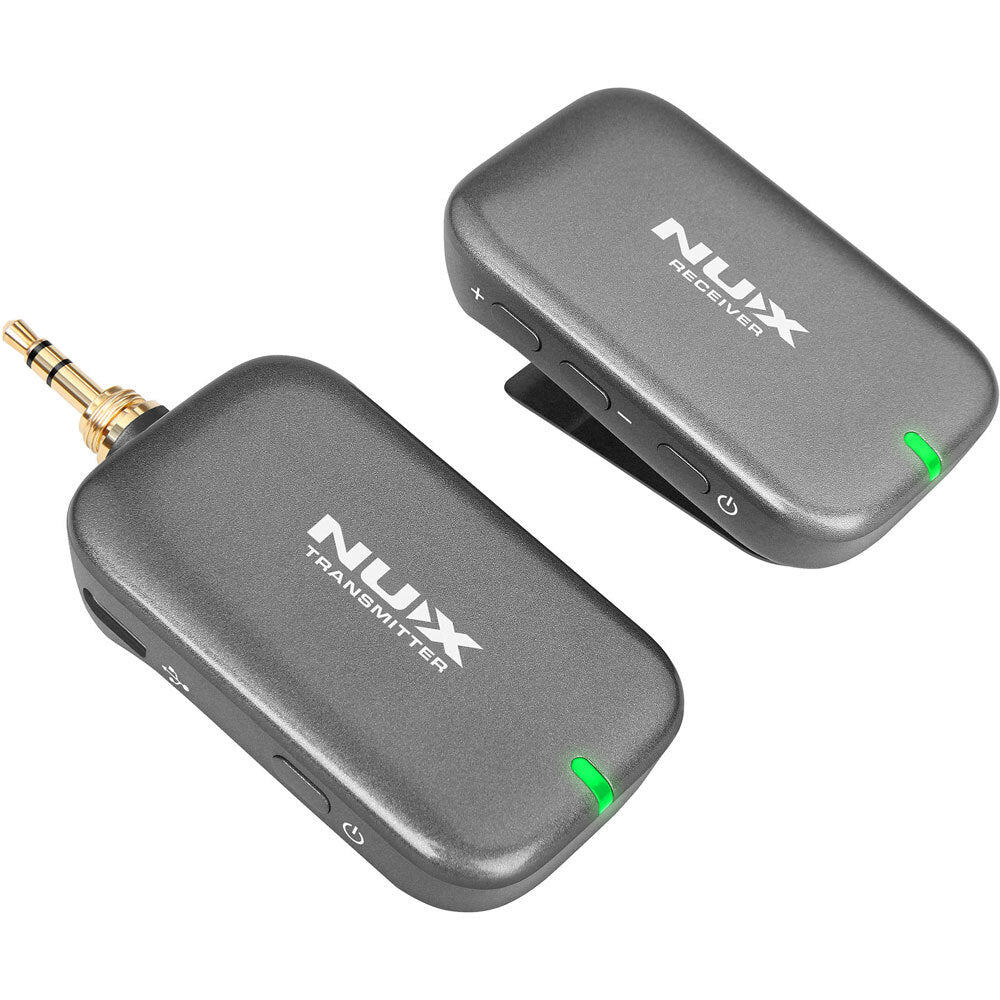

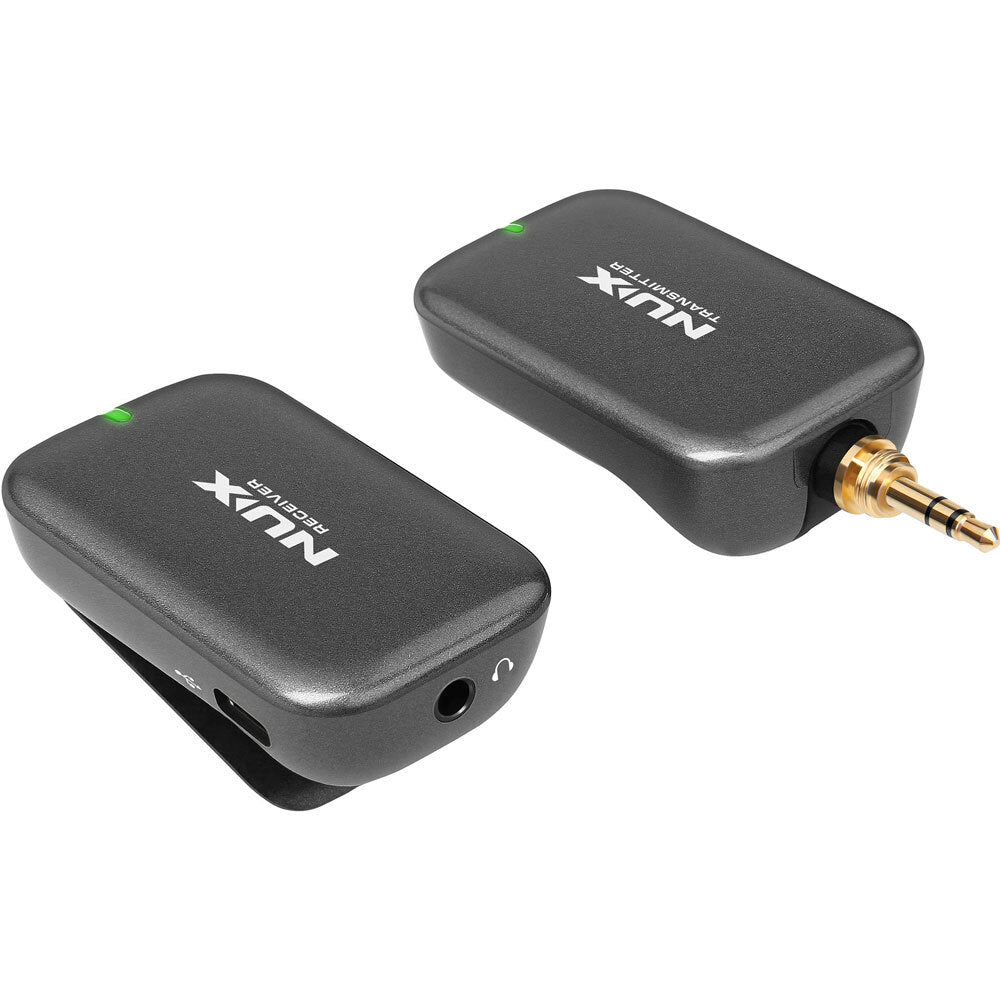

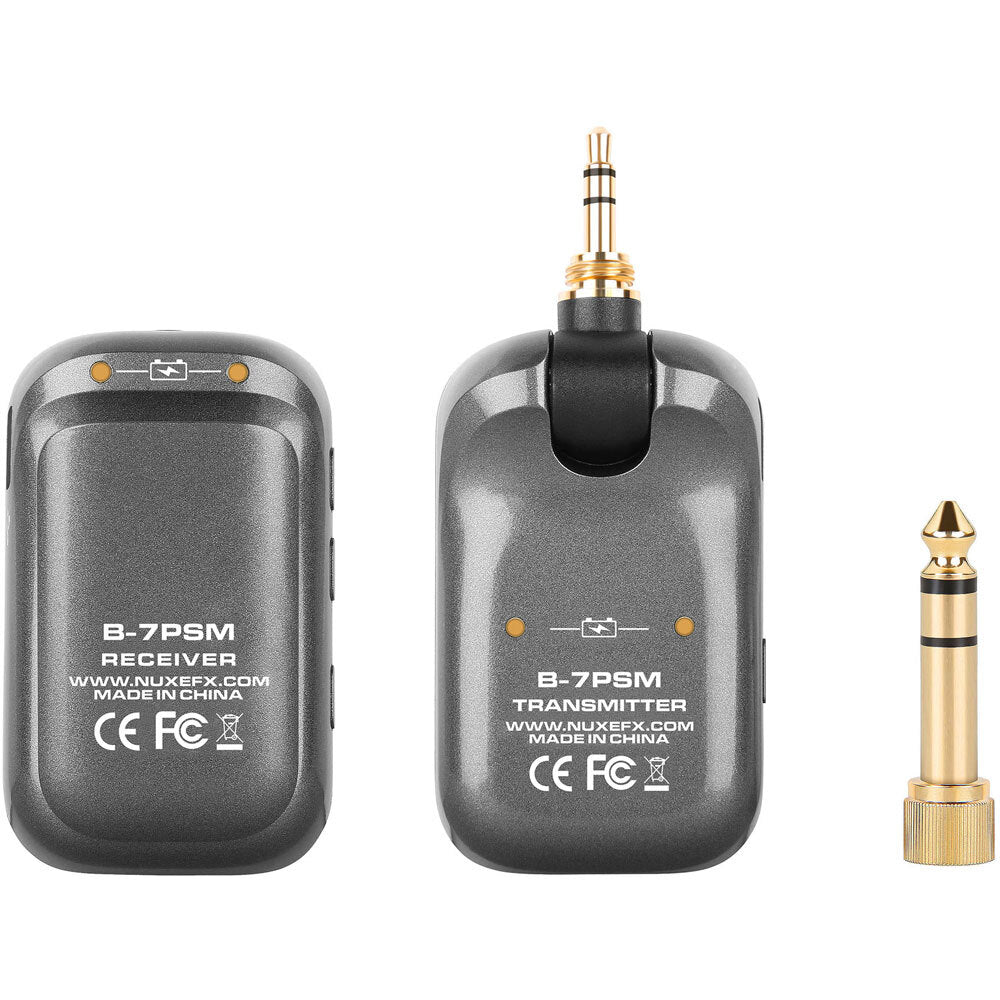

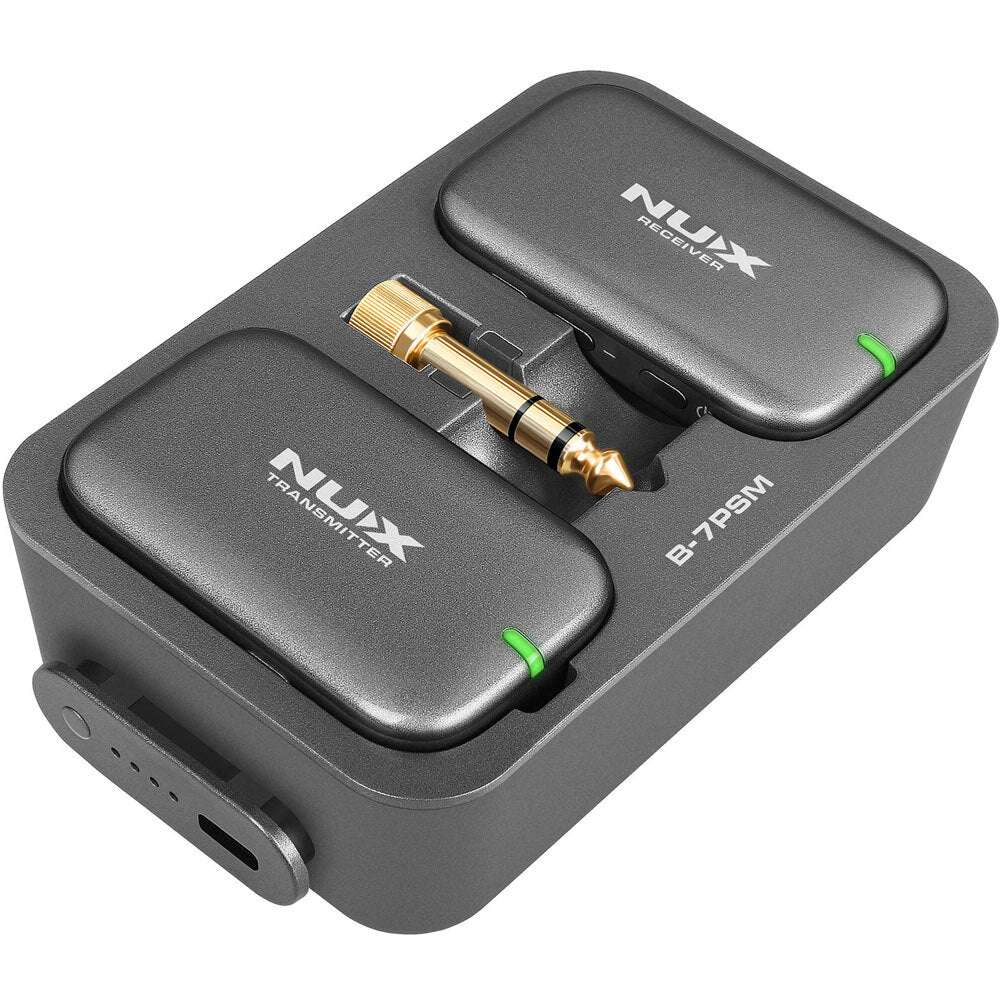

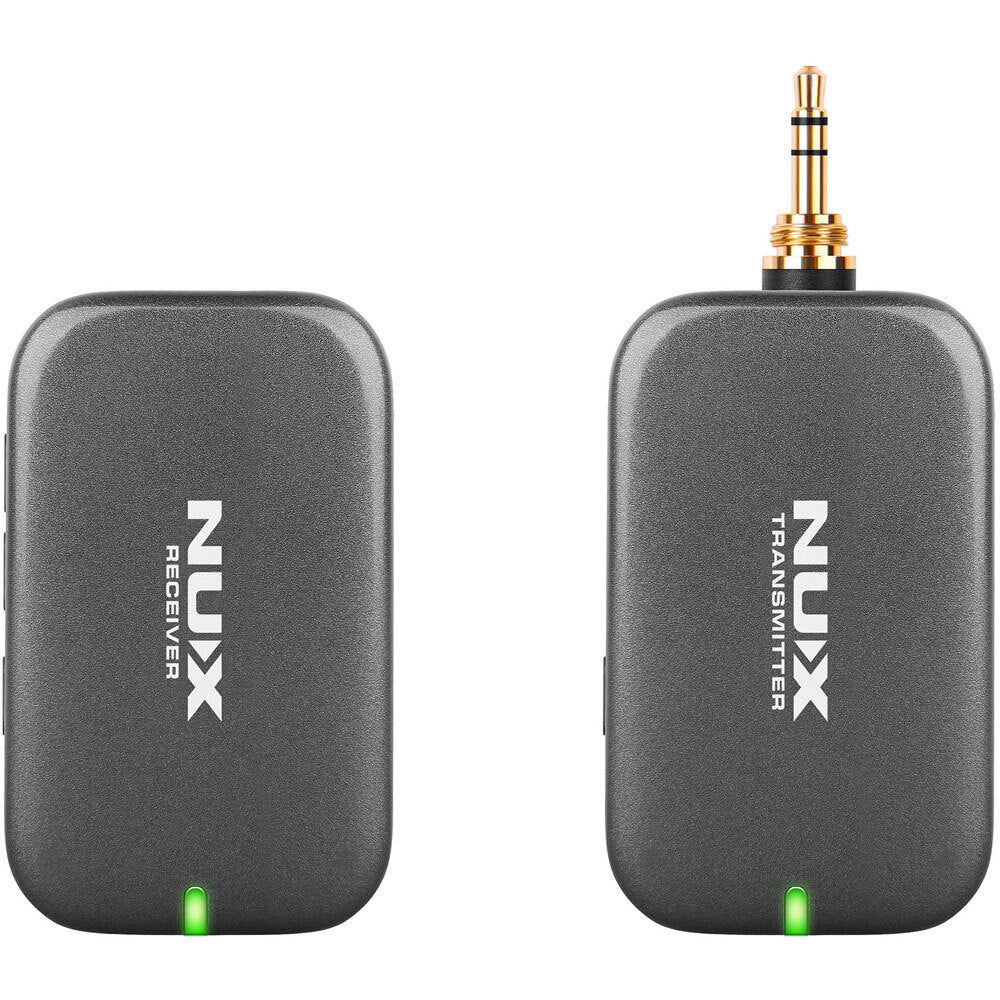

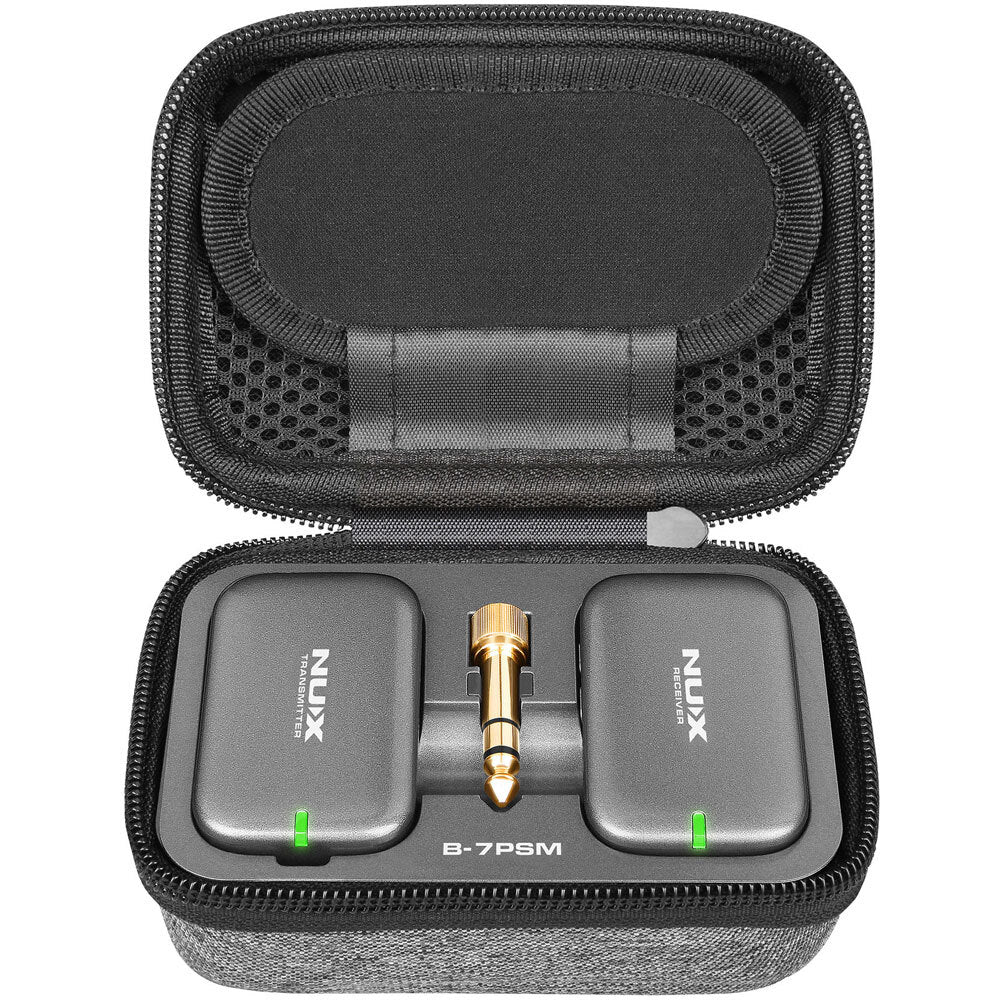

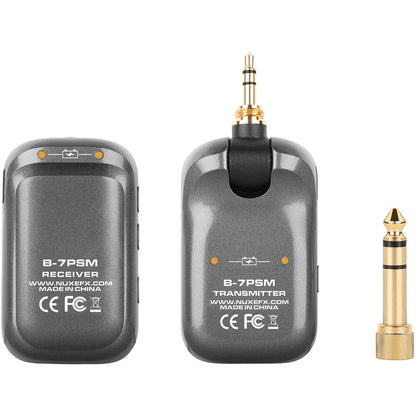

The NUX B-7PSM is a wireless personal in-ear monitor system with automatic RF environment scan, 5.8GHz interference-free broadcasting frequency, and 24-bit / 40 kHz high-quality STEREO audio transmitting. From any position. On any stage. Hear every note in detail with the NUX B-7PSM in-ear monitoring system.
| Output Volume Adjustment | -64dB~0dB (0.5dB step) |
|---|---|
| Operating Frequency Band | 5.8 GHz |
| Operation Length | < 100 feet (30m) outdoor unobstructed, < 33 feet (10m) outdoor with obstructions |
| Sampling Rate | 24bit / 40 kHz |
| Frequency Response | 20~19kHz |
| Latency | < 5.5ms |
| Dynamic Range | 92 dB |
| THD+ Noise | <0.6%@1kHz |
| Built-in Battery Capacity (TX & RX) | 450mAh / 3.7V |
| Battery Running Time | > 4 hours |
| Battery Charging Time | around 1.5 hours |
| Power Consumption | TX <90mA?RX < 45mA |
| TX Impedance | 3.5K |
| Maximum Input Level | 7.6Vpp (8.6dBV or 2.7Vrms) |
| RX Suggestion Phone Impedance | 16~32 ohms |
| Maximum Output Power | 57mWrms (RLOAD =16 ohms, 1 kHz). |
