MIDAS M32C 32-Channel Digital Rack Mixer Unit
MIDAS M32C 32-Channel Digital Rack Mixer Unit
Condition: In great condition with very minor cosmetic wear. No accessories included (case, power supply etc).

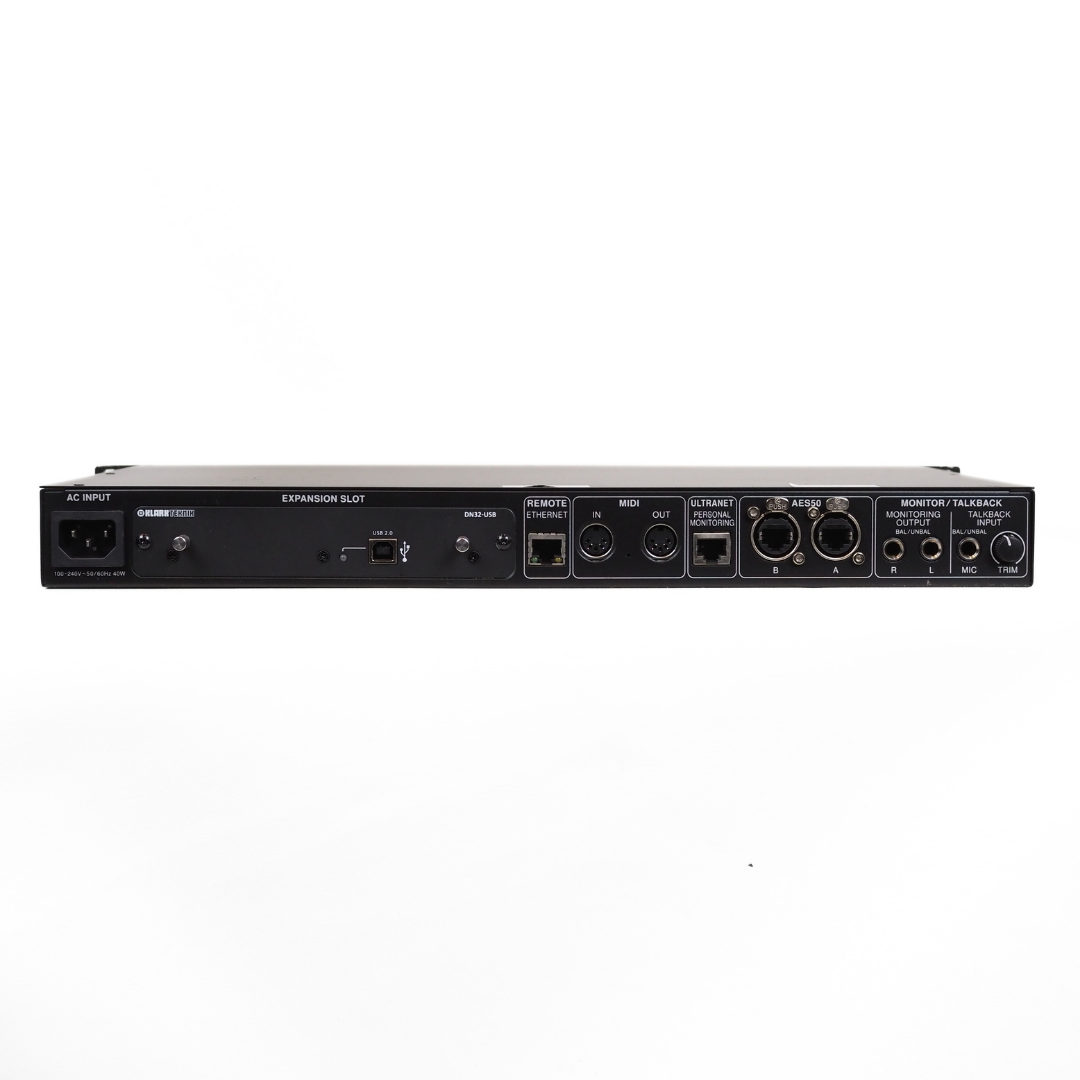

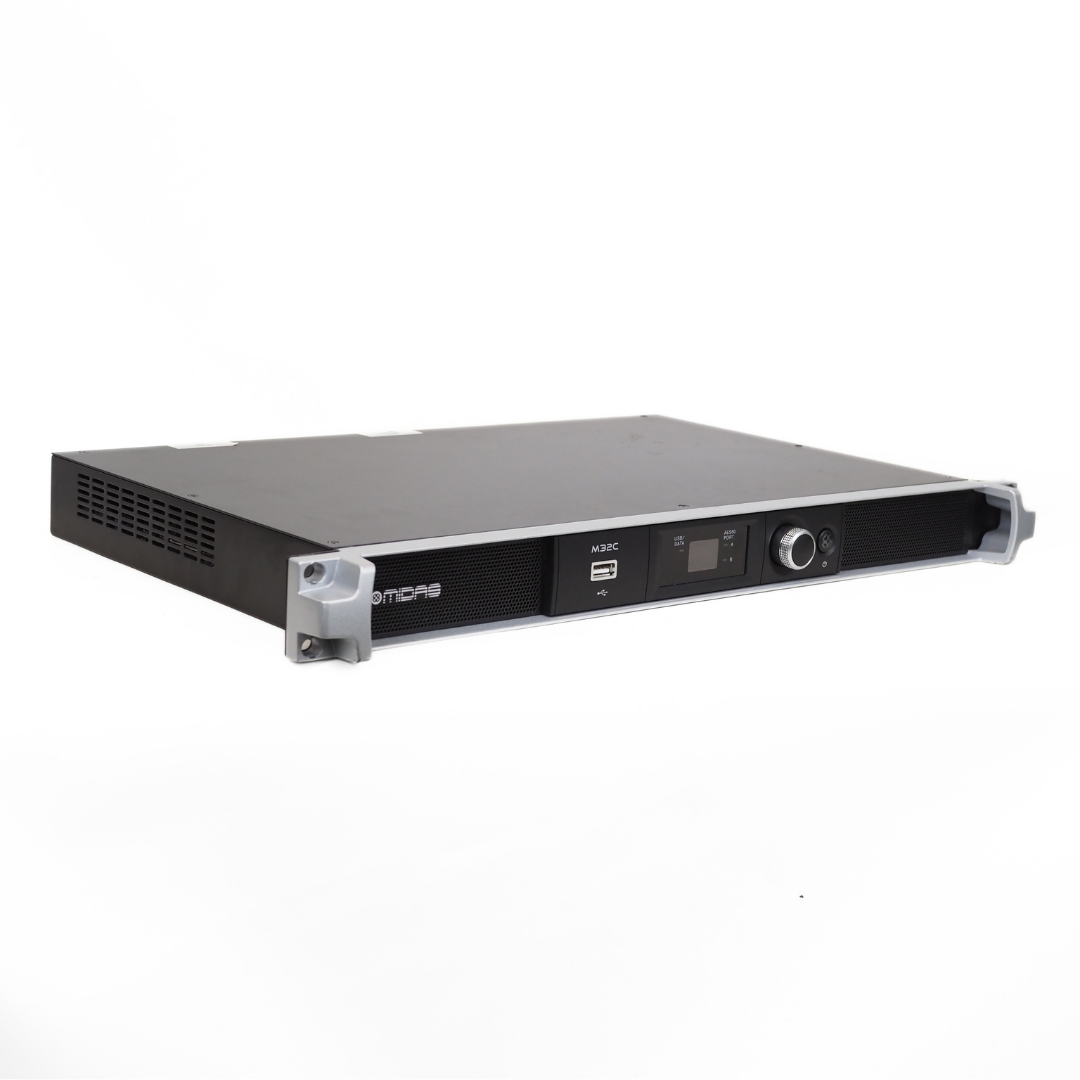

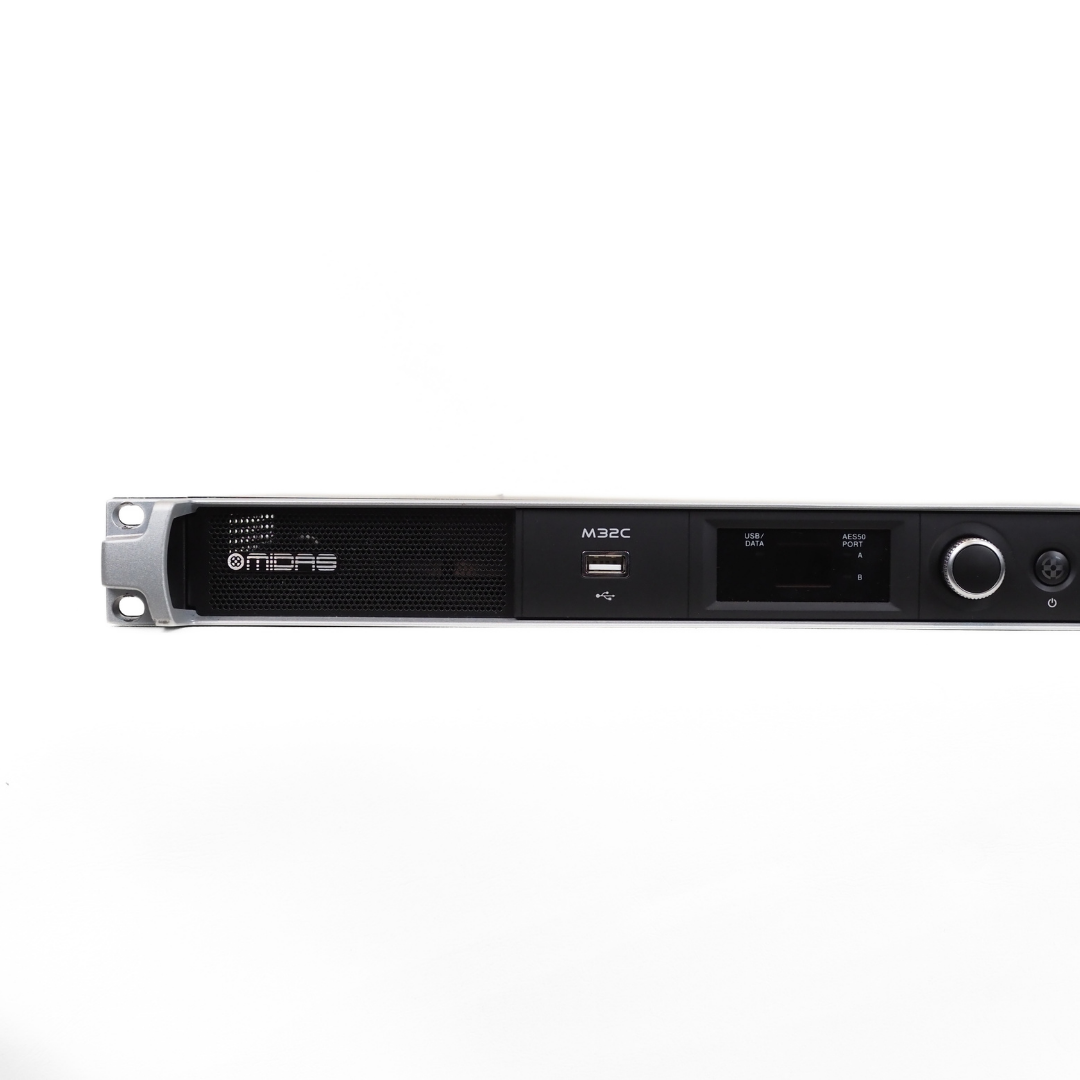

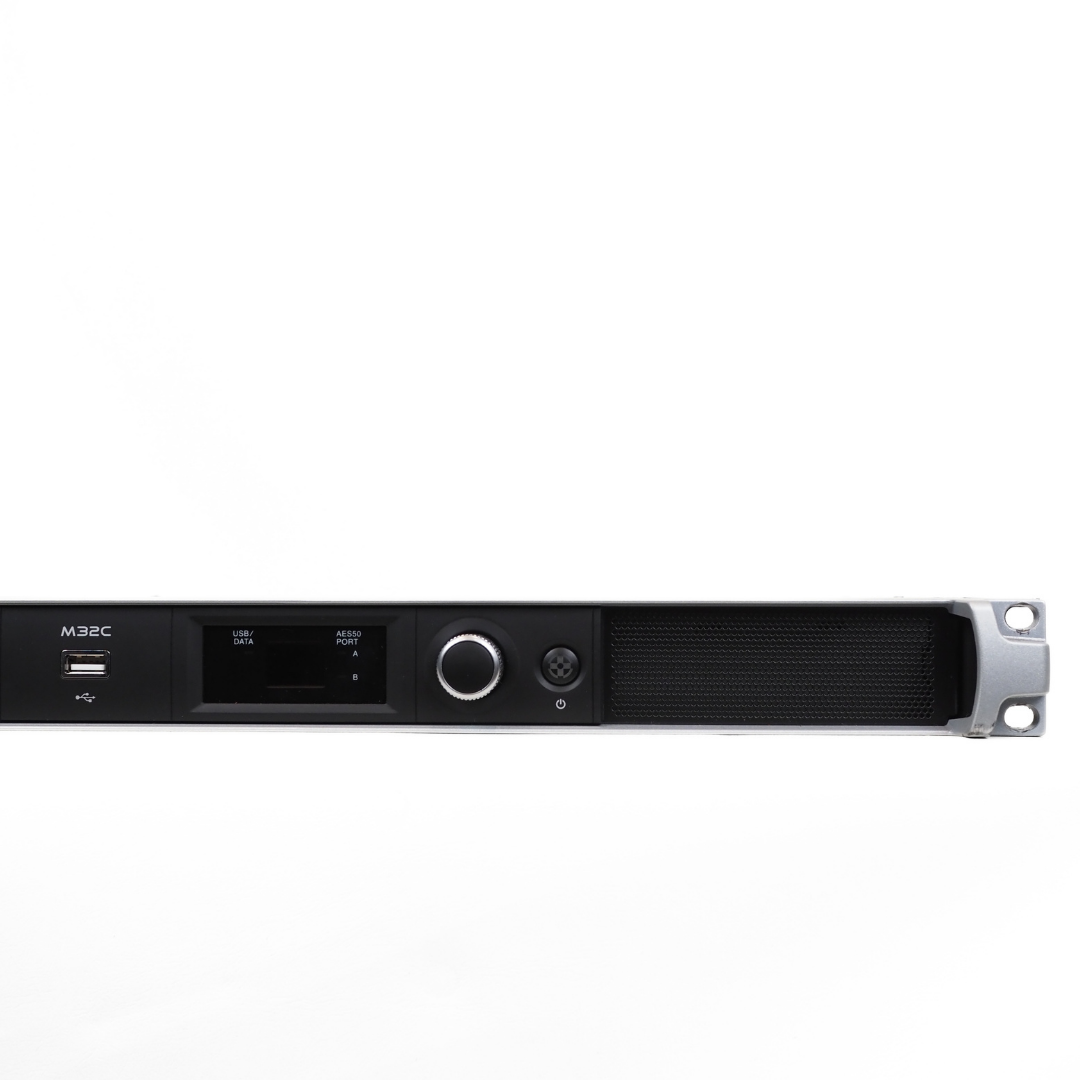

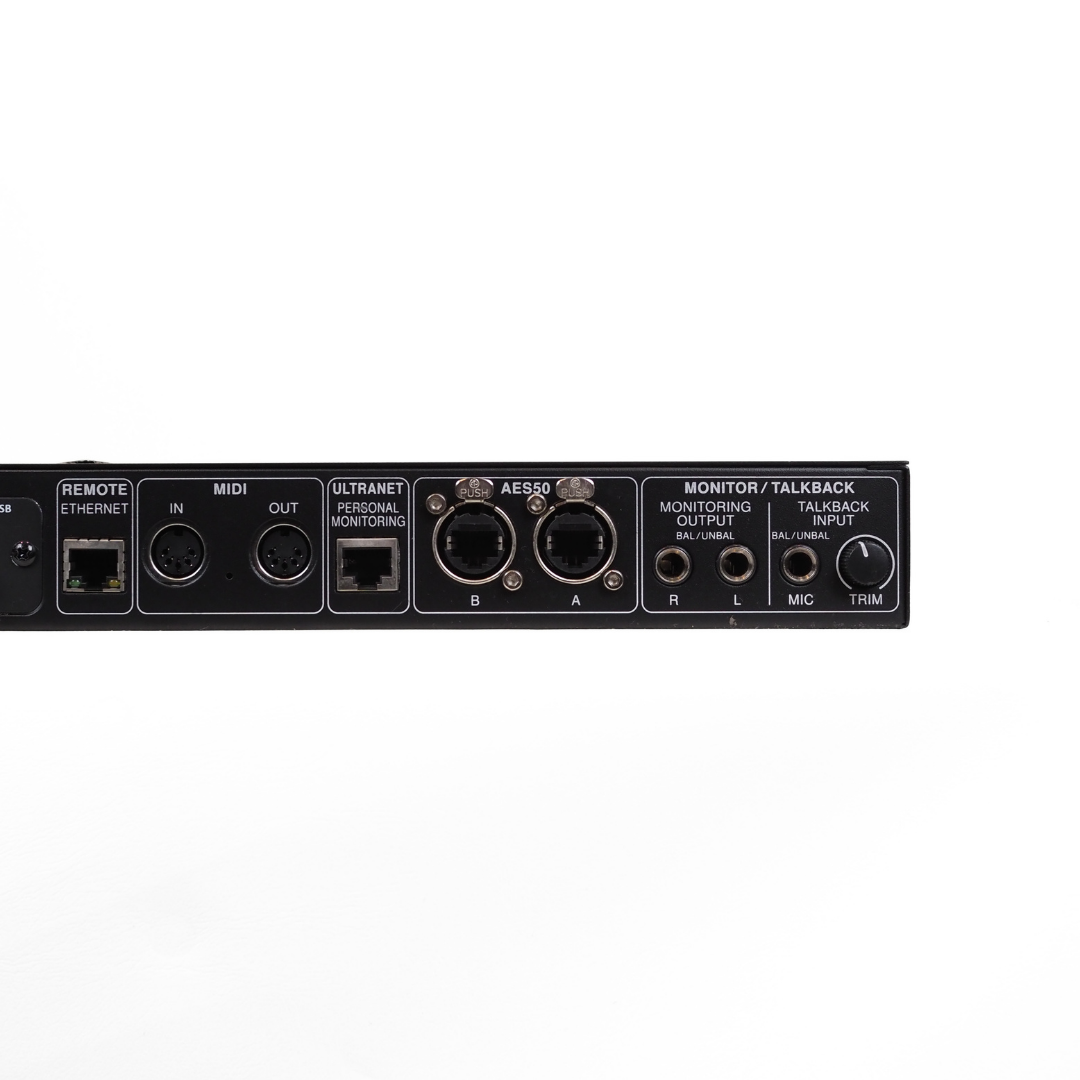

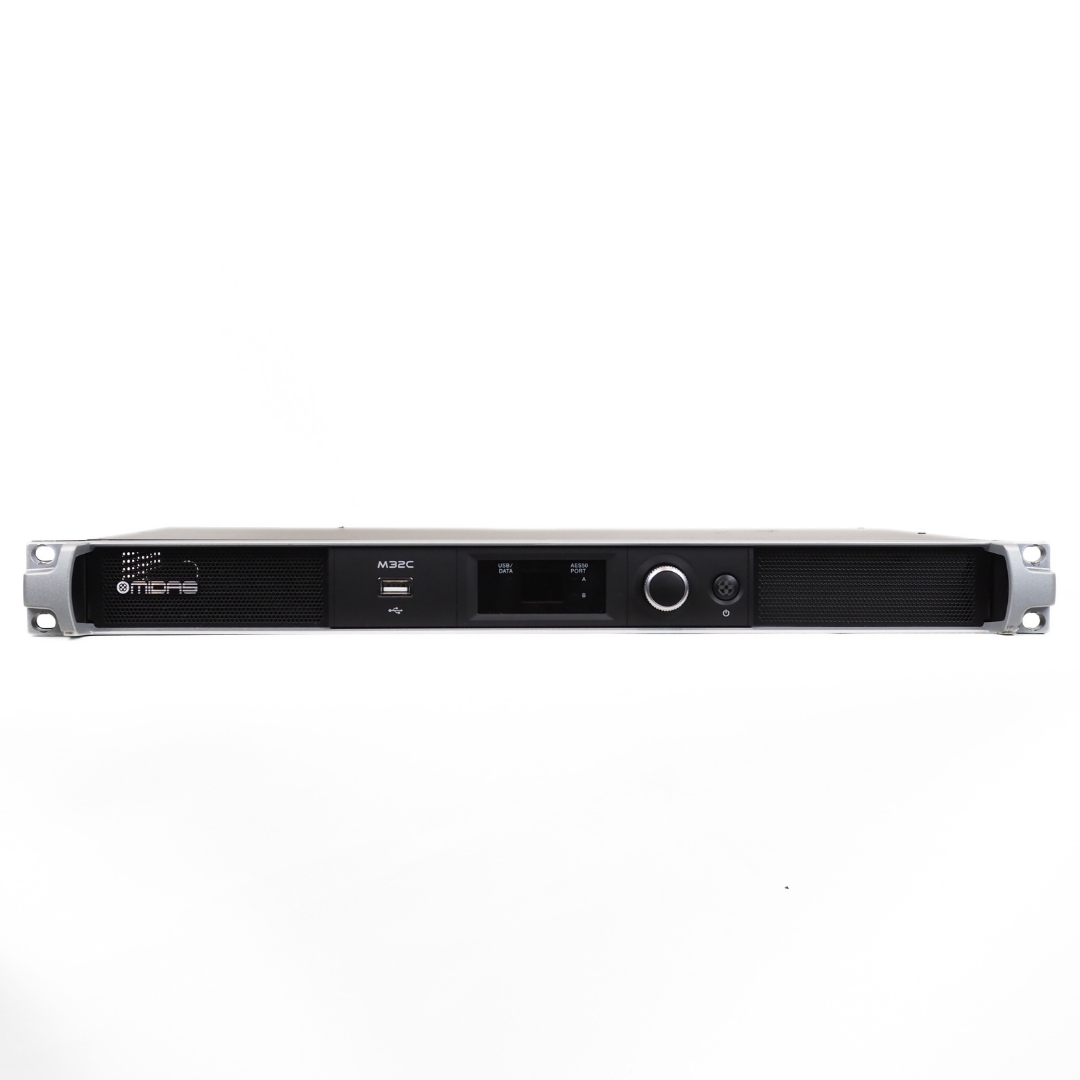

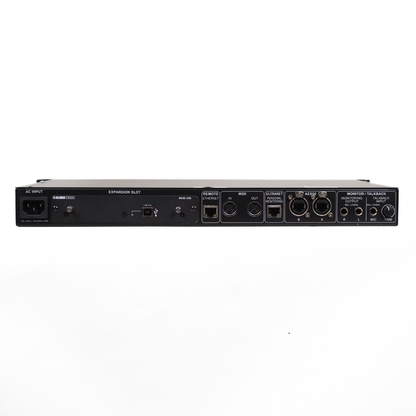

Photos shown are of the product on hand.
Ref: 34798
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
See it in person first? Ask to try it at the shop. Quote Ref: 34798.
Key details
- Requires a standard modular AC IEC power cable
Overview
Digital Rack Mixer for Installed and Live Sound Applications with 40 Input-Channels and 25 Mix Buses.
The 40-input, 25-bus M32C takes the brain of the flagship M32 Digital Mixing Console and packs it all into a high-performance aluminium and steel 1U form factor. Combine the M32C with our DL16 or DL32 Stage Boxes to effortlessly run sound with high I/O counts in multiple remote locations.
Dual AES50 networking CAT5 connectors allow for up to 96 remote inputs and 48 output channels to be controlled from and processed by the M32C. All of this can be managed concurrently from various locations and instances via our free remote control software applications, M32-EDIT, M32-MIX, and M32-Q.
Above all, M32C is designed to put the power of digital in your hands, without compromise. Midas’ singular focus on a matchless value proposition means M32C integrates advanced features such as integrated personal monitor mixing and true high-speed digital audio networking as standard features.
Specs
- Number of processing channels: 32input channels, 8 auxchannels, 8 FX return channels,16auxbuses,
- 6 matrices, main LRC
- Internal effects engines, true stereo/ mono: 8 /16
- Internal total recall scenes (incl. preamp and fader): 100
- Signal processing: 40-bit floating point
- Network I/O latency (stagebox in > console processing* > stagebox out): 1.1 ms
- Talkback mic input, TRS: 1 external (no phantom power)
- Monitoring outputs ¼ ” TRS balanced: 2
- AES50 ports, SuperMAC: 2
- Expansion card slot: 32 channel audio input/output, various standards
- P-16 connector, ULTRANET (no power supplied): 1
- MIDI inputs /outputs: 1/1
- Ethernet, RJ45, rear panel, for remote control: 1
- USB Type A, front panel, for audio and data export/import: 1
- Talkback Input
- Maximum gain: +50dB
- Maximum input level at unity gain: +8 dBu
- Input impedance: 2kΩ
- Monitor Outputs
- Maximum output level: +21dBu
- Output impedance: 50 Ω
- Frequency response, +0to-1dB: 20 Hz -20kHz
- Output noise, 22 Hz -22kHz: -83dBu,unweighted
- Distortion, 0 dBu output level, 1kHz: 0.02%
- LCD screen: 128 x64,LCD with RGB color backlight
- Status LEDs: AES50 port A/B status, power LED, Mute All button
- Switch-mode power supply: Autorange 100-240 V (50/60 Hz)
- Power consumption: 40W
- Standard operating temperature range: 5°C – 40°C(41°F – 104°F)
- Dimensions: 483x300x50 mm
- Weight: 3.5kg
- Serial number: s190200134BM8
