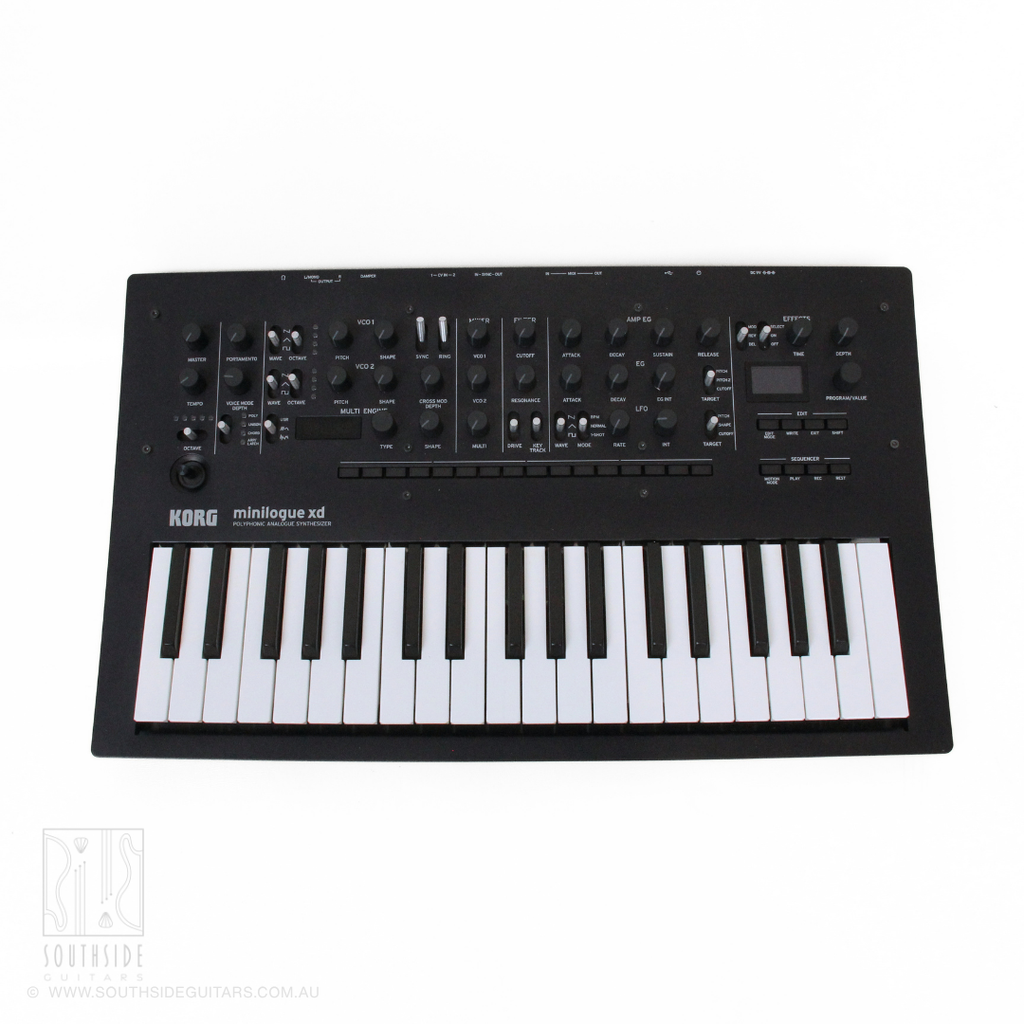

Korg Minilogue XD Polyphonic Analogue Synthesizer
Korg Minilogue XD Polyphonic Analogue Synthesizer

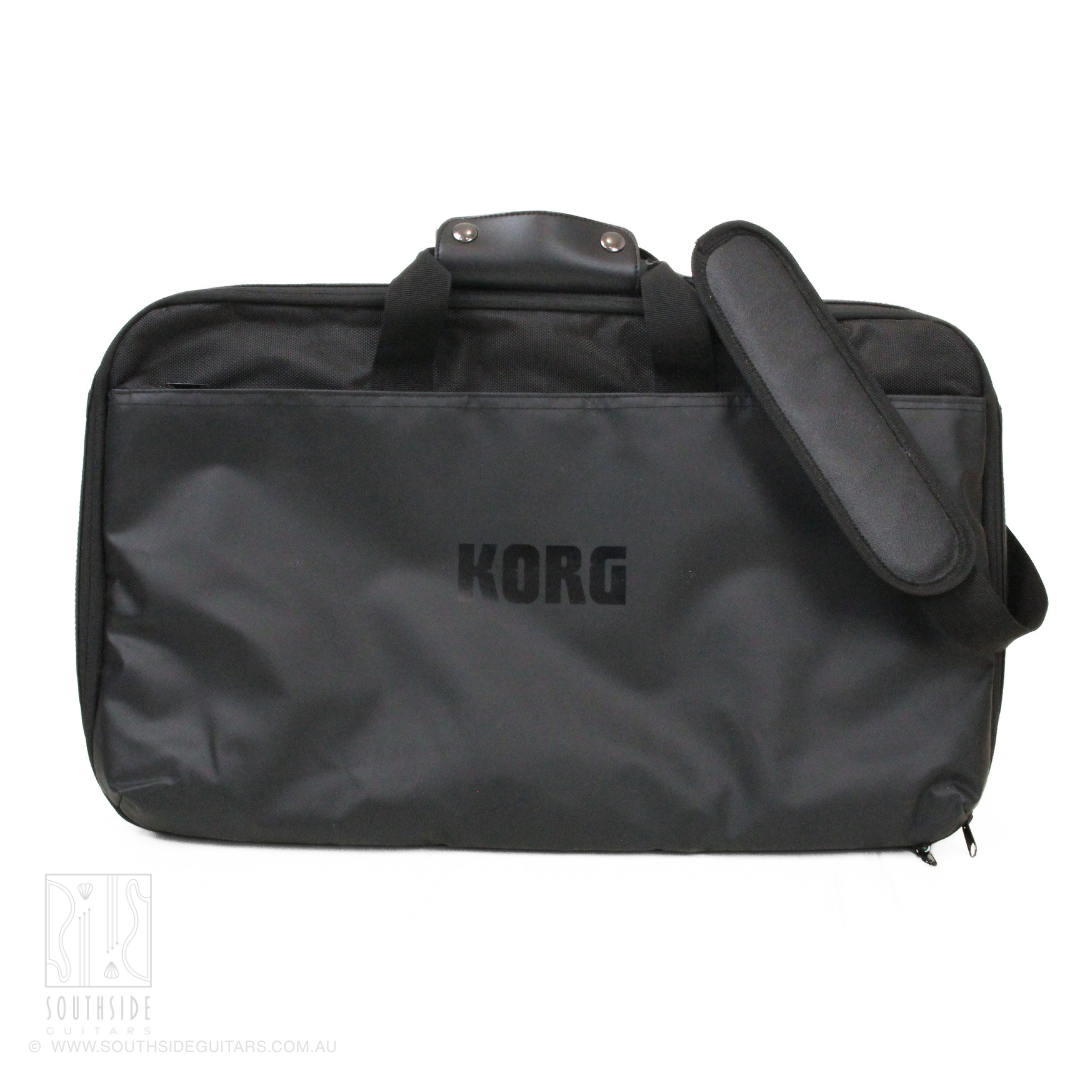

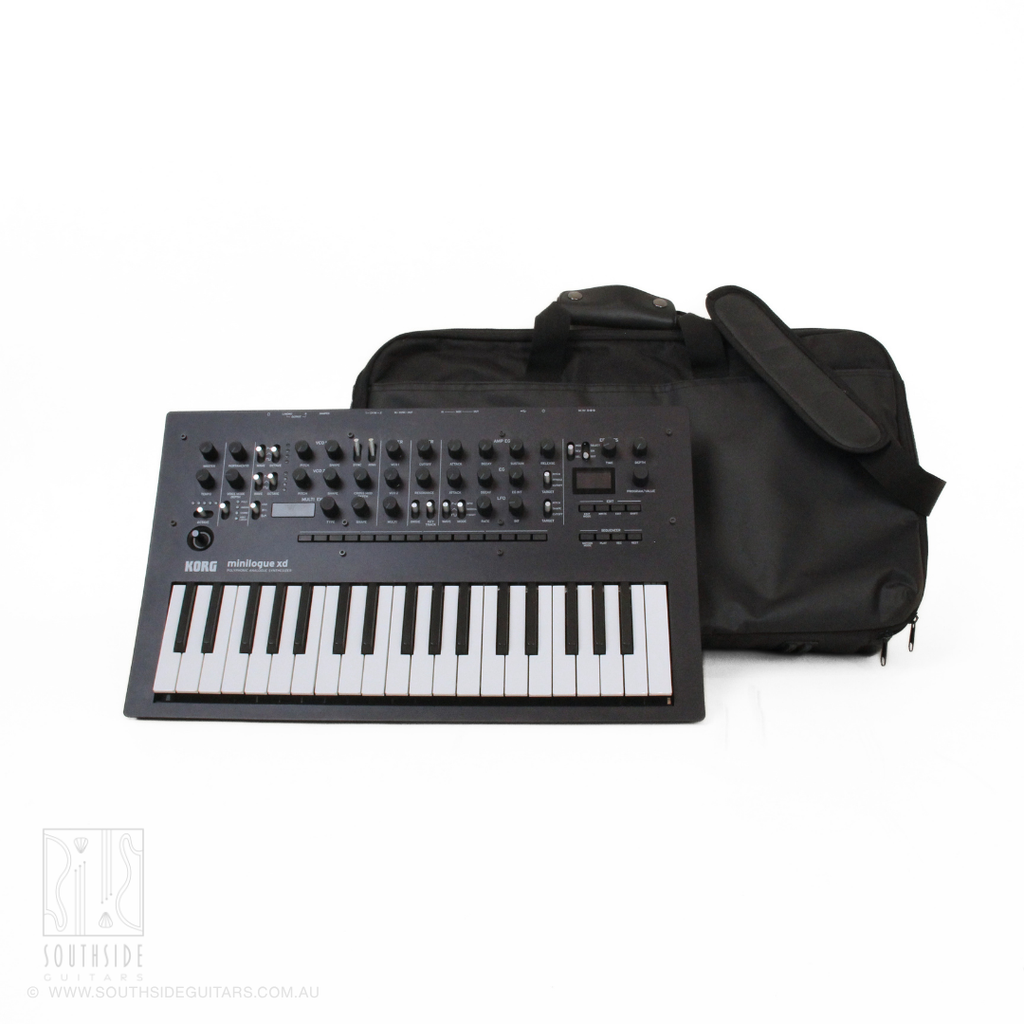

Condition: In excellent condition with minimal cosmetic wear. Box, manual and power supply included., Soft carry bag included.

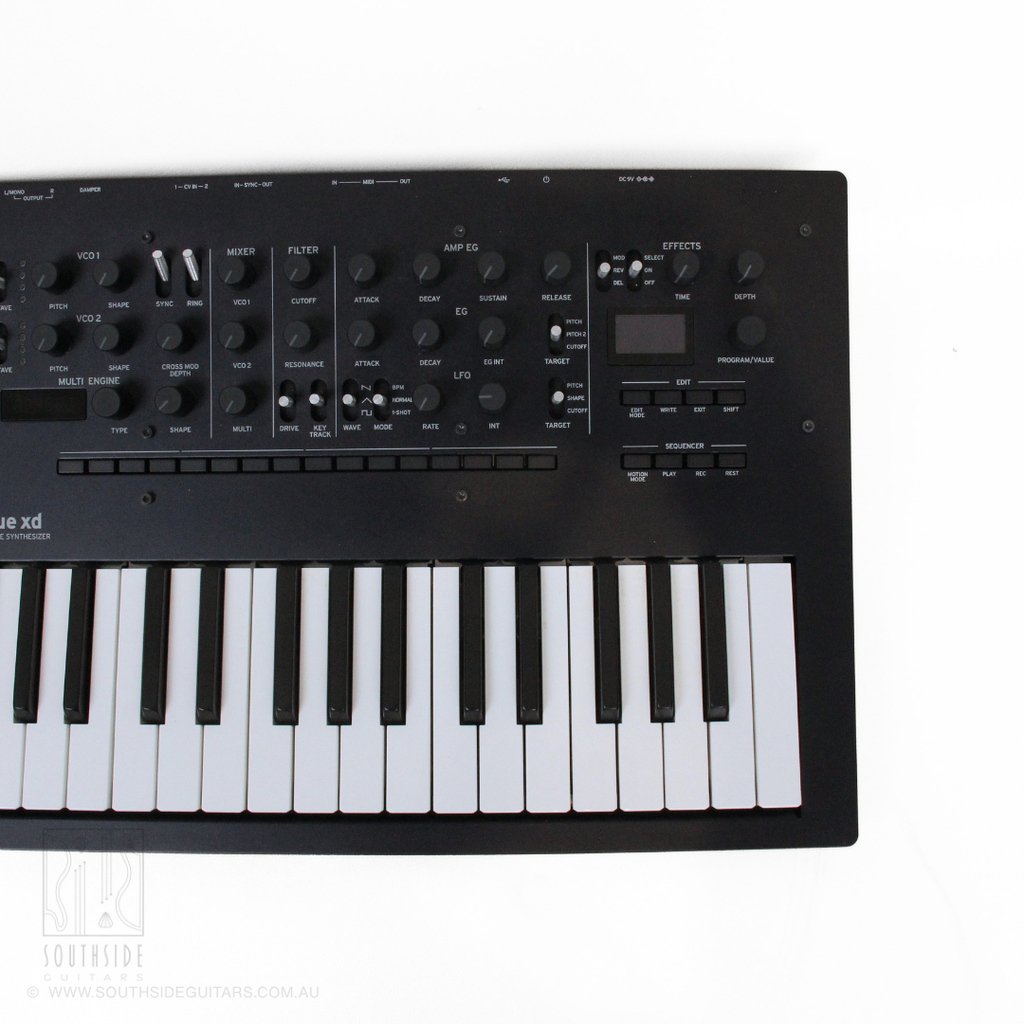

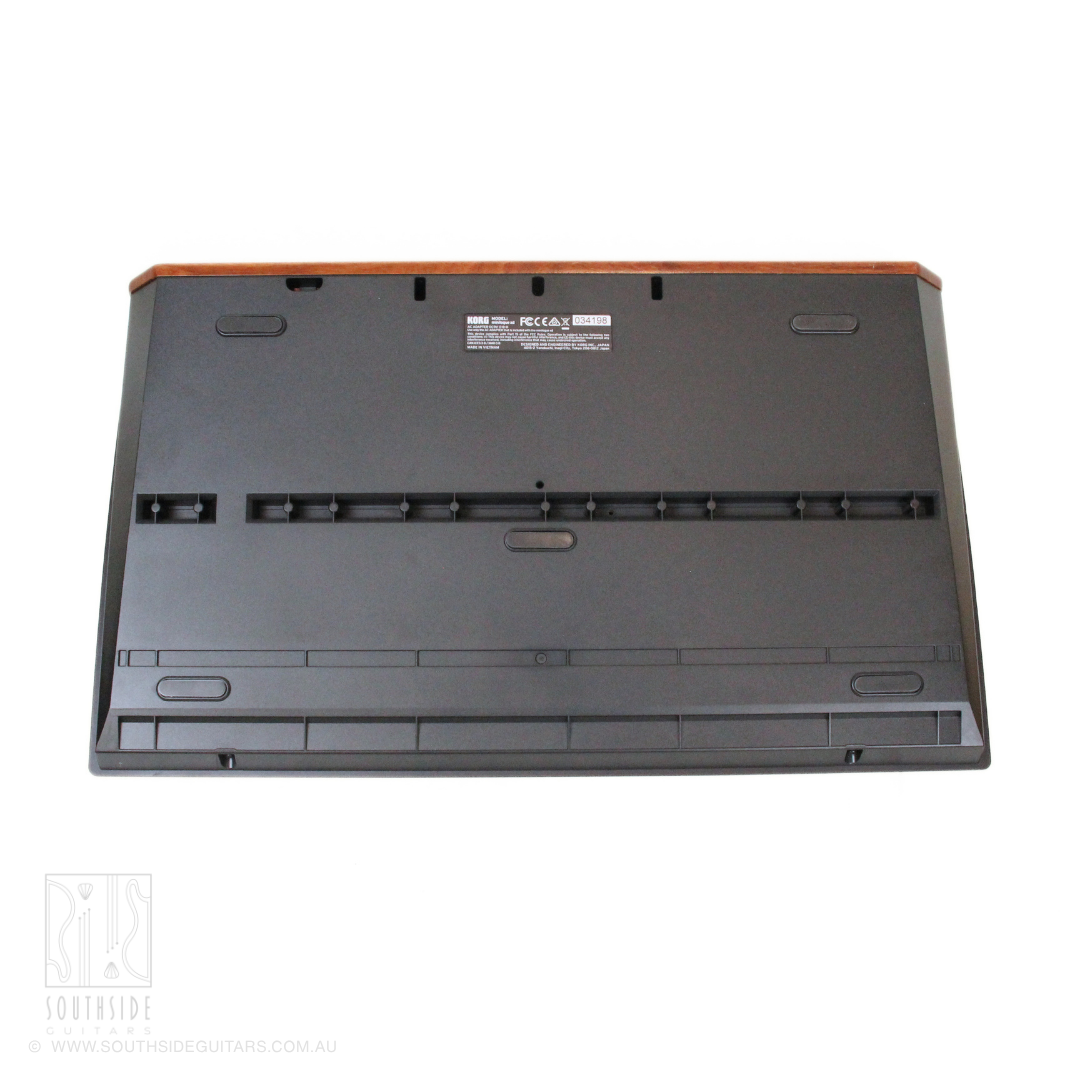

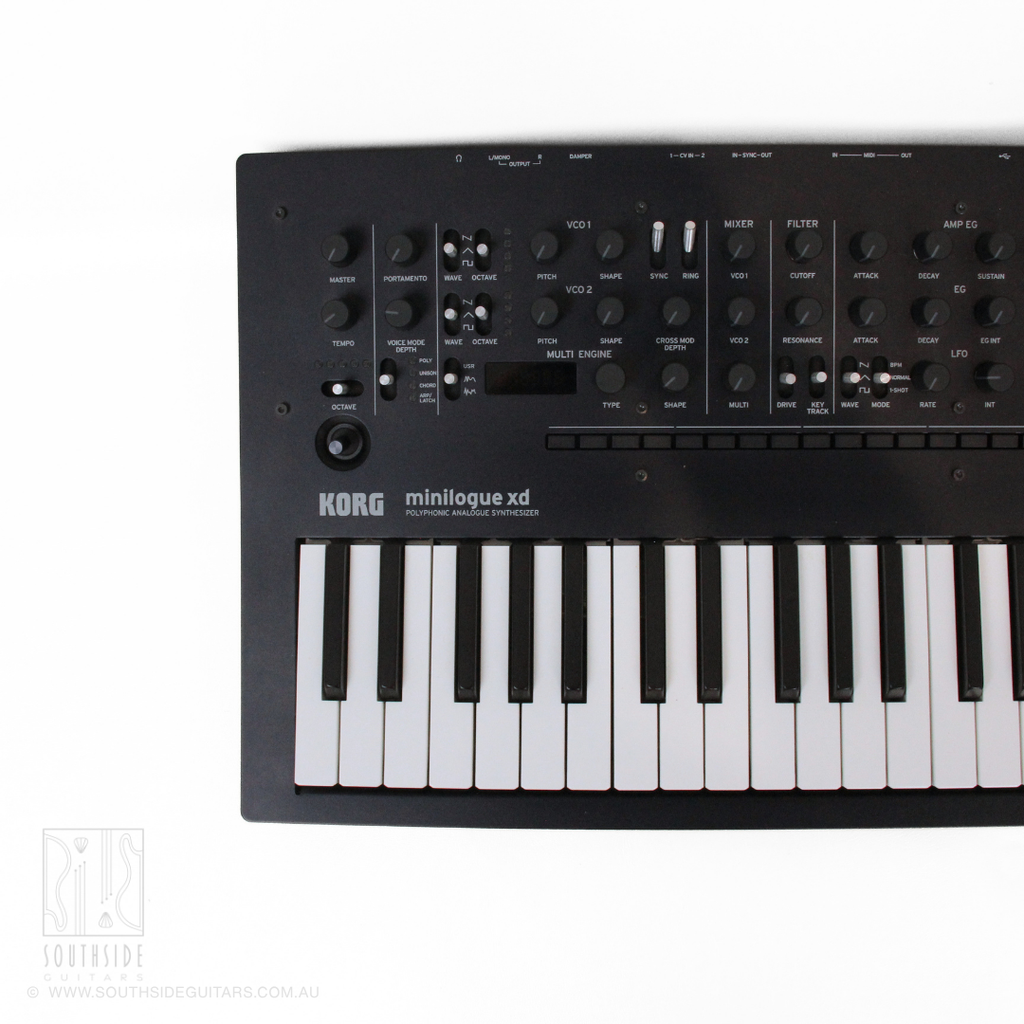

Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Overview
An evolved next-generation analog synthesizer with huge potential for sound design and performance.
We wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable.
In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential.
minilogue xd is a fitting addition to the original groundbreaking minilogue.
Specs
| Keyboard | 37-keys (Slim-key, velocity sensitive) |
|---|---|
| Sound Generation | Analogue sound generator + Multi digital sound generator (Noise, VPM, User) |
| Maximum Polyphony | 4 voices |
| Programs | 500 voices (more than 200 preload, 300 user programs). Each program provides a program sort function that includes voice mode settings. Favorite function built in. |
| Voice Mode | 4 (POLY, UNISON, CHORD, ARP / LATCH). The VOICE MODE DEPTH setting allows different parameters to be varied for each mode. |
| Sequencer | 16-step polyphonic sequencer. Motion sequence can be used on up to four parameters |
| VCO1 | WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE |
| VCO2 | WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE |
| MODULATION | SYNC, RING, CROSS MOD DEPTH |
| MULTI ENGINE | NOISE/VPM/USER, TYPE, SHAPE |
| MIXER | VCO1, VCO2, MULTI |
| VCF | CUTOFF, RESONANCE, DRIVE, KEYTRACK |
| AMP EG | ATTACK, DECAY, SUSTAIN, RELEASE |
| EG | ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF) |
| LFO | WAVE (SAW, TRIANGLE, SQUARE), MODE（BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF) |
| EFFECT | TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH |
| Noise Generator | 4 types |
| VPM oscillator | 16 types |
| User oscillator | 16 slots |
| CHORUS | 8 types |
| ENSEMBLE | 3 types |
| PHASER | 8 types |
| FLANGER | 8 types |
| USER | 8 types |
| DELAY | 12 types |
| USER | 8 slots |
| REVERB | 10 types |
| USER | 8 slots |
| Controls | Joy stick that can modify different parameters for each program, PORTAMENTO knob |
| Main Display | Real-time OLED oscilloscope provides visual feedback of parameter changes |
| MULTI ENGINE section | 7 segments x 6 digit LED display |

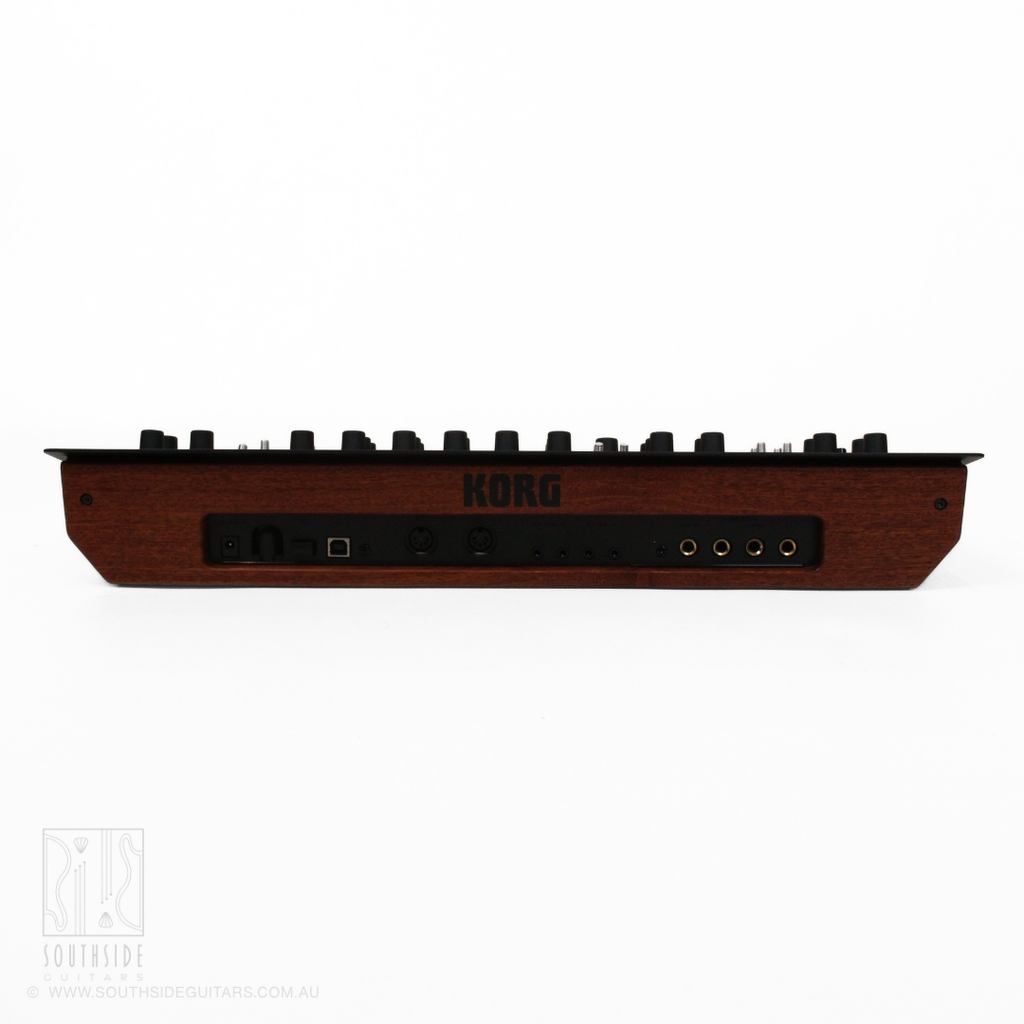

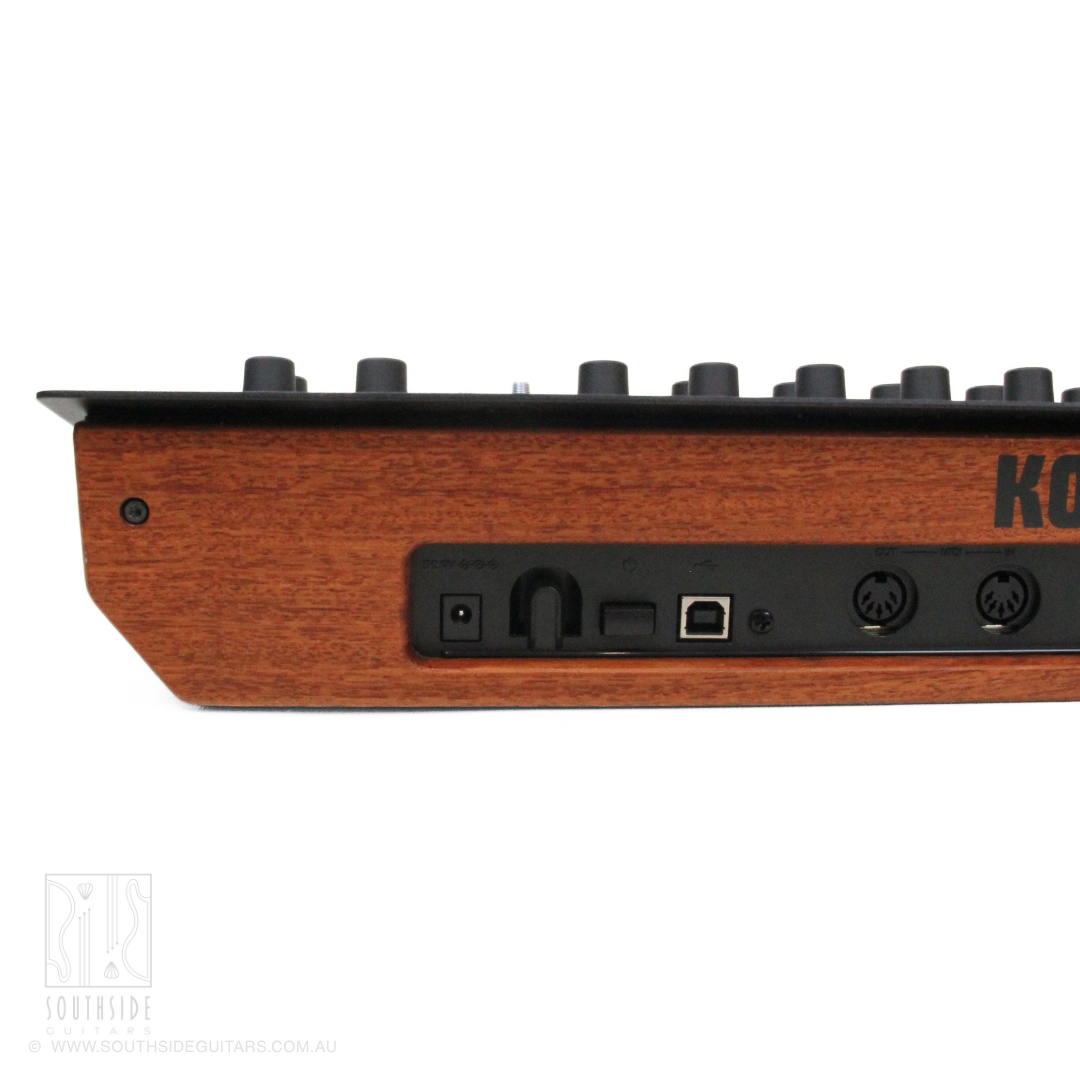

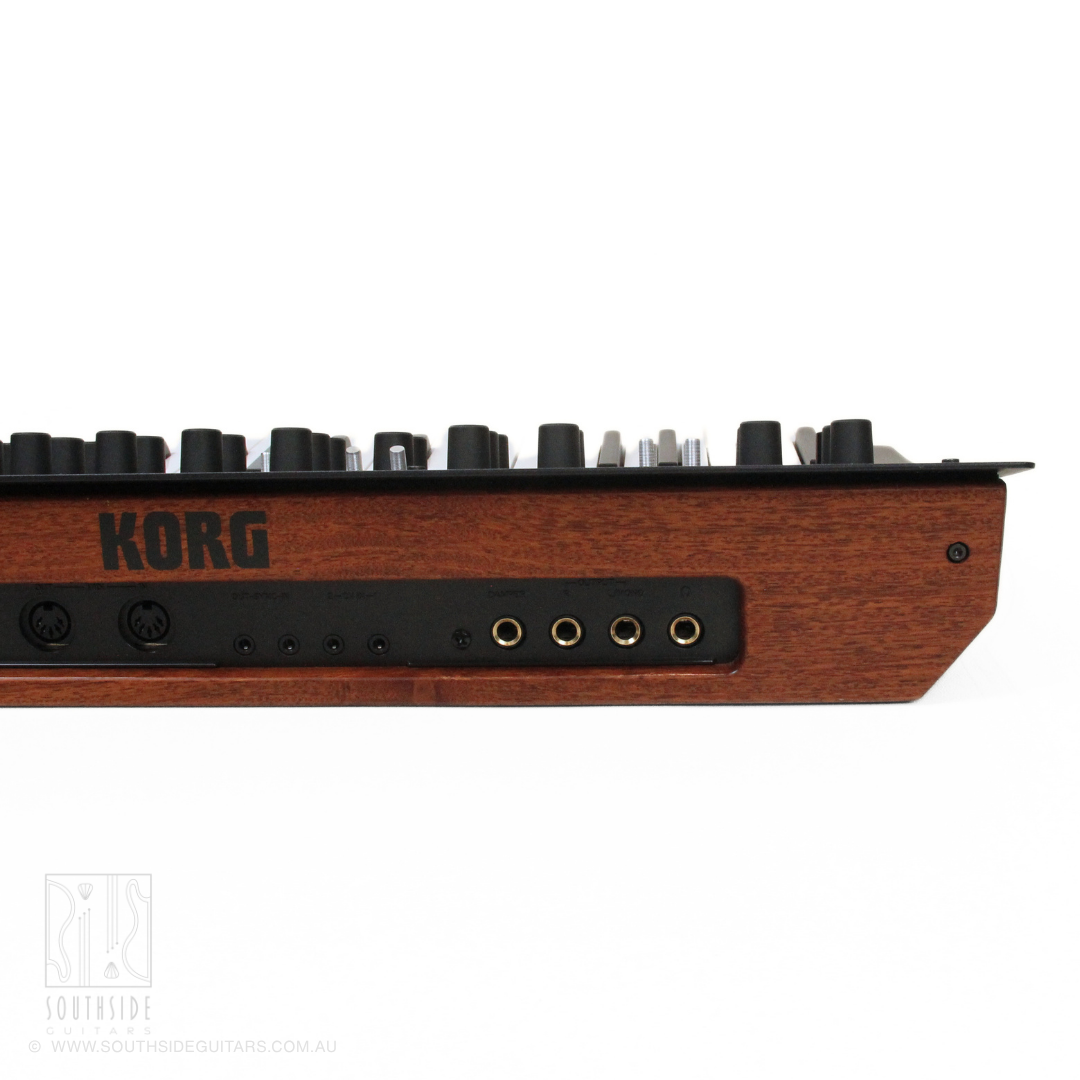

| Input/Output connectors | Headphone jack (Stereo phone jack), OUTPUT L/MONO, R jacks (monaural phone jack unbalanced), CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode), SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V), SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V), MIDI IN jack, MIDI OUT jack, USB B jack, DAMPER jack (half damper is not supported) |
| Power Supply | AC adapter (DC9 V) |
| Power Consumption | 8 W |
| Dimensions (W x D x H) | 500 mm x 300 mm x 85 mm |
| Weight | 2.8 kg / 6.17 lbs. |

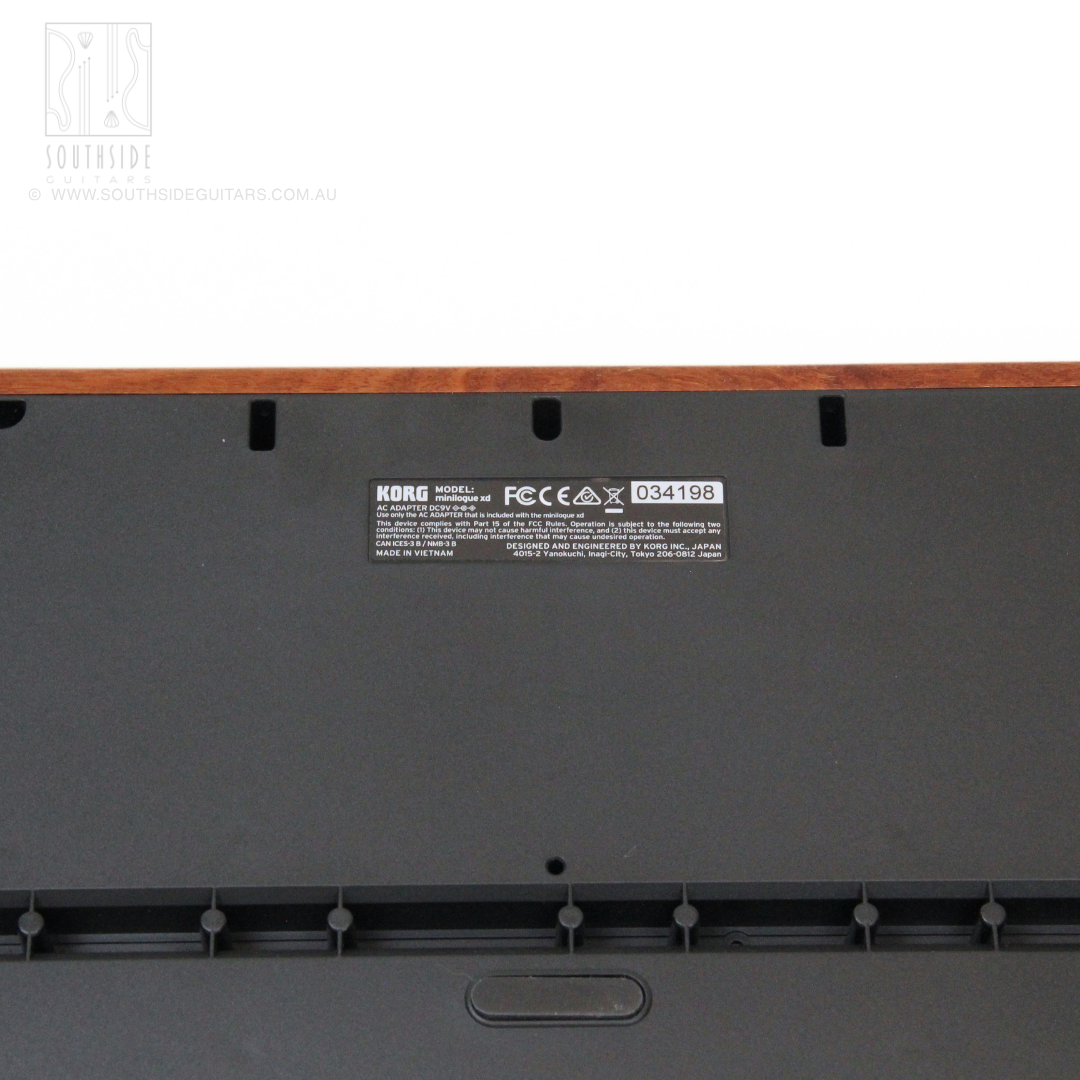

| Serial number | 034198 |
Condition & Warranty
Tested and under warranty. Every preloved item is serviced, repaired if needed, and tested by our techs before it goes on sale. Used gear comes with our warranty: 3 months for electrical faults and 6 months for structural faults. It excludes misuse, neglect, unreasonable wear and service items such as strings and batteries. It's on top of your rights under the Australian Consumer Law.
7-day change-of-mind returns. From the day you receive it, on new and preloved gear. It must come back as you received it. A 20% restocking fee applies, and you pay return postage. Not for strings or anything played with the mouth. If it's faulty, the fee never applies, your Australian Consumer Law rights apply, and we pay return postage. Returns policy
Shipping. Free standard shipping Australia-wide on orders over $199 and under 5kg, with an express option at checkout for most items. Guitars over A$2,000 ship free by courier to Qld, NSW, Vic, ACT and Tas, and half price to SA, WA and NT. Preloved items usually ship the same day or within 72 hours.
