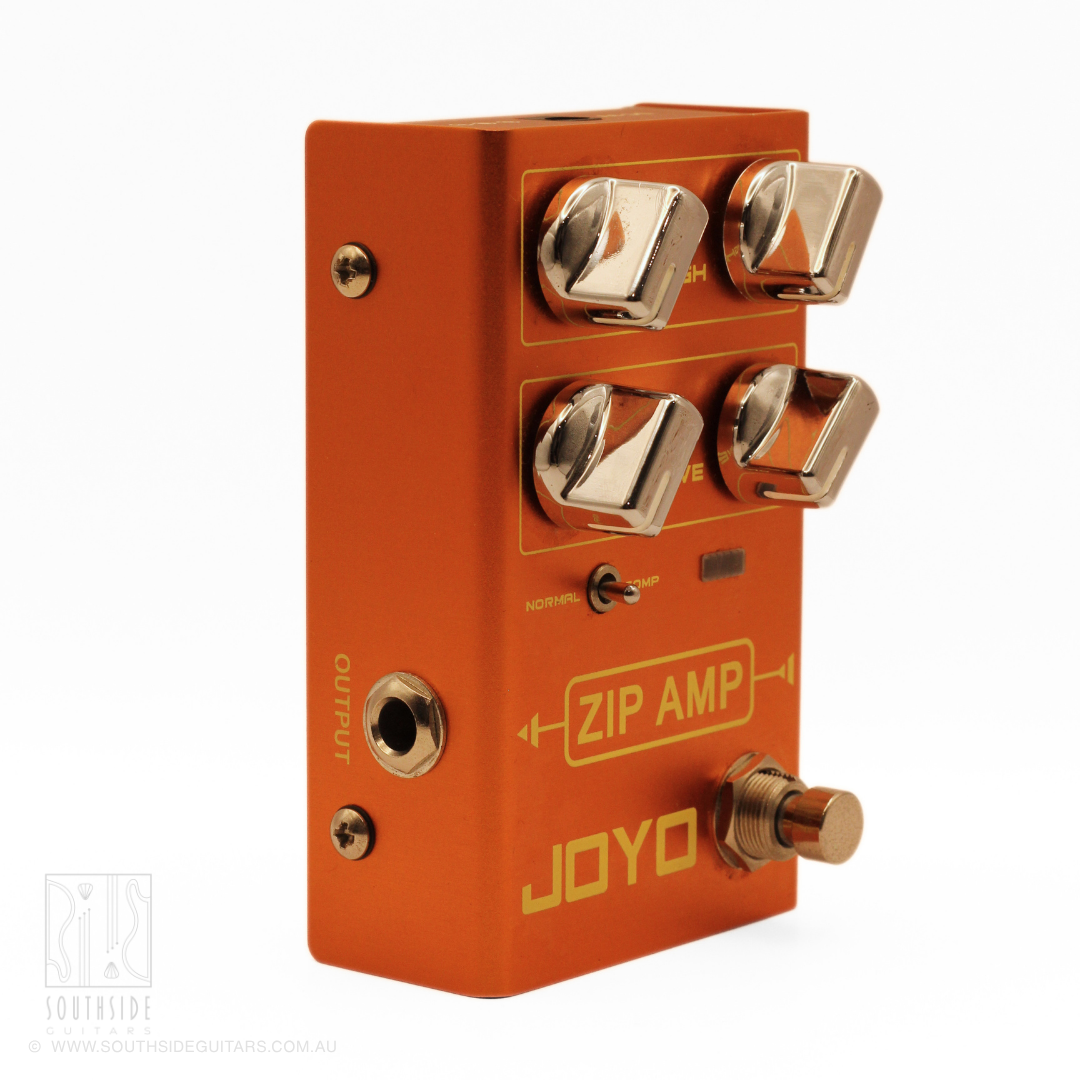

JOYO R-04 Zip Amp Overdrive Effects Pedal
JOYO R-04 Zip Amp Overdrive Effects Pedal
Condition: In "as new" condition. Includes original box and manuals
Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Key details

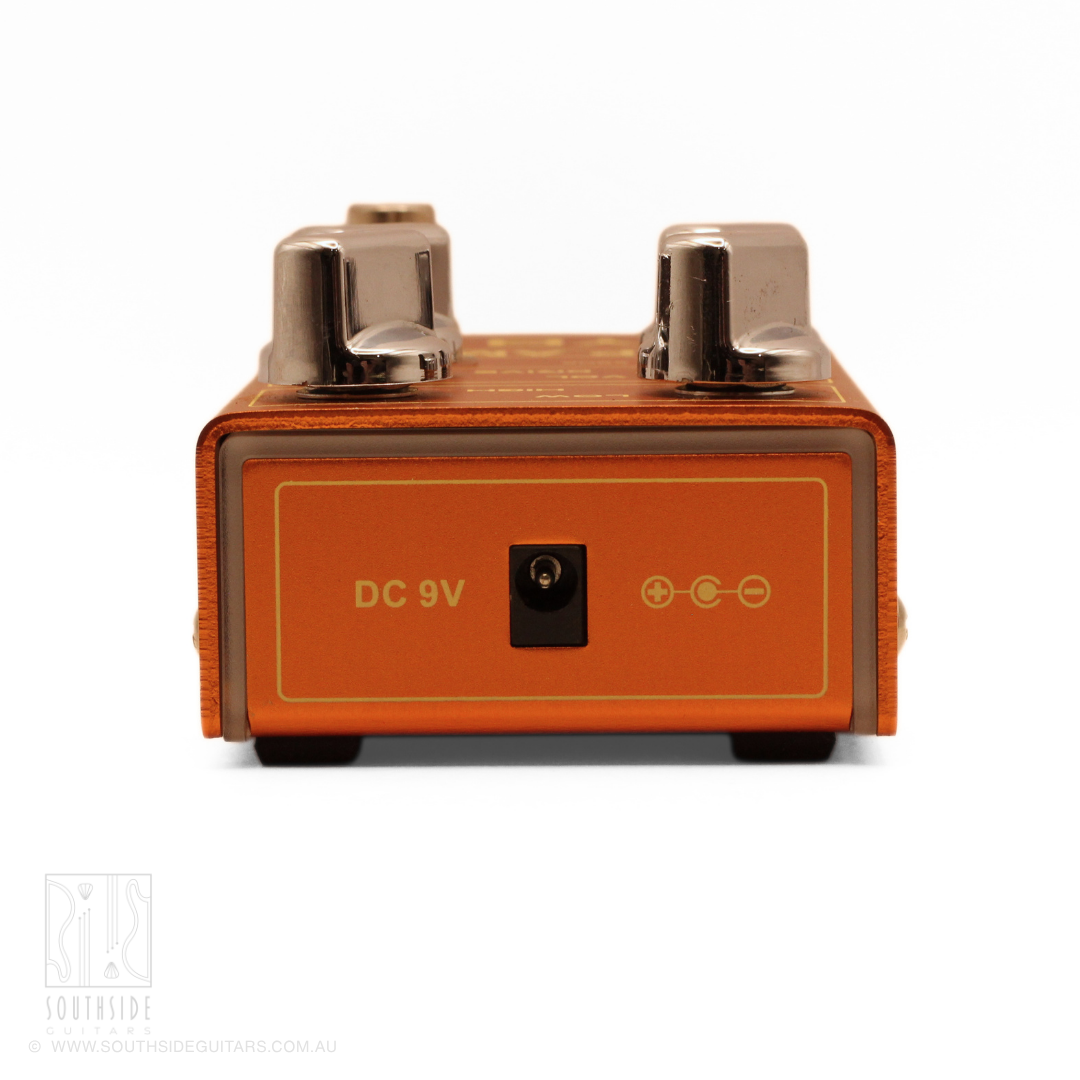

- Requires a 9V DC Negative Tip Power Supply.
Overview
R-04 JOYO Zip Amp Compressor / Overdrive - Danger Danger this pedal should come with a warning, not quite an UZI but more of a BB gun with great compression control.
If you are a lover of Instrumental rock, Hard rock & Glam metal this is the pedal for you. You have the ability to choose between standard compression and even more compression resulting in balanced but very powerful pre amp overdriven tones. The pedal will certainly equalise your playing, add sustain and simply adds a legendary pre amp tone with some very exotic swagger.

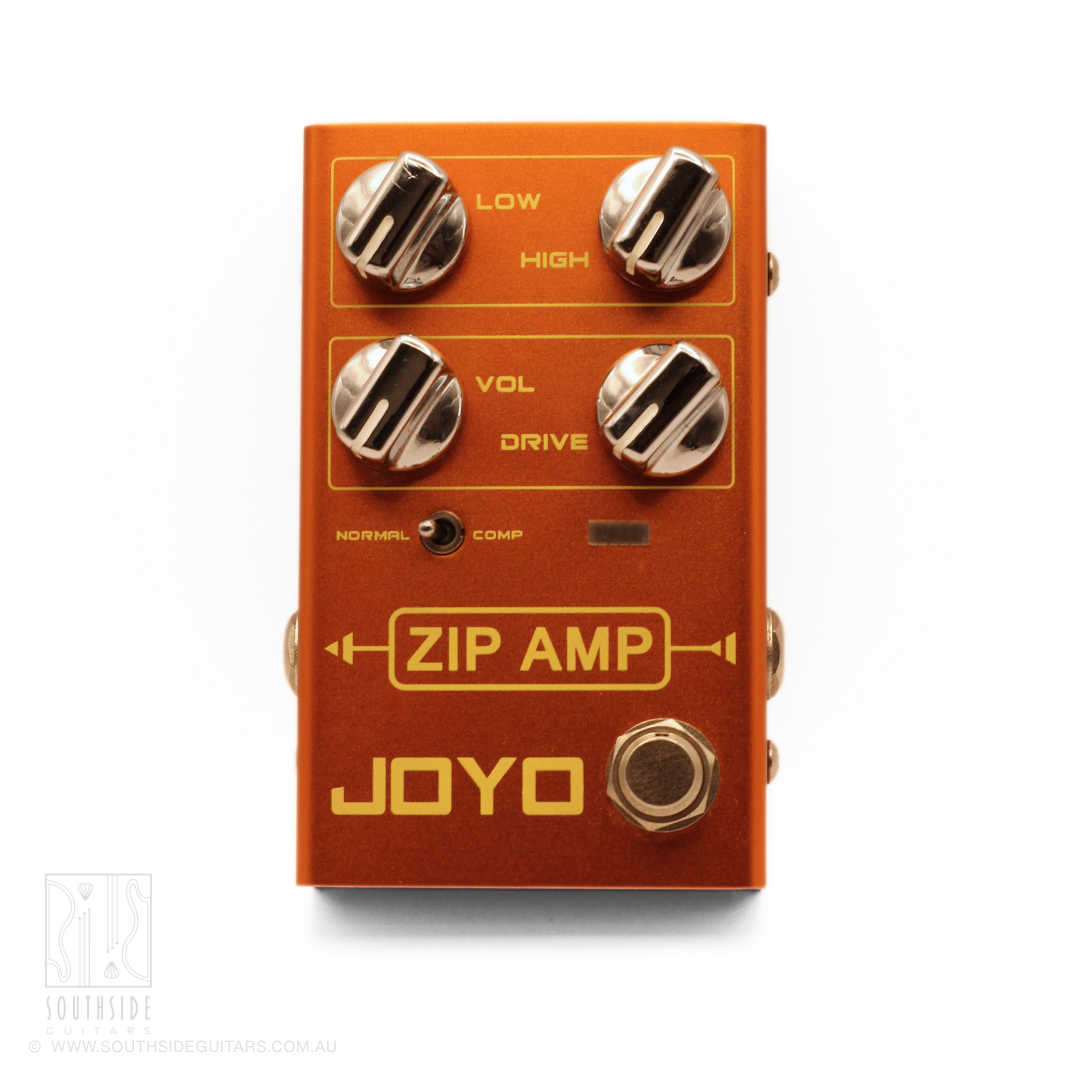

At your fingertips you have Low / High to adjust the EQ, Volume & Drive to push it further. A toggle switch to control the compression from normal to compressed.

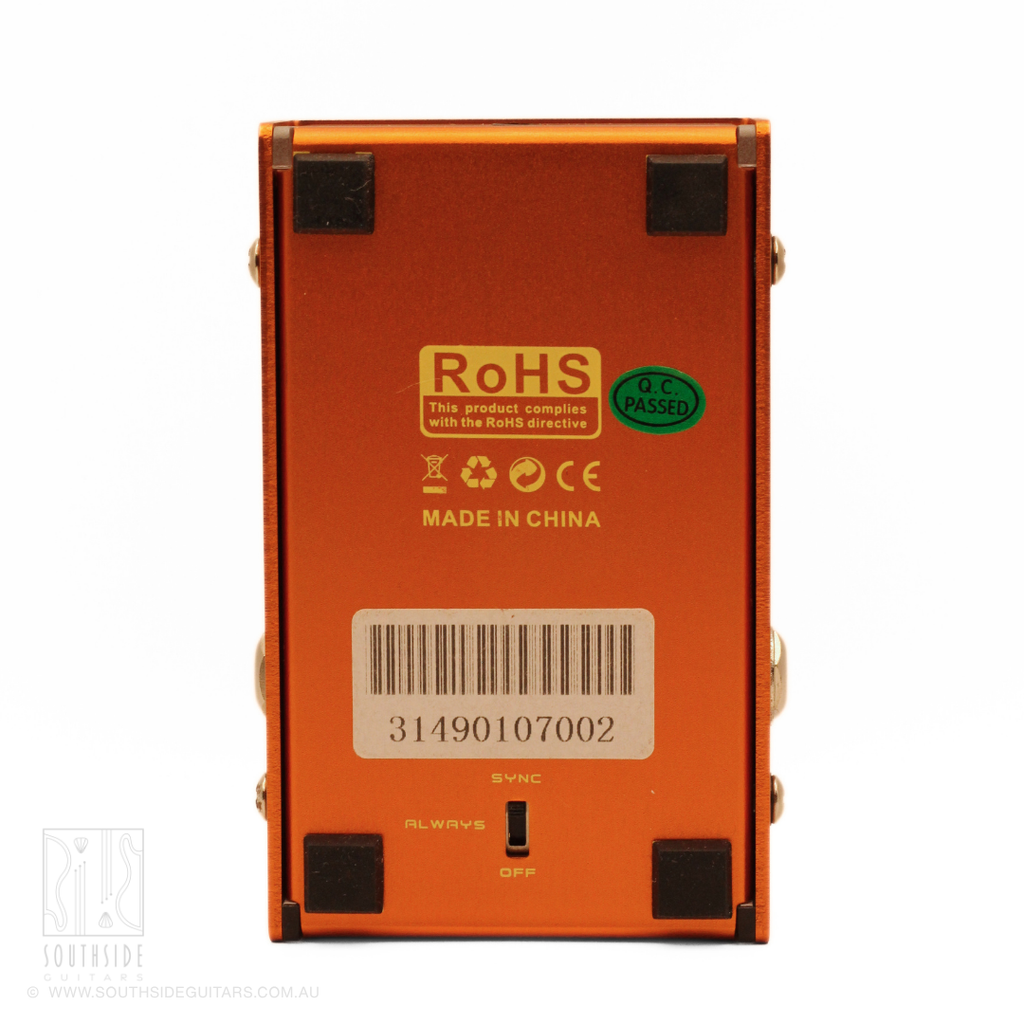

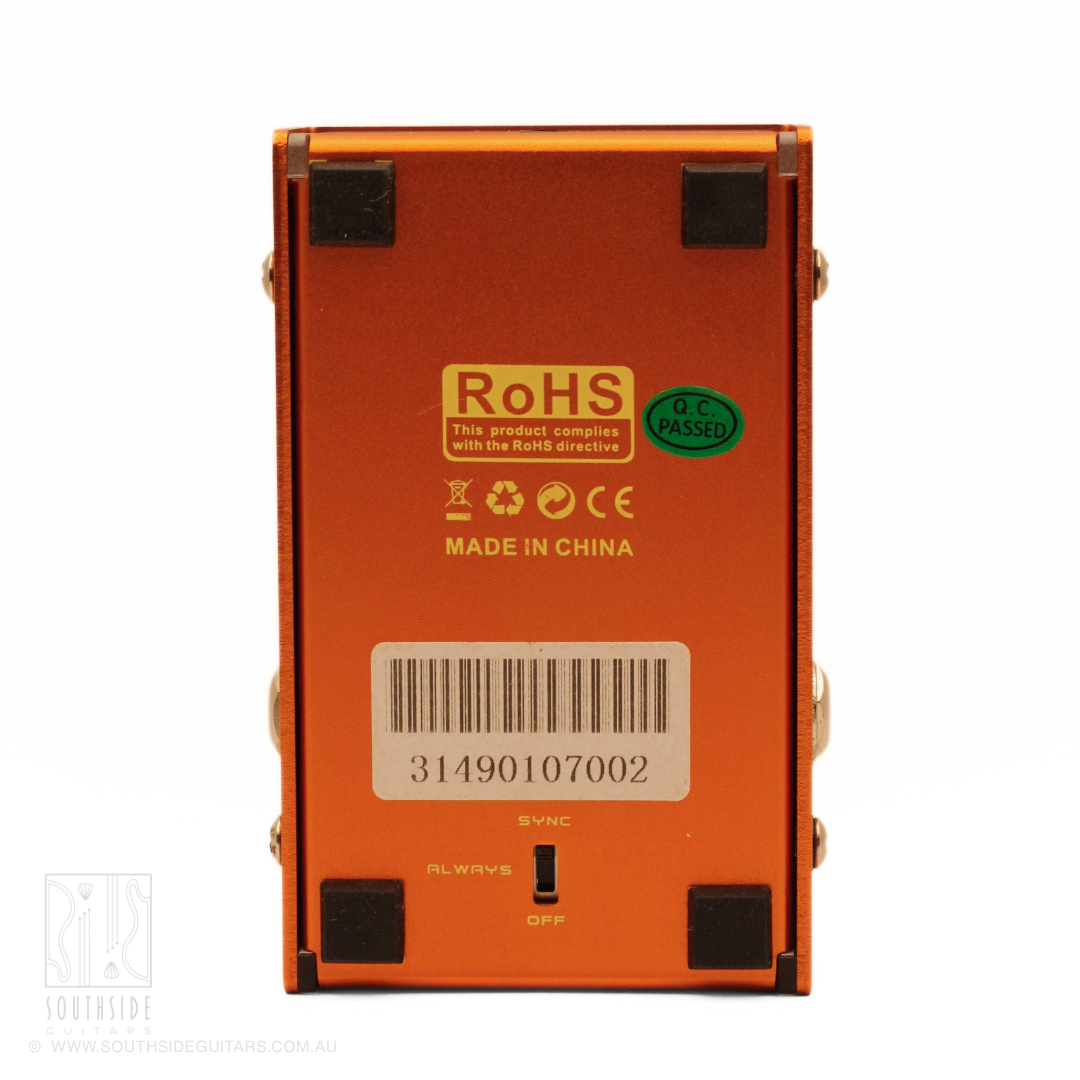

The R Series, or Revolution series from JOYO are the 4th generation of guitar effects and all feature some very cool ambient LED lighting. The lights can be toggled from a switch on the rear of the pedal..3 modes of lighting are available to adjust when they come on.
- 'Sync' to the footswitch - The LED ambient lighting on the front and rear of the pedal with shine bright when the footswitch is pressed, also illuminating the LED effect indicator on the top of the pedal.
- 'Always' - The lights are always on, but the pedal is only activated when you press the footswitch and the LED effect indicator comes on.
- 'Off' - Okay, so Tron may not be your favourite and you want to stick to something a little less futuristic. The lights are off, the LED effect indicator comes on when you stomp on it and activate the pedal.
Specs
| Effect types | Overdrive |
|---|---|
| Effect numbers | 1 |
| Controls | Vol, Drive, Low, High |
| Footswitchs | 1 |
| Input Jack | 6.35mm |

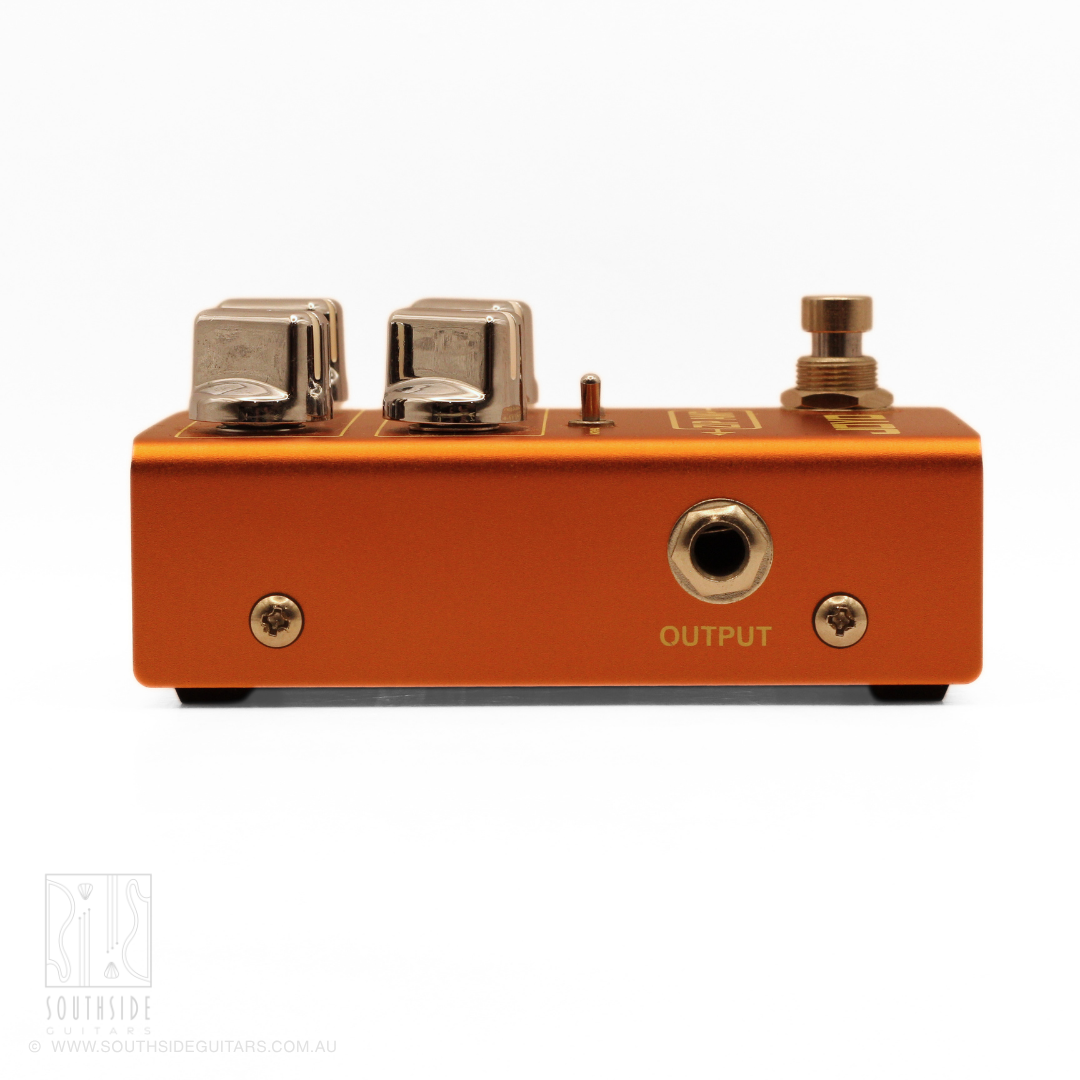

| Output Jack | 6.35mm |
| Input Impedance | 1MΩ |
| Output Impedance | 47Ω |
| Rated current consumption | 20mA |
| Working Voltage | DC 9V (center minus) |
| Signal Bypass Type | True Bypass |
| LED Mod | Sync, Always, Off |
| Battery powered | No |
| Dimensions | 109*67*48 mm |
| Weight | 248g |
| Serial number | 31490107002 |
