Gamechanger Audio Plus Pedal (Original Model)
Gamechanger Audio Plus Pedal (Original Model)
Condition: In excellent condition with minimal cosmetic wear. Includes original box and manuals
Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Key details
- Requires a 9V DC Negative Tip Power Supply.
Overview
The PLUS pedal is a new kind of audio processing engine that offers piano-style sustain/sostenuto effects for electric guitars and all other melodic instruments. For best results we ask you to place the PLUS Pedal FIRST in your signal chain. Make sure that the PLUS Pedal is connected to a suitable power supply unit that can ensure at least 200mA (9V DC Center Negative).
The PLUS Pedal does not use oscillators or filters to synthesize sounds! Instead – it produces sound using the real signal from your instrument. When the PLUS is on – it constantly records all audio signal coming from your instrument, andtherefore – as soon as you press the foot-pedal it is able to immediately spring into action and start analyzing the most recent audio event – such as a strummed chord, or a separate note on a wind instrument.

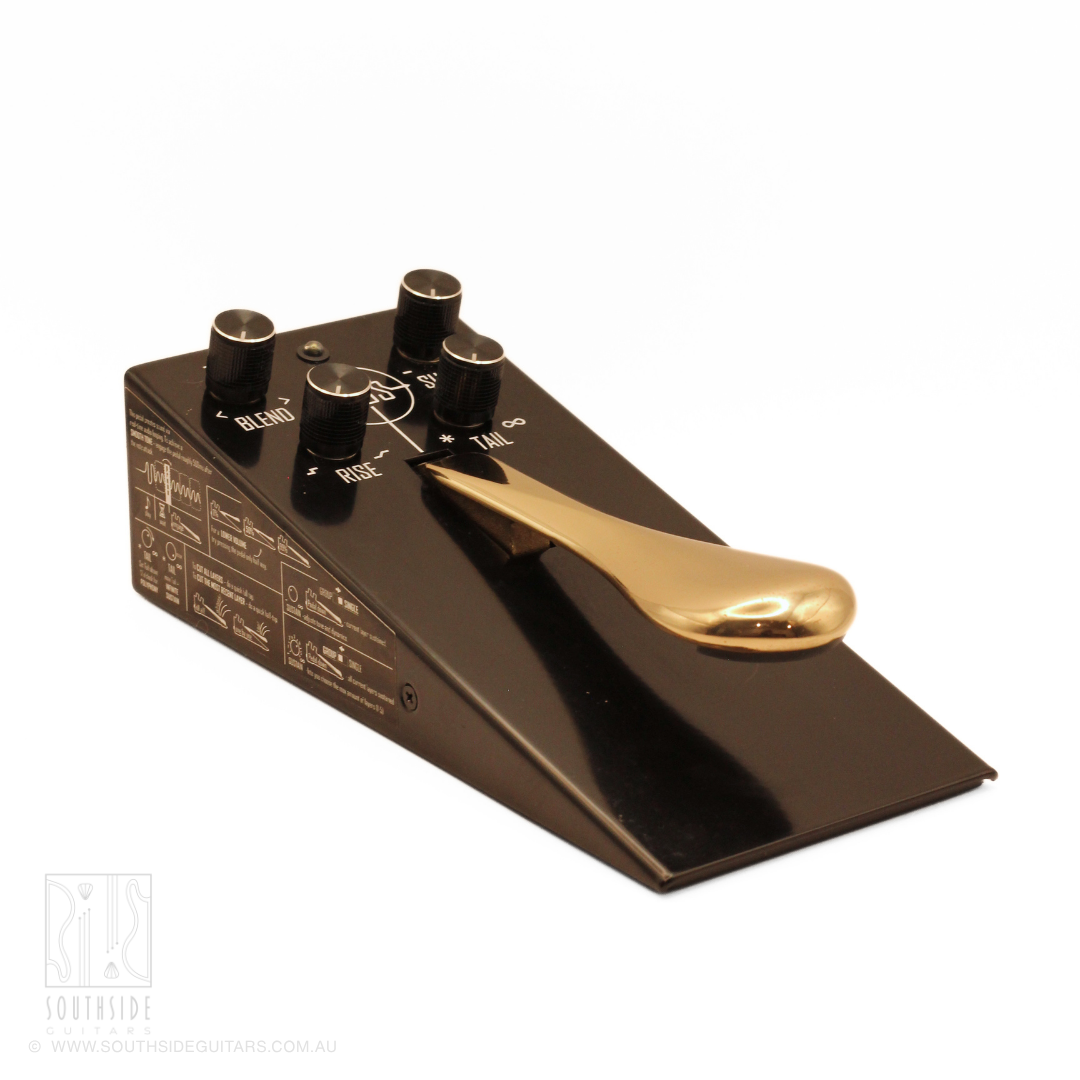

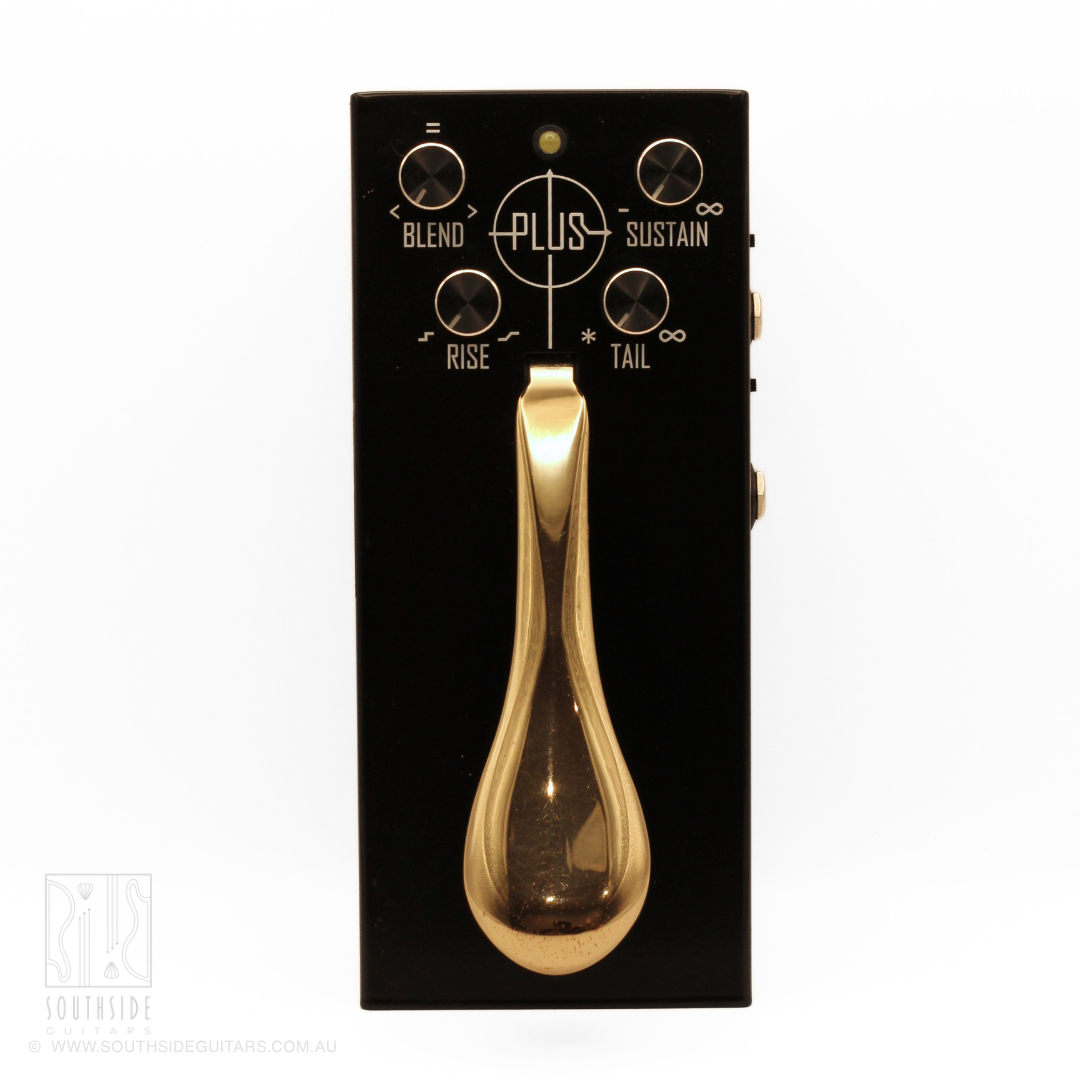

KNOBS & CONTROLS
BLEND: Controls the volume of the WET Signal produced by the PLUS Pedal. The medium “12 o’clock” position (indicated by a special indent in the potentiometer’spath) represents an even volume between the input signal and the WET signal, but, this can vary with different instruments, or playing styles.
RISE: Sets the fade-in speed of all new sustain layers, generated by the PLUS Pedal. A minimum setting will let you bring in new tones instantly, whereas the maximum setting will result in extended gradual swells. In our experience – the sweet-spot for a smooth transition between your instrument and the generated tone is somewhere between 9 and 12 o’clock, whereas longer settings are excellent for creating soundscapes and cinematic ambiance.
TAIL: Lets you adjust the amountof spillover signal after you release your foot from the pedal. When the TAIL knob is set to zero there will be no spillover signal – the sustained tone will cut out instantly as you release your foot from the pedal. A 9 o’clock setting will produce just enough spillover signal to create smooth transitions between different chords. This is useful when you are stepping outside of diatonic harmonies. Setting the TAIL knob above 12 o’clock will result in long, gradual fade-outs, thus giving you enough time to start building multiple layers of chords – sampling a new chord while the previous one is still ringing. When TAIL is set to Maximum (infinity sign) – Eachlayerof sustain will keep ringing infinitely even after the pedal has been released. As before, you can add up to 5 new layers on top of each other to create very rich polyphony. When all 5 slots are filled up, each new slot will be blended in on a rotational basis – slot number 6 will replace the 1st slot; slot 7 replaces the 2nd slot, and so on. (NOTE) The maximum number of slots slots can be adjusted in “GROUP mode” - let’s take a little detour:
Specs
- 4 external rotary control knobs - adjust the dynamic properties of
- the WET signal generated by PLUS Pedal.
- 1 two-position slide switch, labeled “SINGLE and GROUP”: Lets you go
- between two distinct modes of playing (see Section “Single mode and Group mode”)
- 1 two-position slide switch labeled “SPLIT and MIX”: Lets you isolate the WET
- only signal in the PLUS Pedal’s main output.

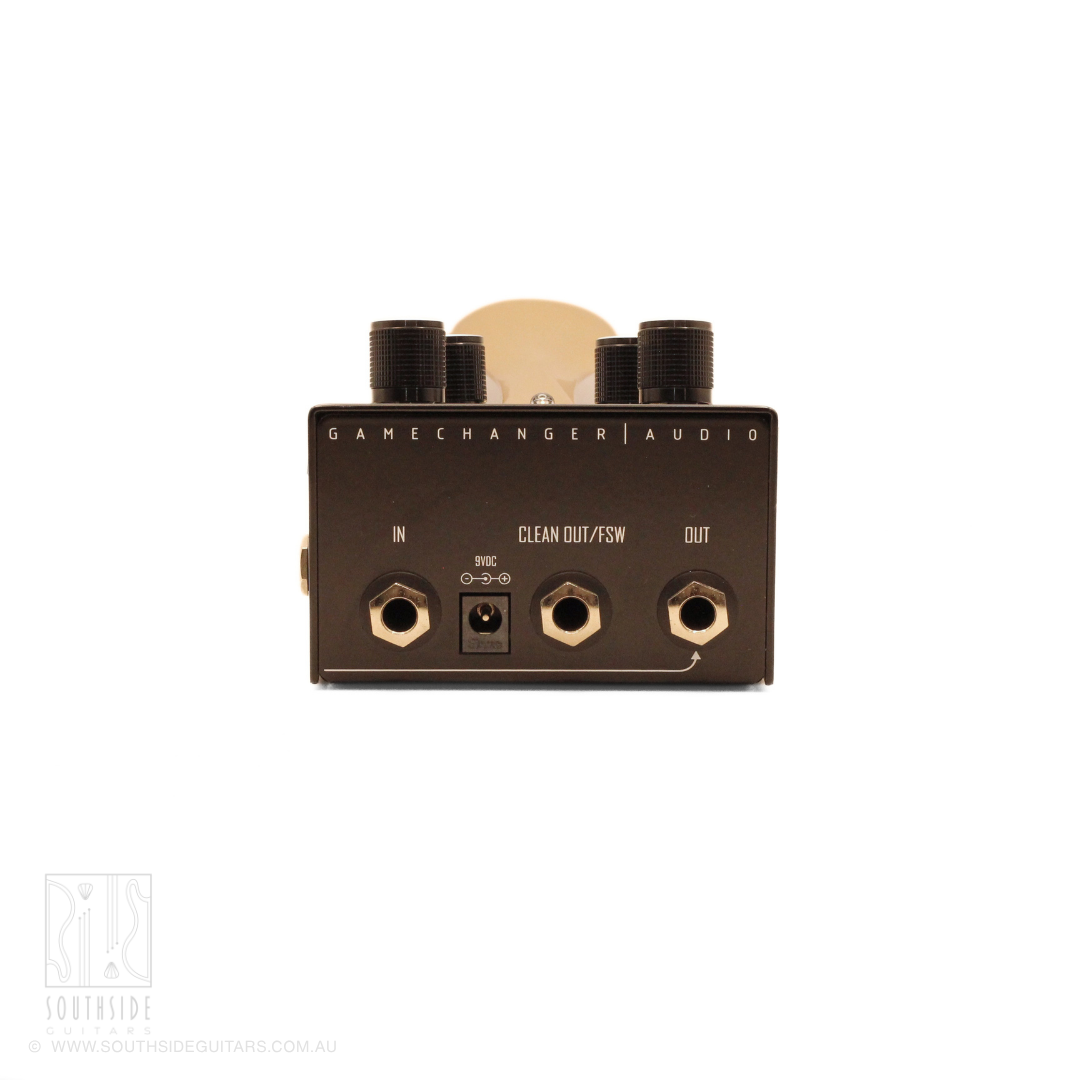

- One ¼ inch Main Input
- One ¼ inch Main Output
- One ¼ inch Dry Only Output/Footswitch input.
- One 9V DC (center negative) power supply input (5.5 x 2.1 mm)
- Indication LED (two brightness stages)

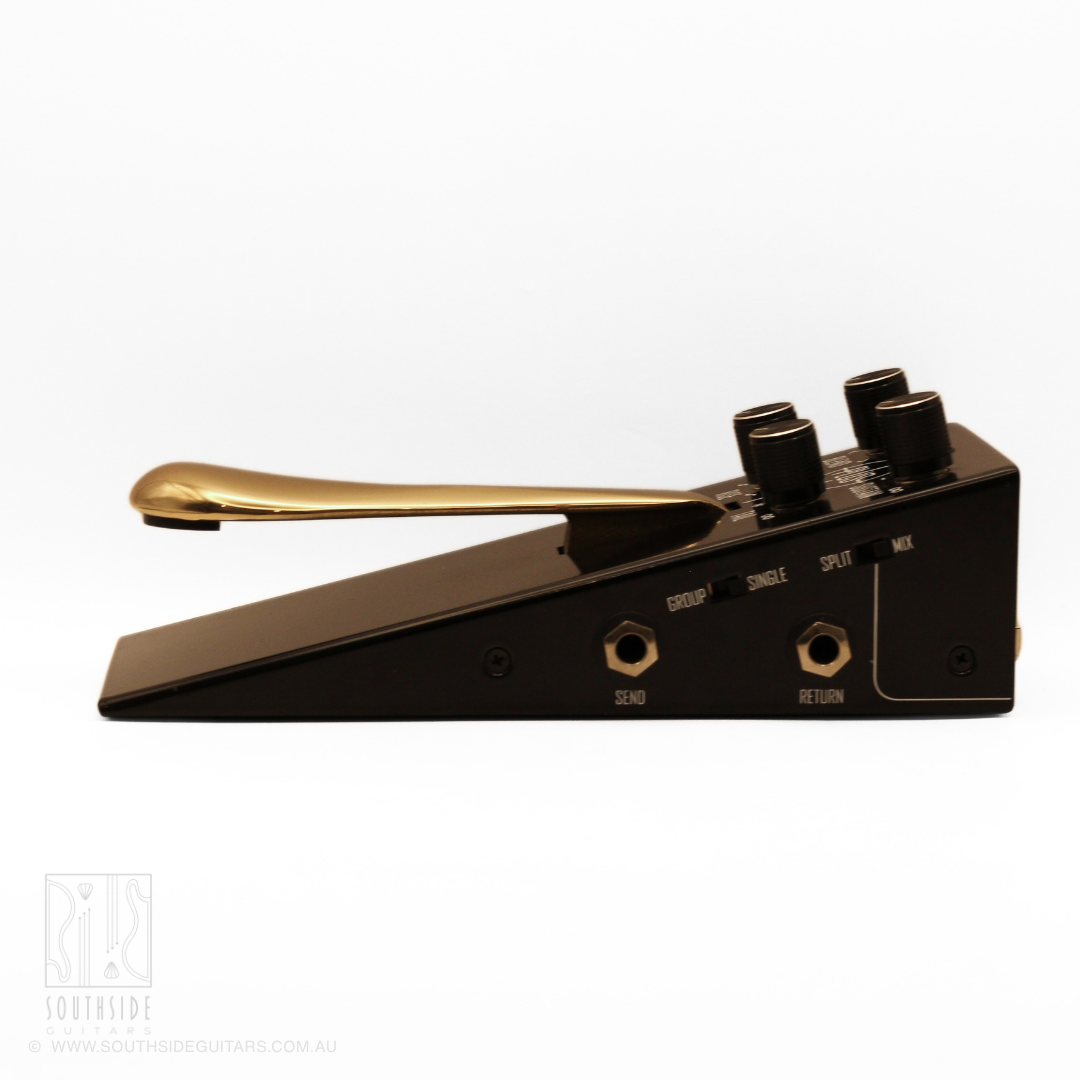

- Two ¼ inch jack inputs for Effects Loop (labeled Send an Return)
- Serial number: 35727069
