Gamechanger Audio Plasma Pedal High Voltage Distortion Unit
Gamechanger Audio Plasma Pedal High Voltage Distortion Unit
Condition: In excellent condition with minimal cosmetic wear. Includes original box and manuals
Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Key details
- Requires a 9V DC Negative Tip Power Supply.
Overview
The PLASMA Pedal creates heavy distortion by amplifying an audio signal up to 3500 Volts and transforming it into electrical discharges. You are literally playing a bolt of electricity.
HOW IT WORKS
Rather than relying on traditional LED, transistor or vacuum-tube circuits to produce overdrive, the PLASMA Pedal fundamentally redefines the way that signal clipping can be achieved.
Inspired by Nikola Tesla's electrical resonant transformer circuit design (the Tesla Coil), it is the first effects unit to introduce a new method for signal clipping by converting the input signal into pure electrical discharges.
CREATE A BOLT OF LIGHTNING

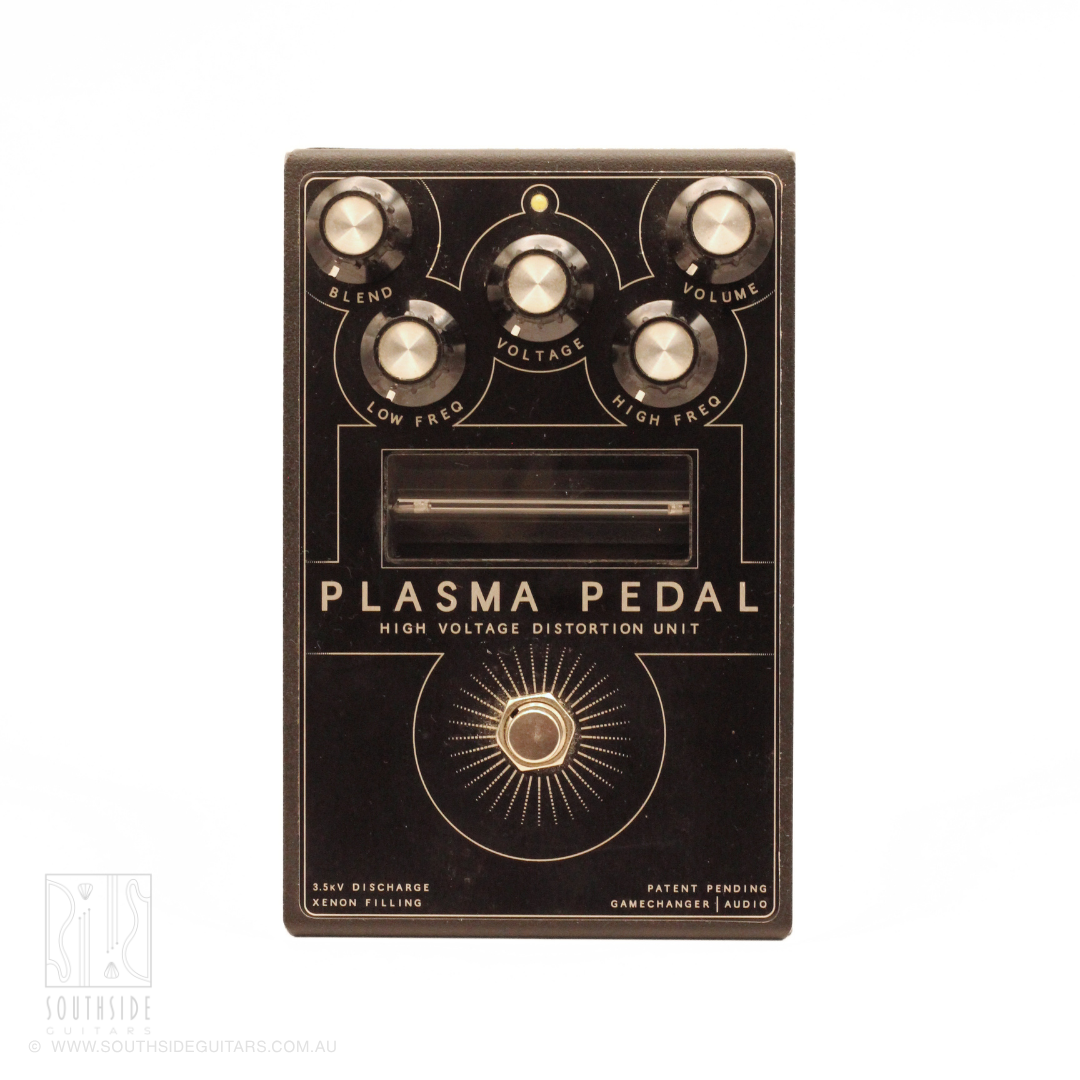

The blue light visible on the pedal's front panel is the actual electrical arc created by the audio input as it travels between two electrodes on either end of a specially designed xenon-filled gas discharge tube.
These continuous bursts of electricity are then instantly converted back to the analog audio level using a specialized analog rectifier circuit.
The result is a rich and saturated distortion texture, with screeching sharp overtones, harmonics and sputtery bursts.
Specs
| Pedal Type | Fuzz/Distortion |
|---|---|
| Analog/Digital | Analog with Xenon Tube |
| Controls | Knobs: Blend, Low, Voltage, High, Volume |
| Number of Footswitch Buttons | 1 |
| EQ | Low Freq, High Frew, Clean EQ switch |

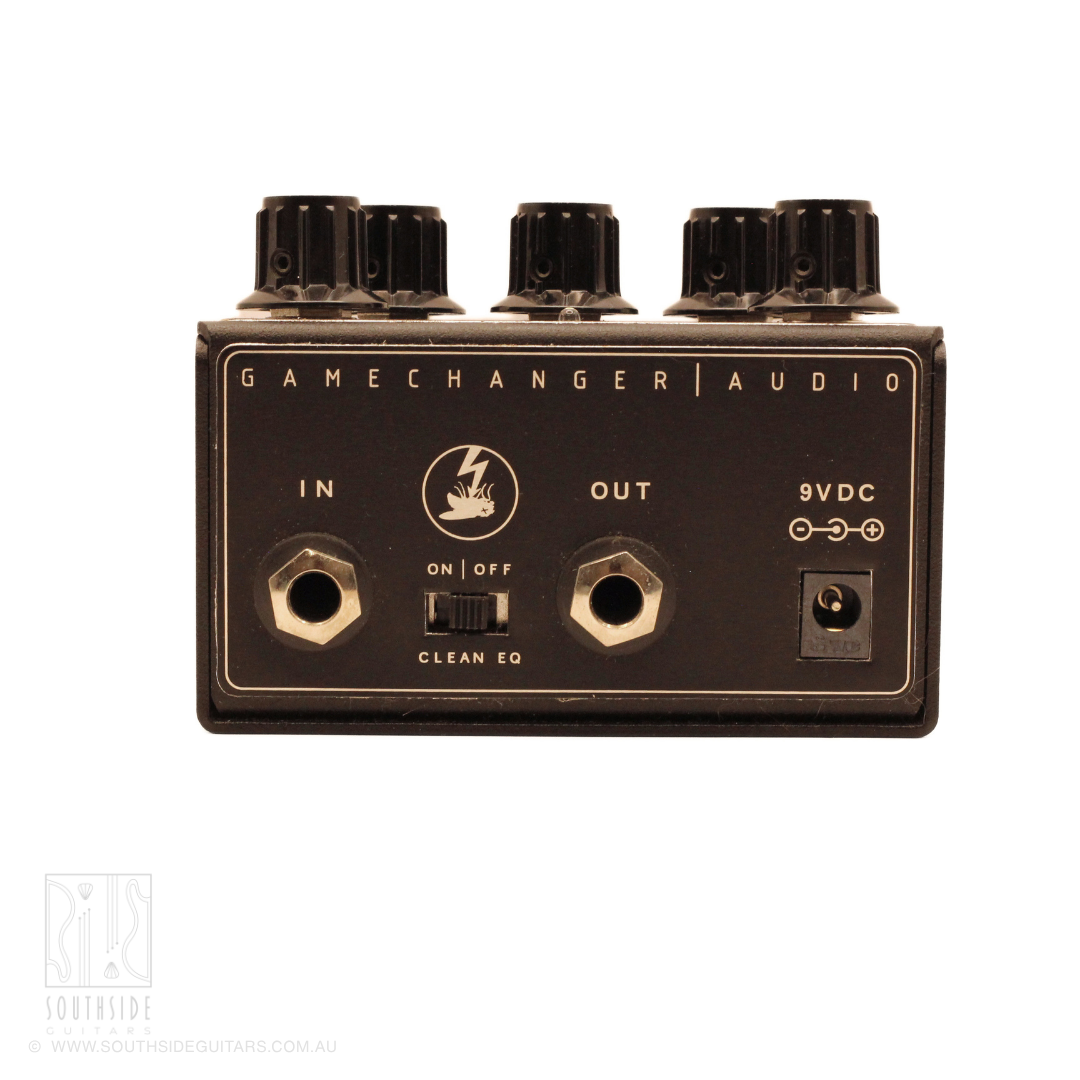

| Inputs | 1 x 1/4" (instrument) |
| Outputs | 1 x 1/4" |
| True Bypass | Yes |
| Power Source | 9V DC 300mA power supply (sold separately) |
| Height | 2.75" |
| Width | 3.77" |
| Depth | 5.82" |
| Weight | 1.8 lbs. |
| Manufacturer Part Number | GCAPA |
| Serial number | 33457510 |
