Important Information

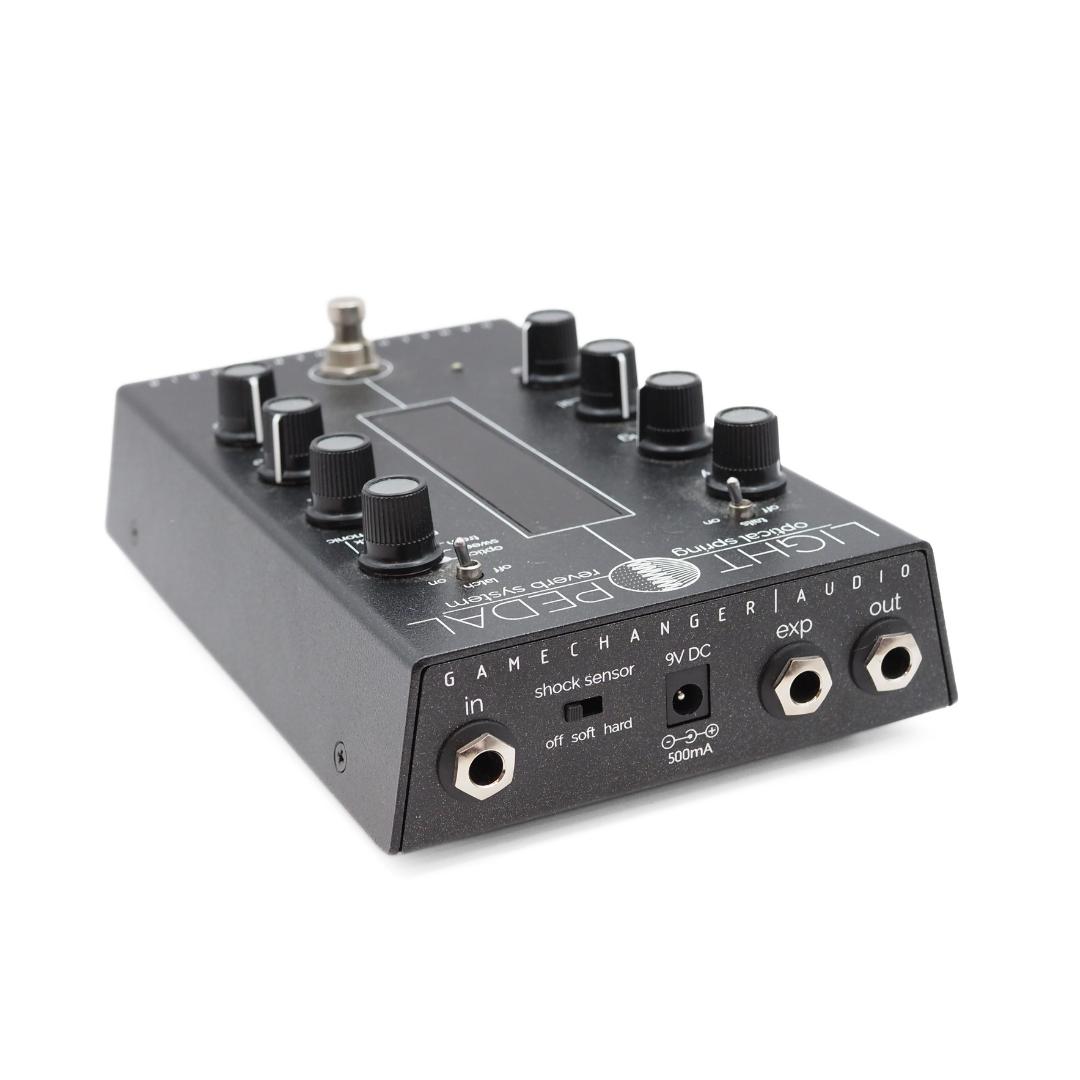

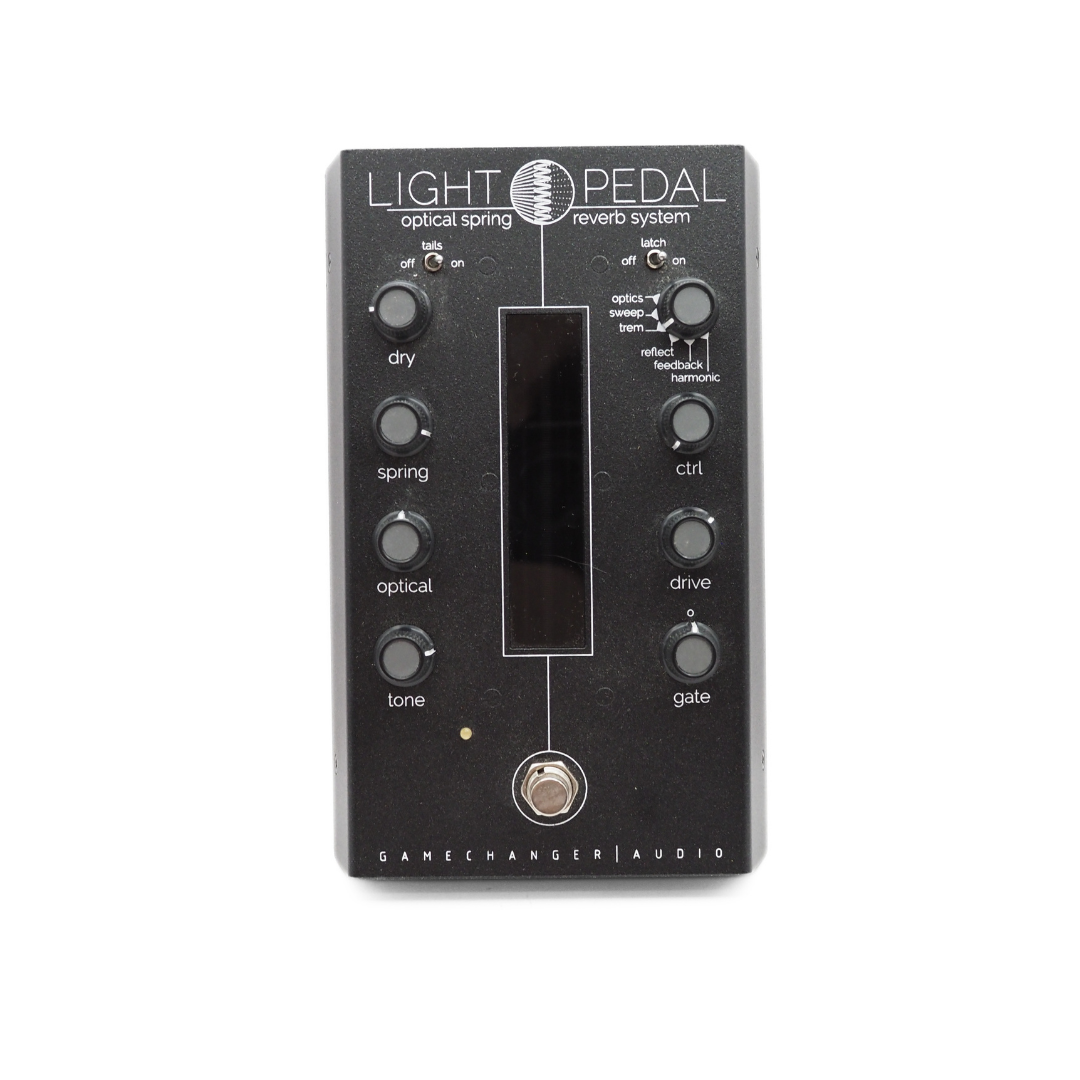

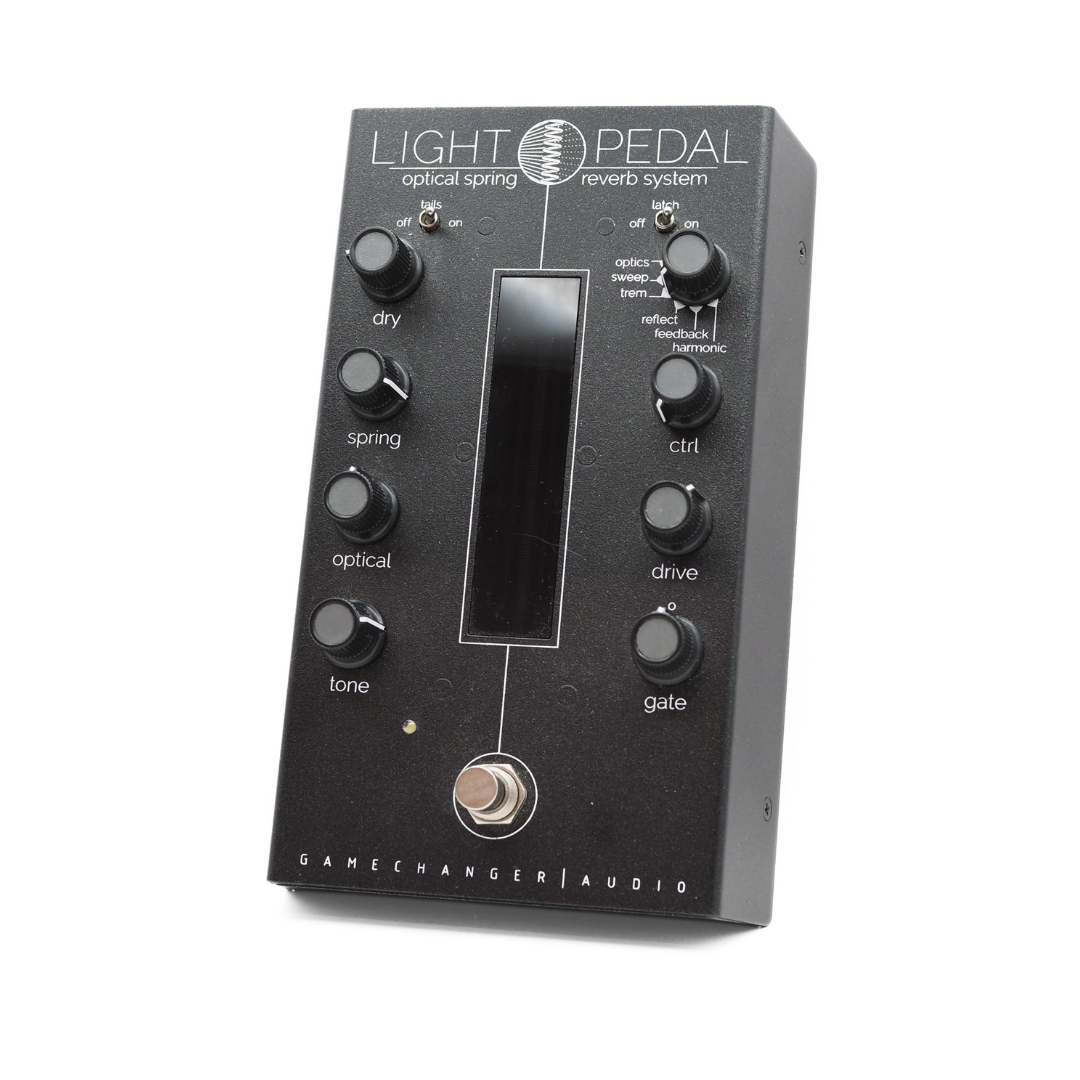

The LIGHT Pedal combines all the best features of a classic spring reverb with an innovative infrared optical sensor system and a unique effects section. Create countless new types of reverb textures that have never been possible before.
Incoming audio signal is converted into mechanical vibrations by an input transducer (a spring exciter). A similar transducer is used at the output stage to convert the spring's vibrations back into audio signal. Even a short impulse can cause extended vibrations – this is how the traditional reverb effect is achieved. Plate reverbs use the same principle to excite large, resonant sheets of metal.
However, due to energy dissipation, by the time vibrations travel along the length of the springs and reach the output transducer, most of the harmonic content of the input signal is lost, and the output is mostly composed of the spring’s own resonant frequencies. This is why all spring reverbs have a particular sound.
The LIGHT Pedal explores a new way of picking up the spring's vibrations - using multiple sets of infrared optical sensors (acting as photoelectric pickups) placed carefully at different positions along the length of the springs.
This method allows to capture the spring tank's full range of movement and pick up a much wider range of frequencies, harmonics, overtones and textures that are otherwise lost in the mechanical reverberation process.
BRAND: Gamechanger Audio
BARCODE/UPC: 750258555226
Serial Number: 816
- Input Type: Tip-sleeve 1/4” jack
- Input impedance: 1MΩ
- Maximum input level: + 6.8 dBu
- Output type: Tip-sleeve 1/4” jack
- Output impedance: 100 Ω
- Maximum output level: +6.8 dBu
- Peak Power Consumption: 4 W
- Mean Power Consumption: 0.9 W
- Power Requirements: 500 mA min 9V DC center negative 2.1 x 5.5 mm plug
- Spring Tank: 3 springs type, 100 mm
- Product Dimensions: WLH 105 x 190 x 40 mm )4.1 x 7.5 x 1.6 in)
- Product Weight: 1060 g (2.3 lbs)
