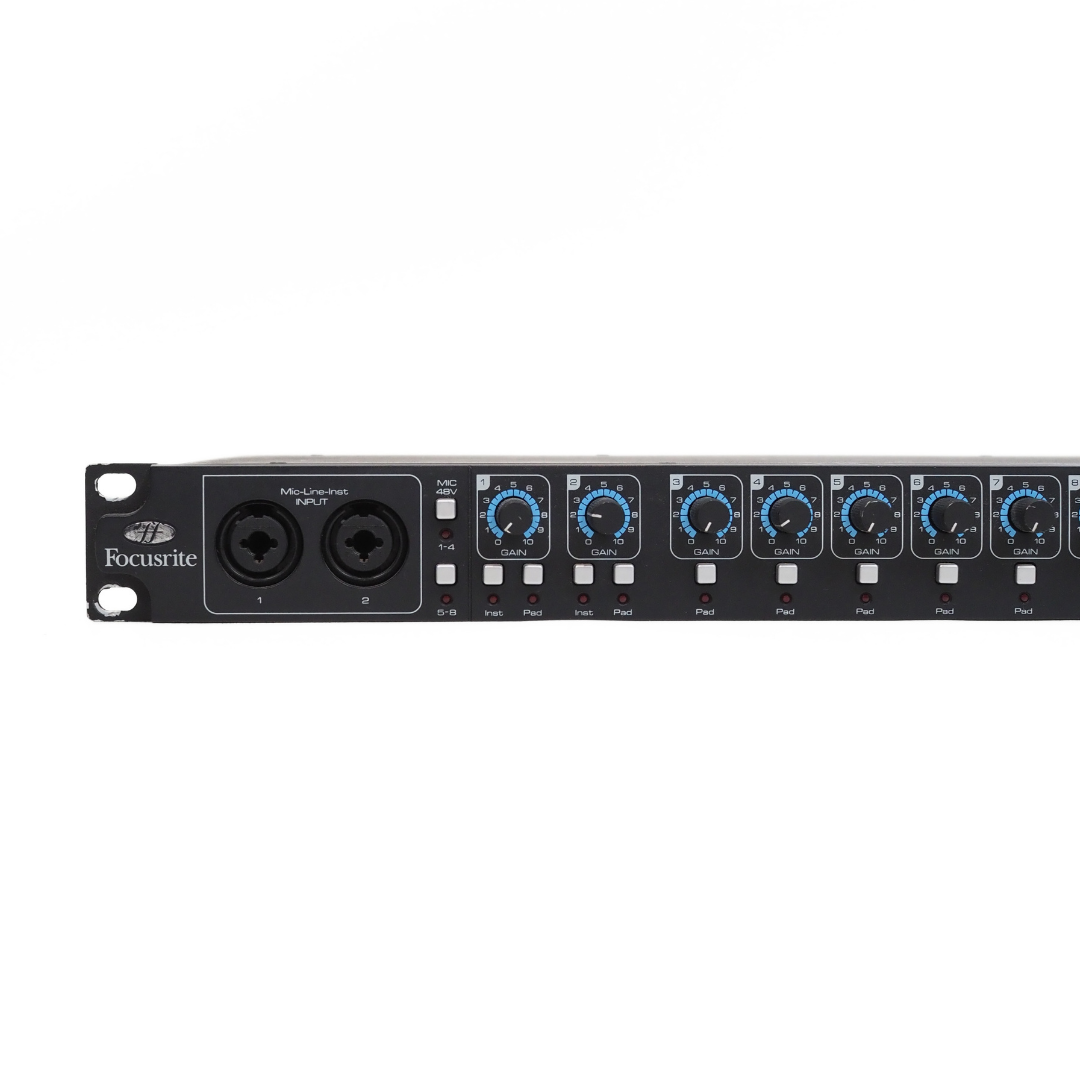

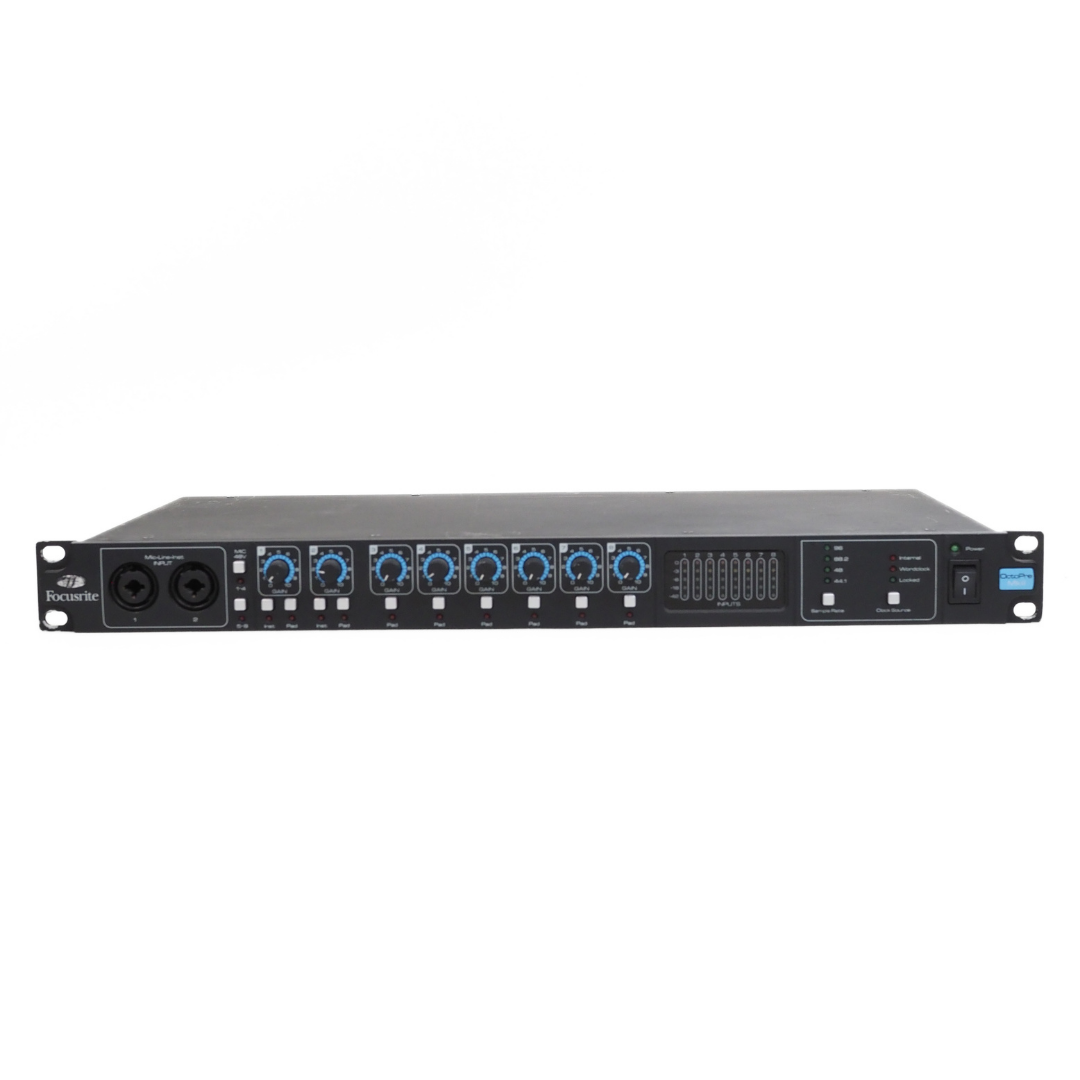

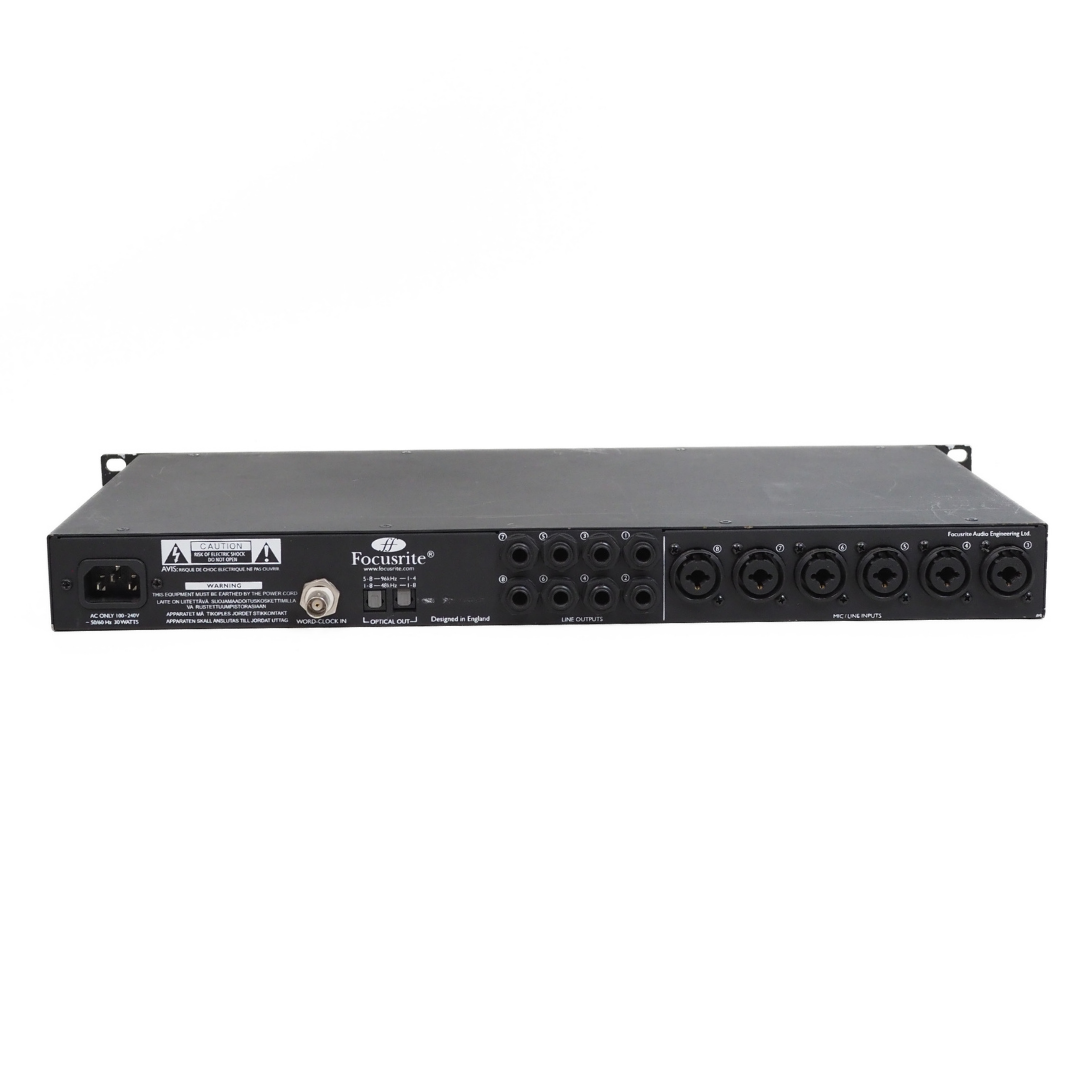

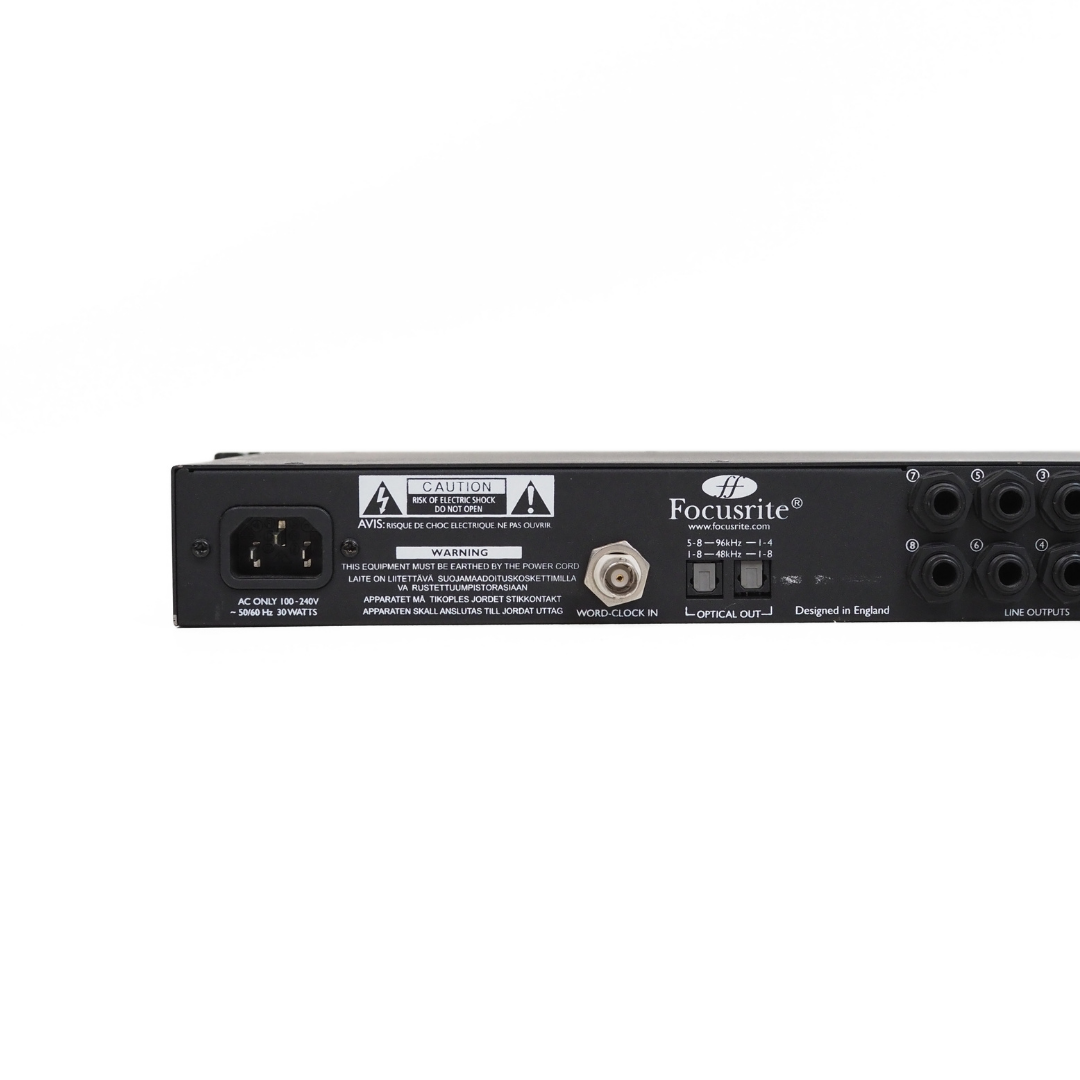

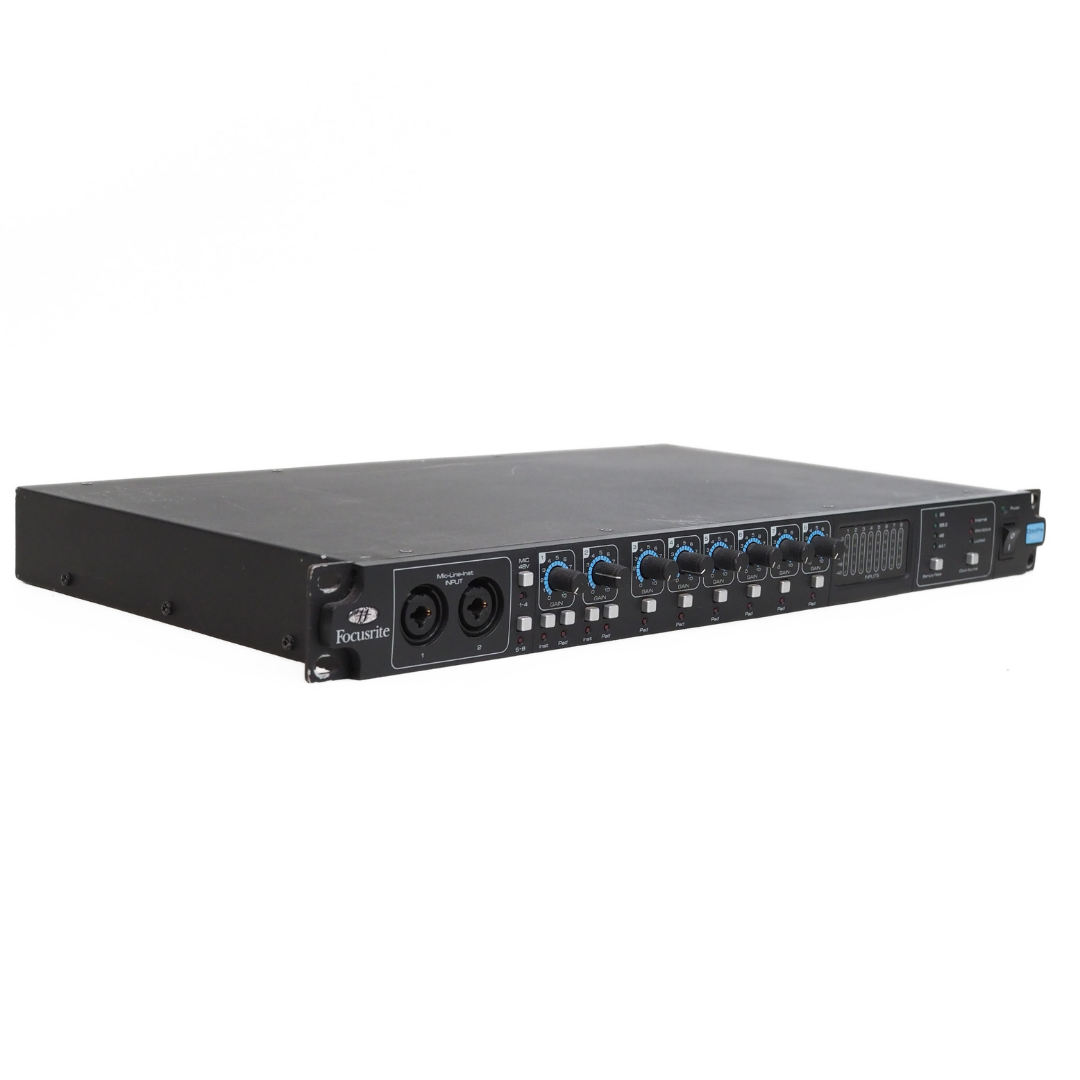

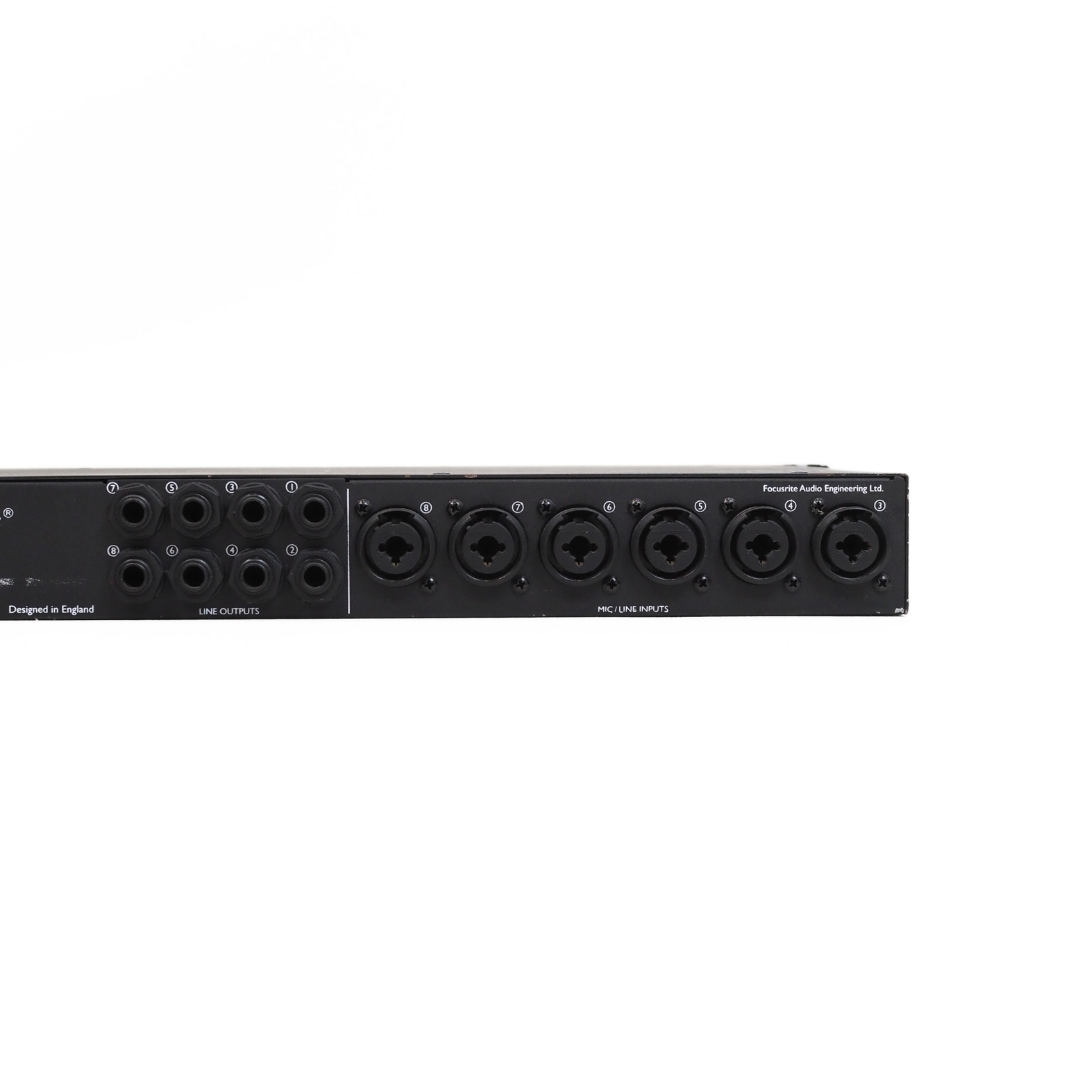

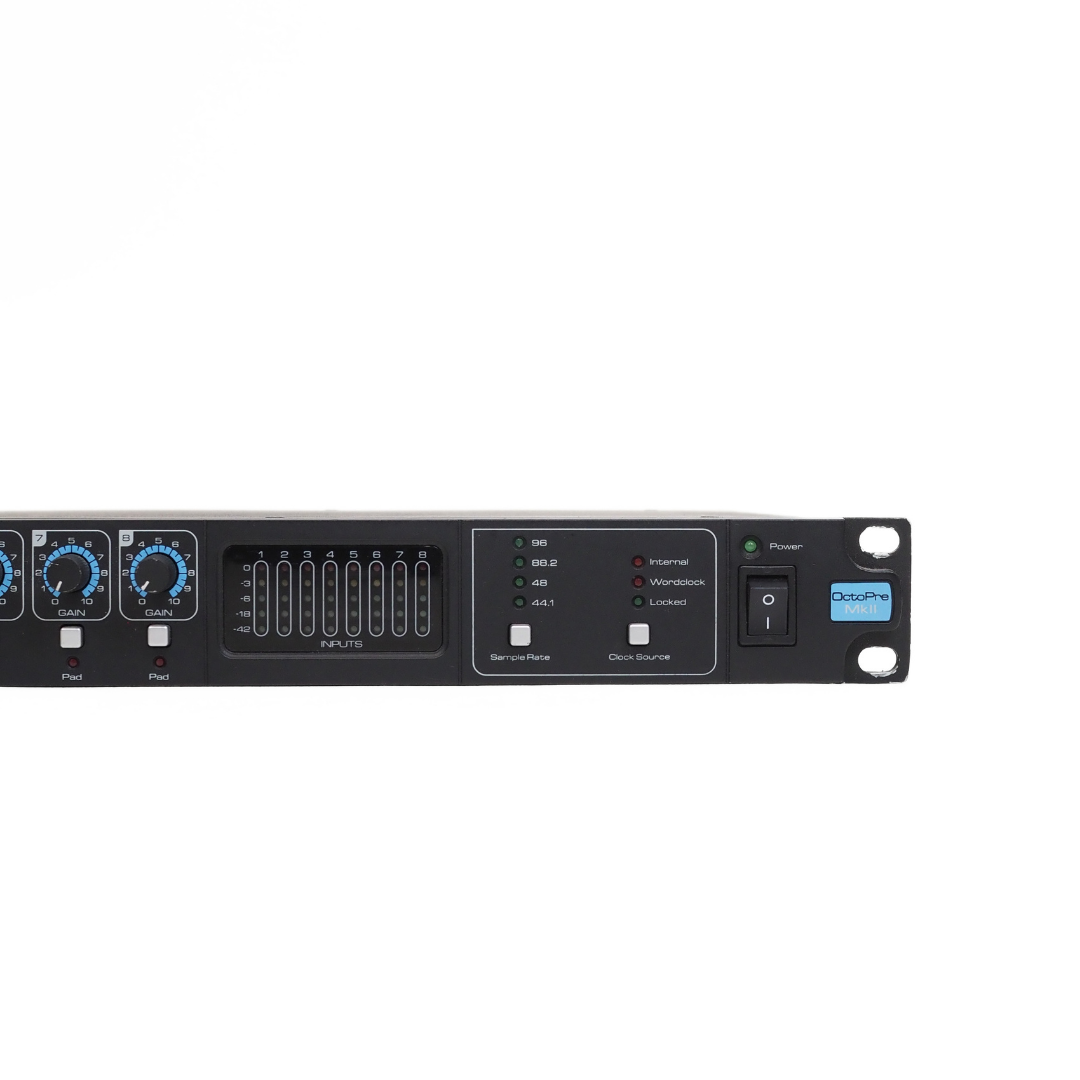

Focusrite OctoPre Mk II 8-Mic Input Rack Mounted Preamp
Focusrite OctoPre Mk II 8-Mic Input Rack Mounted Preamp
Condition: Second-hand, in excellent condition with minimal cosmetic wear. No accessories included (case, power supply etc).
Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Key details
- Requires a standard modular AC IEC power cable
Overview
With eight channels of Focusrite pre-amplification and a built-in 24 bit / 96 kHz ADAT output, OctoPre MkII is Focusrite’s powerful input upgrade for your Pro Tools system, or any digital audio workstation. It’s also a great expansion for any analogue or digital console, or hard disk recorder.
The digital output allows users to make the most of often-neglected ADAT inputs; ideal for expanding the number of mic-pre inputs on your interface. Connect OctoPre MkII to your audio interface’s ADAT input to create a high quality, multi-channel recording solution, ideal for tracking drums, as well guitars, keyboards, vocals and more.
Features:
-
Eight High Quality Award-winning Focusrite Pre-amps
The best sounding multi-channel mic-pre in its class. -
Built-in eight channel 24 bit / 96 kHz digital output
Make the most of your interface’s ADAT input. OctoPre connects via its built-in lightpipe output, with a ‘real world’ dynamic range performance of 110dB. -
Mic-pres optimised for tracking drums
OctoPre MkII is designed not to clip, with pre-amps optimised to handle extreme levels from sound sources like kick drum and snare. -
Two quality Hi-Z instrument inputs
OctoPre MkII’s first two channels feature DI’s, ready for you to plug in your Guitars and Bass, instantly accessible on the front fascia. -
5 LED input metering on every channel
OctoPre MkII’s fast-acting 5-LED input meters provide clear reference of input levels, helping you to avoid analogue or digital clipping. -
-10dB Pads on every channel
OctoPre MkII is drum-ready, with 10dB pads to stop hot signals from overdriving the microphone pre-amp. -
Direct outputs on every channel
For routing and flexibility, especially in the live environment. Each mic-pre can be routed to the mixer’s analogue channels, with two mirrored ADAT outputs (44.1) left free to send to digital recorders. -
48V Phantom power available on every channel
Switched in two groups (1-4 and 5-8) every channel is capable of supplying phantom power, for use with most condenser microphones. -
State-of-the-art Clocking Solutions
OctoPre MkII's internal clock delivers a jitter performance of < 10 PPM. For external clocks, a BNC connector is provided and industry-standard JetPLL™ jitter elimination technology is employed.
Specs
| Released in | 2009 |
|---|---|
| Made in | China |
| Channels | 8 microphone/line preamps |
| Inputs | 2 × XLR/TRS combo mic/line/instrument inputs (front panel), 6 × XLR mic/line inputs (rear panel), 1 × BNC Word Clock input |
| Outputs | 8 × balanced ¼-inch TRS direct outputs, 2 × ADAT Lightpipe outputs, 1 × BNC Word Clock output |
| Preamp type | Focusrite Class-A microphone preamplifiers |
| A/D conversion | 24-bit |
| Sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| A/D dynamic range | 110 dB (A-weighted) |
| Clock jitter | < 250 ps |
| Clock accuracy | ±20 ppm |
| Frequency response (inputs) | 20 Hz–20 kHz, ±0.1 dB |
| Frequency response (outputs) | 20 Hz–20 kHz, ±0.2 dB |
| THD+N | < 0.001% |
| Microphone gain range | +10 dB to +55 dB |
| Line gain range | –10 dB to +36 dB |
| Instrument gain range | +10 dB to +55 dB |
| Maximum mic/instrument input level | +16 dBu |
| Maximum line input level | +26 dBu |
| Nominal output level @ 0 dBFS | +16 dBu balanced |
| Phantom power | +48 V, switchable in groups of four channels |
| Pad | –10 dB on each channel |
| Input metering | 5-segment LED meter per channel |
| Clocking | Internal or external Word Clock |
| Jitter reduction | JetPLL™ technology |
| Input channels | 8 |
| Output channels | 8 analog direct outputs + ADAT digital output |
