Important Information
The BBE 822A is an intelligent audio processor designed to solve a series of complex problems as described in the previous section. It is, however, very simple to set up and operate and once installed will function flawlessly without further attention.
It is a dual channel, rack-mountable device for use in +4dBu balanced line level applications, such as those found in recording studios, large concert systems and industrial audio applications. The BBE 822A takes up one EIA standard rack space of 19 inches width and 1.75 inches height (1U). There are two completely separate channels to allow for either full stereo program or two independent mono channels, such as separate processing for a snare drum tape track in channel A and a synthesized bass track in channel В.

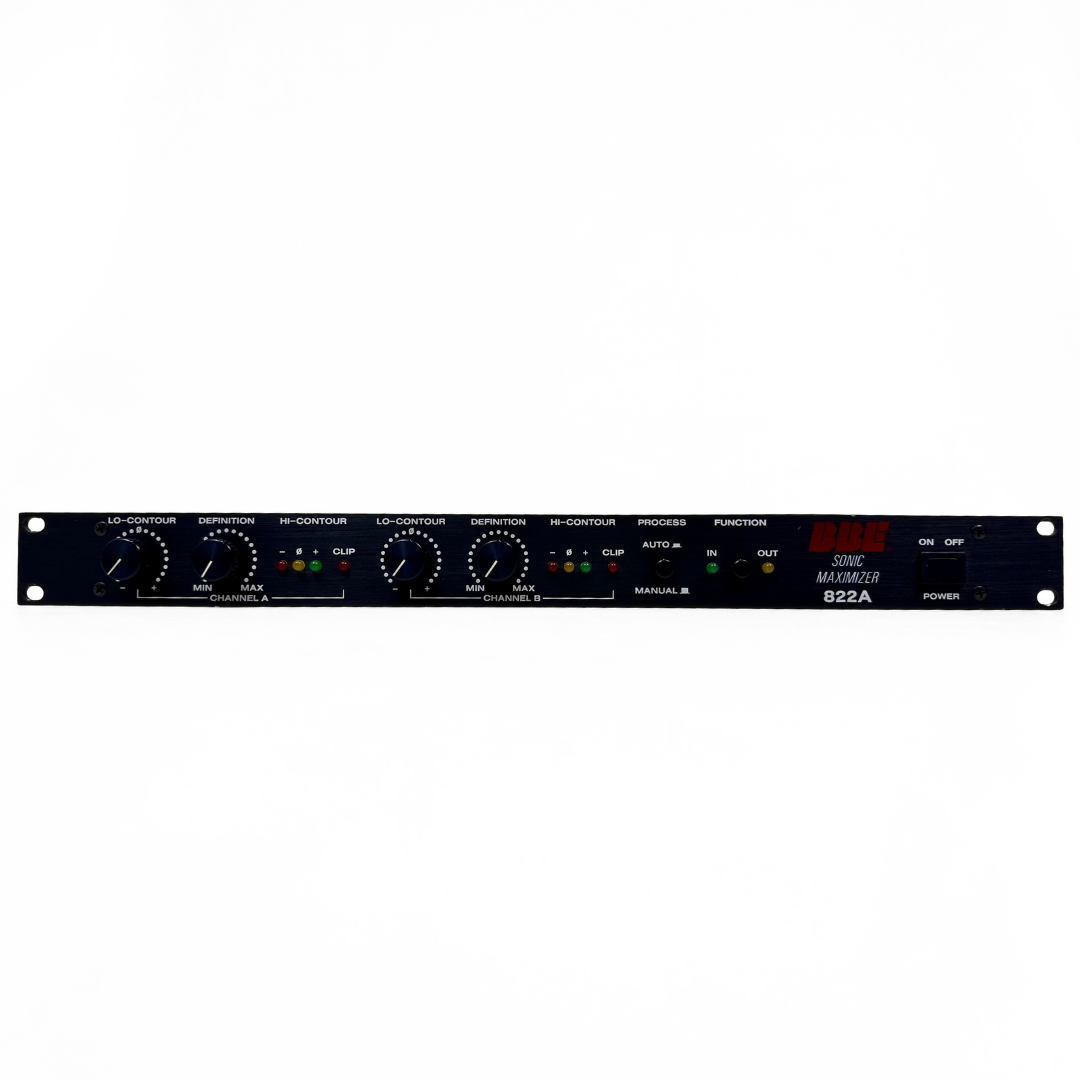

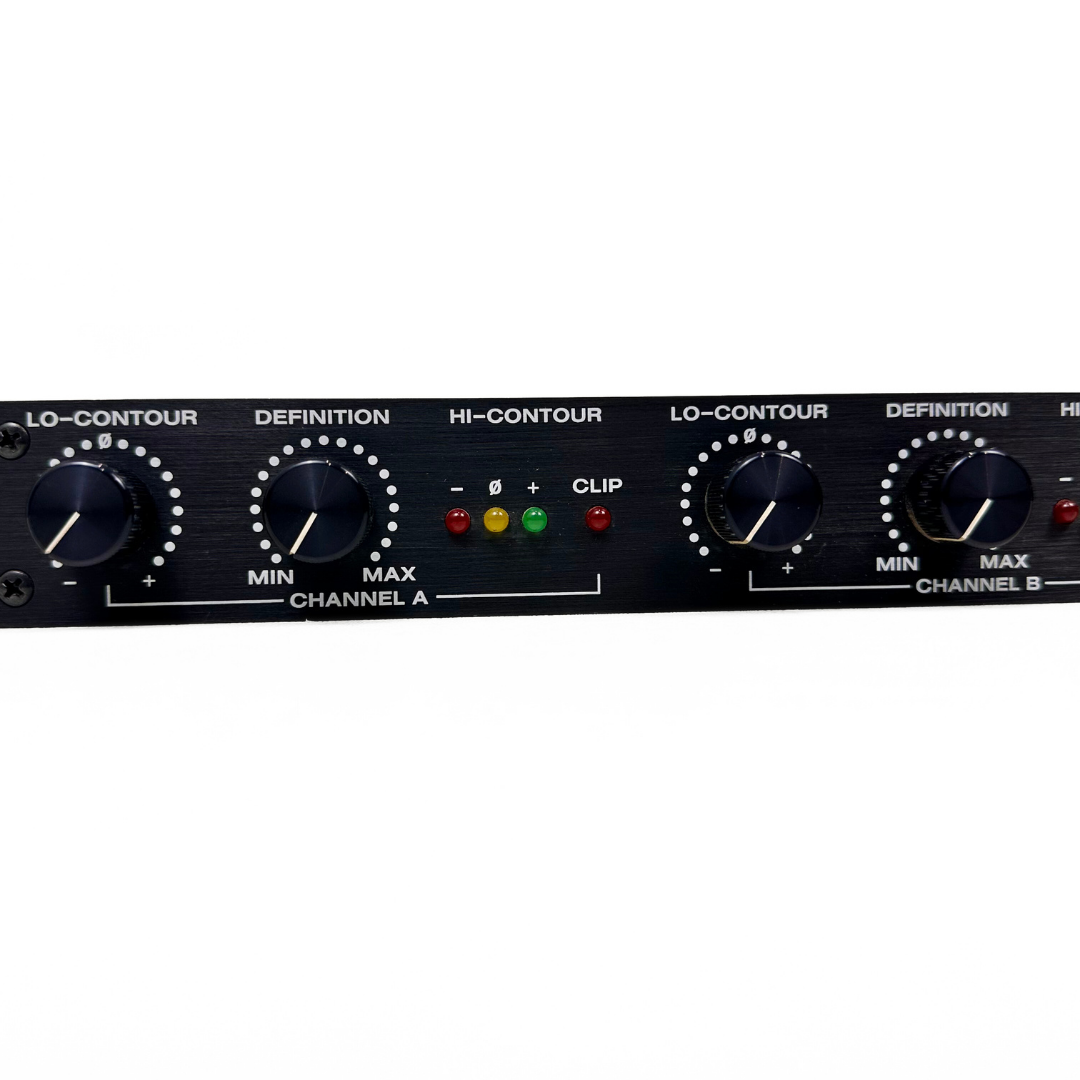

BBE applies different phase correction algorithms to three separate frequency bands. A variable front panel control for each channel allows the user to adjust the amount of process desired.
BRAND: BBE Music
BARCODE/UPC:
Serial Number: E11548
- Bypass frequency response: DC to 20kHz
- Process mode frequency response: Program controlled
- Noise in process mode: -85dBu below 0dBu output level
- Total harmonic distortion in process mode: Less than 0.1% @ 1kHz @ +4dBu
- Input impedance: 10k Ohms (balanced or unbalanced)
- Nominal input range: -10dBu to +8dBu
- Maximum input level: -23dBu (input clip point)
- Minimum load impedance for full output: 600 Ohms (balanced or unbalanced)
- Nominal output level: -10dBu to +8dBu
- Maximum output level: +23dBu into 600 Ohm Load (clip point)
- Output impedance: 600 Ohms (balance or unbalanced)

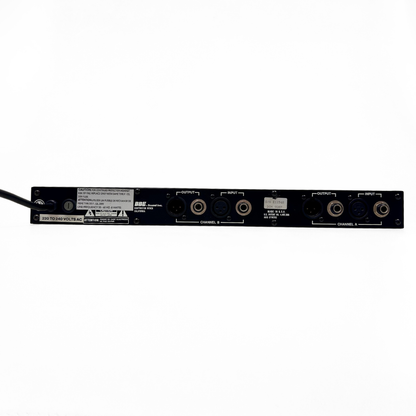

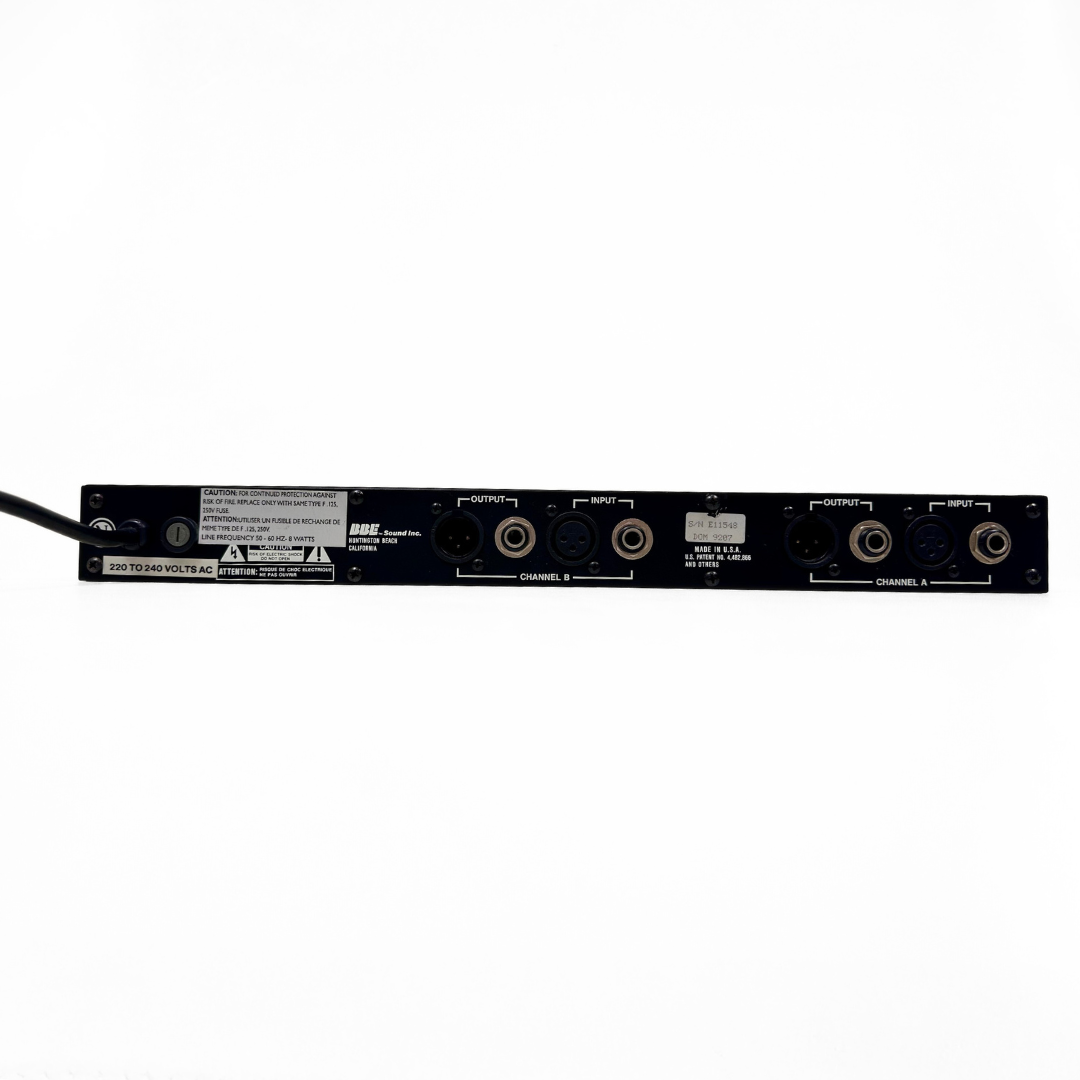

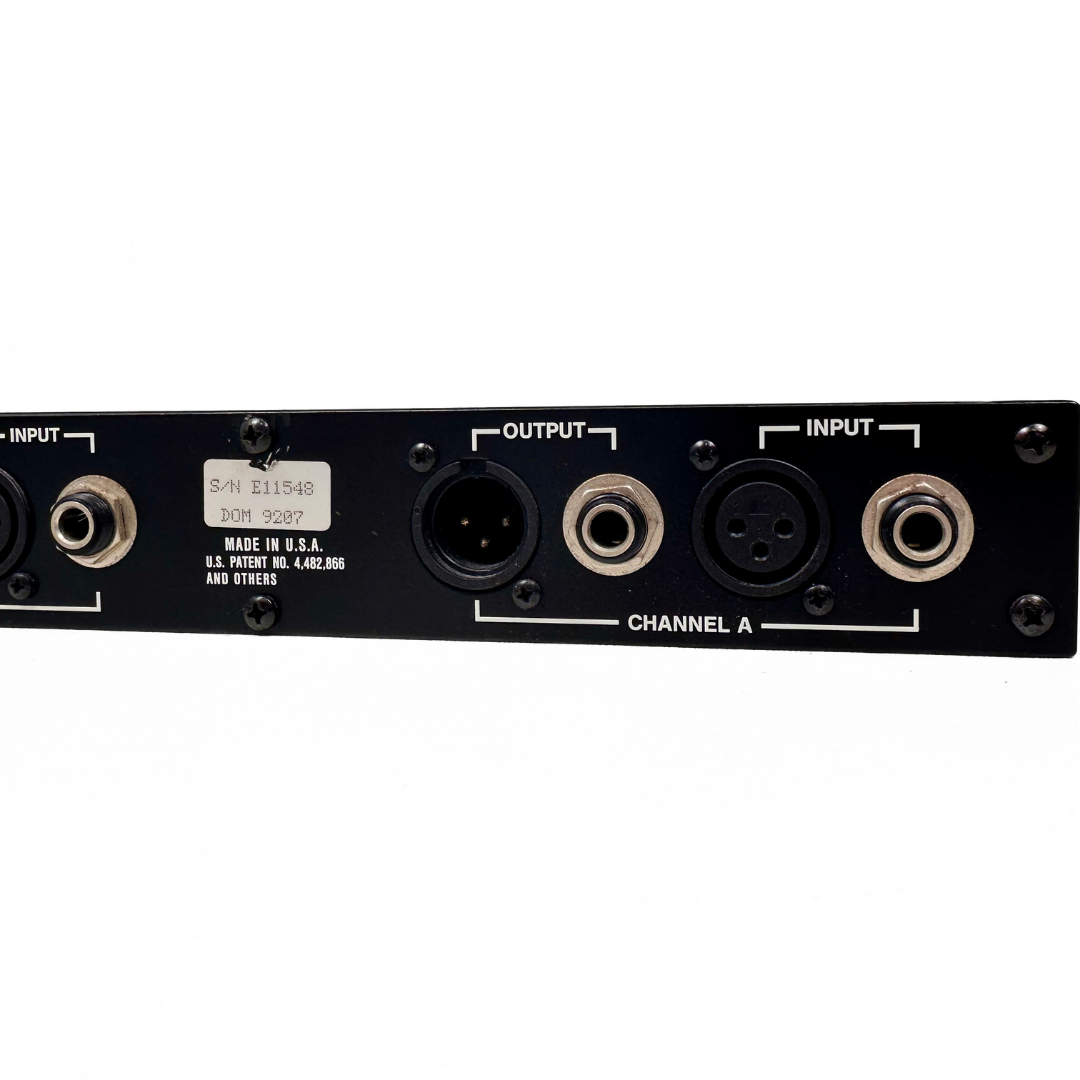

- Rear panel interface: XLR and 1/4" Tip-Ring-Slevve (Tip is hot)
- Dimensions: 34cm H x 43cm W x 18cm D. 1u single rack
- Weight: 2.7kg
