Important Information

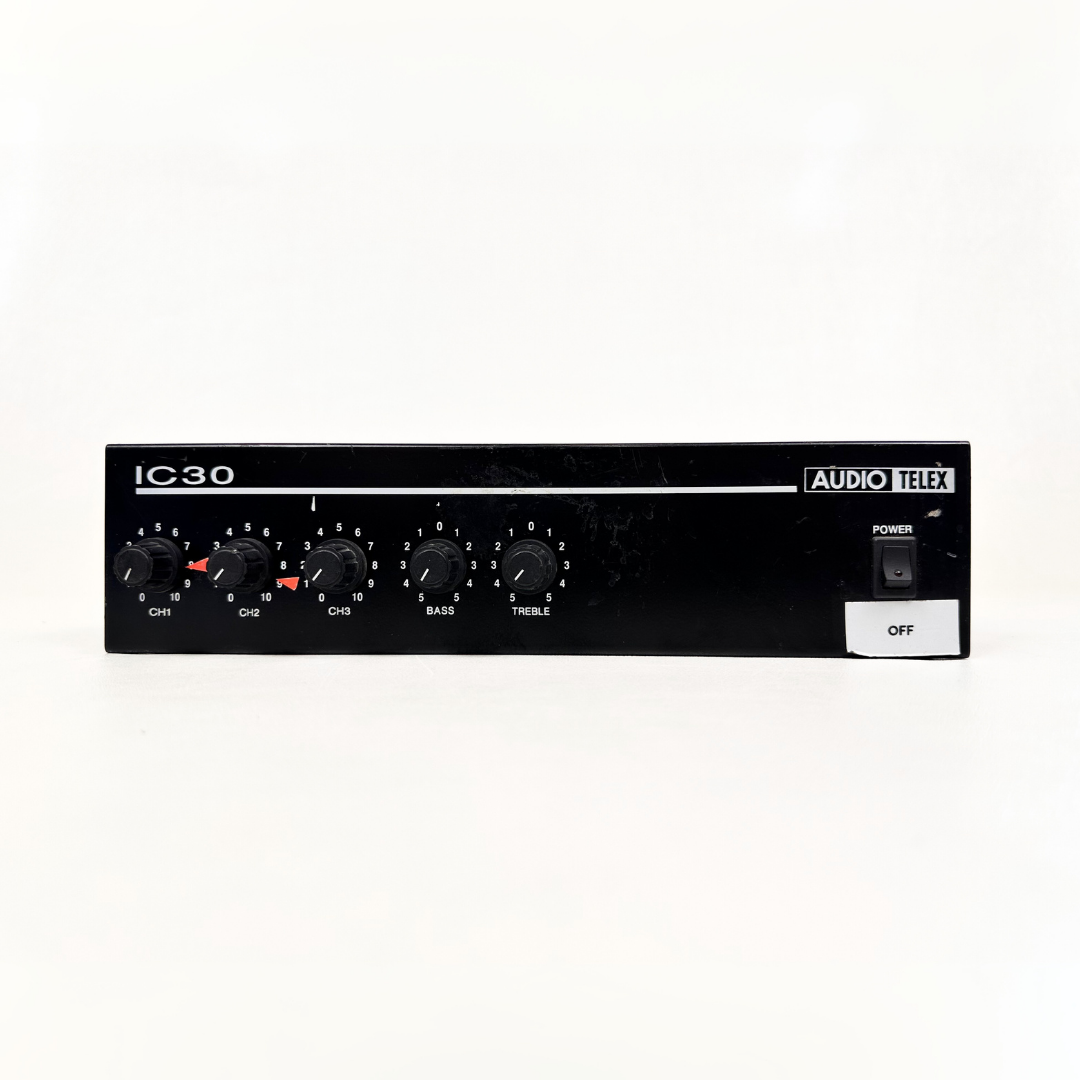

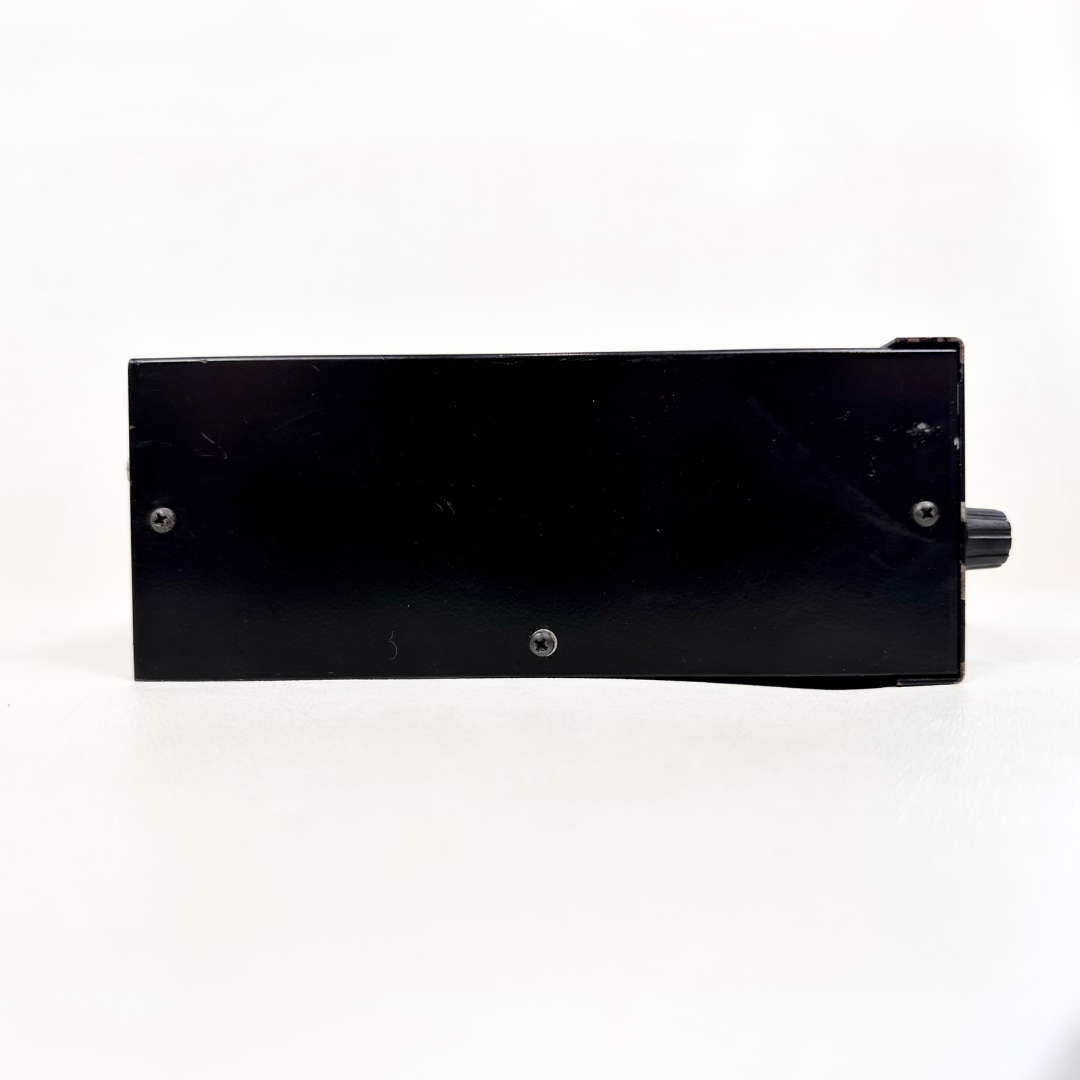

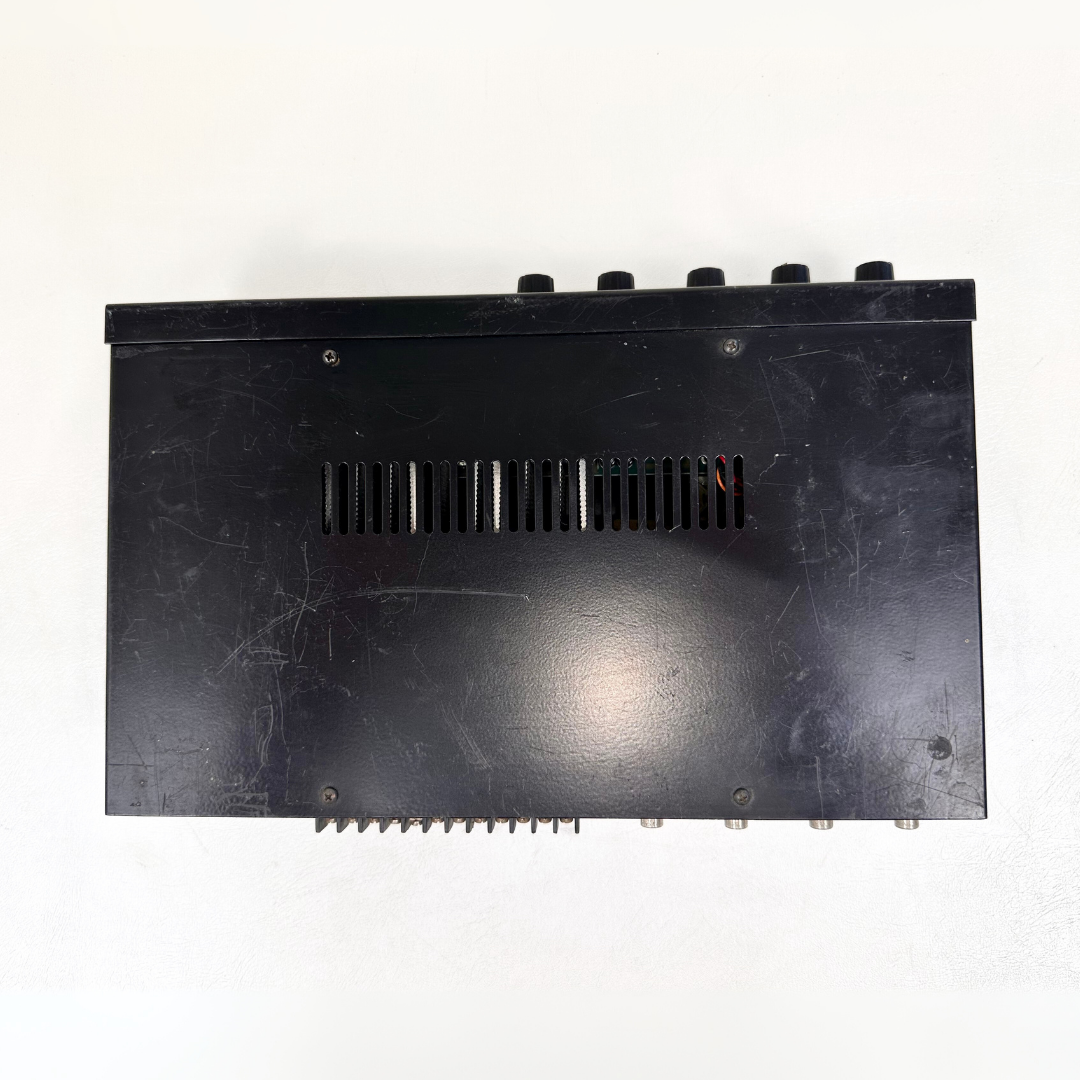

The IC30 is a 3-channel, 30 watt mixer amplilier designed for both AC ond 12 volt DC operation. The amplifier is a self-contained compoct unit of solid steel construction that is suitable for table or desk mounting.
The lC30 has three universal inputs, each with seperate level controls. Each chonnel will accept balanced or unbalonced microphone or a line/auxilory input. The unit has industry standard XLR microphone sockets and a single RCA Phono socket for each channel.

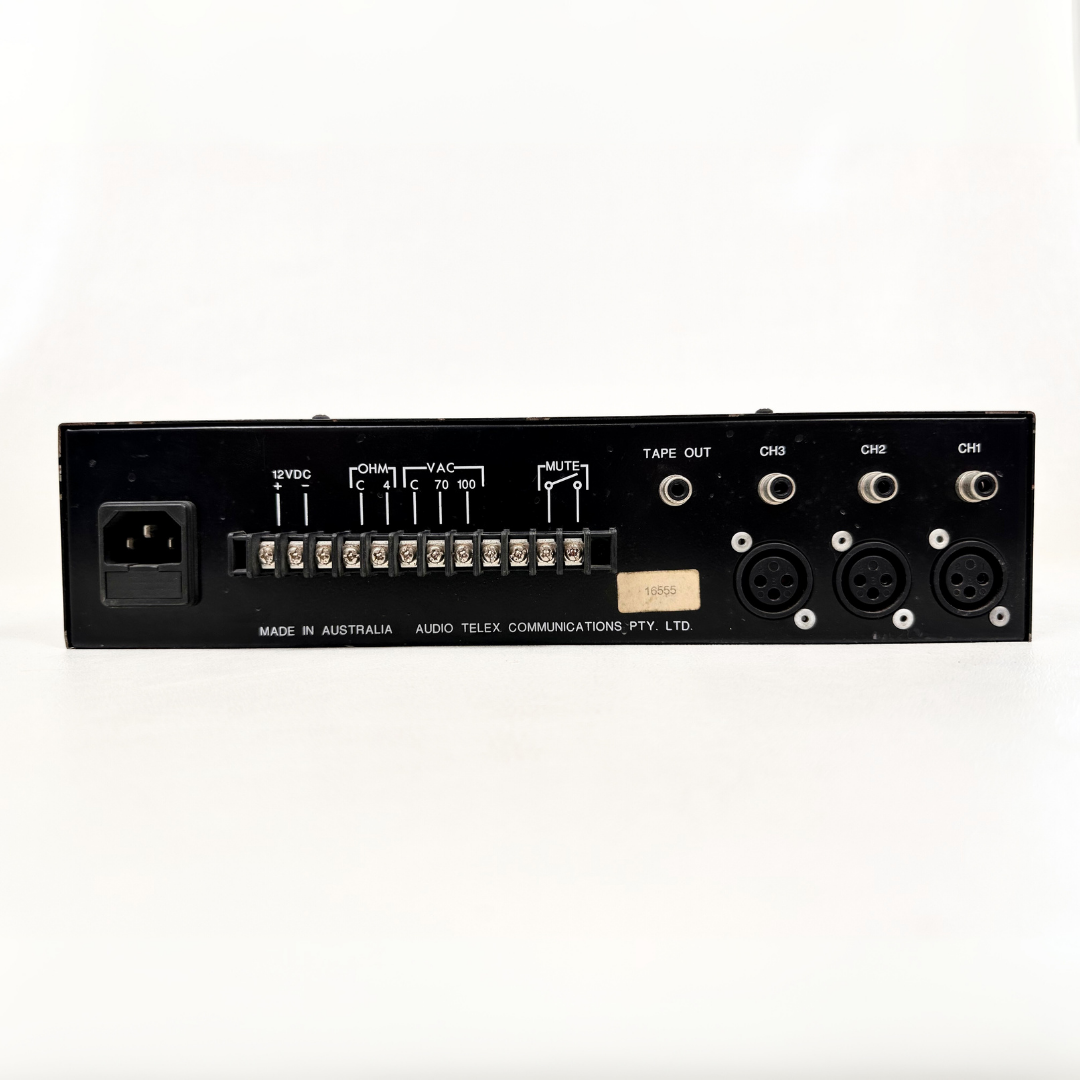

The lC30 features 100 volt, 70 volt & 4 ohm isolated transformer outputs. A tape recorder output by means of on RCA Phono socket is also provided.
The lC30 will accept the ATC54BB, an optional, plug in four-tone generator module. The ATC54BB connects to a 7-pin receptable inside the amplifier and provides Bell, Pre-announce, Chime, Alert tone (AS2220.1) ond Evacutate Tone (AS2220.1). Any of these tones can be activated from a simple contact closure which may be wired to the spare terminals on the rear of the amplifier.
The IC30 includes a multi-facility where channels 2 and 3 are muted when two terminals on the rear panel of the amplifer are shorted. Alternatively, an options plug-in VOX muting card (TX3010) can be used. With the TX3010 installed, signal on input with automatically mute inputs 2 and 3.
Internal current limiting protects the amplifer from overload and overdrive conditions.
BRAND: Audio Telex
BARCODE/UPC:
Serial Number: 16555
- Power Output: 30 watt RMS
- Maximum load: 330 Ohms @ I00 volts
- Frequency Response: 70Hz lskHz {+/-3dB)
- THD: 0.3% @ I kHz roled power adl 70 volts
- lnputs: Three mic/aux universla inputs with XLR female mic
- sockets ond RCA Phono aux sockets.
- Bass: 100Hz Boost +l2dB Cut l2dB
- Treble: 10kHz Boost + 9dB. Cut -9dB
- S/N Ratio: 6BdB with all controls at their centre postion
- Mic lnput Sensitivity: 1.5mV @ 200 Ohms
- Aux lnput Sensitivity: 75mV @ 47K ohms
- Speaker: 100, 70 volts, 4 ohms
- Tape: 400mV @ l0k ohms
- Controls: 3 input gain controls, 1 bass control, 1 treble control
- Metering Indicators: Power 'on' neon
- Protection: Overdrive protection
- Dimensions/weight: 76mm H x 303mm Wx 180mm D 8.9kg
- AC Power: 240v-50Hz. 110v 60Hz (special) 3-pin IEC connector
- DC Power: 12 volts
- Power Consumption: 60 watts (maximum)
