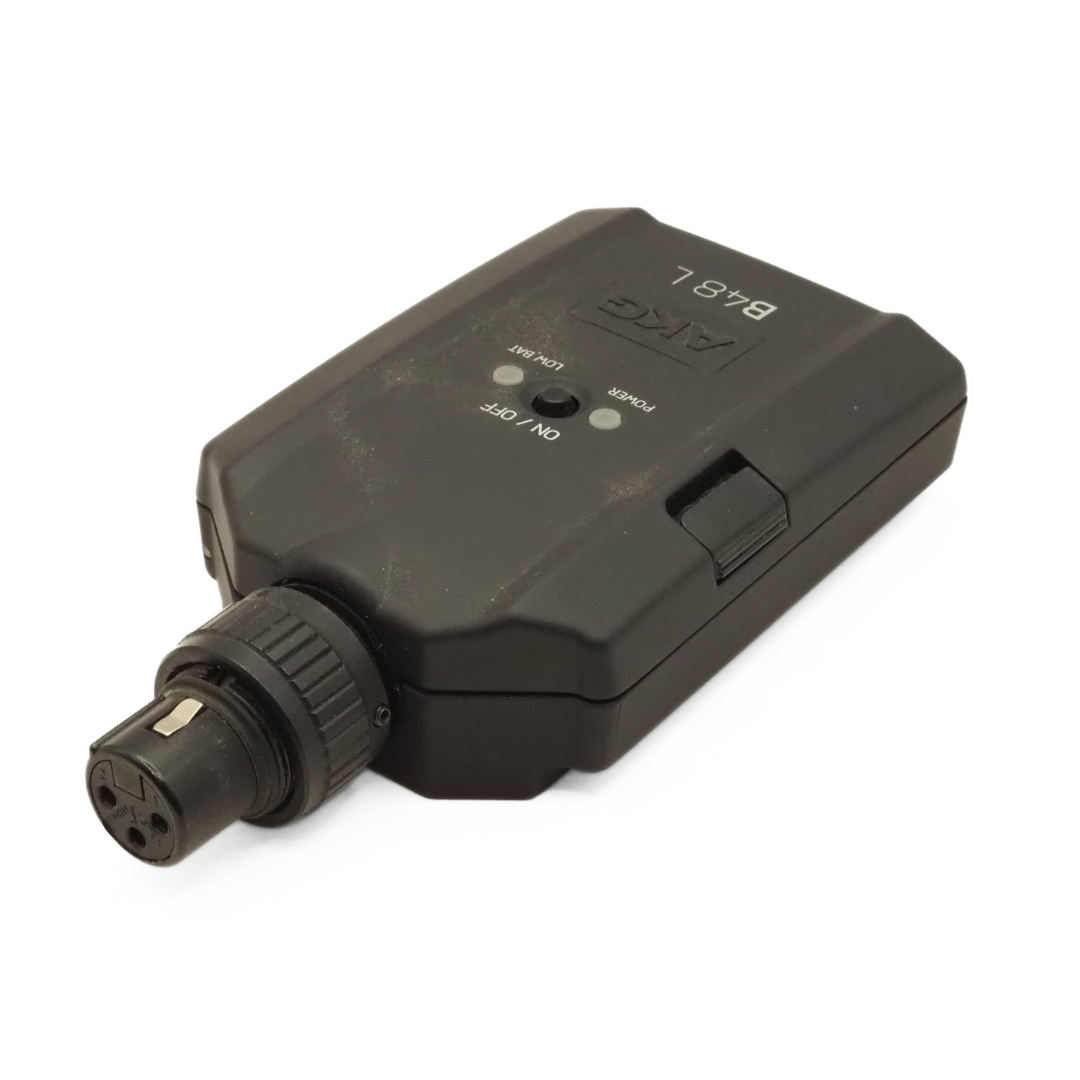

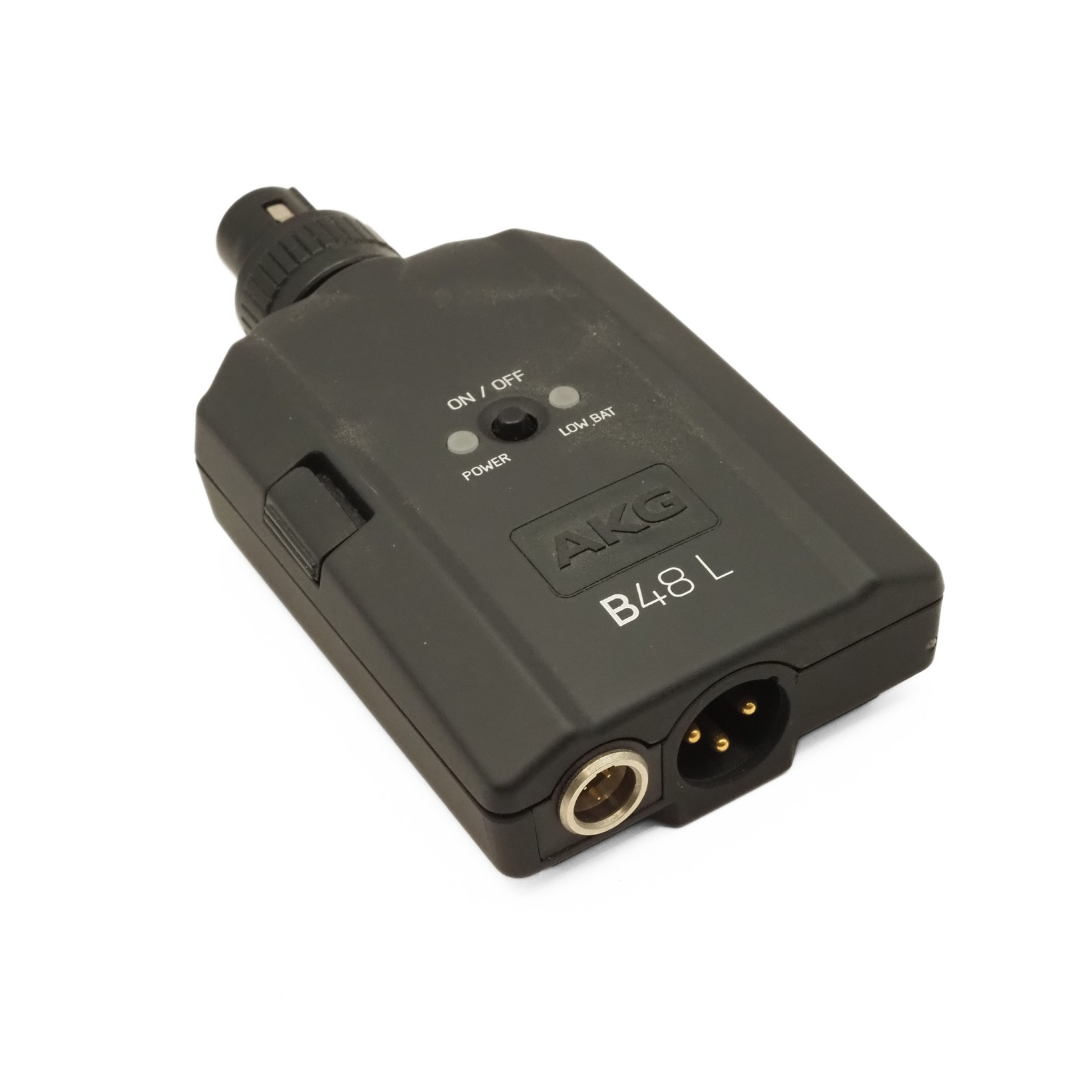

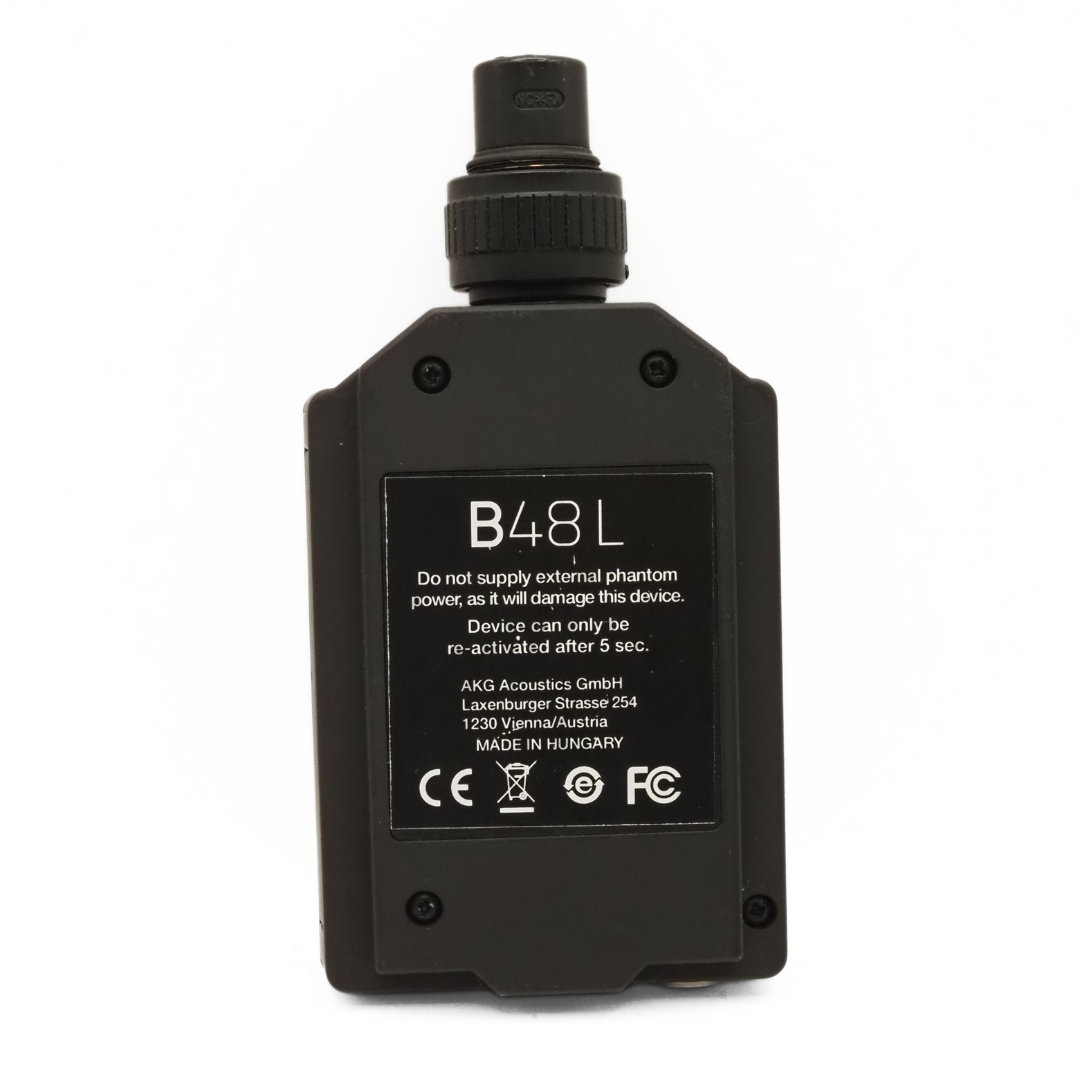

AKG B48L Battery-Powered Phantom Power Supply
AKG B48L Battery-Powered Phantom Power Supply
Condition: In great condition with very minor cosmetic wear. Box included, no power supply or other accessories included.
Photos shown are of the product on hand.
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
Key details
- 2x AA batteries
Overview
The B48 L is a battery-operated power supply for condenser microphones for applications when a condenser microphone is used but no phantom power from a mixer is available. The additional mini-XLR audio output and the included mini-XLR to mini-XLR connection cable support a direct connection to all AKG body-pack transmitters. The phantom power of the audio input supplies microphones with 48V and meet the P48 standard. The B48 L is a battery powered one channel phantom power supply for P48 condenser microphones. B48 L is designed to meet the demand of lowest noise level even in operation with high-end condenser microphones for professional applications in theater or touring applications.
Specs
| Audio frequency bandwidth | 20 - 24000 Hz |
|---|---|
| Gain | dB |
| Finish | Black |
| Audio Input Connector | 1x XLR 3-pin (f) audio input (48V/10mA) |
| Audio Output Connectors | 1x XLR 3-pin (m) audio output ; 1x mini-XLR (m) audio output for direct connection to AKG wireless body-pack transmitter |
| Power LED | Monitoring of P48 microphone power ; Green - Phantom power >42V ; Dark - Phantom power <42V |
| Low battery LED | Monitoring of battery power ; LR6, FR6 batteries - Operation time below 1 hour ; HR6 rechargeable batteries - Operation time below 2 hours |
| Battery | 2x AA size batteries (LR6, HR6, FR6), built in inverse-polarity protection |
| Noise Level | < 2µV |
| Operating Temperature | -10 to 50 °C (14 to 122 °F) |
| Length | 123 mm |
| Width | 65 mm |
| Height | 28.5 mm |
| Net Weight | 120 g |
| Serial number | 1947 |
