1980s Crumar Bit 01 Expander Rack Mounted Synthesiser
1980s Crumar Bit 01 Expander Rack Mounted Synthesiser
Condition: In fair condition with some cosmetic wear. No accessories included (case, power supply etc).
Photos shown are of the product on hand.
Ref: 31506
Serviced, repaired if needed, and tested by our techs
3 months electrical, 6 months structural warranty
On used gear, excluding misuse, neglect, unreasonable wear and service items like strings. On top of your rights under consumer law.
Afterpay available on this one
Interest-free layby in store (20% deposit, up to 3 months) · Afterpay up to A$4,000, in store and online · Zip above A$4,000
7-day change-of-mind returns
From the day you receive it. A 20% restocking fee applies, and you pay return postage. Not for strings or mouth-played items. Faulty? No fee, and we pay postage. Returns policy
Pickup available at 16 Chrome Street
Usually ready in 2 hours
See it in person first? Ask to try it at the shop. Quote Ref: 31506.
Overview
The Crumar Bit 01 Expander Rack Synthesiser delivers a warm, vintage analogue tone that is a super-rare find. Perfect for synth enthusiasts who crave hands-on control and rich, characterful sound. A true collector’s piece from the golden era of 80s synthesis, this rack unit is ideal for musicians, producers, and vintage gear lovers seeking a historically significant, MIDI-capable Italian polysynth.
Specs

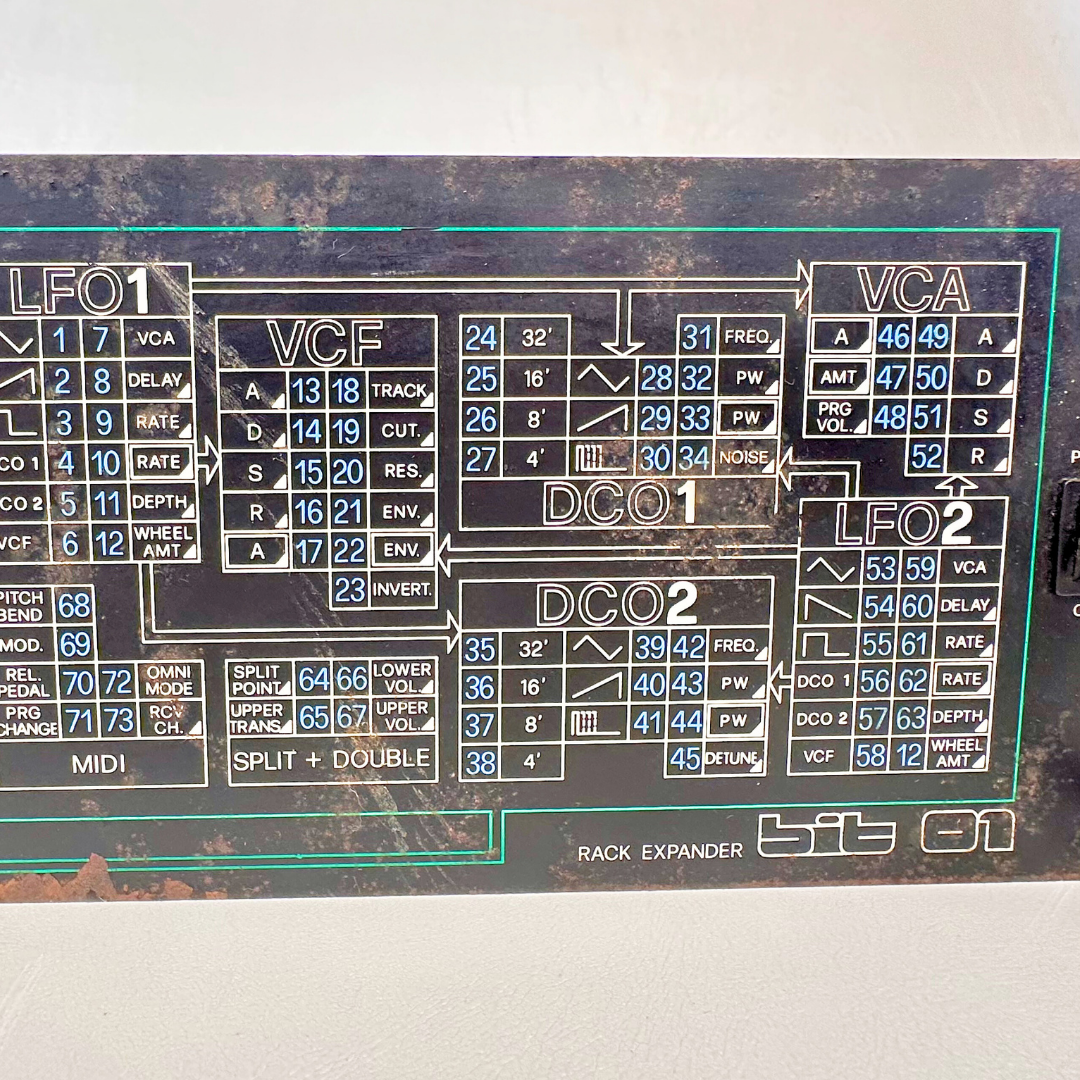

- 6‑voice programmable polyphonic analog synthesizer in a 3U rack format; rack version of the Bit‑99 keyboard synth
- Oscillators: Two digitally controlled analog DCOs per voice (triangle, sawtooth, pulse; noise available on DCO 1)
- Filters & Envelopes: 24 dB resonant low-pass VCF with dedicated VCF and VCA ADSR envelopes per voice
- Modulation: Dual LFOs per voice. Waveforms include triangle, ramp (up-saw), and square
- Performances & Memory that stores up to 99 patches; 75 single patches, and 24 split/double performance presets
- Split/Layer Capability that offers Upper/Lower zones with separate audio outputs—great for layering or splitting sounds

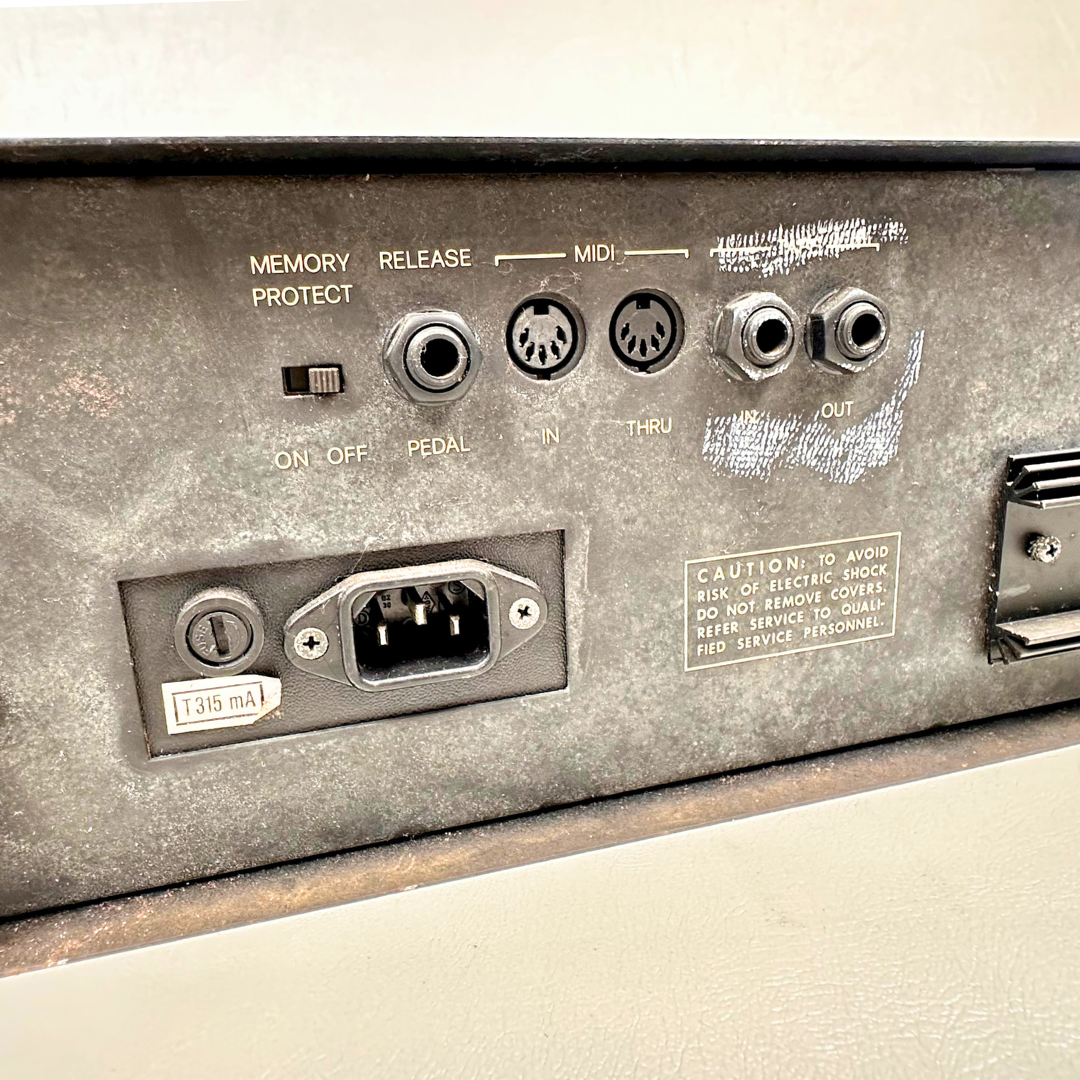

- MIDI In (no MIDI Out) with support for all 16 channels, modulation, pitch bend, and patch changes
- Optional parameter editing via front‑panel interface and cassette tape backup (no MIDI patch dumps)
- Released 1985–88, replacing the Bit‑One and preceding the Bit‑99 keyboard version; designed by Crumar, with Mario Maggi’s involvement in the design lineage

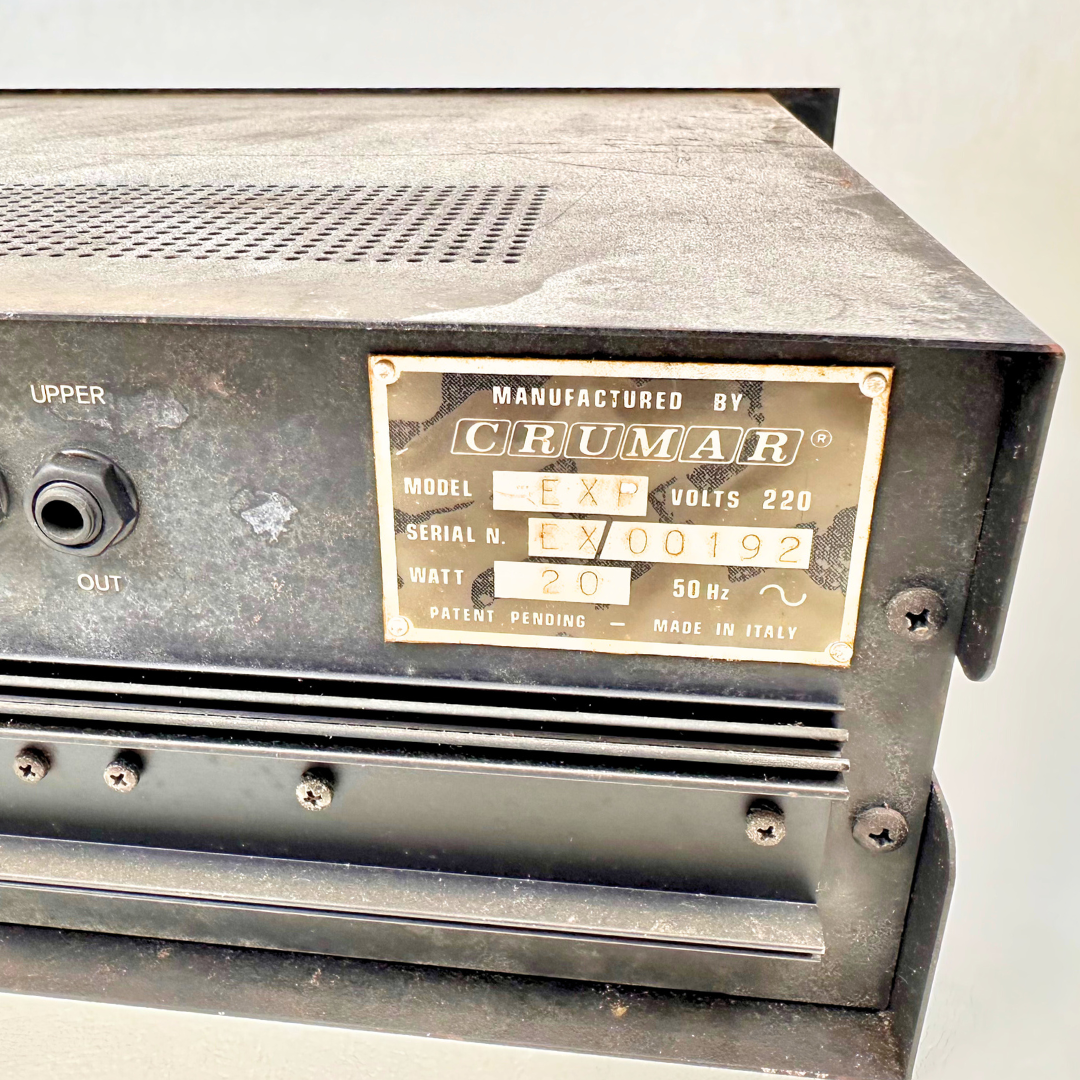

- Serial number: EX00192
